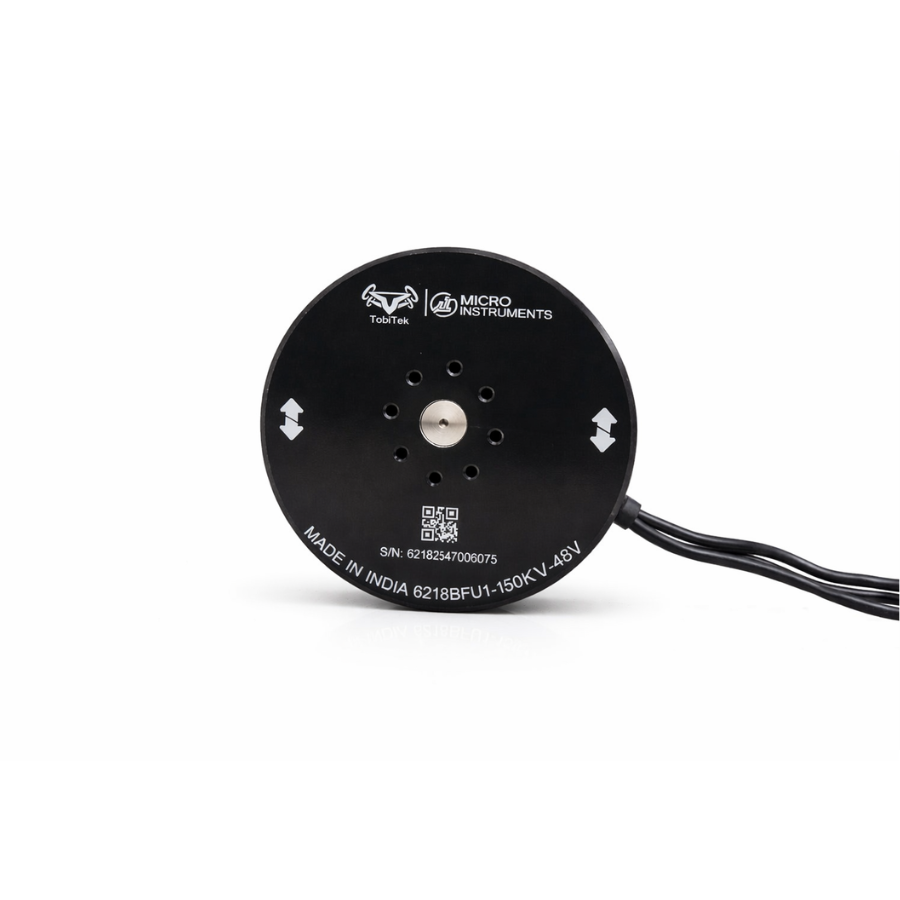

TOBITEK BFU1(6218) BLDC Motor
Description:
The TOBITEK BFU1 (6218) BLDC Motor is a brushless DC motor designed for UAV and drone propulsion applications. Its brushless design supports smooth operation, efficient power delivery, and precise speed control. It is intended for integration into compatible multirotor platforms, where motor performance depends on the selected propeller, battery voltage, and electronic speed controller (ESC).
Heavy-lift agricultural motor variant with lower KV for efficiency and stable long-duration performance.
Key Features:
- Lower KV rating for higher efficiency
- Supports heavy agricultural payloads
- Reliable and rugged build
Applications:
- Agriculture Drones
- Delivery Drones
Specifications:
| Category | Specification | Details |
|---|---|---|
| System | Maximum Thrust | 7.5 kgf |
| System | KV Rating | 150 KV |
| System | Total Weight | 406 g |
| System | Take-off Weight | 5 kg |
| System | Voltage Range | 12S |
| Motor | Stator Size | Ø62 × 18 mm |
| Motor | Motor Size | Ø70 × 38.85 mm |
| Motor | Maximum Power | 2400 W |
| Motor | Maximum Current | 60 A |
| Motor | Efficiency | TBD |
| Motor | Temperature Range | TBD |
| Motor | Bearing Type | TBD |
| Motor | Magnet Material | TBD |
| ESC | Model | Hobbywing X6 ESC |
| ESC | Voltage Range | 12S |
| ESC | Continuous Current | TBD |
| ESC | Burst Current | TBD |
| ESC | Weight | TBD |
| Propeller | Model | 2480 |
| Propeller | Weight | 105 g |
Attachment:
https://cdn.zbotic.in/wp-content/uploads/2026/10/BFU1-6218-datasheet.pdf
Pacakge Includes:
1xTOBITEK BFU1(6218) BLDC Motor
Best Drone Batteries in India 2026: LiPo vs Li-Ion Compared
Your drone's battery is the most critical — and most often misunderstood — component in any build. Choose...
Read More →
FPV Drone Range Extender: Booster Amplifiers for Video TX Explained
Table of ContentsUnderstanding FPV Video Range LimitationsHow Video TX Booster Amplifiers WorkTypes of Range Extension SolutionsAntenna Selection for...
Read More →
Drone Propeller Size Guide: How to Choose the Right Props
Choosing the right drone propeller is one of the most critical decisions when building or upgrading a drone....
Read More →Technical Specifications
| Brand | TOBITEK |
|---|---|
| SKU | AI5168 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TOBITEK BFU1(6218) BLDC Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine TOBITEK product sourced from authorized channels
