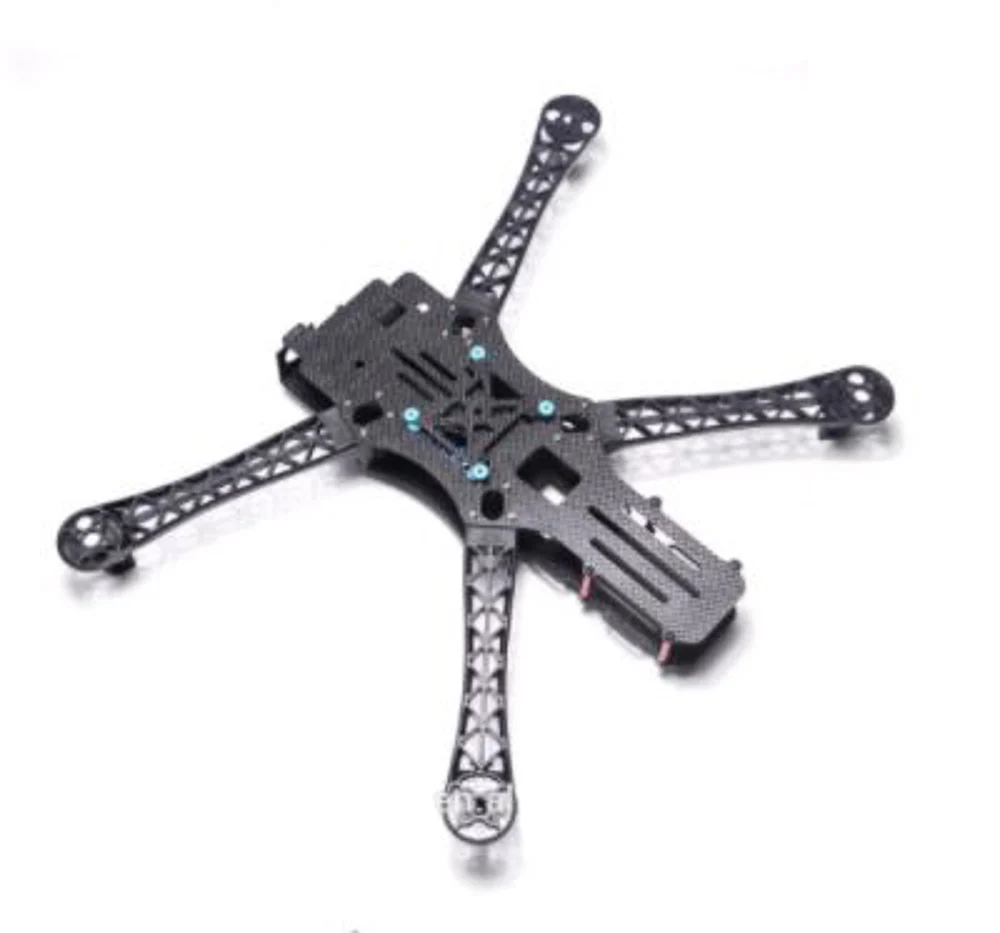

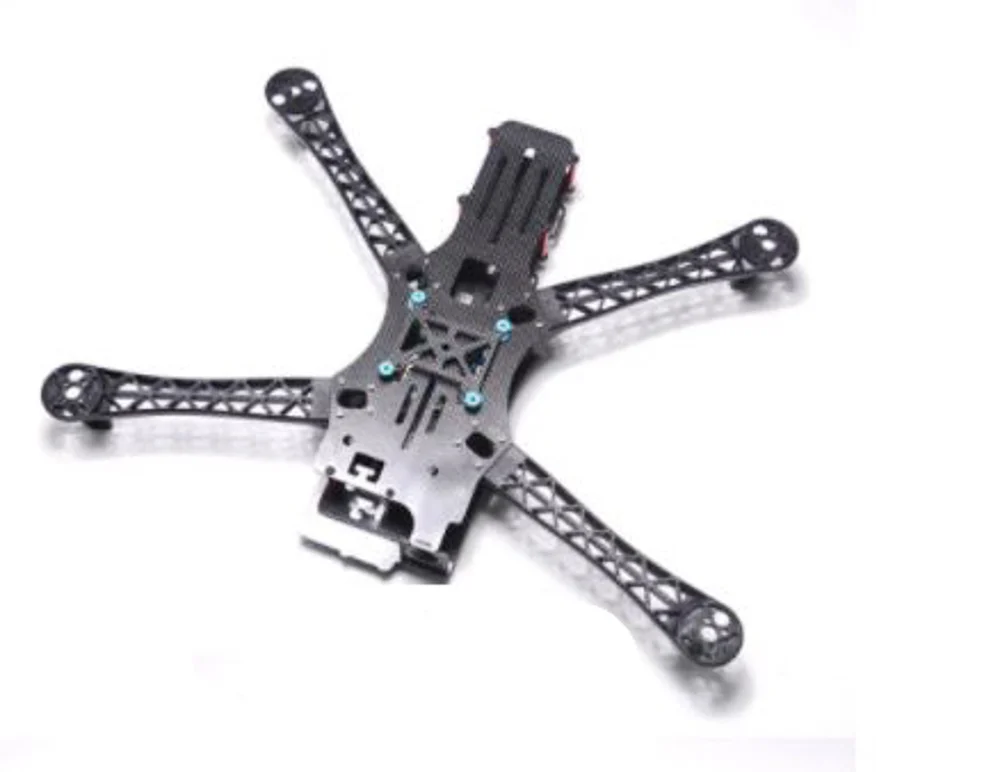

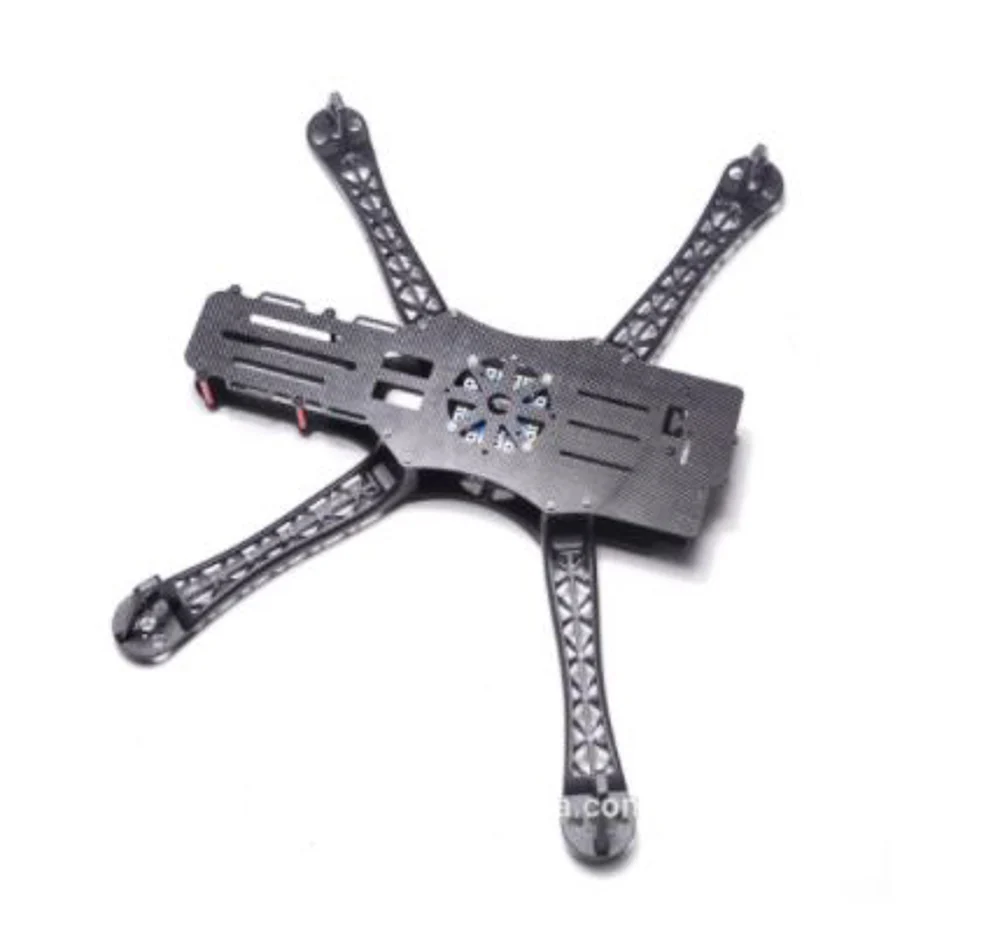

This is a TBS 500 Carbon fiber frame KIT .
This quadcopter frame with a wheelbase of 500mm is specially intended to provide lots of mounting space. It is well known for aerial video shooting and photography as it has a special Gimbal housing provision at the front. The TBS quadcopter frames outperform similar quads in terms of FPV range and video link quality.
It features a battery plate in the tail position. These large-sized quadcopter frames equip larger motors and batteries increasing the power capabilities of your multirotor This advantage results in longer flight time, hence they are perfect for your aerial videography.
It comes with a PDB(power distribuition board) to power up the Quadcopter. And is also designed to fit standard flight controllers/PDB, Fpv camerasand also FPV transmitters and anrennas
The frame has a wheelbase of 500mm and weighs around 400gm. It features a mounting tab at the rear end on the bottom plate of the mainframe for mounting Batteries.
The added lift capacity makes this frame ideal for carrying larger payloads such as camera systems and Gimbal
The frame comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the arms to the mainframe is done within a few minutes. Also, it requires one size of bolt for the overall build and thus a unique one-size hex wrench which makes hardware mounting very convenient. This feature of TBS Quadcopter Frames makes them so easy to assemble and disassemble.
Features :
- Made by advanced engineering material, super strong & smooth
- The arm equips support ridges for better and faster forward flight.
- Features pre-threaded brass sleeves.
- The large mounting tab for camera mounting.
Specification :
| Wheelbase (mm) | 500 |
|---|---|
| Weight (gm) | 400 |
| Arm Size (L x W) mm | 220 x 40 |
| Motor Mounting Hole Dia. (mm) | 3 |
| Shipping Weight | 0.43 kg |
| Shipping Dimensions | 22 × 9 × 4 cm |

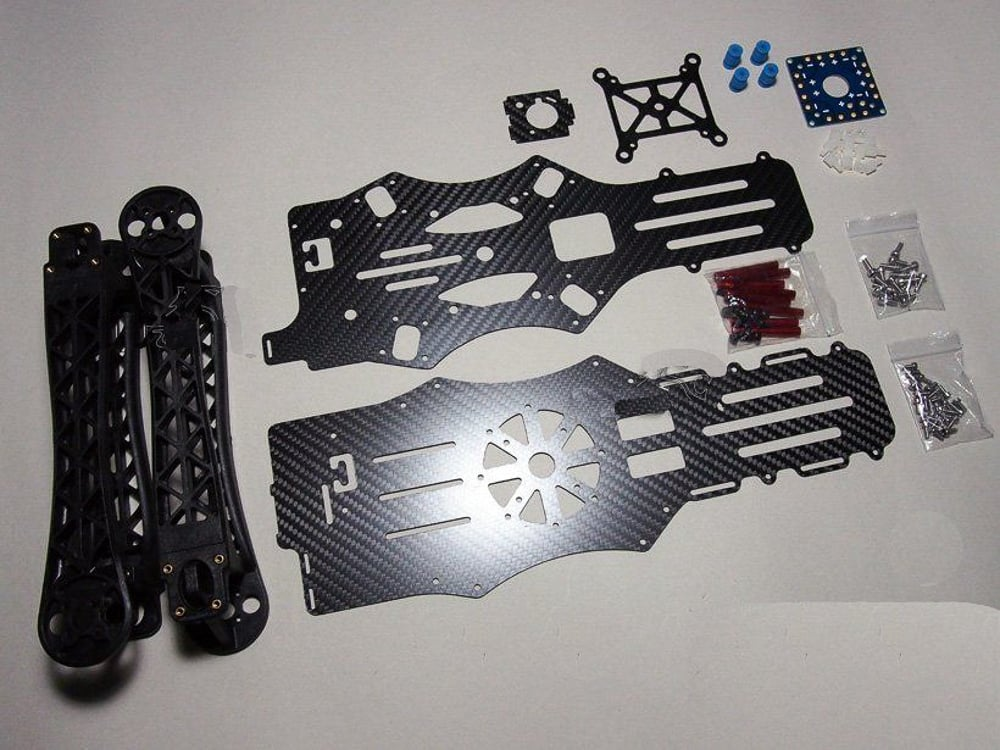

Package Includes :
TBS 500 Carbon Fiber Vesion Quadcopter Frame arm:Black Overview
The TBS 500 Carbon Fiber Version Quadcopter Frame arm: Black is a 500 mm wheelbase kit designed for professional multirotor builds. Constructed from high-strength carbon fiber and polyamide-nylon, it provides durable support for aerial videography rigs with an integrated gimbal mount and tail battery plate.
Key Features of TBS 500 Carbon Fiber Vesion Quadcopter Frame arm:Black
- 500 mm wheelbase offers ample space for full-size camera gimbals and accessories
- Carbon fiber and polyamide-nylon construction for a lightweight yet robust frame (400 g)
- Pre-drilled motor mounting holes (3 mm diameter) compatible with M3 hardware
- Front gimbal housing provision for secure mounting of brushless camera stabilizers
- Rear battery plate supports larger LiPo packs to extend flight time
- Fast shipping across India when ordered from Zbotic
Applications and Use Cases
- Professional aerial cinematography with full-size DSLR or mirrorless cameras
- FPV freestyle flying requiring a stable, long-wheelbase platform
- Surveying and mapping tasks with multi-sensor camera payloads
- Industrial inspections where extended battery life and vibration isolation are critical
- Custom multirotor builds featuring high-torque brushless motors
How to Use TBS 500 Carbon Fiber Vesion Quadcopter Frame arm:Black
Begin by assembling the four carbon fiber arms onto the central polyamide-nylon body using the supplied screws. Attach your chosen motors via the 3 mm mounting holes, secure the gimbal to the front housing, and fix the battery pack onto the tail plate. Finish wiring your flight controller and ESCs before mounting propellers for your first test flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the total weight of the TBS 500 frame?
The complete carbon fiber and polyamide-nylon assembly weighs approximately 400 grams, making it lightweight yet sturdy for aerial videography setups.
Does this frame include a gimbal mount?
Yes, the TBS 500 features a dedicated front gimbal housing designed to accommodate standard brushless camera stabilizers for smooth footage.
What size motor mounting holes are provided?
The arms come pre-drilled with 3 mm diameter holes suitable for M3 screws, compatible with most brushless motor mounting plates.
