This is a F330 Glass Fiber Mini Quadcopter Frame 330mm.
If you are a beginner and want to learn how to build a drone on your own, you have to understand first what a drone frame is and then determine which motor, propeller, and other will be used with this frame with this kept in mind The F330 drone frame is the best for you.
This F330 Quadcopter Frame is made from Glass Fiber which makes it tough and durable. They have the arms of ultra-durable Polyamide-Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight.

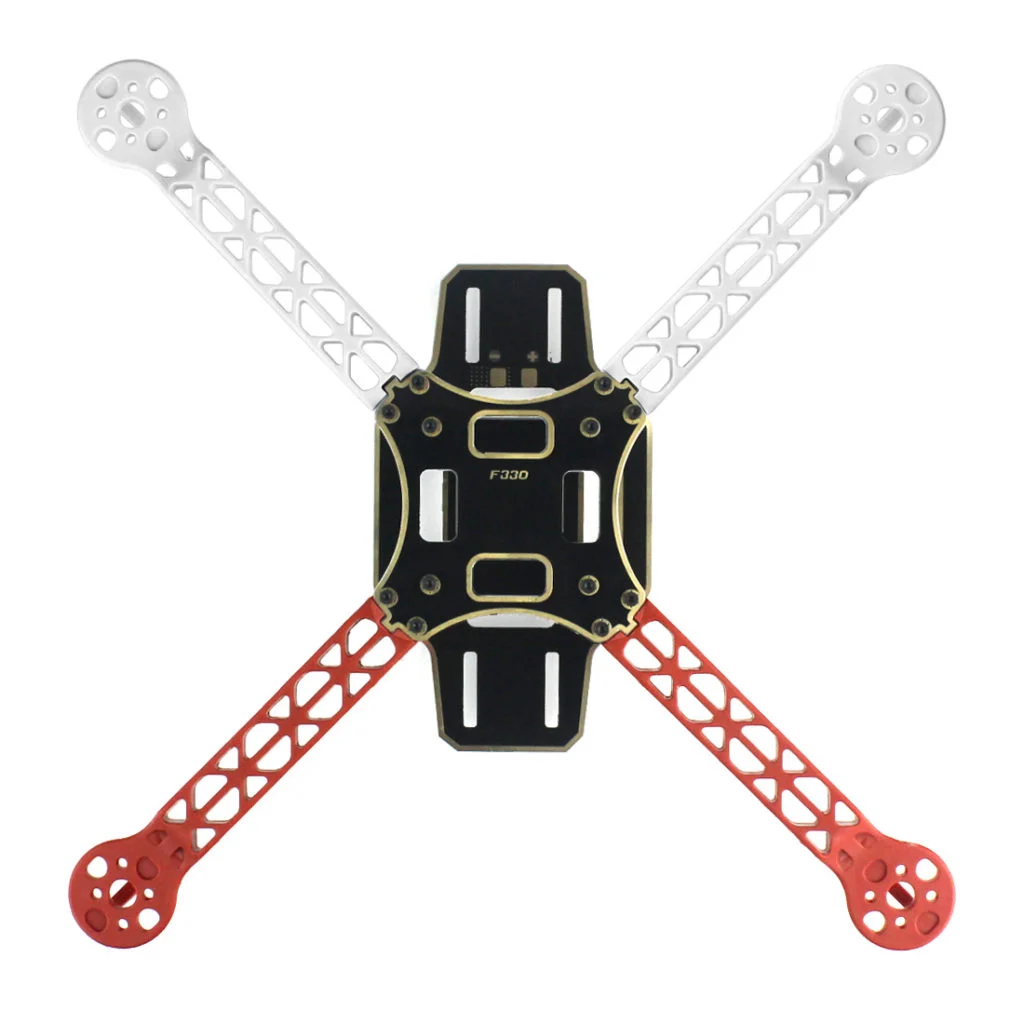

The arms of the frame are colored as 2 red and 2 white which can guide you to fly in the right direction.

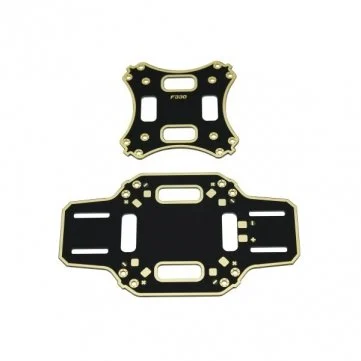

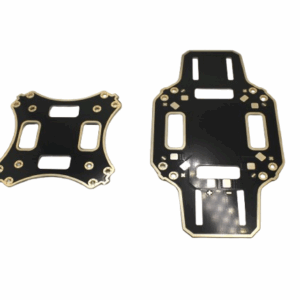

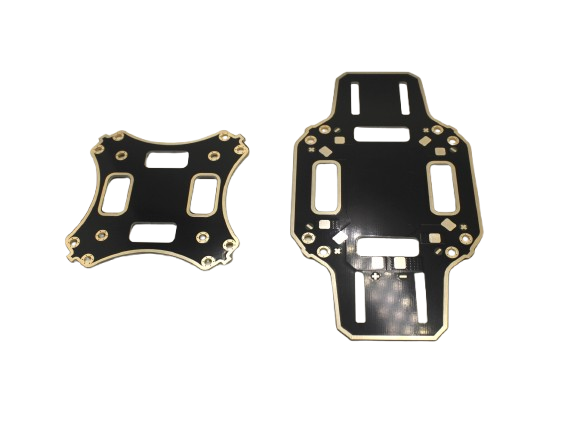

The F330 Glass Fiber Mini Quadcopter Frame 330mm is strong, light, and has a sensible configuration including a PCB(Printed Circuit Board) with which you can directly solder your ESC s to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB(Power Distribuition Board) and makes the mounting clean and neat. The F330 Quadcopter Frame is a highly flexible frame during the mounting of various components like flight controller battery, etc.
The frame has a wheelbase of 330mm and weighs around 170gm. It features mounting tabs at the front and rear end on the bottom plate of the mainframe for mounting cameras and other accessories
It comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the arms to the mainframe is done within a few minutes. Also, it requires one size of bolt for the overall build and thus a unique one-size hex wrench which makes hardware mounting very convenient. This feature of the Q450 Quadcopter Frame makes them so easy to assemble and disassemble.
Features :
- Made by advanced engineering material, super strong & smooth
- Easy to assemble and disassemble
- The frame is tough and durable
- The main glass fiber frame has good strength
- The arm equips support ridges for better and faster forward flight
- Features pre-threaded brass sleeves
- In-built power distribution board
Specification :
Model | F330 |
---|---|
Material | Glass Fiber + Polyamide Nylon |
Wheelbase (mm) | 330 |
Arm Size (L x W) mm | 155 x 34 |
Motor Mounting Hole Dia. (mm) | 3 |
Weight (gm) | 160 |
Shipping Weight | 0.18 kg |
Shipping Dimensions | 18 × 9 × 3 cm |

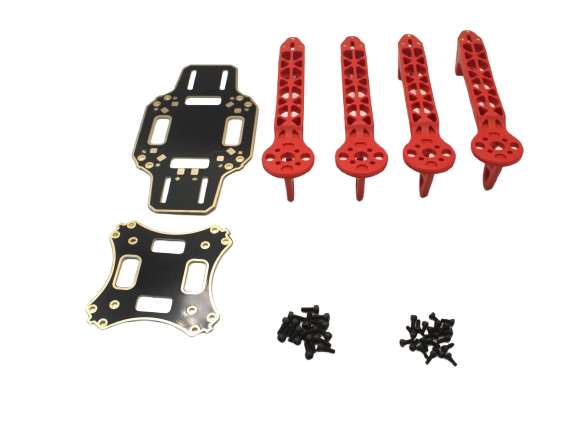

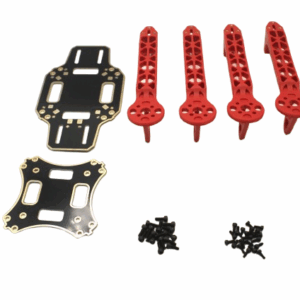

Package Includes :
1 x F330 quadcopter Frame(Top and Bottom) with Integrated PCB
4 x F330 arms (Red+White)
2 x Accessories set
