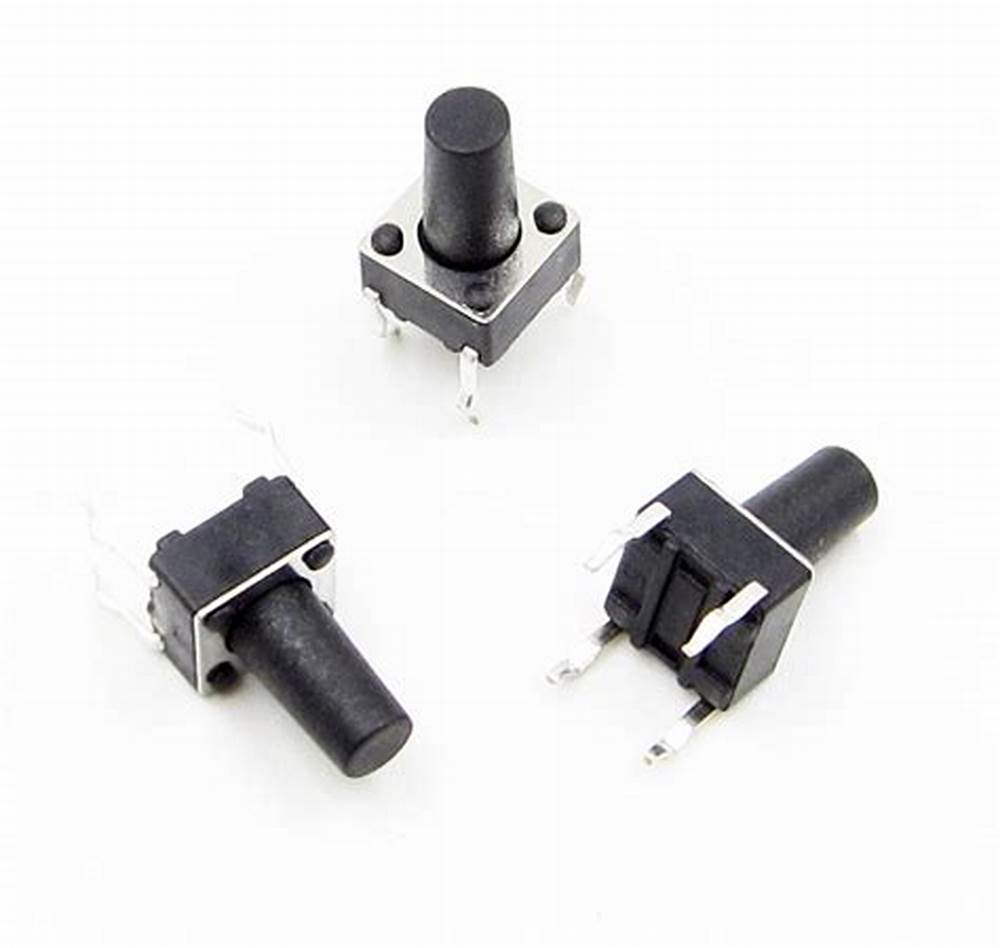

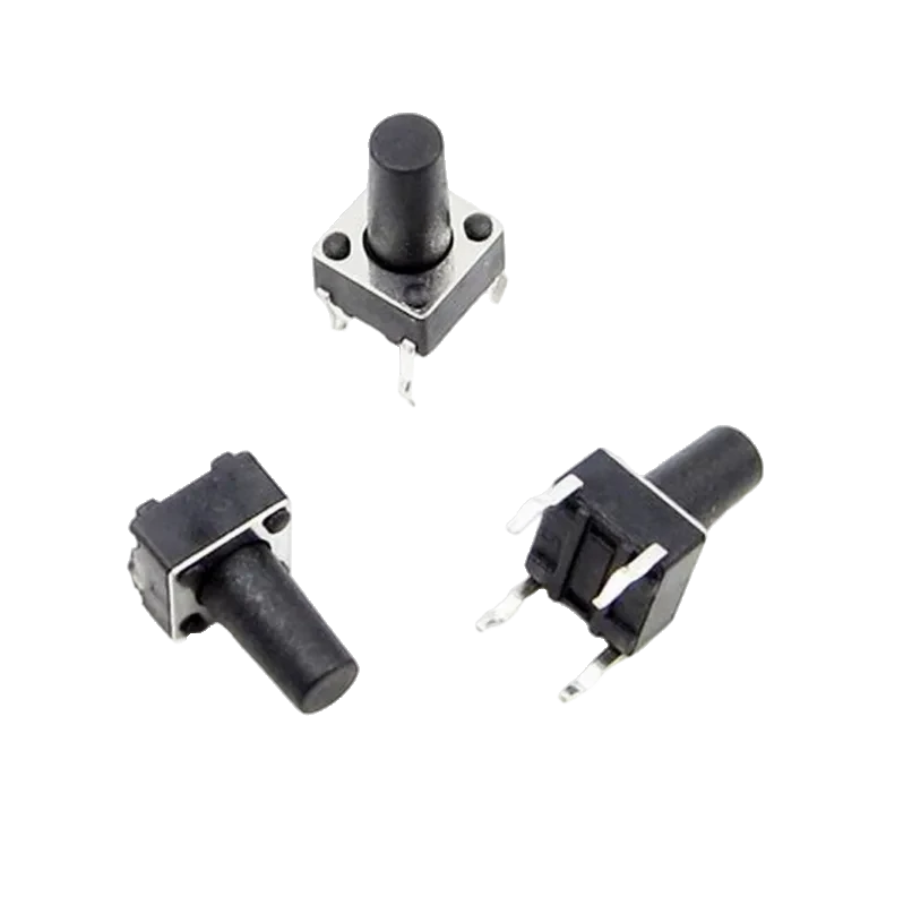

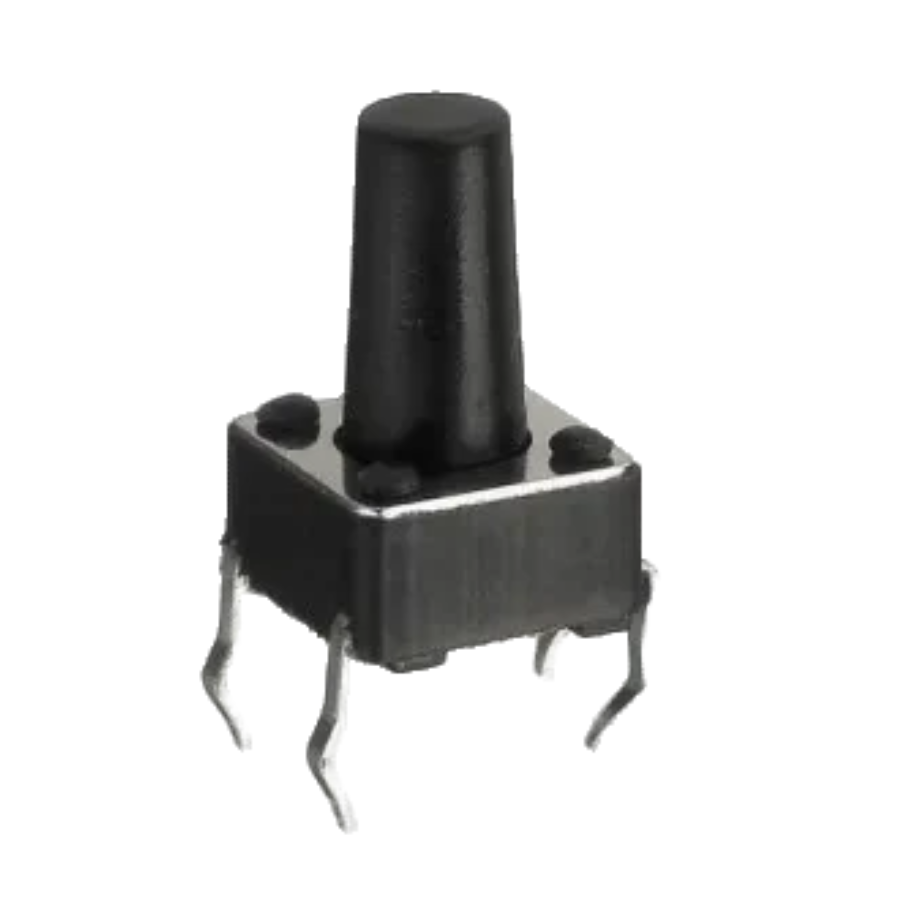

Tactile Push Button Switch 6x6x14MM
6x6x14mm Tactile 4 Pin Push Button Switch is widely used as a standard input button on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed, they are momentarily closed and complete the circuit.
This tact switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.
Features:
- Through-hole design.
- High operating force (1.5N or 2.5N) suited to automotive equipment requirements.
- The long life of 300,000 cycles realized despite the high operating force.
- Middle stroke (1.05mm)
- Used in the fields of electronic products, household appliances and more.
-
This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.
-
High precision mechanism design offers acute operation and long service life.
-
Compact and lightweight, easy to carry and dismantling.
-
Good electrical conductivity.
Specifications:
| Operating Voltage (VDC) | 12 |
| Max. Operating Current (mA) | 50mA |
| On/Off Function | Push to ON |
| Switch Type | Momentary |
| Contact Type | Through-hole |
| Contact Material | Brass |
| Contact Resistance | 50mΩ |
| Insulation Resistance (MΩ) | 100 |
| Operating Temperature Range (°C) | -20 to 70 |
| Operation Force | 1.56 +/- 0.5 N |
| Operation Stroke | 0.25+0.2/-0.1mm |
| Body Material | Plastic |
| Mech. & Electrical Lifecycle | 50000 |
| Protection Standard | IP65 |
PACKAGE INCLUDES
1 X Tactile Push Button Switch 6x6x14MM(Pack of 20)
Tactile Push Button Switch 6x6x14MM Overview
The Tactile Push Button Switch 6x6x14MM is a compact, through-hole 4-pin momentary switch designed for precise input control on PCBs and breadboards. With a 1.05 mm stroke and options for 1.5 N or 2.5 N actuation force, it provides reliable tactile feedback for electronic prototypes, automotive panels, household appliances and more.
Key Features of Tactile Push Button Switch 6x6x14MM
- Through-hole design with 4 pins for secure PCB mounting or breadboard prototyping
- Available actuation forces: 1.5 N or 2.5 N to suit light touch or automotive-grade requirements
- Middle stroke of 1.05 mm for consistent tactile “click” feedback
- Long mechanical life of up to 300,000 cycles even under high operating force
- Waterproof, oil-proof and anti-pollution construction with anti-static interference protection
- Reliable dome contact technology ensures accurate operation and contact closure
- Compact 6×6×14 mm size and lightweight body for space-constrained designs
- Fast shipping from Zbotic: ships within 24 hours with full tracking
Applications and Use Cases
- PCB-mounted input buttons for microcontroller and development boards
- Prototyping on solderless breadboards for temporary or experimental circuits
- Control interfaces in automotive equipment and in-dash modules
- User controls in household appliances like coffee makers and thermostats
- Push-to-talk or menu navigation buttons in telecommunications devices
- Audio/visual peripherals and testing equipment requiring precise tactile feedback
How to Use Tactile Push Button Switch 6x6x14MM
Insert the 4 pins into the PCB through-holes or align them with breadboard rails for temporary setups. Solder each pin securely if using PCB mounting, or press the switch gently into a breadboard. Wire one side to ground and the opposite pins to your input line; pressing the switch will momentarily close the circuit for clean on/off signal control.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What actuation force options are available?
The switch comes in two versions: 1.5 N for lighter tactile response and 2.5 N for higher-force requirements such as in-vehicle controls.
Can I mount this switch on a solderless breadboard?
Yes. The 6×6 mm pin spacing fits standard breadboards, allowing quick prototyping without soldering. For permanent installations, solder the pins onto a PCB.
How durable and resistant is the switch?
This switch is rated for up to 300,000 actuations and features waterproof, oil-proof, anti-pollution materials and anti-static interference protection for long service life in harsh environments.
Technical Specifications
| Dimensions | 6x6x14mm |
|---|---|
| Package Quantity | 6 pcs |
| SKU | AI3996 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Tactile Push Button Switch 6x6x14MM (Pack of 20) is a versatile plastic push button switch used across a wide range of applications including breadboard prototyping, control panels, toys and gadgets, appliance interfaces, and PCB mounting.
Common use cases:
- Adding user input to an Arduino project
- Building a game controller
- Prototyping a product interface on a breadboard
This product is ideal for electronics students, hobbyists, and prototype builders.
Technical Tip: Use a 10K pull-down resistor with push buttons connected to microcontroller inputs to prevent floating pin issues.
