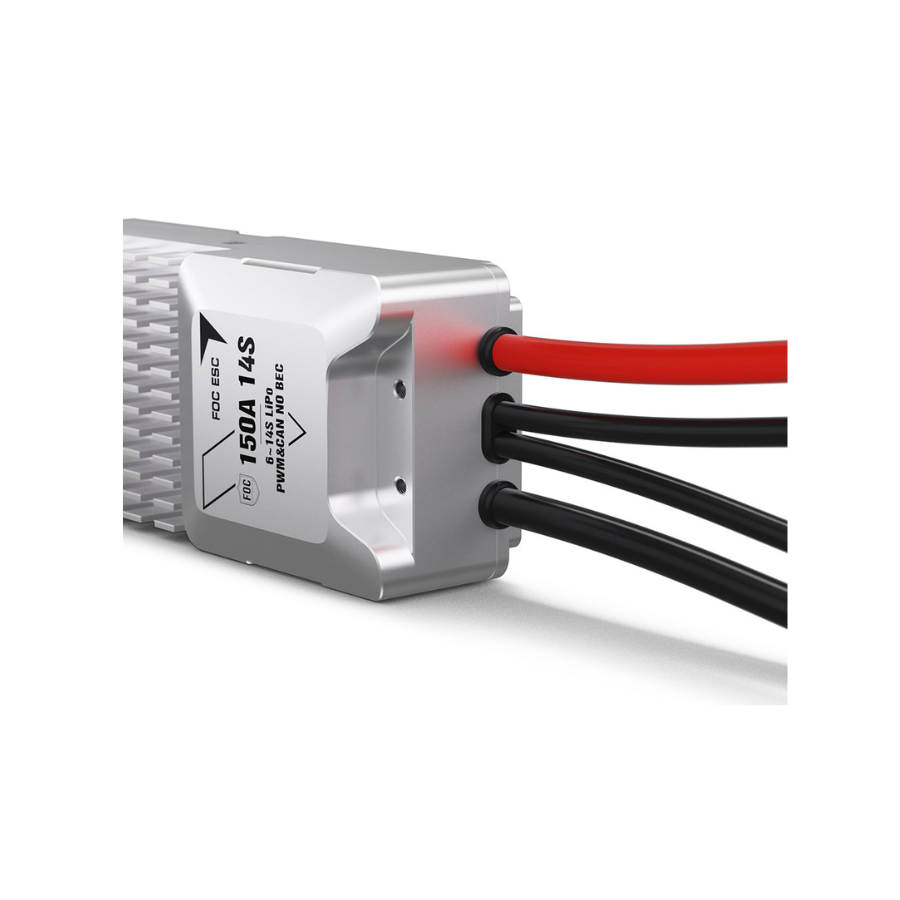

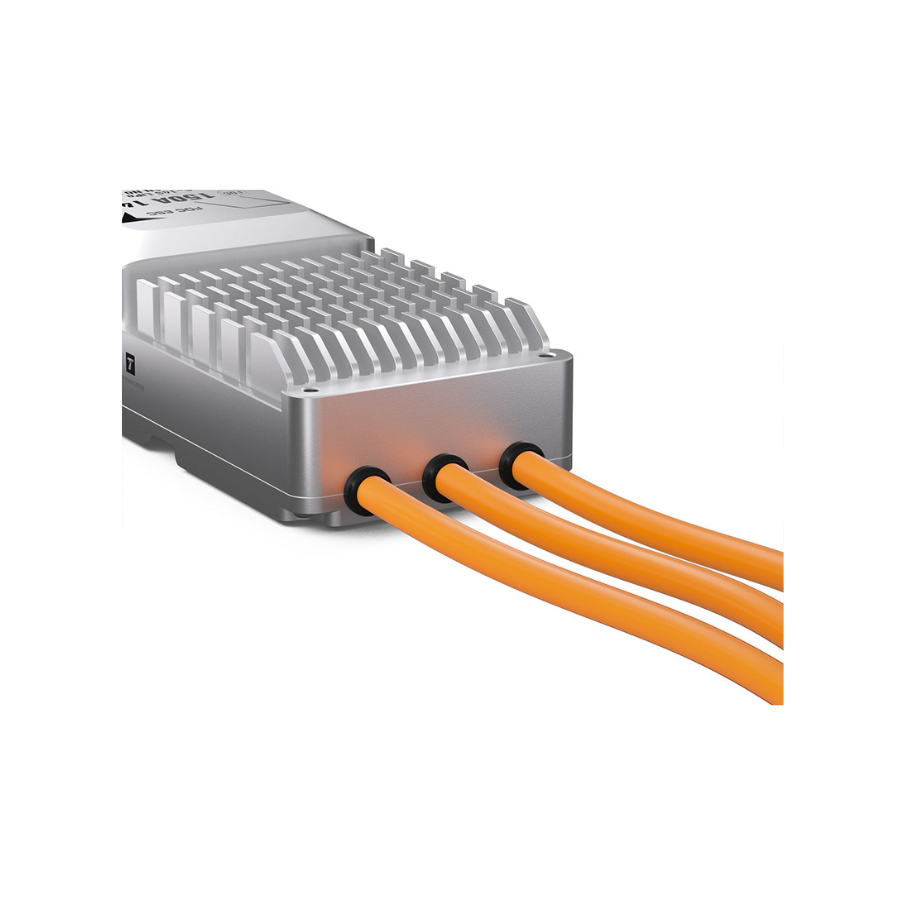

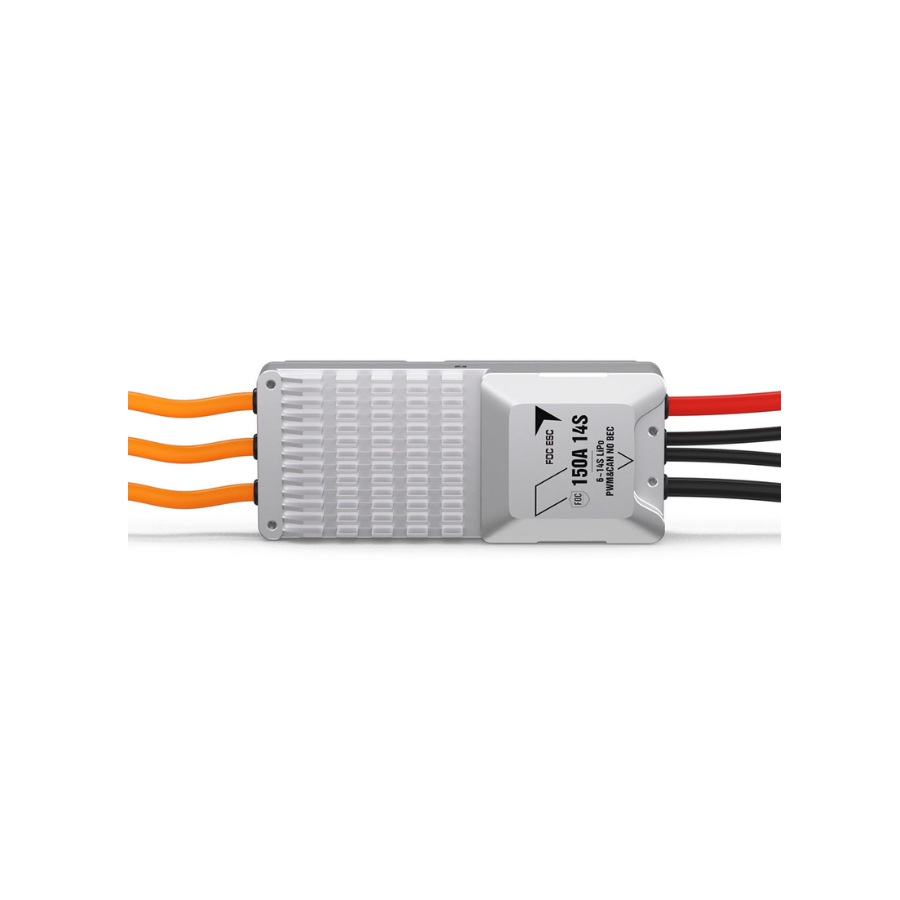

T-MOTOR V150A 14S VTOL UAV Drone ESC
Description:
T-MOTOR V150A 14S is a professional high-power FOC UAV ESC delivering 70A continuous and 160A peak current, supporting 6–14S LiPo batteries, PWM/CAN communication, encoder feedback, and advanced protection features for industrial multirotor and VTOL applications.
key Features:
- Supports 6S–14S LiPo power systems
- 70A continuous current and 160A peak current (3s)
- Advanced FOC vector control for smooth motor operation
- PWM + CAN communication support
- Drone CAN compatibility for professional flight controllers
- Dual throttle redundancy (CAN + PWM)
- Magnetic encoder feedback support
- Intelligent propeller locking function
- Shielded signal cable design for reliable communication
- Low-noise and efficient motor driving performance
Specifications:
| Parameter | Specification |
|---|---|
| Model | V150A 14S |
| ESC Type | Industrial BLDC FOC (Field-Oriented Control) UAV ESC |
| Support Voltage | 6S–14S LiPo (18–60 V) |
| Continuous Current | 70 A |
| Peak Current | 160 A (3 seconds) |
| Control Protocol | PWM / CAN |
| Throttle Range | 1040–1940 μs |
| Throttle Refresh Frequency | 50–500 Hz |
| Throttle Response Speed | 300 ms |
| BEC | No |
| Standby Consumption | ≤50 mA @ 48 V |
| Weight (Without Cables) | 206 g |
| Weight (With Cables) | 295 g |
| Dimensions | 116 × 49 × 31 mm |
| Input Cable | 10 AWG Silicone Wire (130 mm) |
| Output Cable | 10 AWG Silicone Wire (100 mm) |
| Encoder Interface | M6 Aviation Connector |
| Application Type | Heavy-Lift UAVs, VTOL Aircraft, Industrial Drones |
Packing List Includes:
- 1 x T-Motor V150A 14S UAV ESC
- 1 x Accessories pack
