Looking for U15 Motor? T Motor U15Ⅱ KV100 BLDC drone motor is available at Zbotic with fast shipping across India.

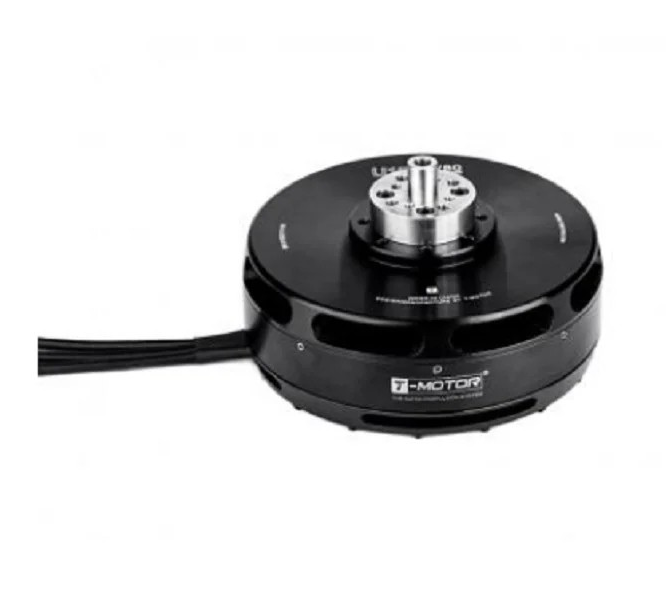

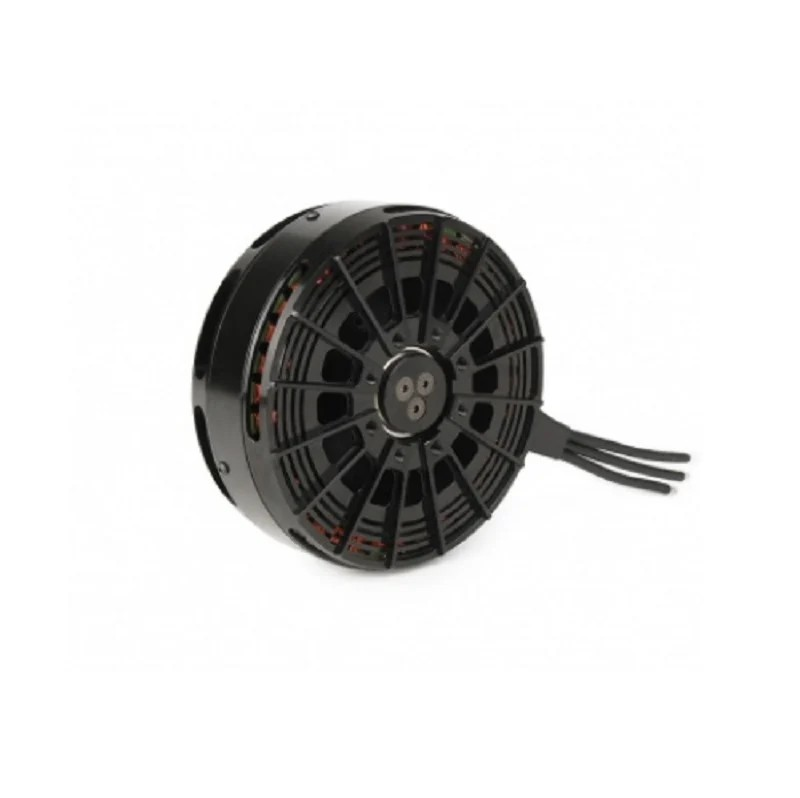

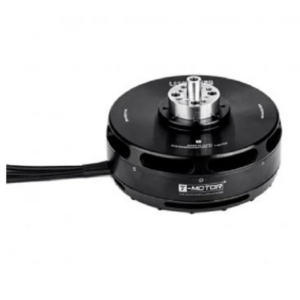

T Motor U15Ⅱ KV100 BLDC drone motor
The U15Il motor incorporates highly efficient magnets to ensure stable output and consistent efficiency, even in challenging environments. Extensive simulated analyses have been conducted to evaluate stress levels in both axial and radial directions during operation. Additionally, a custom-designed bearing has been revamped to extend its lifespan to 1000 hours of trouble-free operation. Furthermore, the motor is wound with military-grade high-temperature resistant enameled wires, providing a Level C temperature resistance rating, ensuring durability and reliability in demanding conditions.
Features:
- For freight transport and manned UAV programs
- Safe, stable, reliable
- Higher waterproof and dust-resistance level
Specification:
| Model | U15Ⅱ KV100 |
|---|---|
| Motor | KV100 |
| Motor Diameter(mm) | 147.5 x 55mm |
| Ideal Current | 3.8A |
| Configuration | 36N24P |
| Internal Resistance(mΩ) | 12mΩ |
| Shaft Diameter (mm) | 12mm |
| Lead Wire | Enameled wired |
| No. of Cells | 12-24s |
| Cable length (mm) | 100mm |
Packages Include:
1 x T Motor U15Ⅱ KV100 BLDC drone motor
T Motor U15Ⅱ KV100 BLDC drone motor Overview
The T Motor U15Ⅱ KV100 is a high-thrust BLDC drone motor designed for heavy-lift and industrial UAV applications. With a low Kv of 100 and robust construction, it delivers stable output and consistent efficiency even under demanding conditions.
Key Features of T Motor U15Ⅱ KV100 BLDC drone motor
- Model U15Ⅱ KV100 with 36N24P winding for high torque at low RPM
- Ideal current rating of 3.8 A and max continuous current of 143 A
- Internal resistance of just 12 mΩ for minimal power loss
- Highly efficient magnets and military-grade high-temperature enameled wire (Level C rating)
- Custom redesigned bearing system rated for 1,000 hours of operation
- Fast shipping from Zbotic across India with tracking details
Applications and Use Cases
- Heavy-lift multirotor drones for freight transport
- Industrial inspection UAVs carrying high-resolution sensors
- Agricultural drones with large payloads for spraying or seeding
- Cinematic drones requiring stable, low-vibration thrust
- Research and development platforms testing long-endurance flight
How to Use T Motor U15Ⅱ KV100 BLDC drone motor
Mount the U15Ⅱ KV100 to a compatible heavy-lift frame using the included hardware, then pair it with an ESC rated at least 200 A to accommodate the 143 A continuous current. Balance your chosen propeller, solder high-quality connectors, and calibrate the ESC throttle range. During break-in, run at moderate power and monitor temperature to ensure optimal performance and longevity.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What ESC current rating is recommended for the U15Ⅱ KV100?
Use an ESC rated at least 200 A continuous to provide headroom above the 143 A maximum continuous current and ensure safe operation under peak loads.
Can this motor handle long-endurance flight missions?
Yes. The military-grade high-temperature wires and efficient magnets maintain consistent performance in extended flights, provided adequate cooling and propeller matching are applied.
How do I maintain the U15Ⅱ KV100 for maximum lifespan?
Regularly clean debris from the bell, inspect bearings for wear, avoid exceeding the 143 A limit, and follow the manufacturer’s break-in procedure to achieve up to 1,000 hours of reliable operation.
