Looking for P60 Motor? T Motor P Series P60 170KV is available at Zbotic with fast shipping across India.

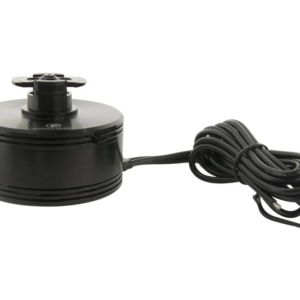

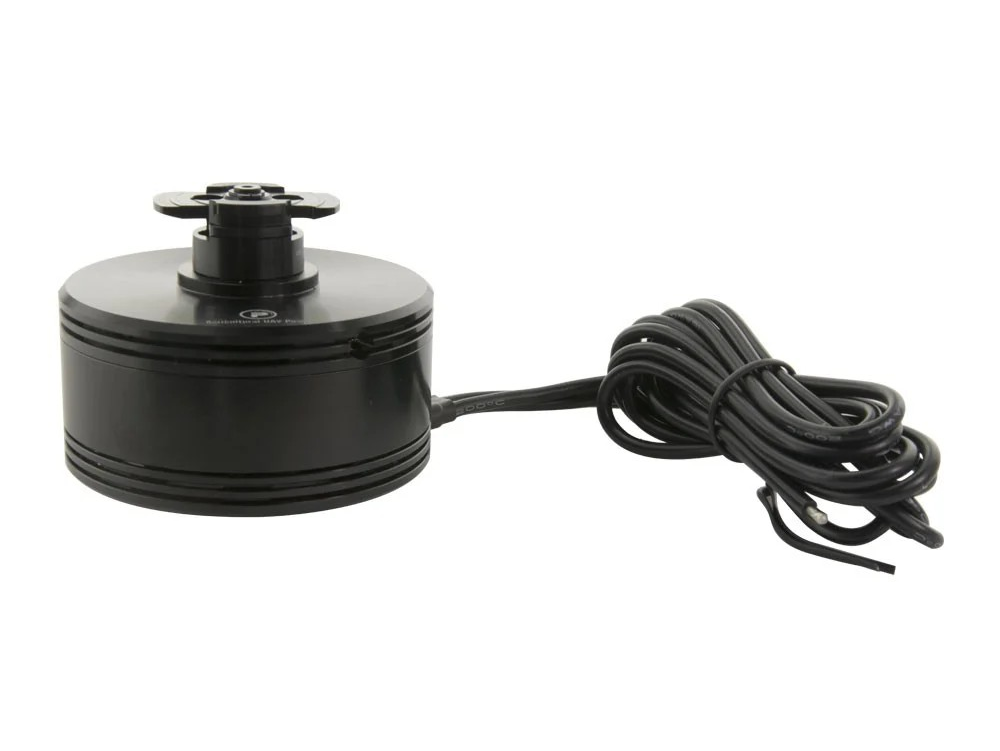

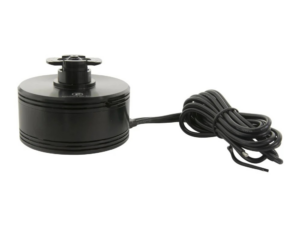

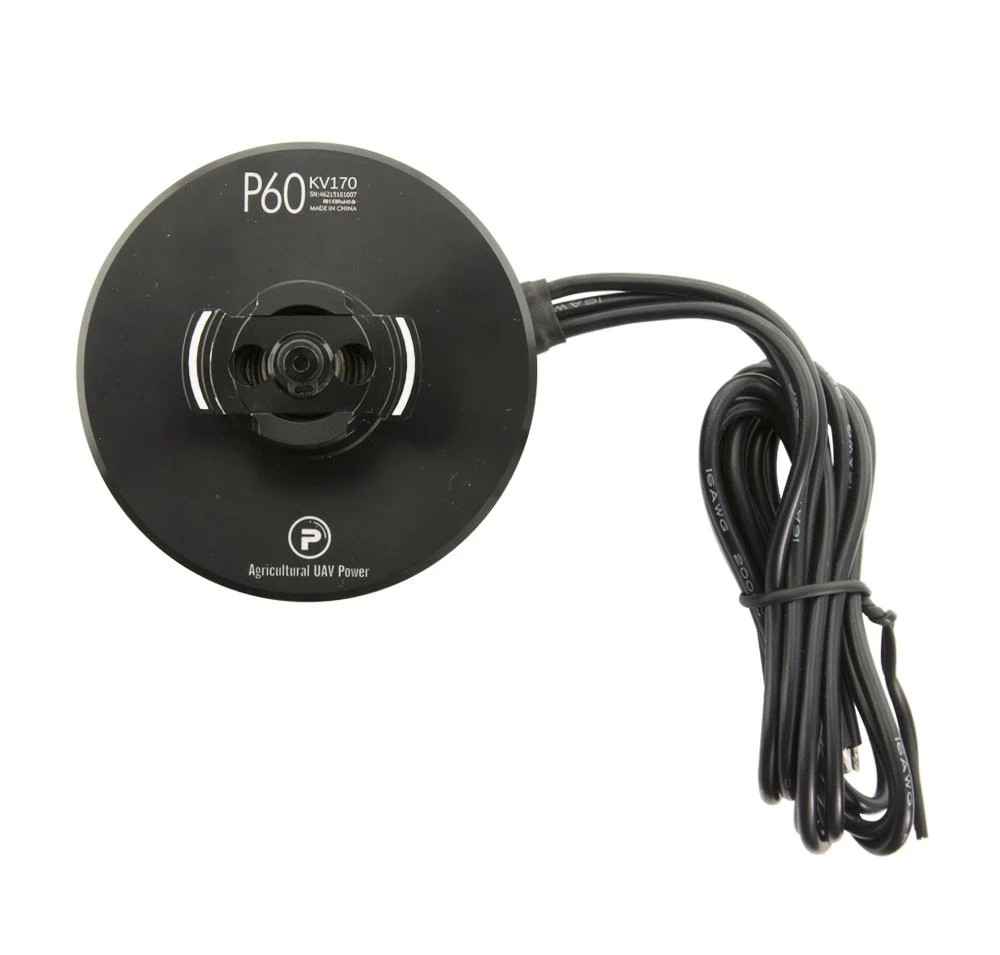

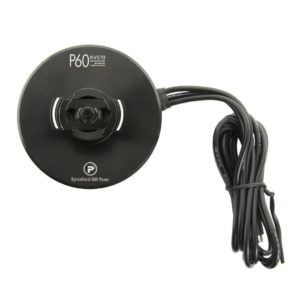

T Motor P Series P60 170KV
P-Series T-Motors are designed to perform reliably in demanding environments, offering long-lasting durability. The P60 KV170 Tiger motor delivers up to 8kg of thrust, featuring impact resistance, anti-corrosion coils, and low noise operation. With a 24N28P configuration, these motors minimize vibration, reducing wear, extending service life, and lowering noise levels. The P-Series motors run more smoothly than those with standard configurations, especially at maximum throttle, ensuring optimal performance and reliability.P-Series T-Motors are designed to perform reliably in demanding environments, offering long-lasting durability. The P60 KV170 Tiger motor delivers up to 8kg of thrust, featuring impact resistance, anti-corrosion coils, and low noise operation. With a 24N28P configuration, these motors minimize vibration, reducing wear, extending service life, and lowering noise levels. The P-Series motors run more smoothly than those with standard configurations, especially at maximum throttle, ensuring optimal performance and reliability.
Features：
- High efficiency and thrust performance among the comparable motors.
- Stable and reliable with long service life
- A waterproof, dust-resistant, anti-corrosion and temperature resistant motor
- Precision design with durable feature
- Easy to mount with remarkable compatibility.

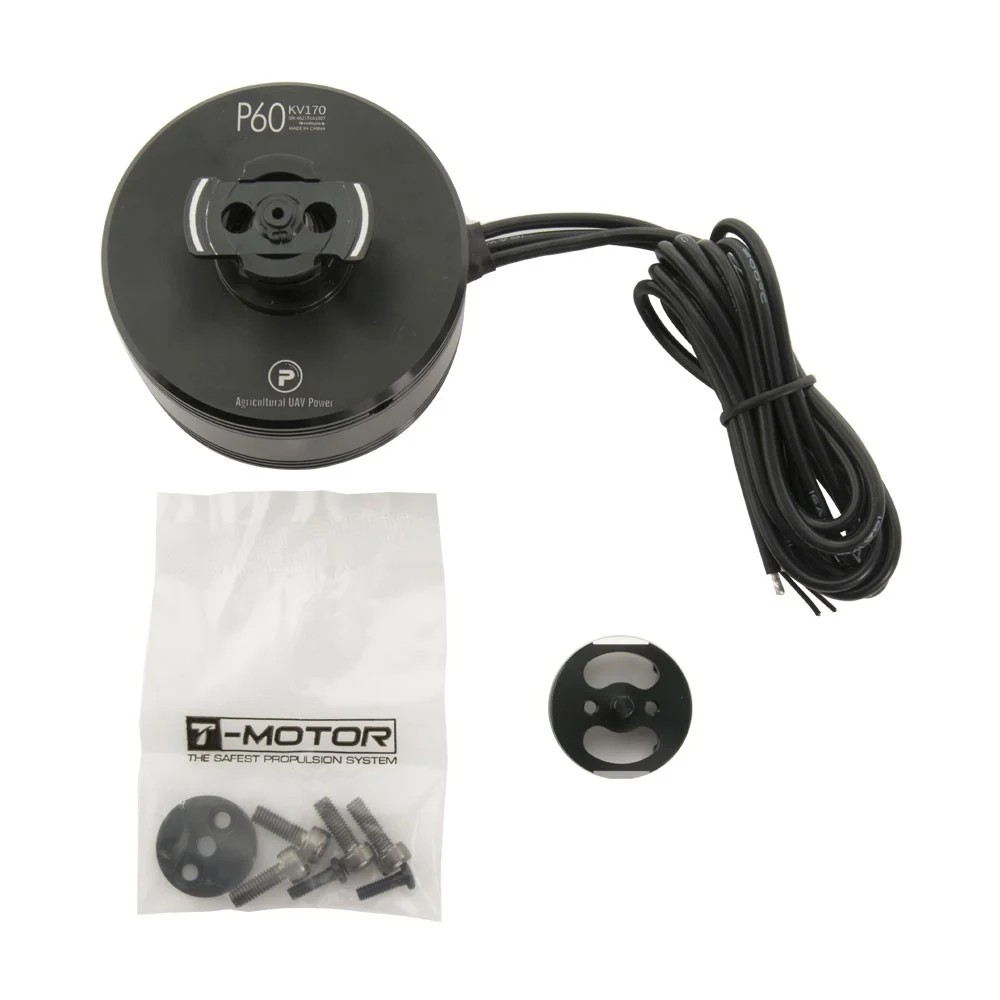

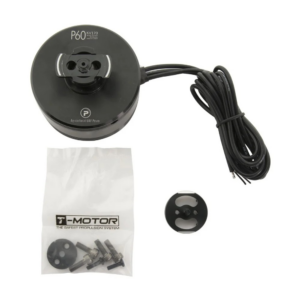

Package Includes:
1 x T MOTOR P SERIES P60 170KV
T Motor P Series P60 170KV Overview
The T Motor P Series P60 170KV is a high-performance brushless motor designed for heavy-lift and professional-grade drones. With a 24N28P configuration and 170KV rating, it delivers smooth, reliable power for aerial photography, industrial inspection, and agricultural applications.
Key Features of T Motor P Series P60 170KV
- KV Rating: 170KV for balanced speed and torque
- Configuration: 24N28P stator design minimizes vibration and noise
- Battery Compatibility: Supports 6-14S LiPo packs for flexible power options
- Max Thrust: Up to 8.4 kg thrust with appropriate propeller
- Shaft Diameter: 6 mm standard shaft for reliable prop mounting
- Durable Build: Impact-resistant housing with anti-corrosion coils
- Low-Noise Operation: Optimized winding reduces operational sound
- Fast Shipping from Zbotic: Delivered quickly across India
Applications and Use Cases
- Professional aerial photography and cinematography drones
- Industrial inspection UAVs for infrastructure and pipeline surveys
- Agricultural sprayer platforms requiring stable heavy-lift capability
- Mapping and surveying drones carrying LiDAR or multispectral sensors
- Search and rescue UAVs needing high thrust and reliability
- Custom multirotor builds for research and development projects
How to Use T Motor P Series P60 170KV
Mount the P60 motor onto your drone frame using the matching 6 mm shaft collet and screws. Solder the motor leads to an ESC rated for 6-14S LiPo operation, calibrate throttle endpoints, and balance the propeller before flight. Ensure secure wiring and perform a bench test at low throttle to verify smooth operation and vibration-free performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What battery voltage range does the P60 170KV support?
The P60 170KV motor is compatible with 6-14S LiPo battery packs, allowing you to choose voltage levels based on your thrust and endurance requirements.
What is the maximum thrust output of this motor?
Under optimal conditions with a suitable propeller, the T Motor P60 170KV delivers up to 8,414 g of static thrust, making it ideal for heavy-lift drone configurations.
Is the P60 170KV suitable for industrial UAVs?
Yes. Its robust 24N28P design, anti-corrosion coils, and impact-resistant housing make it well-suited for demanding industrial and professional drone applications.
Servo Motor Position Feedback: Potentiometer & Encoder Methods
Standard RC servo motors (SG90, MG996) have built-in position feedback through an internal potentiometer. The servo driver electronics...
Read More →
How to Set Up Pixhawk Flight Controller Step-by-Step
Getting your Pixhawk setup right the first time saves hours of frustration and prevents crashes. The Pixhawk family...
Read More →
Servo PWM Frequency: 50Hz vs 333Hz vs 1kHz — Trade-offs Explained
PWM frequency is one of the most frequently misunderstood aspects of servo motor control. Most beginners set their...
Read More →Technical Specifications
| Brand | T -Motor |
|---|---|
| Model | P60 |
| KV Rating | 170KV |
| SKU | AI5566 |
| Availability | Out of Stock |
Applications & Use Cases
The T Motor P Series P60 170KV is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
