Name: T Motor Flame 100A 6S ESC
Brand: T -Motor
SKU: AI1636
Price: 10428.60 INR
Availability: OutOfStock
Rating: 4.75 (20 reviews)

Looking for 100a Motor? T Motor Flame 100A 6S ESC is available at Zbotic with fast shipping across India.

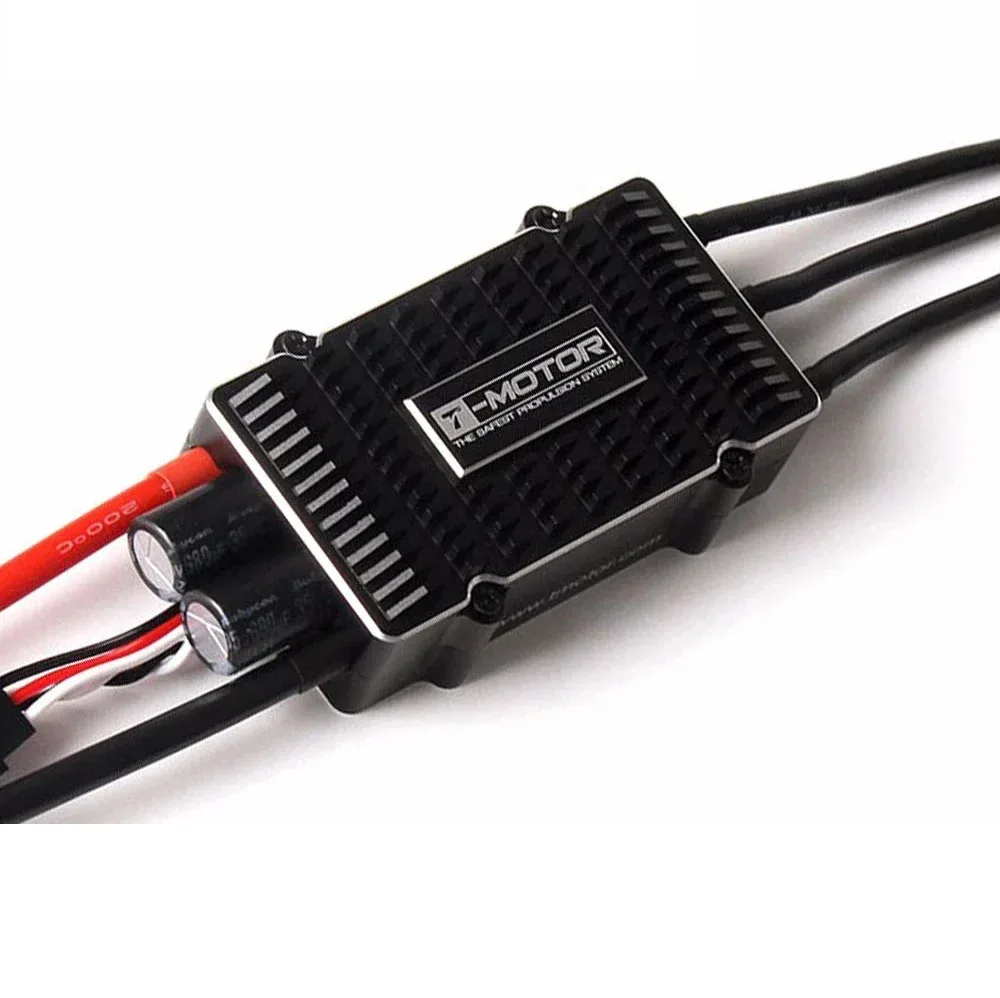

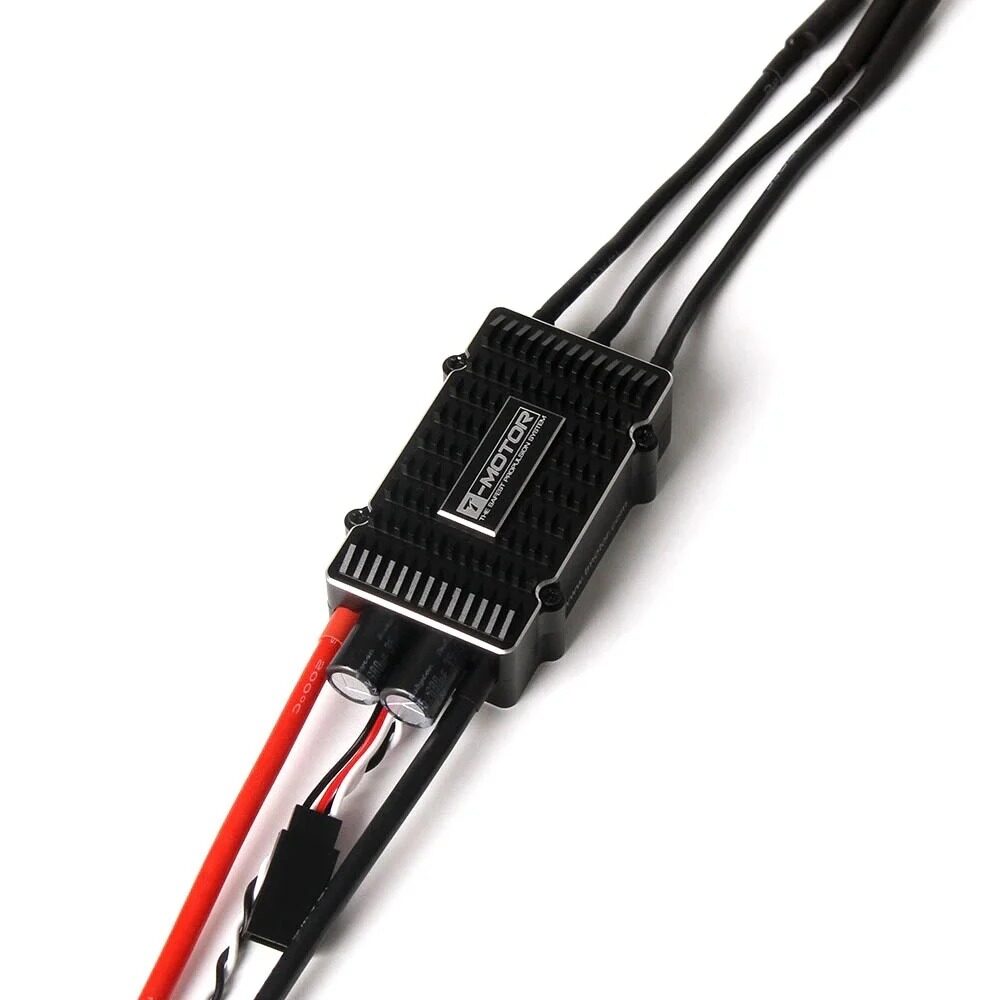

The T-Motor 100A 500Hz 4-8S Flame Type ESC is designed for optimal heat dissipation with its efficient, layered structure. It features waterproof and dustproof protection, meeting the IP55 industrial standard, ensuring reliable performance in harsh environments.

This ESC is fully compatible with U12 motors and is specially engineered for multi-rotor applications. It can deliver a continuous current of 100A, with a peak current of up to 120A (10S), making it ideal for large, high-powered drones.

The Tiger Flame ESC provides professional-grade power for demanding multi-rotor setups. Its machined aluminum housing ensures both superior heat management and robust protection, making it a durable and reliable choice for high-performance flight.

Features:

High-performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
The throttle range can be configured to be compatible with all transmitters currently available on market.
Smooth, linear, quick, and precise throttle response.
CNC Aluminum alloy enclosure, IP55 PCB with nanotechnology, widely used in UAV agriculture, search and rescue, etc.
Separate voltage regulator IC for the microprocessor to get a better anti-jamming capability.
Multiple protection features: Low-voltage cut-off protection / over-heat protection/throttle signal loss protection.
USB supported. The firmware of the ESC can be updated by the USB adapter.
Several kinds of Program Cards are supported. Very easy to program the ESC at home or at the field.

Specifications:

Output: Continuous 100A, Burst 120A up to 10 Secs.
Input Voltage: 4-8 cells lithium battery.
Refresh Rate: 500Hz
Protection: IP57
BEC: No

Package Includes:

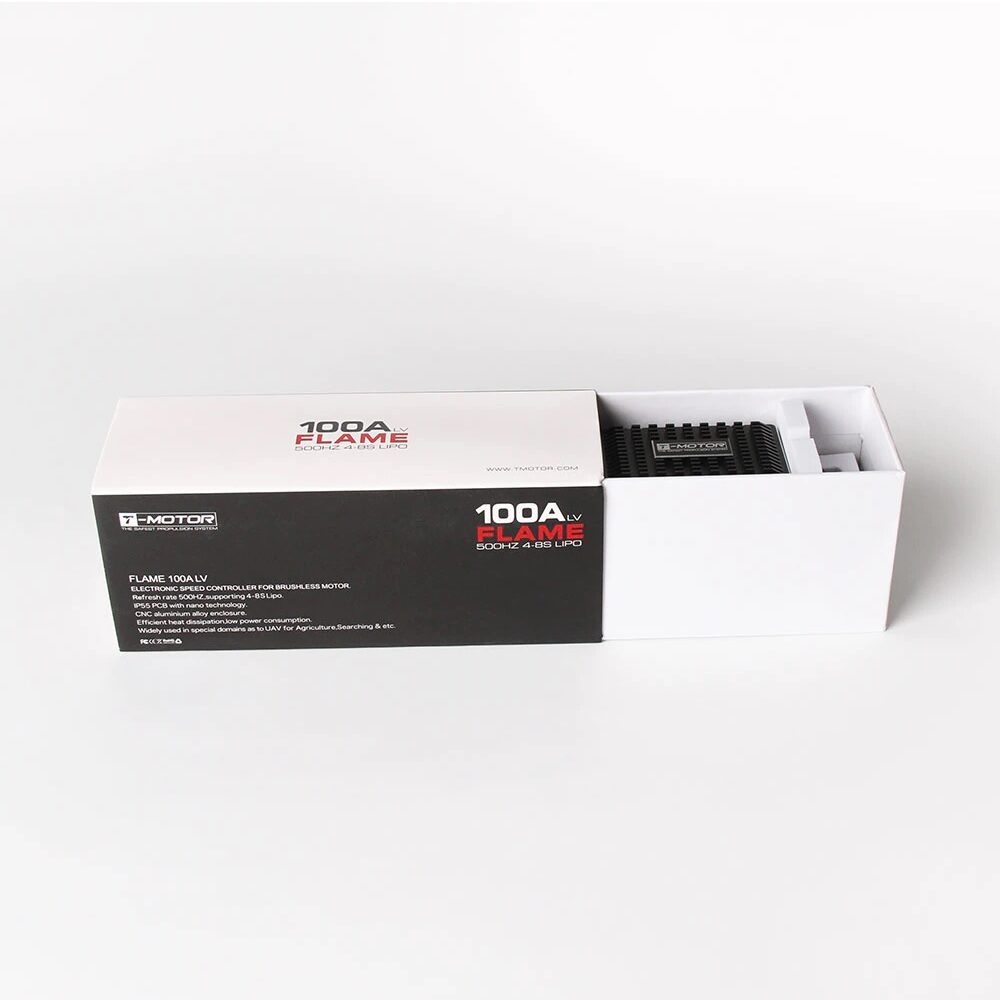

1 x T Motor Flame 100A 6S ESC

T Motor Flame 100A 6S ESC Overview

The T Motor Flame 100A 6S ESC is a high-current electronic speed controller engineered for multi-rotor drone applications using 4-8S LiPo battery packs. With a continuous rating of 100A and peak capability up to 120A, it ensures smooth, reliable power delivery and efficient heat management for demanding aerial setups.

Key Features of T Motor Flame 100A 6S ESC

Continuous current rating of 100A with 120A peak output for high-power drones
500Hz refresh rate for precise throttle response and stable flight control
Layered PCB design with Nano technology to maximize heat dissipation
CNC aluminum alloy enclosure meeting IP55 waterproof and dustproof standards
Full compatibility with T-Motor U12 series and other brushless multi-rotor motors
Fast shipping across India from Zbotic

Applications and Use Cases

Professional cinema drones requiring stable high-current performance
Heavy-lift UAVs for industrial inspection and mapping missions
Racing drones demanding rapid throttle changes and minimal latency
Aerial photography platforms operating in light rain or dusty conditions
Custom multi-rotor builds seeking robust ESC solutions

How to Use T Motor Flame 100A 6S ESC

Secure the ESC close to your drone’s frame to optimize airflow, then solder the power leads to your 4-8S LiPo battery and brushless motor. Connect the signal cable to your flight controller, use T-Motor’s programming tool or BLHeliSuite to adjust parameters, and perform throttle range calibration before flight to ensure accurate control.

Why Buy from Zbotic?

Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Is the T Motor Flame 100A 6S ESC waterproof?

Yes, this ESC features an IP55-rated CNC aluminum housing that provides dust and splash resistance, suitable for light rain and dusty flight environments.

Which battery voltages does this ESC support?

The Flame 100A ESC supports 4-8S LiPo battery packs for continuous operation at 100A, with a peak current rating of 120A measured on a 10S setup.

Can I pair this ESC with non-T-Motor brushless motors?

Absolutely. While optimized for T-Motor U12 series, its universal 3-phase connectors and high-current capacity make it compatible with most brushless motors in the same voltage and current range.

Tags: Buy Online India Drone ESC Speed Controller T Motor Flame Zbotic

Technical Specifications

Brand	T -Motor
Current Rating	100A
Cell Configuration	6S
SKU	AI1636
Weight	0.030 kg
Availability	Out of Stock

Applications & Use Cases

The T Motor Flame 100A 6S ESC is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.

Common use cases:

Controlling motor speed in a quadcopter
Replacing a burnt ESC after a short
Upgrading to BLHeli_32 for smoother throttle response

This product is ideal for drone builders and RC enthusiasts.

Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
