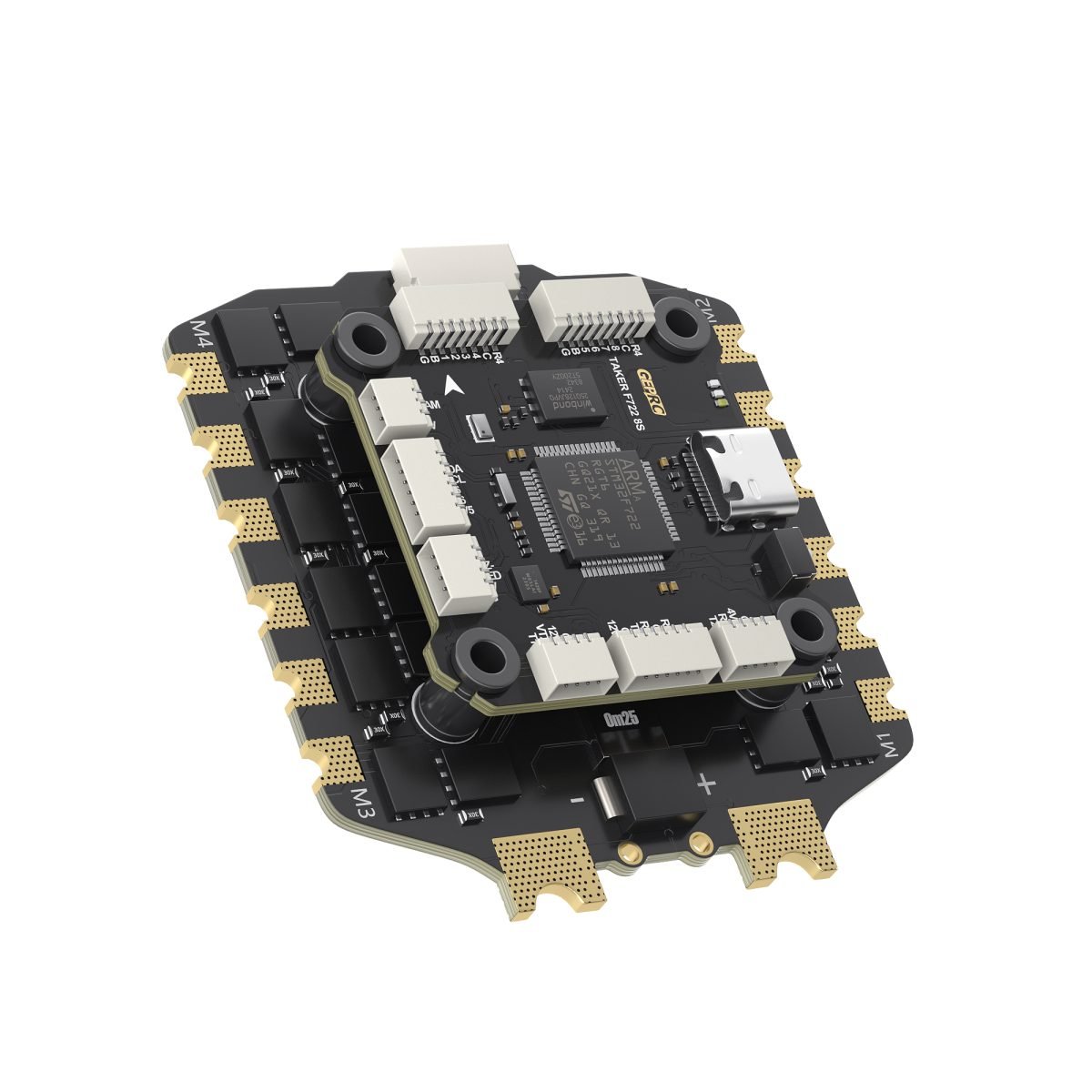

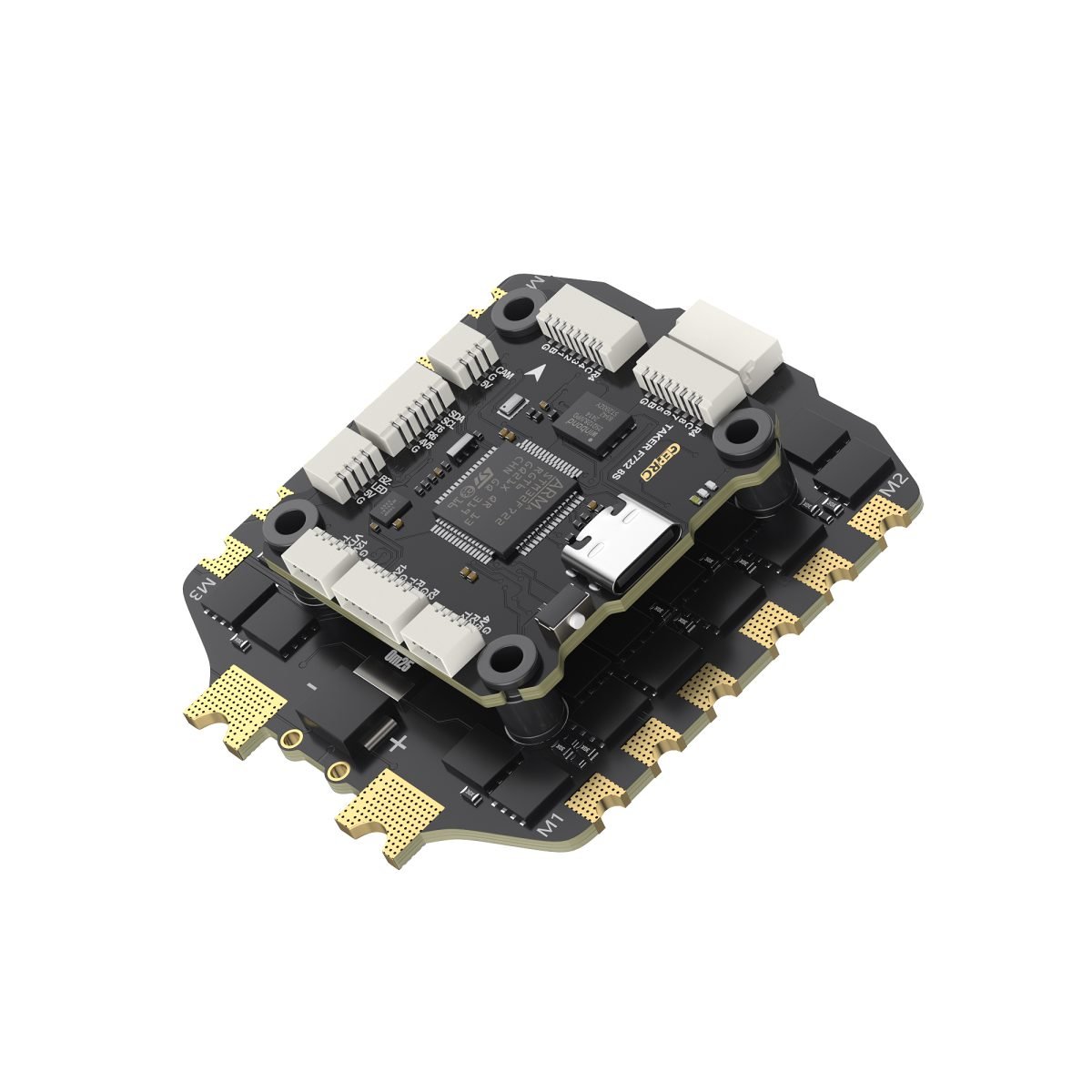

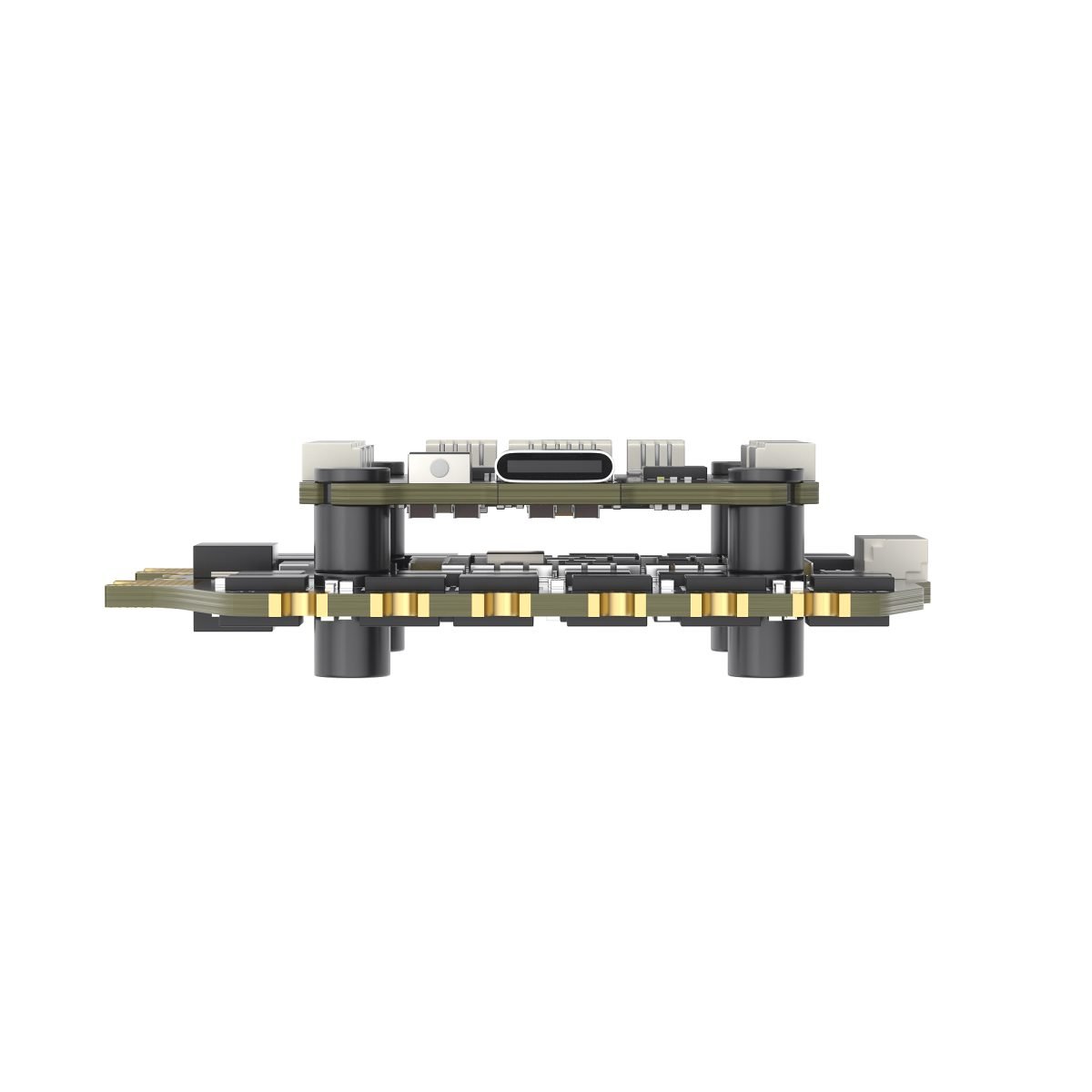

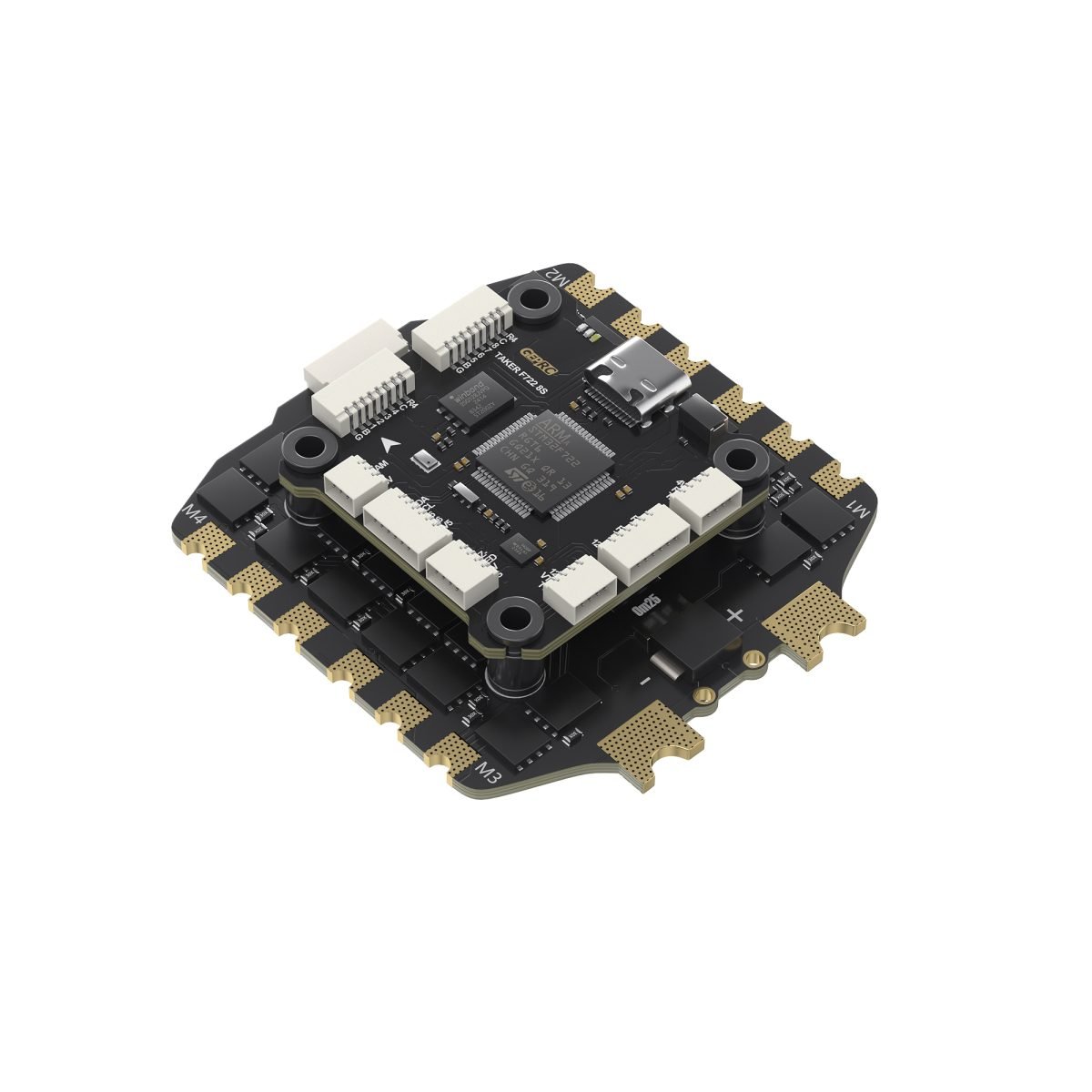

GEPRC TAKER F722 BLS 100A 8S STACK
Features:
- Uses the mainstream STM32F722 chip
- Equipped with the latest 42688-P gyroscope
- 16M onboard black box storage
- Integrated LC filter
- Upgraded Type-C USB interface
- Directly plugs into the DJI Air Unit

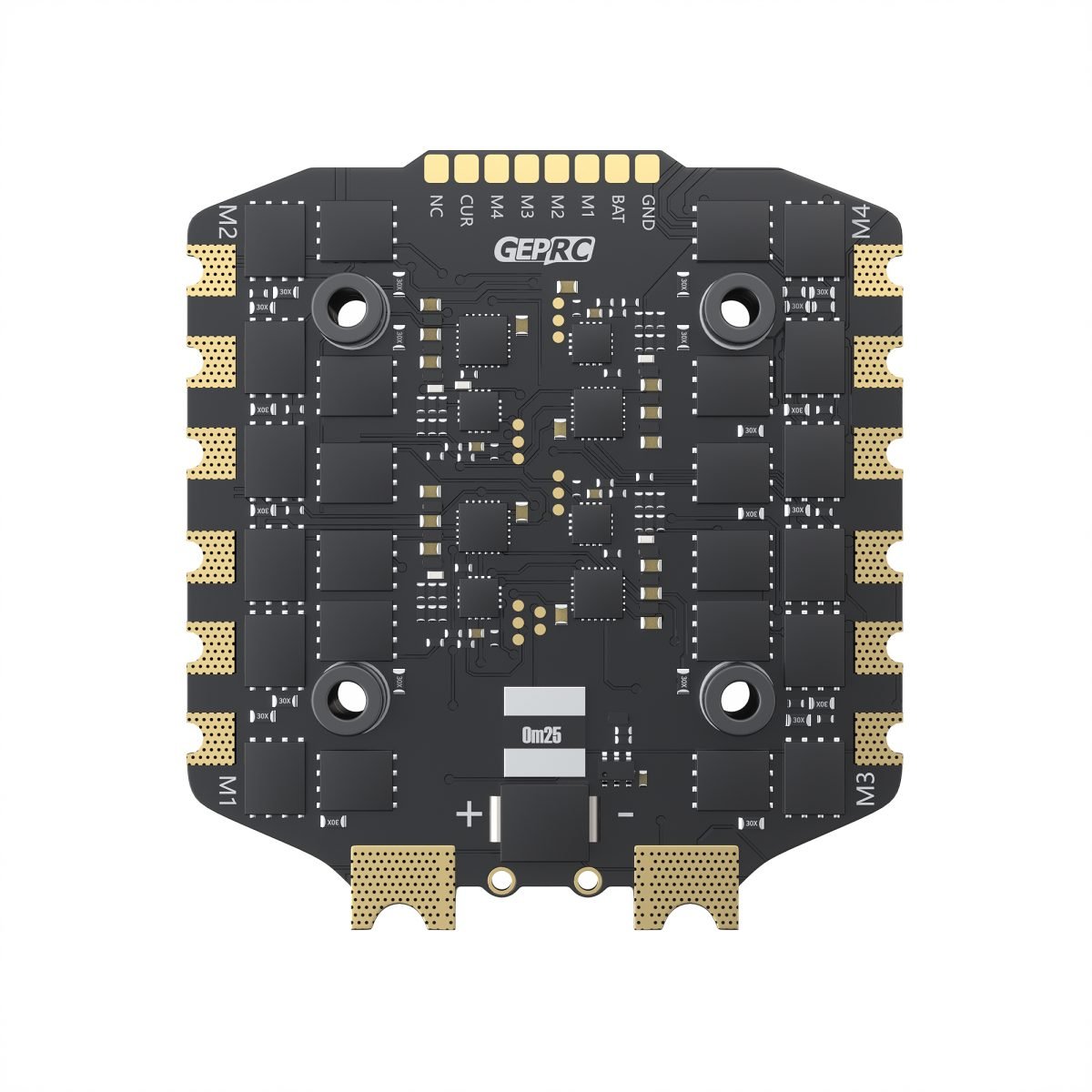

- Paired with the TAKER H100_8S_BLS 100A 4IN1 ESC, providing a smooth flying experience
- Simple and efficient installation method with shock absorbers for stable gyroscope performance
- Dual independent BECs: 12V@3A and 5V@3A
- Supports 8S Lipo batteries
- Support direct insertion of 8 motors
Specifications

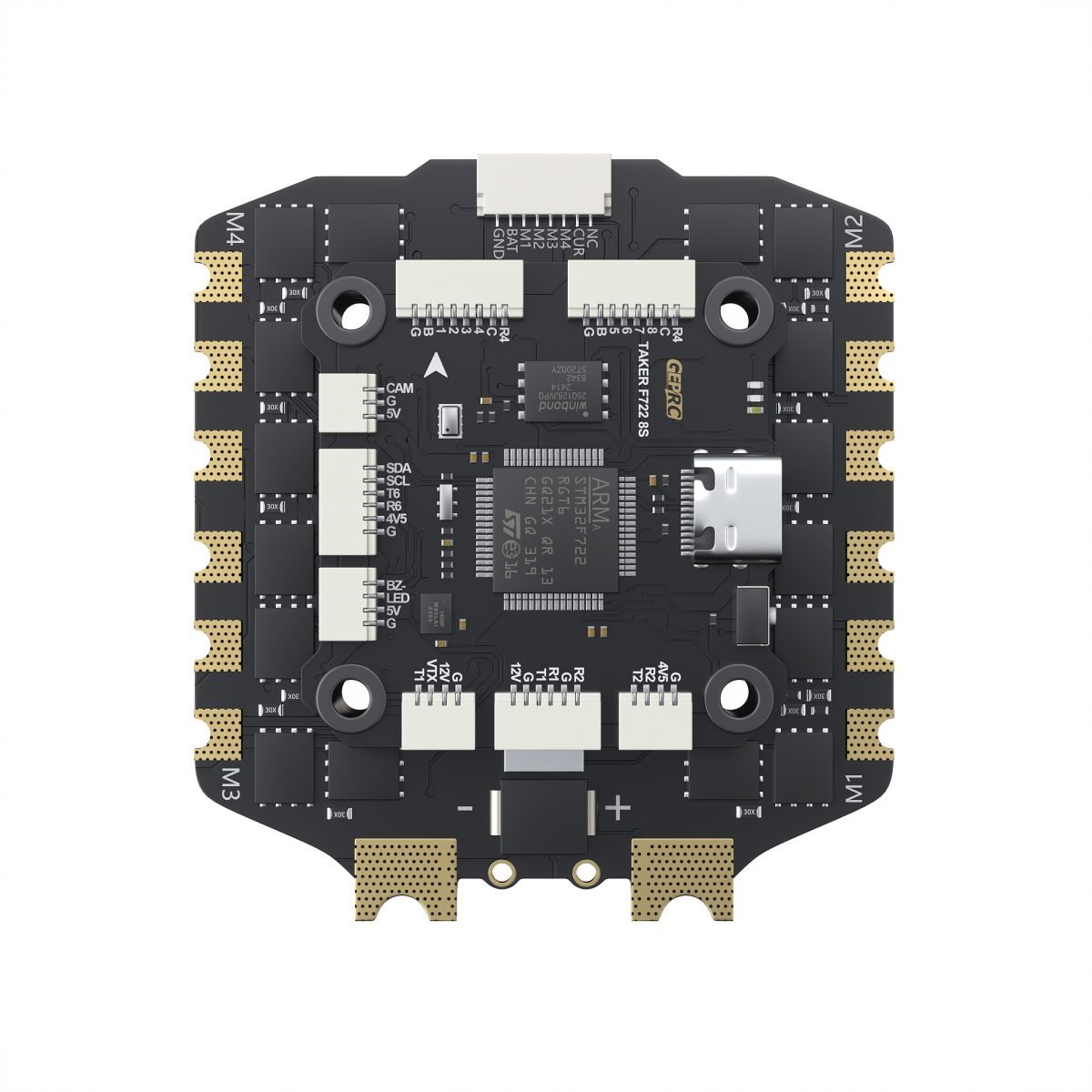

- MCU: STM32F722
- IMU: ICM42688-P(SPI)
- Air Unit Connection: Direct plugs into DJI Air Unit
- Black Box: 16M onboard
- USB Interface: Type-C
- Barometer: Supported
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC: 5V@3A,12V@3A dual BEC
- Firmware Target: GEPRC_TAKER_F722_8S
- Dimension: 38.5×38.5mm,
- Mounfing Hole Size: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
- Input Voltage: 3-8S LiPo
- UART: 6 UARTs
- Power Filter: Integrated LC filter
- Weight: 8.1g Includes
Package Includes :
1 x TAKER F722 8S Flight Controller
1 x TAKER H100_8S_BLS 100A 4IN1 ESC
1 x Electrolytic capacitor(50V 4700uF)
1 x DJI connection cable(SH1.0 6pin 100mm)
2 x FC adapter cable(SH1.0 8pin 30mm)
1 x Receiver silicone cable(SH1.0 4pin 150mm)
1 x Camera connection cable(SH1.0-SH1.25 3pin 135mm)
1 x VTX connection cable(SH1.0 4pin-6pin 100mm)
1 x XT90 battery plug
1 x Red and black power cable(10AWG 240mm)
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts(M3)
12 x Silicone anti-shake pads(M3)
LiPo Battery Parallel Charging: Board Setup Guide
Table of Contents Understanding LiPo Battery Parallel Charging Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
Best Drone Kits in India 2026: Beginner to Advanced
Best Drone Kits in India 2026: Beginner to Advanced The Indian drone market has matured spectacularly. What was...
Read More →
FPV Freestyle vs Racing Drone: Which Build Is Right for You?
Table of ContentsIntroduction: Two Worlds Under One HobbyWhat Is FPV Freestyle?What Is FPV Racing?Frame DifferencesMotor and Prop ChoicesESC...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Current Rating | 100A |
| Cell Configuration | 8S |
| SKU | AI5010 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC TAKER F722 BLS 100A 8S STACK is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
