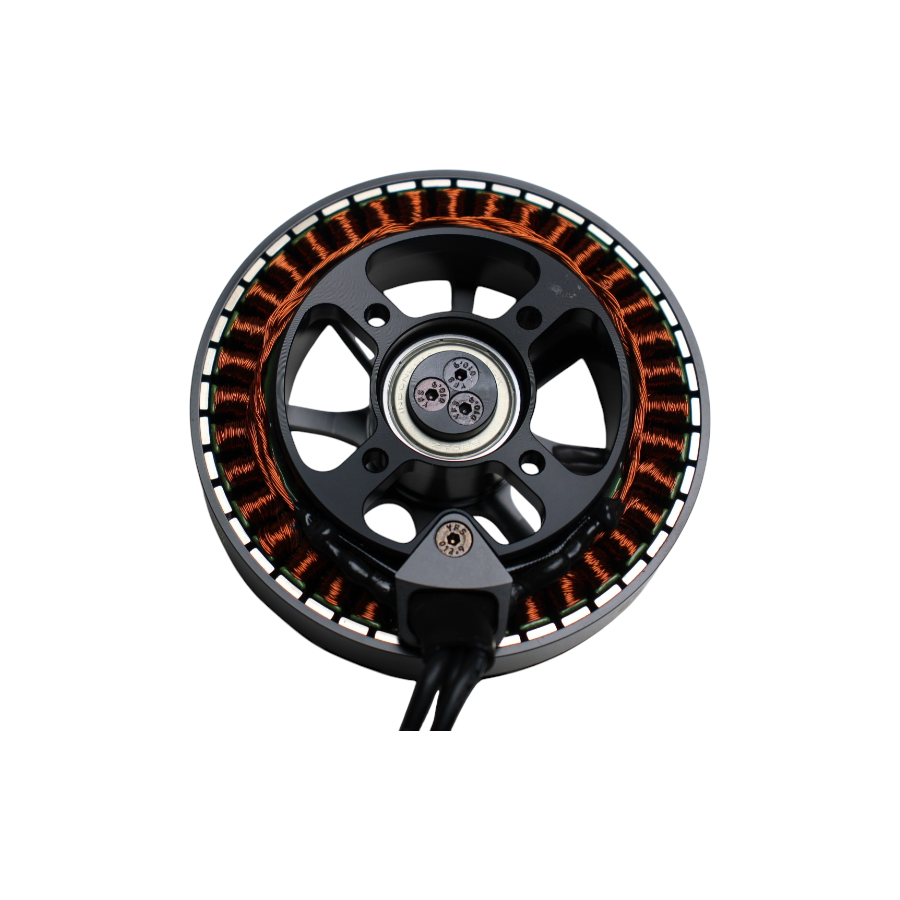

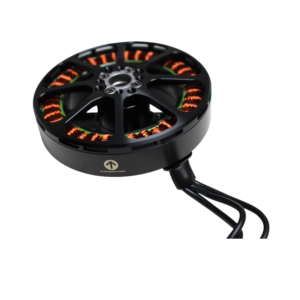

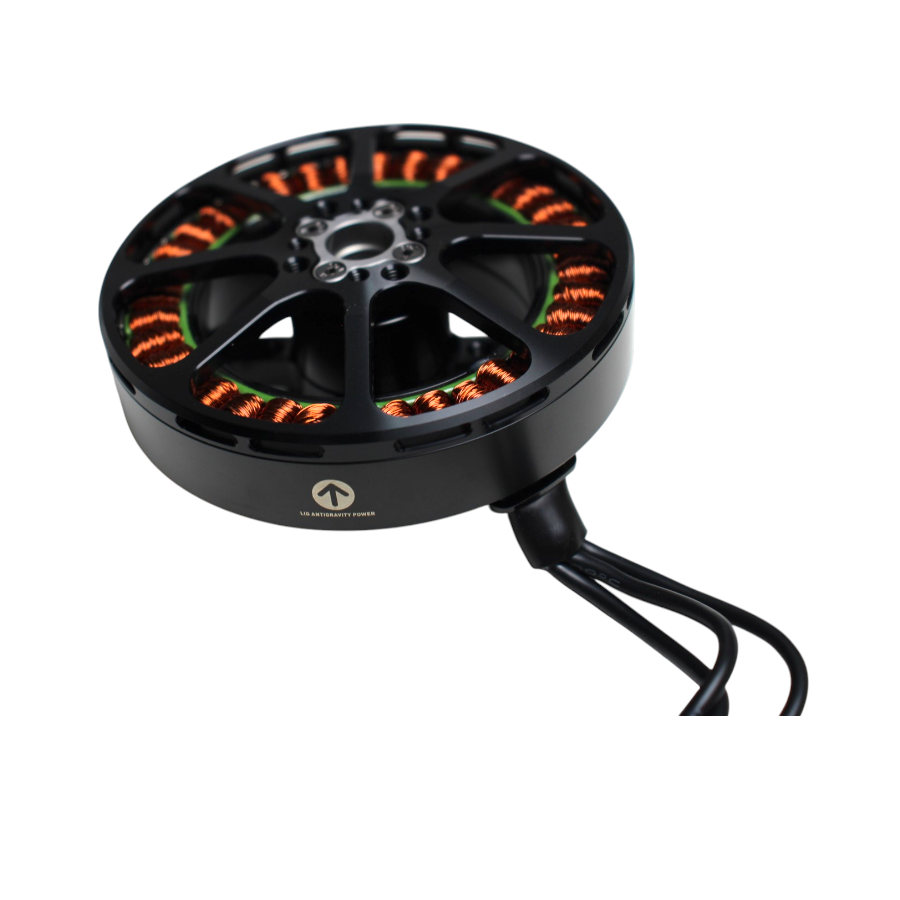

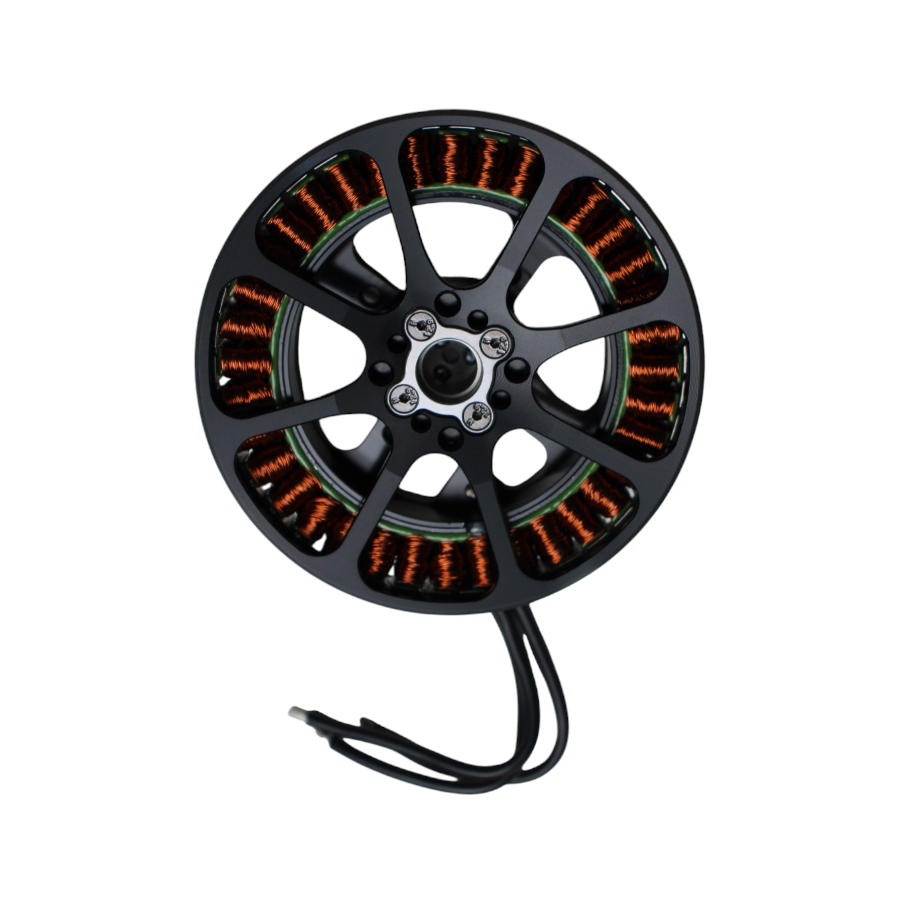

T Motor Antigravity MN8012 KV100
Introducing the T-Motor Antigravity MN8012 KV100, a high-performance brushless drone motor designed to provide outstanding power, efficiency, and stability for all your aerial applications. Crafted with precision and built for reliability, this motor is the ideal choice for professional drone operators and aerial photographers who demand top-tier performance without compromise.
Features:
- Ultra-light and High Efficiency: The MN8012 motor is meticulously crafted to be ultra-lightweight while maintaining high efficiency, allowing for agile and responsive flight performance.
- Max Thrust: With a maximum thrust of 11.8kg, this motor provides ample power to support a wide range of aerial maneuvers and payloads.
- Motor Weight: Weighing just 351g, the MN8012 motor strikes the perfect balance between power and weight, ensuring optimal performance without compromising agility.
- Power Ratio: Boasting a power ratio of 34, this motor delivers exceptional power output for dynamic flight experiences.
- High-Temperature Resistance: Equipped with 220ºC high-temperature resistance wires and anti-rust treatment, the MN8012 motor is built to withstand challenging operating conditions and ensure long-lasting performance.
- Stator Coatings: The stator is treated with 180°C high-temperature-resisting coatings, enhancing durability and reliability under extreme temperatures.
- Advanced Configuration: Featuring a 36N42 configuration, this motor is optimized for maximum efficiency and performance.
- Rated Voltage: Designed for use with 12S Lipo batteries, the MN8012 motor delivers consistent and reliable power output.
- Coil Insulation Test: Each motor undergoes a rigorous 1000V/Ss coil insulation test to ensure electrical safety and reliability.
- Rotor Dynamic Balance: Built to the industry-standard 15Mg rotor dynamic balance, this motor minimizes vibration for smooth and stable flight performance.
- IP35 Protection: With IP35 protection rating, the motor is well-protected against dust and water ingress, ensuring durability and reliability in diverse environmental conditions.
Specifications:
| Internal Resistance | 85mΩ |
|---|---|
| Rated KV | 100 |
| Idle Current (24V) | 1.0A |
| Peak Current (180s) | 40A |
| Max. Power (180s) | 1873W |

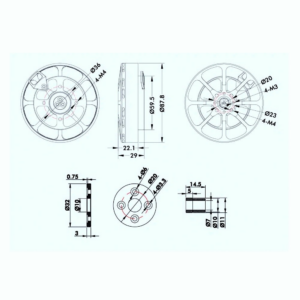

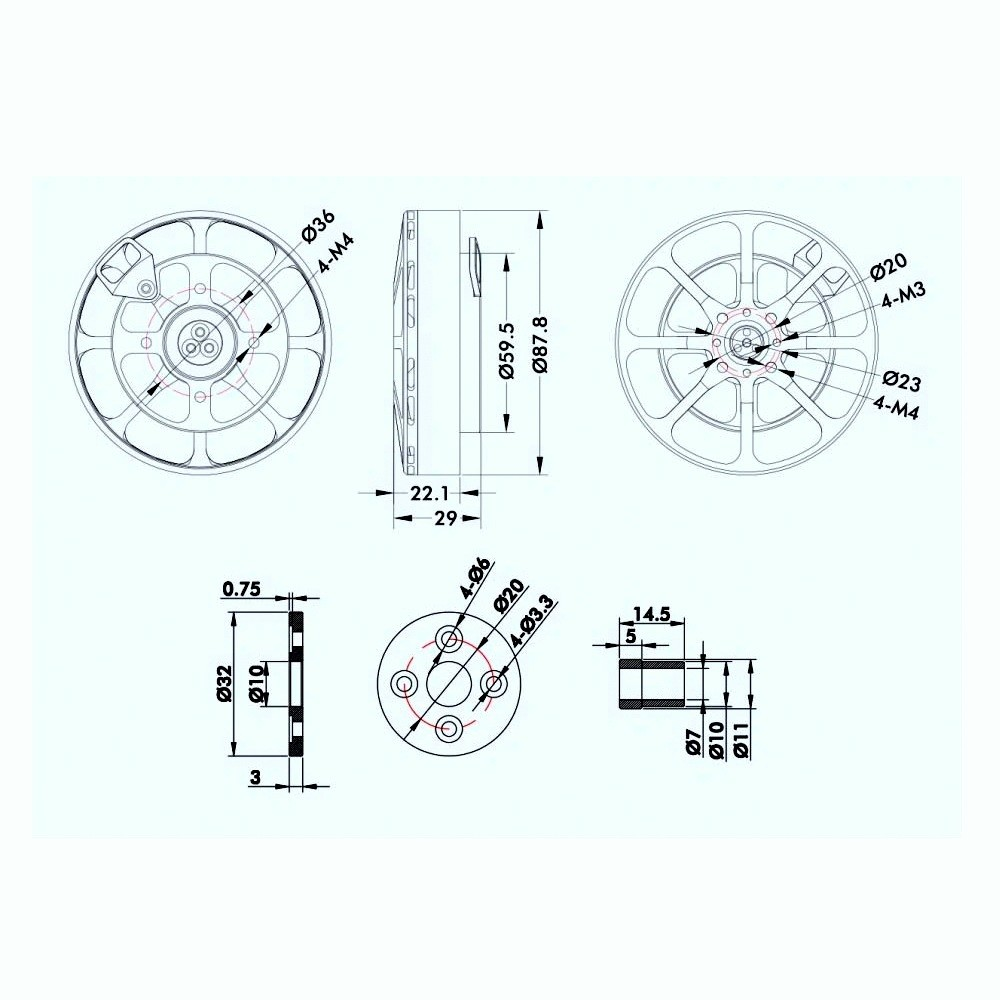

| Motor Size | Φ87.8 * 29mm |
| Shaft Diameter | IN12mm Bearing Imported 6901ZZ |
| Magnet Level | 180t high-temperature resistance |
| Cable Size | 16AWG*90mm Copper |
| Weight | 351 g (with Cable) |
Upgrade your drone’s performance with the T Motor Antigravity MN8012 KV100 motor and experience the ultimate combination of power, efficiency, and reliability for your aerial adventures. Elevate your flying experience with this premium-quality brushless motor from T-Motor.

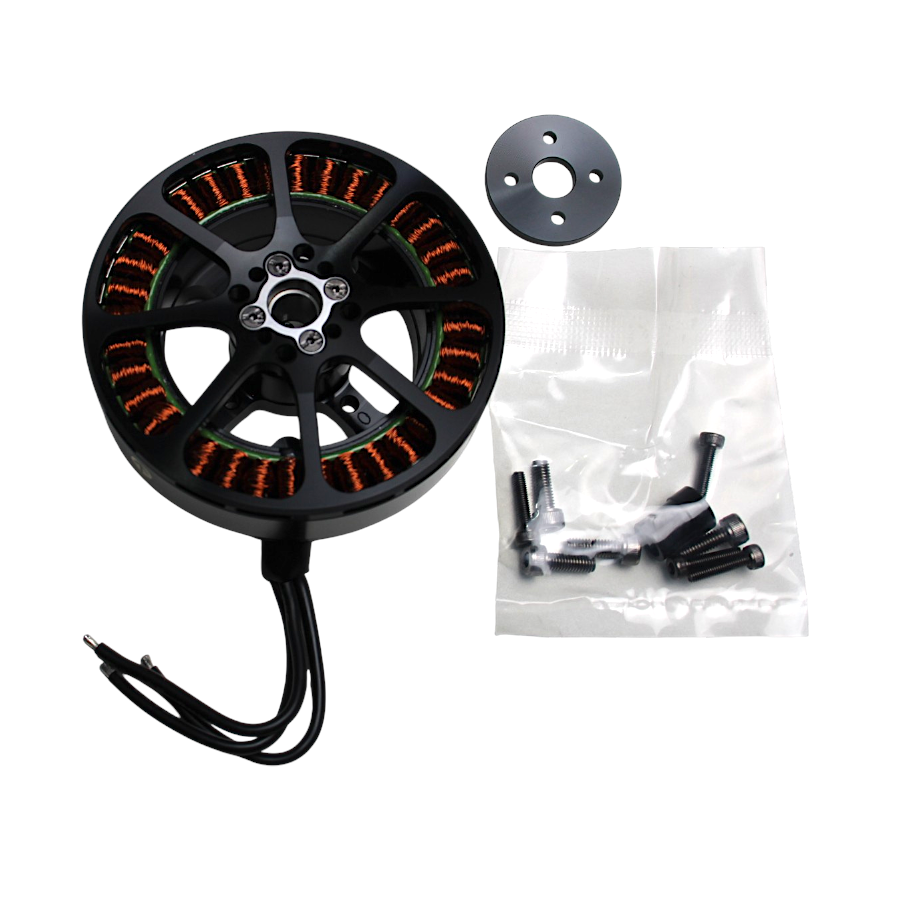

Package Includes:
1 x T Motor Antigravity MN8012 KV100
T Motor Antigravity MN8012 KV100 Overview
The T Motor Antigravity MN8012 KV100 is a high-performance, brushless drone motor engineered for heavy-lift and professional aerial applications. With its ultra-lightweight design and stable power delivery, it’s ideal for operators seeking reliable thrust and efficiency in large multirotor platforms.
Key Features of T Motor Antigravity MN8012 KV100
- Ultra-Lightweight Construction: Weighs just 351 g for agile flight handling.
- High Efficiency Brushless Design: Minimizes power loss and maximizes flight time.
- Impressive Max Thrust: Produces up to 11.8 kg of thrust for heavy payloads.
- Superior Thrust-to-Weight Ratio: Power ratio of 34 delivers outstanding performance.
- Precision Machining: Ensures stable rotation and reduced vibration in demanding flights.
- Fast Shipping from Zbotic: Ready to dispatch within 24 hours for in-stock orders.
Applications and Use Cases
- Heavy-lift cinematography drones carrying professional camera rigs
- Industrial inspection UAVs for powerline and infrastructure surveys
- Mapping and surveying platforms needing high stability and long endurance
- Agricultural spray drones supporting larger booms and liquid payloads
- Search-and-rescue multirotors transporting medical supplies or sensors
How to Use T Motor Antigravity MN8012 KV100
Mount the MN8012 KV100 securely on your drone’s motor arms using the provided screws, connect it to a compatible brushless ESC, and install propellers sized to match its KV100 rating for optimal thrust. Perform ESC calibration, set rotation direction, and run a low-throttle test to confirm smooth operation before full-power flights.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What does KV100 mean for the MN8012 motor?
KV100 indicates the motor’s speed constant of 100 RPM per volt under no-load conditions. This low KV rating makes the MN8012 ideal for driving large-diameter propellers that generate significant thrust at moderate RPMs.
How much payload can one MN8012 KV100 motor lift?
Each MN8012 KV100 is rated for a maximum thrust of 11.8 kg. In a quadcopter setup, four motors can theoretically provide up to 47.2 kg of collective thrust, allowing for heavy camera rigs or specialized equipment.
What is the power ratio of 34, and why is it important?
The power ratio of 34 represents the thrust-to-weight efficiency (kg of thrust per gram of motor weight). A higher ratio means you get more lift for less mass, improving overall flight time and payload capacity.
Stepper Motor Wiring: 4-Wire, 6-Wire & 8-Wire Types Explained
Stepper motors are the backbone of precision motion control in 3D printers, CNC machines, robotic arms, and DIY...
Read More →
Best Budget FPV Complete Kits India Under ₹5000 in 2026
Table of ContentsThe Budget FPV Reality Check for Indian BeginnersWhat a ₹5000 Budget Actually Gets YouFPV Kit Categories...
Read More →
Stepper Motor Driver EMI: Shielding & Noise Reduction Techniques
Stepper motor drivers are among the noisiest components in any electronics project. The fast-switching MOSFET H-bridges in drivers...
Read More →Technical Specifications
| Brand | T -Motor |
|---|---|
| Model | MN8012 |
| SKU | AI5617 |
| Weight | 0.767 kg |
| Availability | Out of Stock |
Applications & Use Cases
The T Motor Antigravity MN8012 KV100 is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
