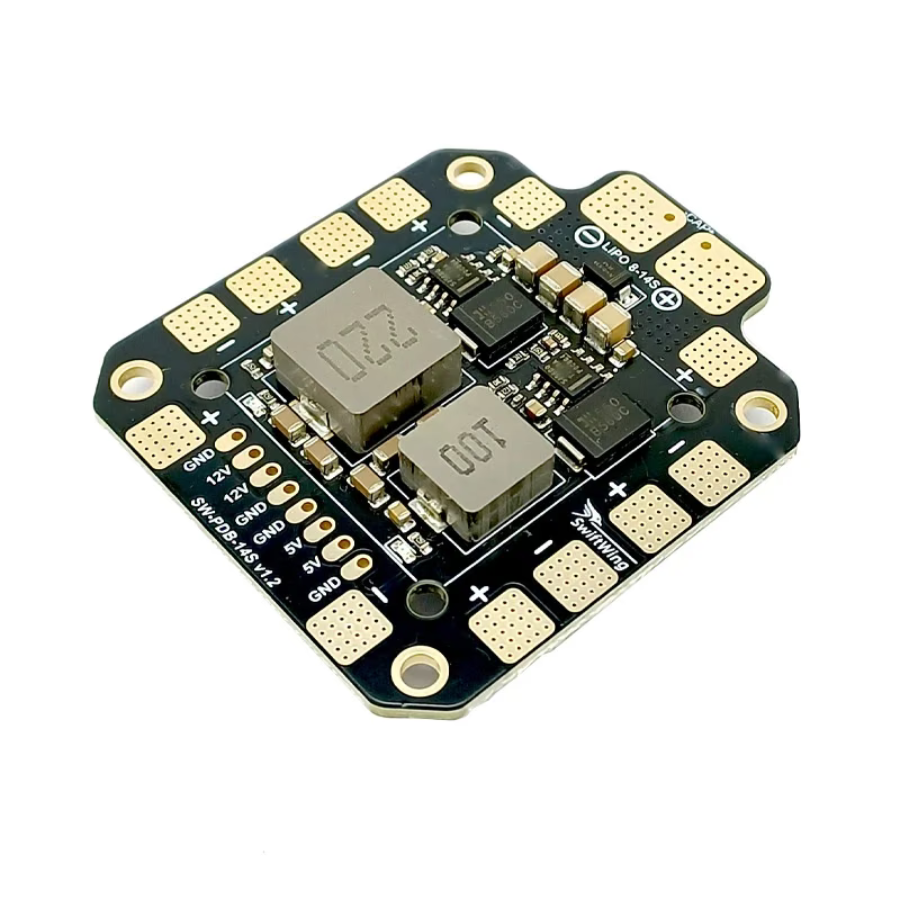

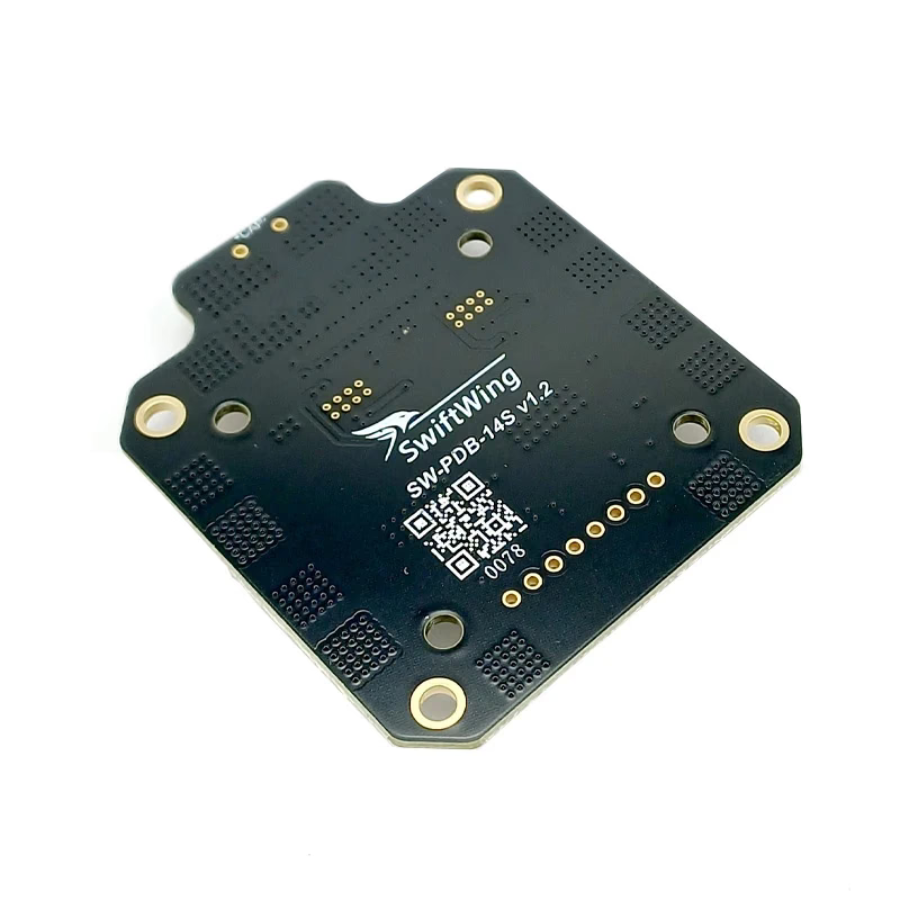

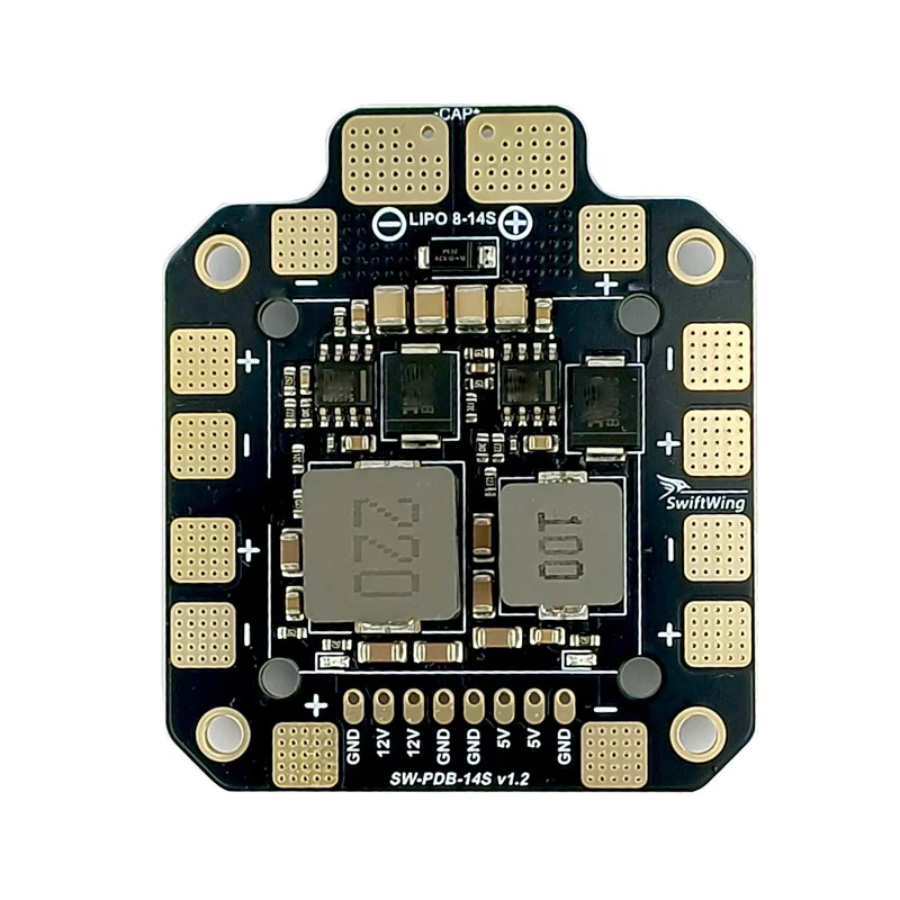

SwiftWing PDB-14S – Power Distribution Board with 12V & 5V Buck
Description:
The SwiftWing PDB-14S is a reliable high-voltage power distribution board built for demanding UAVs, multirotors, and robotics systems. Supporting 8S–14S LiPo batteries, it efficiently distributes power to multiple ESCs while offering stable 5V and 12V regulated outputs for flight controllers, sensors, and communication modules.
Designed with a 4-layer PCB and 2 oz copper, it ensures low impedance, improved thermal performance, and consistent current delivery even under dynamic loads. The integrated buck converters provide dependable voltage regulation, making it suitable for high-power applications. Its compact and lightweight design allows easy integration into space-constrained builds. With enhanced current handling and optional input filtering support, this board is ideal for engineers building robust, high-efficiency electronic systems.
Features:
- Supports 8S–14S LiPo input systems
- Integrated 5V and 12V buck regulators
- High-current ESC distribution capability
- 4-layer PCB with 2 oz copper construction
- Enlarged solder pads for better current handling
- Low impedance design for stable power delivery
- Dual mounting patterns (30.5 mm & 40 mm)
- Compact and lightweight
Specifications:
1. Item Type: Power Distribution Board (PDB)
2. Supported Battery: 8S–14S LiPo
4. Max Input Voltage: 65V DC
5. Design Operating Range: 4S–14S LiPo
6. Max Continuous Current: 120 A
7. Max Burst Current: 150 A
8. Regulation Type: High-voltage synchronous buck converters
9. Typical Efficiency: 88–93%
10. Protection: Transient Protection (TVS)
13. PCB Layers: 4-layer
14. PCB Thickness: 1.6 mm ±0.15 mm
17. Operating Temperature: –10°C to +60°C
18. Storage Temperature: –20°C to +85°C
19. Max PCB Temperature: 105°C
21. Dimensions: 58 × 50 x 7mm
22. Weight: 20 g
Attachments:
Package Includes:
1 x SwiftWing PDB-14S – Power Distribution Board with 12V & 5V Buck
