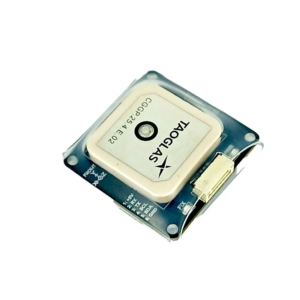

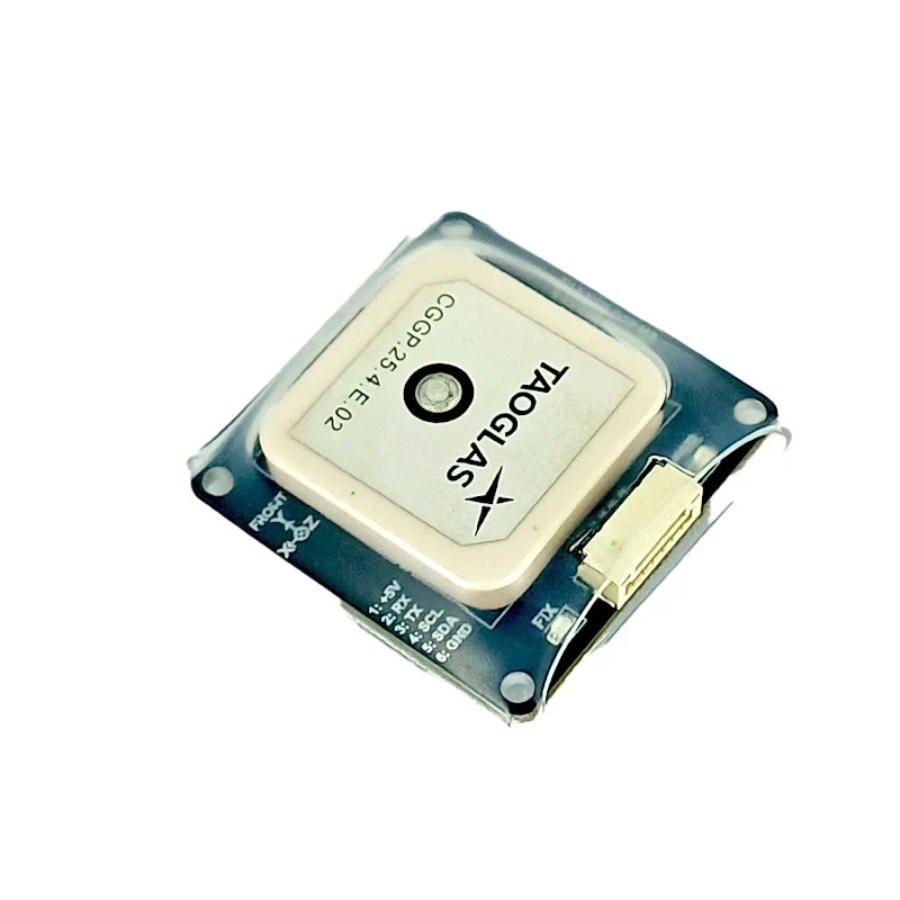

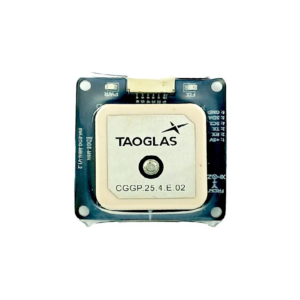

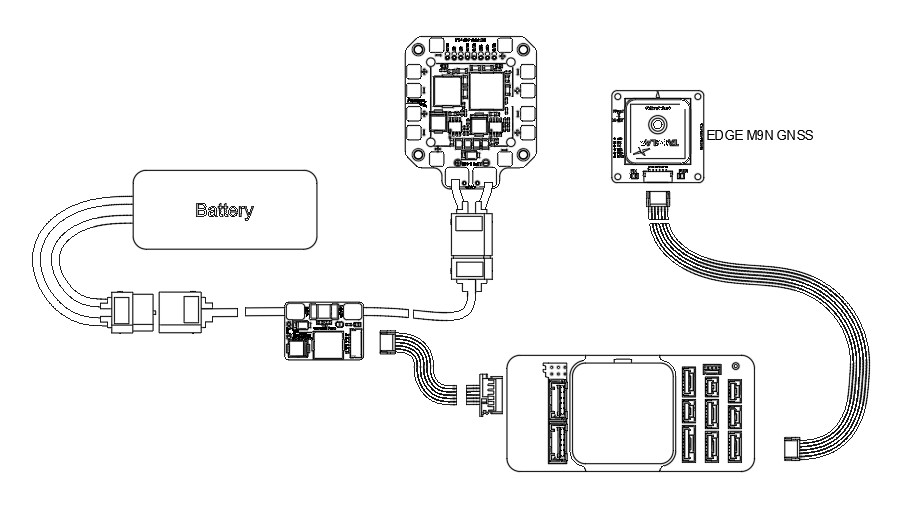

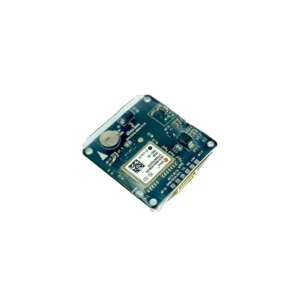

SwiftWing EDGE-M9N GNSS & Compass Module NEO-M9N, Taoglas Antenna, External LNA & SAW Filter

SwiftWing EDGE-M9N GNSS & Compass Module NEO-M9N, Taoglas Antenna, External LNA & SAW Filter

Description:

The SwiftWing EDGE-M9N GNSS & Compass Module is a professional-grade navigation solution engineered for UAVs, autonomous vehicles, robotics, marine systems, surveying equipment, and embedded navigation platforms. Powered by the advanced u-blox NEO-M9N GNSS receiver and LIS3MDL 3-axis digital magnetometer, it delivers precise positioning, reliable heading information, and fast satellite acquisition even in challenging RF environments.

Designed with a premium Taoglas 25×25mm ceramic patch antenna, external MAX2659 low-noise amplifier (LNA), dedicated SAW filter, optimized 35×35mm ground plane, and supercapacitor-assisted backup retention, the EDGE-M9N ensures exceptional signal integrity and dependable navigation performance. Its multi-constellation GNSS capability supports GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS for enhanced accuracy and reliability.

Features:

1. Powered by the high-performance u-blox NEO-M9N GNSS receiver
2. Integrated LIS3MDL 3-axis digital magnetometer for accurate heading
3. Premium Taoglas CGGP.25.4.E.02 ceramic patch antenna
4. External MAX2659ELT low-noise amplifier (LNA) for enhanced signal reception
5. Dedicated SAFEB1G57KE0F00R15 SAW filter for superior interference rejection
6. Supports GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS constellations
7. RF interference monitoring and GNSS spoofing detection support
8. Supercapacitor backup for improved hot-start performance
9. Navigation update rate up to 25Hz
10. JST-GH 6-pin connector for easy integration

Specifacations :

1. Item Type : GNSS & Compass Module
2. GNSS Receiver : u-blox NEO-M9N
3. Magnetometer : LIS3MDL
4. GNSS Support : GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
5. Frequency Band : L1
6. Position Accuracy : 2.0 m CEP (Typical)
7. Navigation Update Rate : Up to 25 Hz
8. Tracking Sensitivity : -167 dBm
9. Reacquisition Sensitivity : -160 dBm
10. Cold Start Sensitivity : -148 dBm
11. Cold Start Time : ~28 seconds
12. Hot Start Time : ~1 second
13. Communication Interface : UART + I²C
14. Protocol Support : UBX, NMEA, RTCM 3.x
15. Operating Voltage : 4.75 V – 5.5 V (Nominal 5 V)
16. Connector Type : JST-GH 6-pin
17. Backup System : Integrated Supercapacitor
18. Protection : Resettable Fuse
19. Operating Temperature : -40°C to +85°C
20. Storage Temperature : -40°C to +85°C
21. Antenna Type : Taoglas 25×25 mm Ceramic Patch Antenna
22. RF Front End : External MAX2659 LNA + SAW Filter

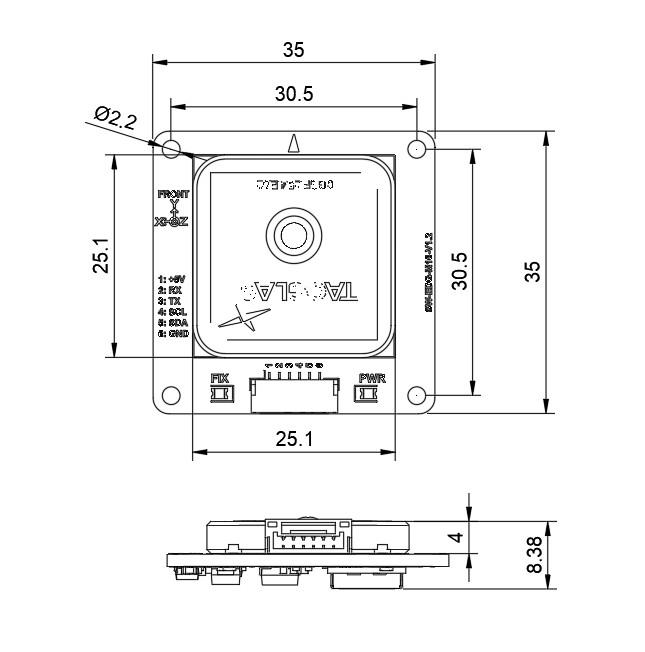

23. Board Size : 35 × 35 mm
24. Weight : 17g

Datasheet:

Package Includes:

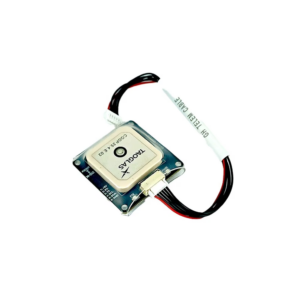

1 x SwiftWing EDGE-M9N GNSS & Compass Module  NEO-M9N, Taoglas Antenna, External LNA & SAW Filter

1 x GH Telem Cable
