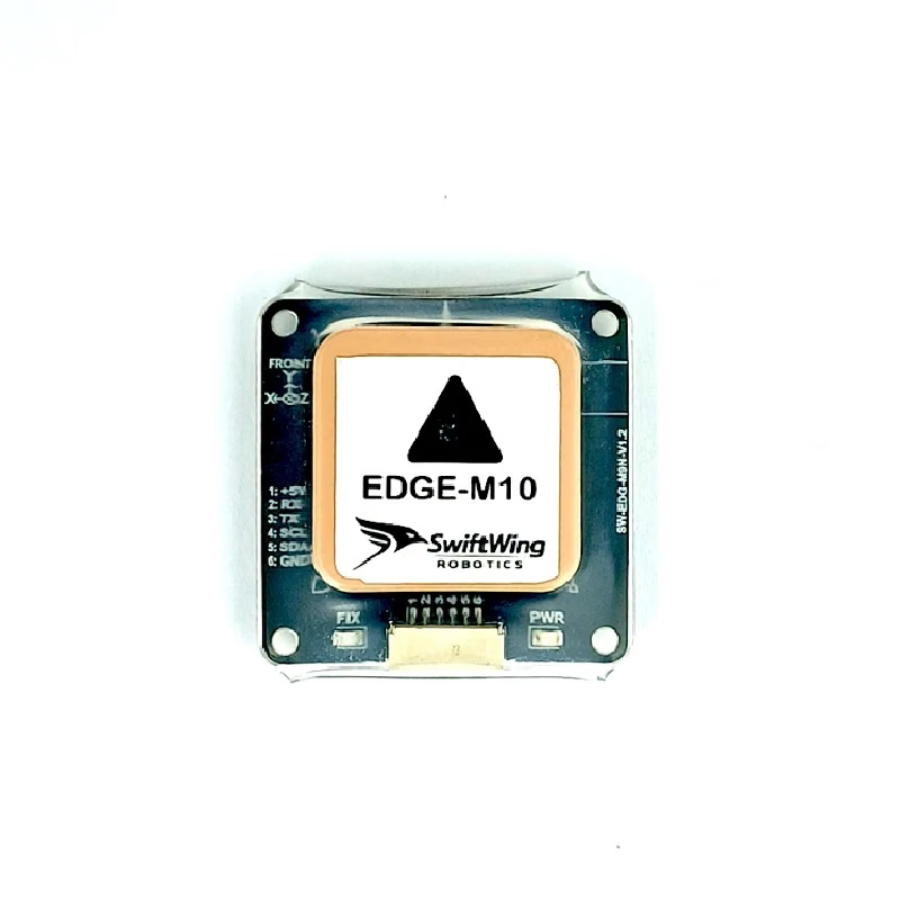

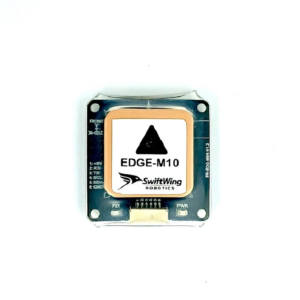

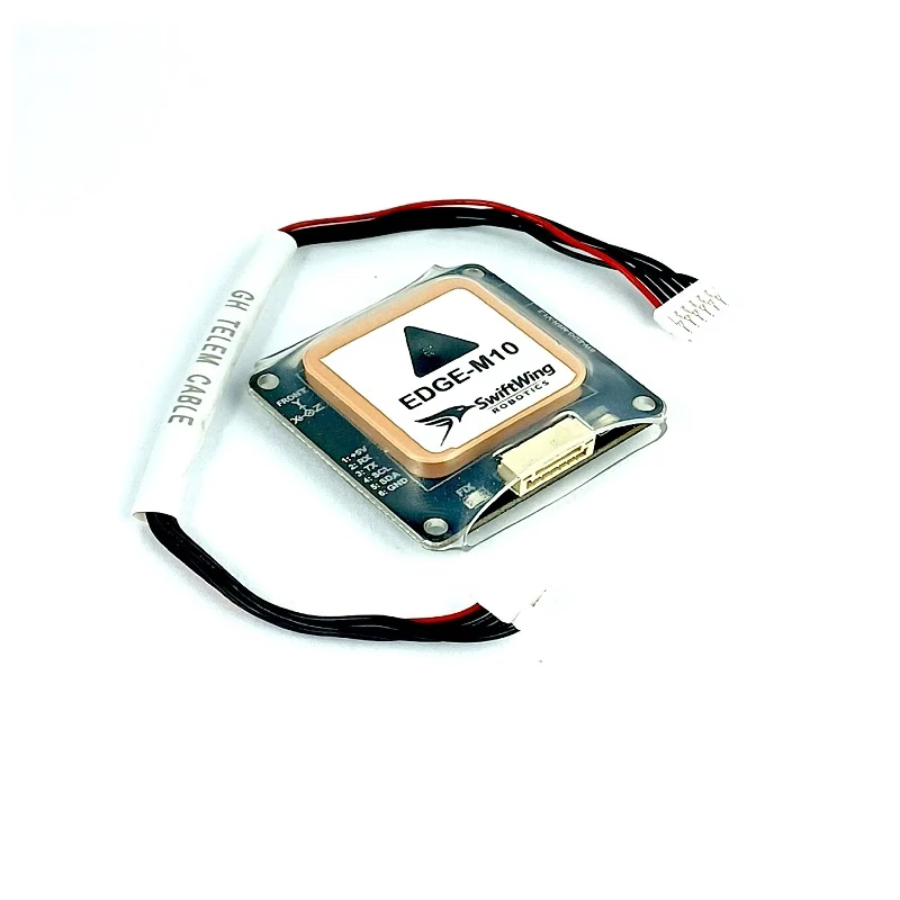

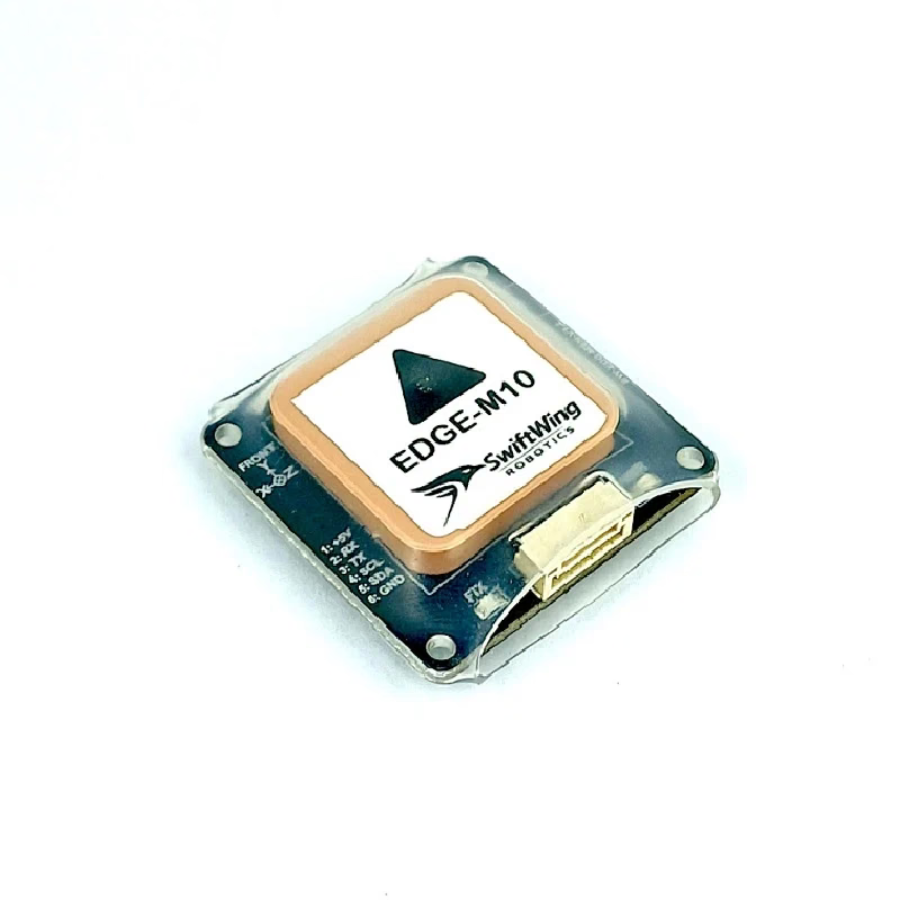

SwiftWing EDGE-M10 GNSS & Compass Module

SwiftWing EDGE-M10 GNSS & Compass Module

Description:

The SwiftWing EDGE-M10 GNSS & Compass Module is a professional-grade navigation solution designed for UAVs, autonomous vehicles, robotics platforms, marine systems, and embedded positioning applications. Powered by the advanced u-blox MAX-M10S multi-constellation GNSS receiver and LIS3MDL 3-axis digital magnetometer, the module delivers reliable positioning, fast satellite acquisition, and accurate heading information even in challenging RF environments.

Featuring concurrent support for GPS, Galileo, BeiDou, GLONASS, QZSS, and SBAS, the EDGE-M10 ensures robust global coverage and improved positioning reliability. The integrated 25×25mm ceramic patch antenna, optimized 35×35mm ground plane, and external SAW filter provide enhanced signal reception and superior interference rejection.

With support for navigation update rates up to 10Hz, RF jamming detection, spoofing detection, and seamless compatibility with PX4 and ArduPilot flight controllers, the EDGE-M10 is an ideal choice for professional UAVs, autonomous robots, AGVs, and embedded navigation projects requiring dependable GNSS performance.

Features:

1. Powered by u-blox MAX-M10S high-performance GNSS receiver
2. Integrated LIS3MDL 3-axis digital compass for heading reference
3. Supports GPS, Galileo, BeiDou, GLONASS, QZSS, and SBAS
4. 25×25mm ceramic patch antenna with optimized 35×35mm ground plane
5. External SAW filter for improved RF interference rejection
6. Supports navigation update rates up to 10Hz
7. RF interference monitoring and jamming detection support
8. GNSS spoofing detection and signal integrity monitoring
9. Fast satellite acquisition with hot start in approximately 1 second
10. Compatible with PX4 and ArduPilot automatic GPS configuration
11. JST-GH 6-pin interface for easy integration

Specifications:

1. Product Type: GNSS & Compass Module

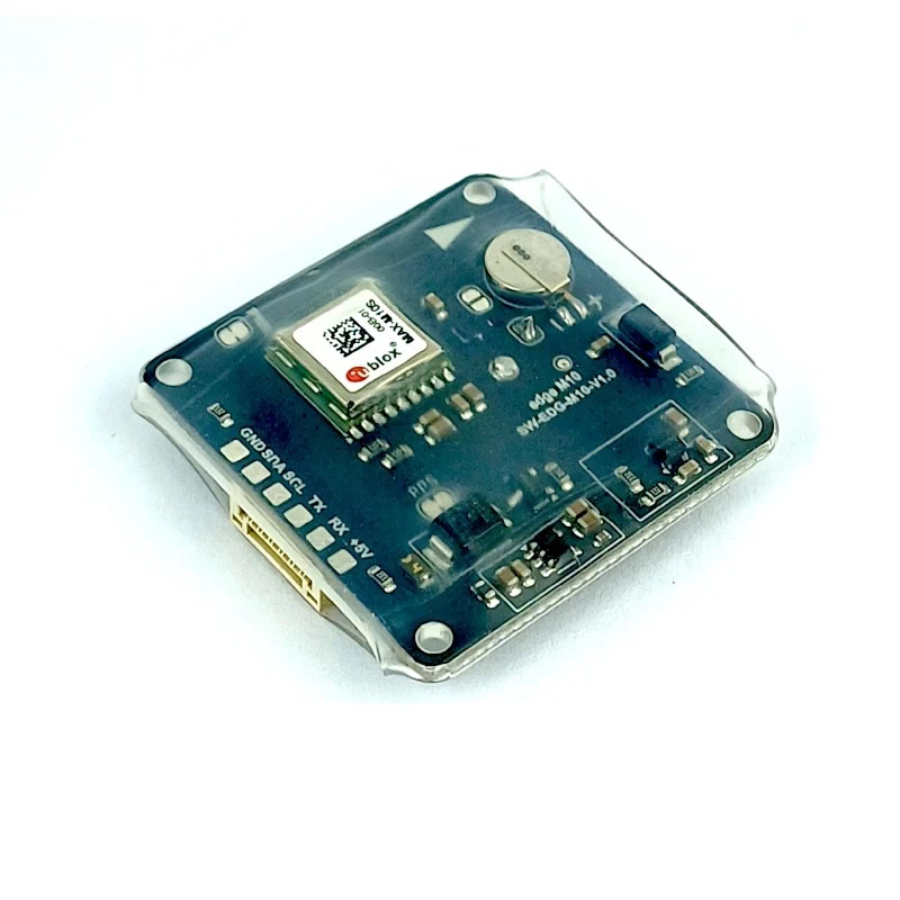

2. GNSS Chipset: u-blox MAX-M10S
3. Magnetometer: LIS3MDL 3-Axis Digital Magnetometer
4. GNSS Type : Multi-Constellation GNSS Receiver
5. Supported Satellite Systems: GPS, Galileo, BeiDou, GLONASS, QZSS, SBAS
6. Horizontal Position Accuracy: 1.5m CEP (Typical)
7. Maximum Navigation Update Rate : Up to 10Hz
8. Tracking Sensitivity: -167 dBm
9. Reacquisition Sensitivity: -160 dBm
10. Cold Start Sensitivity: -148 dBm
11. Supported Protocols: UBX, NMEA
12. Recommended Baud Rate : 115200 bps
13. Communication Interface: UART + I²C
14. Connector Type: JST-GH 6-Pin
15. Input Voltage: 4.75V – 5.5V DC
16. Nominal Operating Voltage: 5V DC
17. Antenna Type: Ceramic Patch Antenna
18. Antenna Size: 25 × 25 mm
19. Ground Plane Size : 35 × 35 mm Optimized Ground Plane

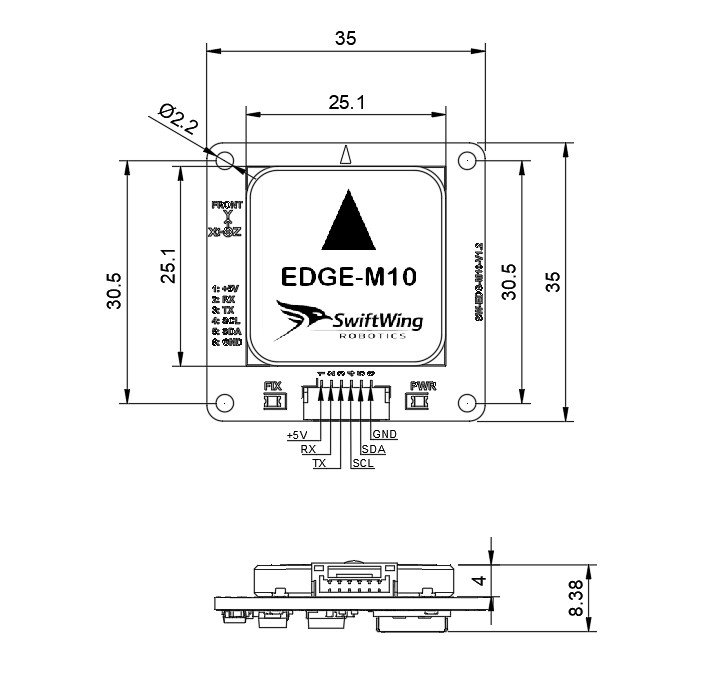

20. PCB Dimensions: 35 × 35 mm
21. Operating Temperature: -40°C to +85°C
22. Storage Temperature: -40°C to +85°C
23. Status Indicators: Power LED, PPS LED
24. PPS Output: 1Hz Timing Synchronization Indicator

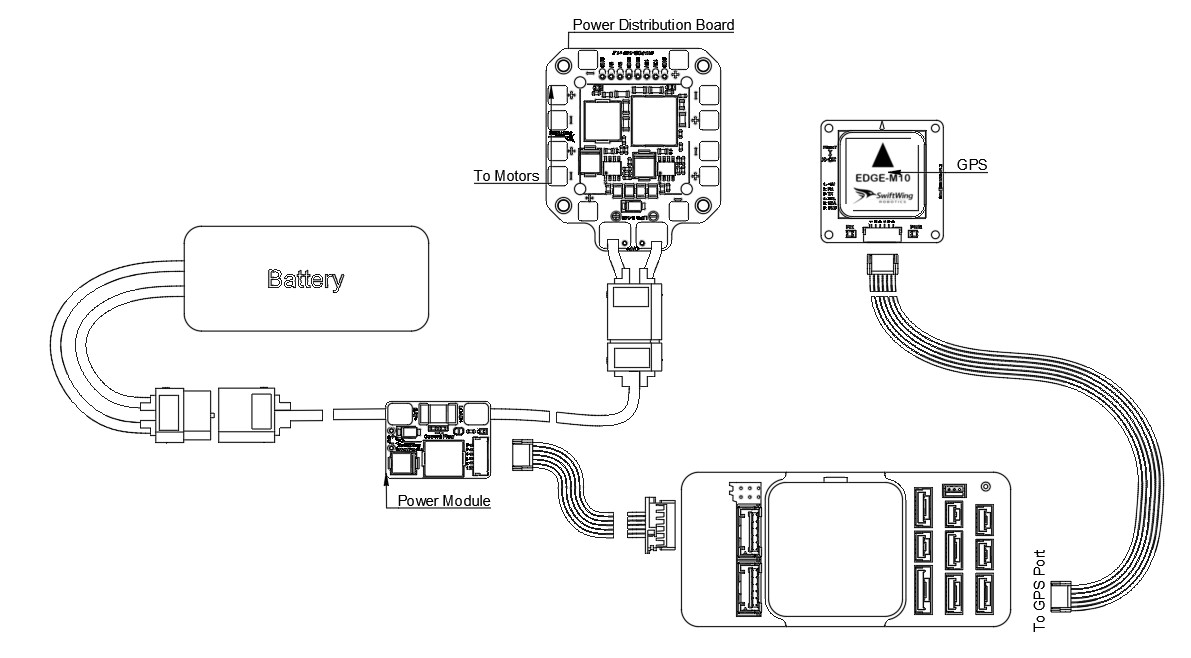

25. Flight Controller Compatibility : PX4, ArduPilot
26. Module Height : Approximately 8.4 mm
27. Mounting Pattern: 30.5 × 30.5 mm
28. Mounting Hole Size : M2
29. Weight : 17g

Datasheet:

Package Includes:

1 x SwiftWing EDGE-M10 GNSS & Compass Module
