STM8S003F3P6 System Board STM8S003F3 STM8S STM8 Development Board

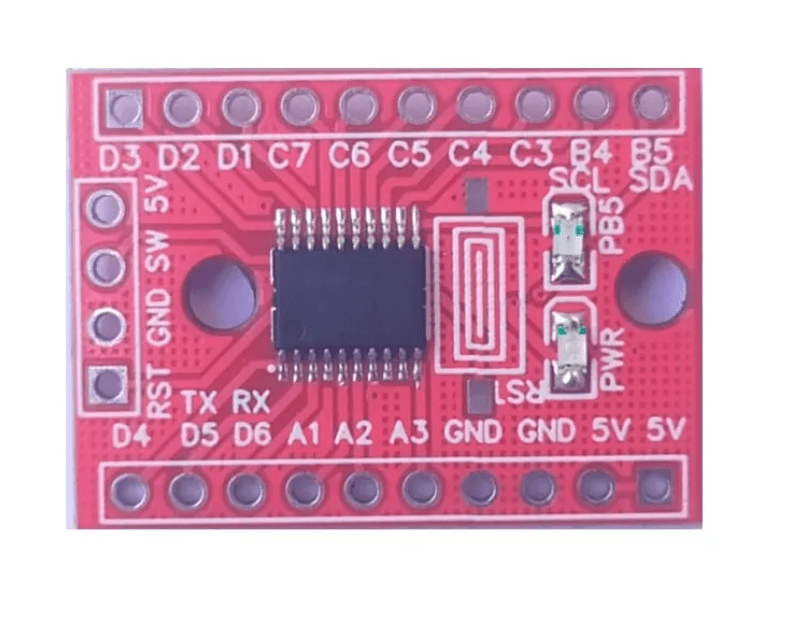

The Core Board STM8S003F3P6 STM8 Development Board is a minimum system board or development board that features a pre-soldered microcontroller, a PWR and a configurable LED, and a RESET button. The board has a 2.54” pin pitch that allows soldering standard berg pins and connecting them with berg wires or placing them in the breadboard. This is more convenient than using the MCU only.
This mini development board accepts 5V input through pins and has a PWR LED that indicates the power status. The RESET button can reset the microcontroller unit and the LED on the PB5 of the microcontroller unit can be programmed by the user for testing purposes.
The programming interface is located on the top side of the board, where the RST, GND, SW and 5V connections are available. The board pinout is clearly labeled for easy interfacing and identification. The I2C lines SDA and SCL have 4.7k pull-up resistors connected on the bottom of the board.

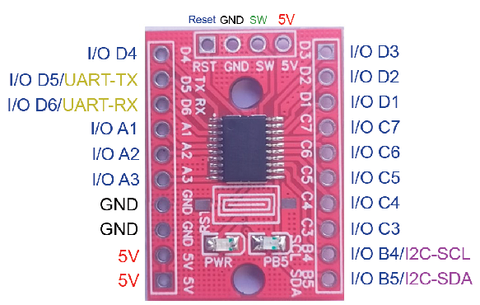

STM8S003F3P6 Development Board pinout:
STM8S003F3P6 Development Board Specifications:
- This text describes a controller with the following features:
– Model: STM8S003F3P6
– Reset switch on board
– Pin spacing: 54 inches
– Operating voltage: 5V, directly connected to MCU VCC
– Power LED and user-configurable LED
– High-quality PCB
– 7k pull-up resistors on I2C lines
STM8S003F3P6 Development Board Applications:
- Some possible applications of the STM8S development board or programming board are:- Driving I2C-based sensors
– Logging and acquiring data
– Sensing analog signals
– Implementing small control systems

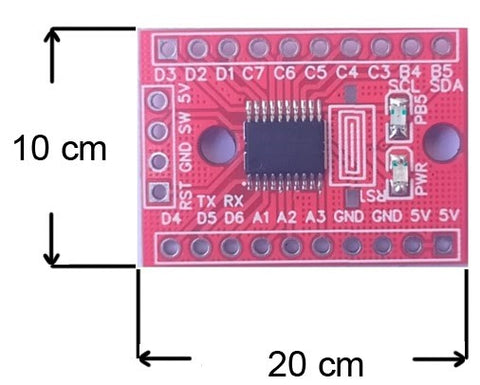

STM8S003F3P6 Development Board Dimension and footprint:
Example Projects on STM8S003F3P6 Development Board
Datasheet
Package Includes
- 1x STM8S003F3P6 System Board STM8S003F3 STM8S STM8 Development Board
STM8S003F3P6 System Board STM8S003F3 STM8S STM8 Development Overview
The STM8S003F3P6 System Board is a compact development platform featuring the STM8S003F3P6 microcontroller. It provides a minimum system setup with power indicator, configurable LED on PB5, and a reset button, making it ideal for rapid firmware testing and embedded application prototyping.
Key Features of STM8S003F3P6 System Board STM8S003F3 STM8S STM8 Development
- Pre-soldered STM8S003F3P6 8-bit microcontroller
- 3.3 V to 5 V DC input with onboard PWR LED indicator
- Configurable status LED connected to PB5
- Built-in RESET button for instant MCU restart
- 2.54 mm pin pitch headers for breadboard or berg-wire connections
- High-quality copper PCB, RoHS compliant, plus fast shipping from Zbotic
Applications and Use Cases
- Firmware development and debugging for STM8S series
- Rapid prototyping of low-power sensor nodes
- Educational projects on microcontroller programming in C
- Basic robotics controllers or motor driver interfaces
- Home automation modules like relay or keypad drivers
- LED blink demos and timing experiments
How to Use STM8S003F3P6 System Board STM8S003F3 STM8S STM8 Development
Supply 3.3 V–5 V DC to the VCC and GND pins, mount the board on a breadboard via its 2.54 mm headers, and connect an ST-LINK or SWIM-compatible programmer to the designated SWIM and GND pins. Load your firmware using the STM8 development IDE, use the reset button to restart the MCU, and monitor the PB5 LED for status feedback.
