SPI BIOS FLASH Non-Dismantling Test Program Clip SOP8 24C 93C 25LF

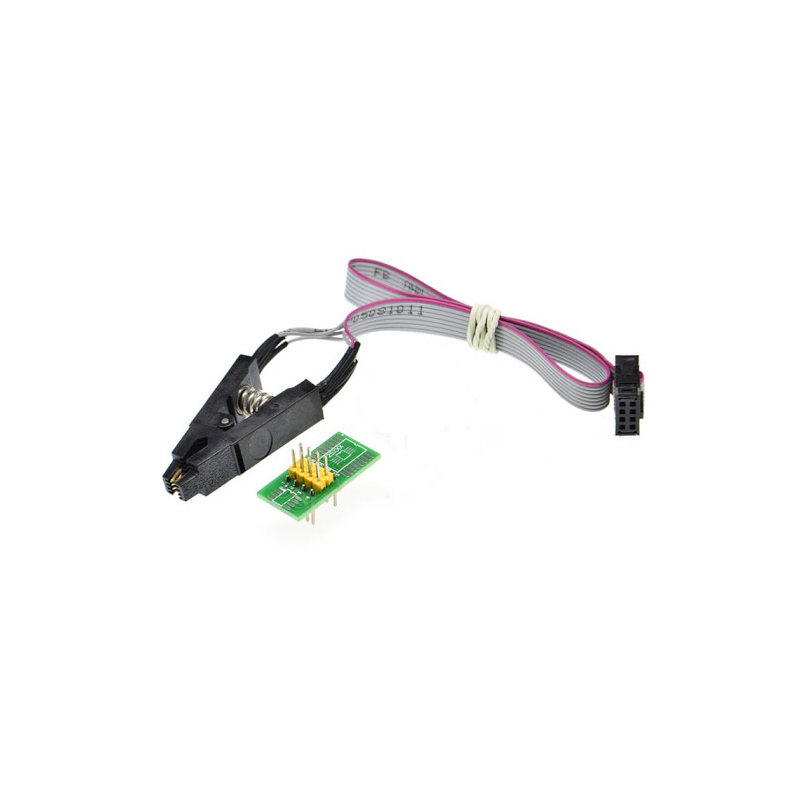

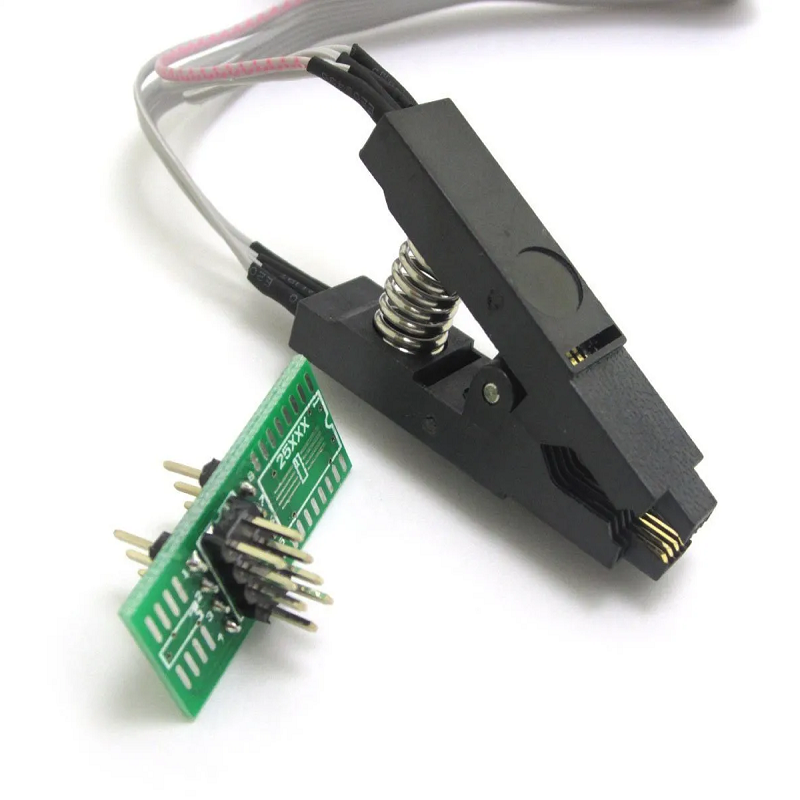

This SPI BIOS FLASH Non-Dismantling Test Program IC programming clip is ideal for reading or writing EEPROMs. It enables in-circuit programming of SOP8 chips, allowing you to program SOP8 chips without removing them from the circuit board. Simply clip the device to the chip and use one of the two breakout adapter boards to connect it to your programmer. The ISP cable is wired 1:1, making it compatible with any programmer that has a ZIF/DIL socket and supports ISP/ICSP Mode. Key features of the clip include:
– Tests SPI BIOS FLASH chips without removal.
– Compatible with SOP8 packaged chips.
– Supports 24C, 93C, and 25LF series.
– Easy clip-on design for secure testing.
– Saves time and prevents chip damage.
– Useful for diagnostics and repairs.
Features:
- Supports many different EEPROMS 150mil / 209mil – 24Cxx, 25Cxx, 93Cxx, 95xxx, 25Lxx
- Pitch Lead: 2.54mm
- Pitch row: 3.81mm
- SOIC 8 / SOP8 Clip
- Spring Loaded
Specification:
Pitch row. | 3.81mm |
---|---|
Pitch Lead. | 2.54mm |
Includes:
1 x SPI BIOS FLASH Non-Dismantling Test Program Clip SOP8 24C 93C 25LF
