SparkFun ESP8266 Thing – Dev Board

Looking for Esp8266 Board? SparkFun ESP8266 Thing – Dev Board is available at Zbotic with fast shipping across India.

This is the SparkFun ESP8266 Thing Dev Board – a development board that has been solely designed around the ESP8266, with an integrated FTDI USB-to-Serial chip. The ESP8266 is a cost-effective and very capable WiFi-enabled microcontroller. Like any microcontroller, it can be programmed to blink LEDs, trigger relays, monitor sensors, or automate coffee makers, and with an integrated WiFi controller, the ESP8266 is a one-stop-shop for almost any Internet-connected project.

To top it all off, the ESP8266 is incredibly easy-to-use: the firmware can be developed in Arduino and uploaded over a simple, serial interface. The ESP8266 Thing Development Board breaks out all of the module’s pins, and the USB-to-serial converter means you don’t need any peripheral components to program the chip. Just plug in a USB cable, download the Arduino board definitions, and start IoT-ing.

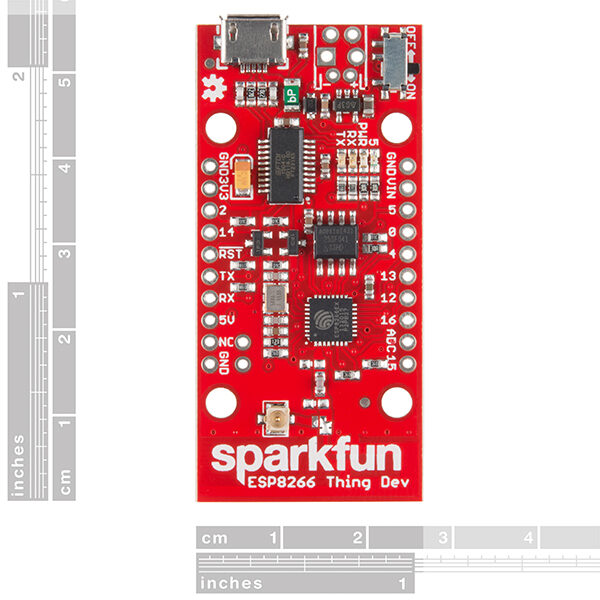

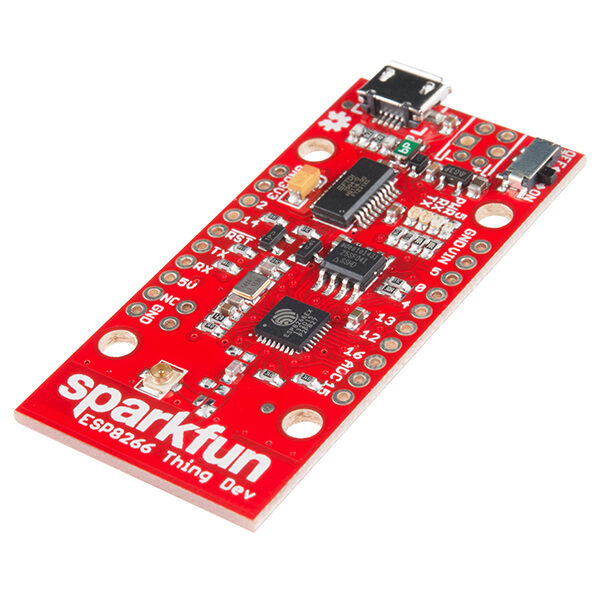

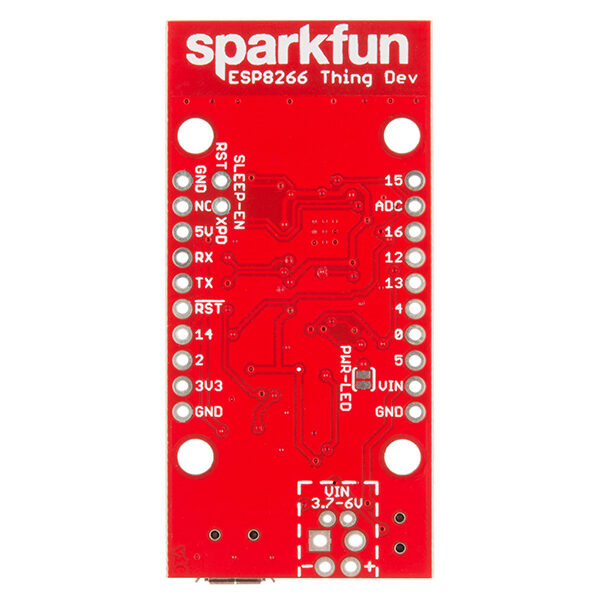

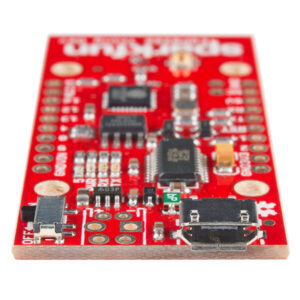

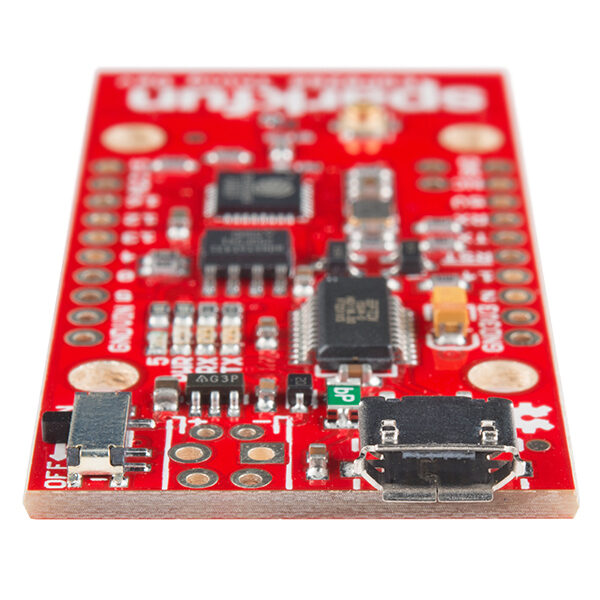

The ESP8266 Thing Development Board is a relatively simple board. The pins are broken out to two parallel, breadboard-compatible rows. The USB connector sits next to an optional power supply input, and an ON/OFF switch – controlling power to the ESP8266 – sits next to that. And LEDs towards the inside of the board indicate power, charge, and status of the IC. The ESP8266’s maximum voltage is 3.6V, so the Thing has an onboard 3.3V regulator to deliver a safe, consistent voltage to the IC.

That means the ESP8266’s I/O pins also run at 3.3V, you’ll need to level shift any 5V signals running into the IC. If your project requires a power source other than USB, the Thing Dev Board includes footprints for a 2-pin JST, 2-pin 3.5mm screw terminal, or a simple 0.1″-pitch 2-pin header. Unlike the original ESP8266 Thing, the ESP8266 Thing Dev Board does not have a built-in LiPo charger.

The Thing Dev Board even includes a PCB trace antenna as a default WiFi antenna, it’s cost-effective and actually works really well! If you need to connect a more sensitive antenna, or need to route outside an enclosure, a U.FL connector is also available on the board. Some soldering will be required to get the U.FL connector functioning but instructions can be found in the Hookup Guide we have written for the dev board.

How to Use?

Hookup guide Visit learn.sparkfun.com

Note: We’ve provided a few Example Sketches to experiment on your SparkFun ESP8266 Thing Development Board. These sketches can be found in the Hookup Guide in the Documents section below!

This Esp8266 Board is a popular choice among hobbyists and professionals. The Esp8266 Board offers reliable performance for your projects.

About Esp8266 Board

SparkFun ESP8266 Thing – Dev Board is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by SparkFun, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: SparkFun
• SKU: AI1358
• Category: Other ESP WIFI Modules

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Esp8266 Board and other products.

Applications

Esp8266 Board can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Esp8266 Board today and start building.

SparkFun ESP8266 Thing – Dev Board Overview

The SparkFun ESP8266 Thing – Dev Board is a compact development platform built around the ESP8266 Wi-Fi microcontroller and an on-board FTDI USB-to-Serial chip. It provides a single-board solution for creating Internet-connected projects, from sensor nodes to smart appliances.

Key Features of SparkFun ESP8266 Thing – Dev Board

• All ESP8266 module pins broken out for easy access to GPIO, ADC, TX/RX and power pins
• On-board FTDI USB-to-Serial interface for plug-and-play programming
• 802.11 b/g/n Wi-Fi connectivity with integrated TCP/IP protocol stack
• Supports Wi-Fi Direct (P2P) and soft-AP modes for peer-to-peer and access point operation
• Integrated RF front-end: TR switch, balun, LNA, power amplifier and matching network
• Fast shipping across India from Zbotic for rapid project startup

Applications and Use Cases

• Home automation hubs controlling lights, relays or thermostats over Wi-Fi
• Remote environmental monitoring with wireless sensor data logging
• Wi-Fi enabled robotics projects for teleoperation or telemetry feedback
• Smart appliance prototypes such as Wi-Fi coffee makers or door locks
• IoT gateways bridging BLE, SPI or I2C sensors to cloud services
• Wireless firmware updates and remote diagnostics for embedded products

How to Use SparkFun ESP8266 Thing – Dev Board

Simply connect the ESP8266 Thing to your computer via micro-USB, install the SparkFun ESP8266 core in the Arduino IDE, select “SparkFun ESP8266 Thing” as your board, and upload sketches over the serial interface. Use the breakout pins to attach sensors, actuators or power sources and configure Wi-Fi credentials directly in your code or via soft-AP mode.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

How do I program the ESP8266 Thing?

Install the SparkFun ESP8266 core in the Arduino IDE, connect the board via USB, select the “SparkFun ESP8266 Thing” from the board menu, choose the correct COM port, and click Upload. The FTDI chip handles the USB-to-Serial conversion automatically.

Are all ESP8266 pins accessible on this board?

Yes. Every module pin—including GPIO0–16, TX/RX, ADC input and power pins—is broken out to castellated pads or headers for soldering or jumper connections.

Can this board run as a standalone Wi-Fi access point?

Yes. The ESP8266 Thing supports soft-AP mode and Wi-Fi Direct (P2P), allowing you to host your own network for device configuration, peer-to-peer communication or direct control without an external router.
