Description:

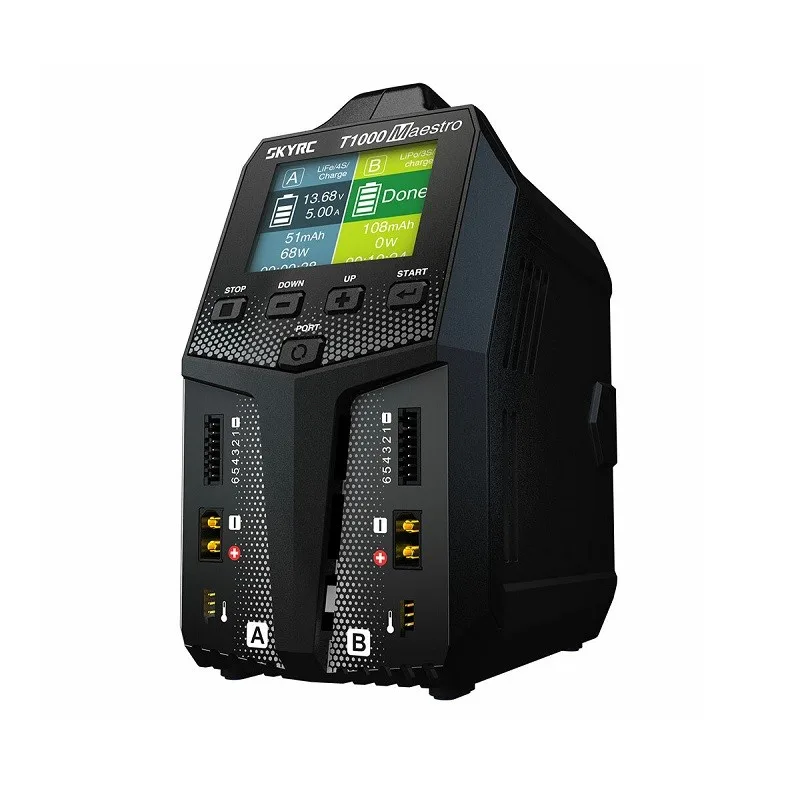

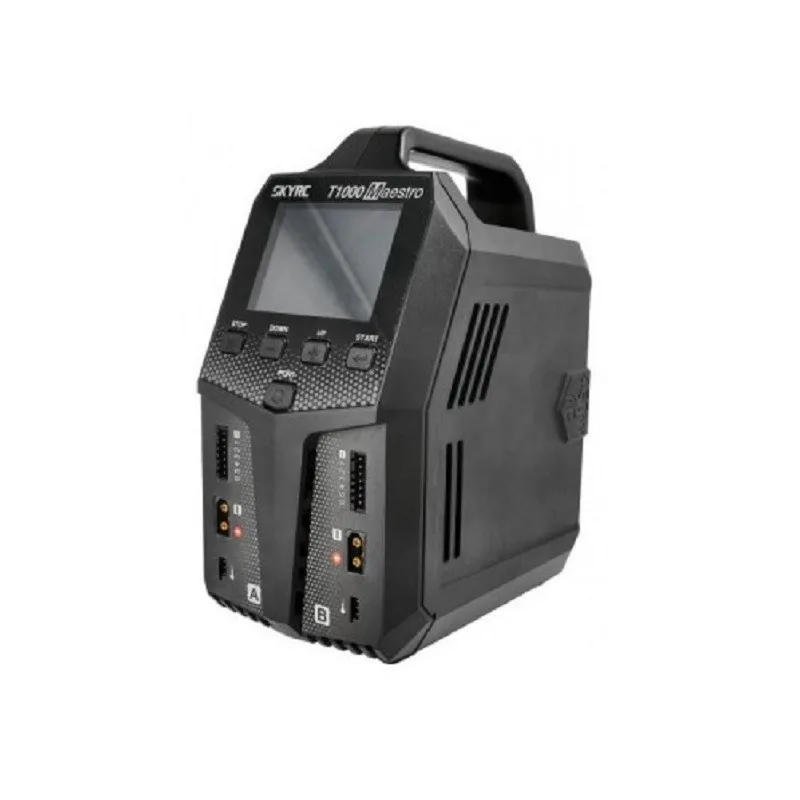

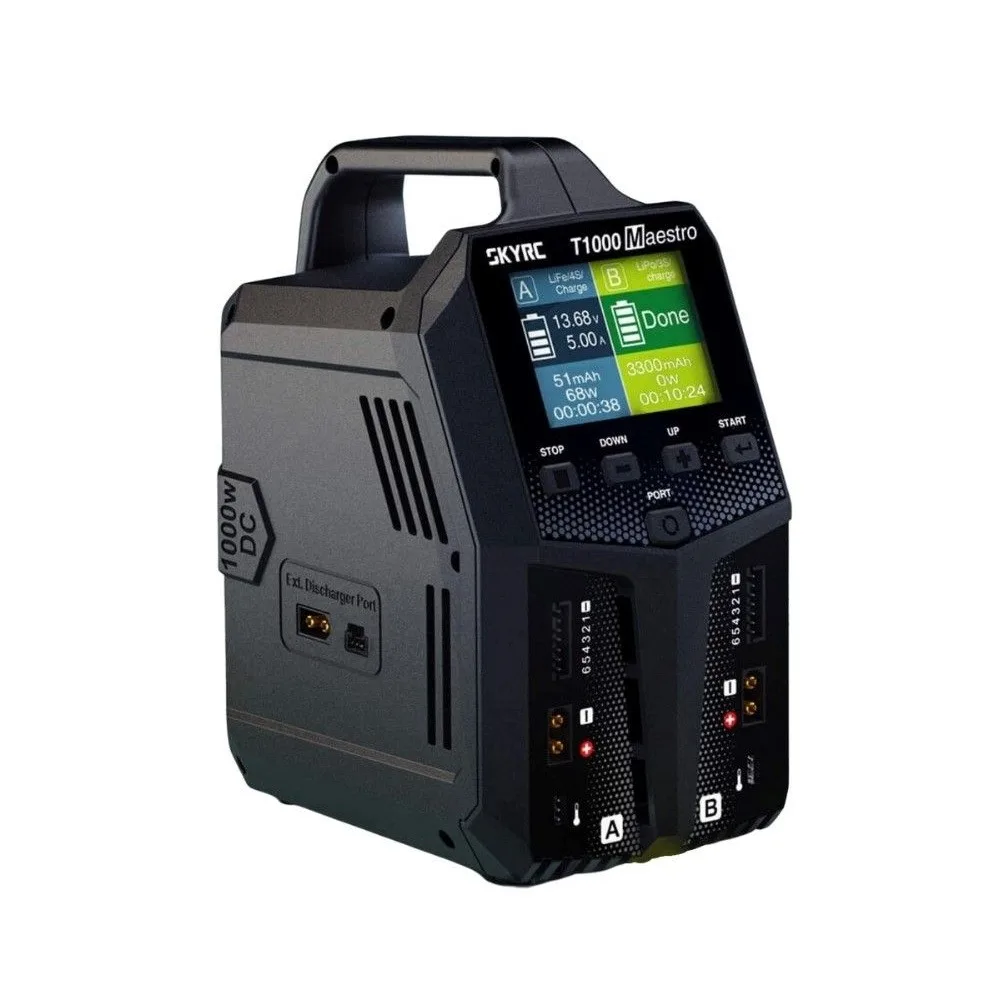

Introducing the SKYRC T1000 Maestro 20A AC/DC Dual Balance Charger.
The dual ports operate independently, allowing for the efficient and simultaneous charging of two battery packs. RC enthusiasts have the flexibility to select either AC or DC input based on their needs. The charger offers up to 450W of power in AC mode and an impressive 1000W in DC mode. Suitable for both novices and seasoned RC racers, this charger is designed to expand the boundaries of possibility.
With a single port in use, the T1000 directs full power to that port. When both ports are in use, the charging power is dynamically and intelligently allocated between them. As soon as one port completes its task, the other port ramps up to full power, ensuring intelligent and efficient use of total power. The charging process is incredibly versatile.
The T1000 excels in charging capabilities and doubles as a digital power supply. A simple menu click prepares the T1000 for your specific needs, offering a voltage range of 5-27V in 0.1V increments and an adjustable current of 1-15A. It includes safety features such as short circuit, overload, and reverse polarity protection.
Its classic, minimalistic, and sleek vertical tower design allows RC hobbyists to save bench space, accommodating the size of two battery packs. The design not only facilitates charging but also enhances the experience. Additionally, the ergonomic handle ensures the charger is easy to store, transport, and take on the go.
Features:
- 2 independent charging channels
- AC / DC Input: Up to 450W (AC) or 1000W (DC) charging power
- Arm Cortex-M4 MCU1
- Smart power distribution
- High-contrast 2.8” LCD display with ColourX user interface
- Battery Internal Resistance Meter
- 10 Battery Memories
- Intelligent fan control
Specification:
| Parameter | Specification |
|---|---|
| Case Material | Plastic |
| Display Type | Color X |
| DC Input Voltage | 10 – 30 V |
| AC Input Voltage | 100 – 240 V |
| Battery Types / Cells | LiPo / LiHV / LiFe / Li-Ion: 1–6 cells NiMH / NiCd: 4–15 cells Pb: 3S / 6S / 12S |
| Balance Current (LiPo/LiFe/Li-Ion/LiHV) | 1.5 A MAX |
| Charge Current | LiPo / LiFe / Li-Ion / LiHV / NiMH / NiCd / Pb: 0.1 – 20.0 A Parallel: 20.0 – 35.0 A |
| Discharge Current | LiPo / LiFe / Li-Ion / LiHV / NiMH / NiCd / Pb: 0.1 – 2.0 A External Discharge: 0.1 – 40.0 A |
| Discharge Power (Main Port) | 10 W |
| Discharge Power (Balance Port) | 37 W MAX |
| Discharge Power (External) | 350 W MAX |
| Case Size | 190.3 × 153.5 × 100 mm |
Packages Includes:
1 x SKYRC T1000 Maestro 450W 20A AC/DC Dual Balance Charger
1 x User manual
1 x AC power cord
About T1000 Maestro
Original SKYRC T1000 Maestro 20A AC/DC Dual Balance Charger is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by SKYRC, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: SKYRC
- SKU: AI5772
- Category: Flight Controller & Accessories
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about T1000 Maestro and other products.
Applications
T1000 Maestro can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your T1000 Maestro today and start building.
About T1000 Maestro
Original SKYRC T1000 Maestro 20A AC/DC Dual Balance Charger is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by SKYRC, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: SKYRC
- SKU: AI5772
- Category: Motors & Drivers & Pumps & Actuators
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about T1000 Maestro and other products.
Applications
T1000 Maestro can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your T1000 Maestro today and start building.
Original SKYRC T1000 Maestro 20A AC/DC Dual Balance Charger Overview
The Original SKYRC T1000 Maestro is a high-power dual balance charger designed for RC battery enthusiasts who demand both AC and DC charging flexibility. With independent dual ports and intelligent power distribution, it delivers up to 450W on AC input or 1000W on DC, ensuring fast, safe charging of LiPo, NiMH, Pb and other battery chemistries.
Key Features of Original SKYRC T1000 Maestro 20A AC/DC Dual Balance Charger
- Dual independent ports: Simultaneously charge two battery packs with intelligent power allocation.
- AC/DC compatibility: 100–240V AC for 450W max or 10–30V DC for 1000W max output.
- Multi-chemistry support: Balance-charge LiPo/LiHV/LiFe/LiIon (1–6S), NiMH/NiCd (4–15 cells) and Pb (3S/6S/12S).
- Dynamic power boost: Single-port use delivers full power; dual-port use shares output, then ramps to full once one port finishes.
- 20A max charge current per port: Ideal for rapid top-ups and full battery cycles.
- Genuine product and fast shipping from Zbotic: Delivered within 24 hours with tracking.
Applications and Use Cases
- Recharging LiPo packs for high-performance RC cars, boats and trucks.
- Field charging drone batteries between flight sessions.
- Balancing NiMH starter packs for scale RC rock crawlers and buggies.
- Maintaining sealed lead-acid (Pb) batteries for emergency lighting or power backups.
- Preparing multiple battery chemistries simultaneously for RC race day events.
- Bench charging of battery packs in home workshops or club pits.
How to Use Original SKYRC T1000 Maestro 20A AC/DC Dual Balance Charger
Connect the charger to AC (100–240V) or a DC source (10–30V), attach battery leads and balance ports securely, then select the battery type, cell count and desired charge current on the intuitive display. Press “Start” to begin charging. When both ports are active, the unit will dynamically distribute output; once one pack finishes, the remaining pack receives full available power.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I charge two different battery types at the same time?
Yes. The T1000 Maestro’s dual ports operate independently, so you can charge, for example, a LiPo pack on one port and a NiMH pack on the other without interference.
What input power source do I need for full 1000W output?
To achieve the full 1000W, use a stable DC input between 10 and 30V with sufficient current capacity (up to 50A). On AC mains, the charger provides up to 450W.
Does the charger balance cells automatically?
Absolutely. During each charge cycle, the T1000 Maestro monitors and balances individual cell voltages within the pack, ensuring safe and uniform charging across all cells.
