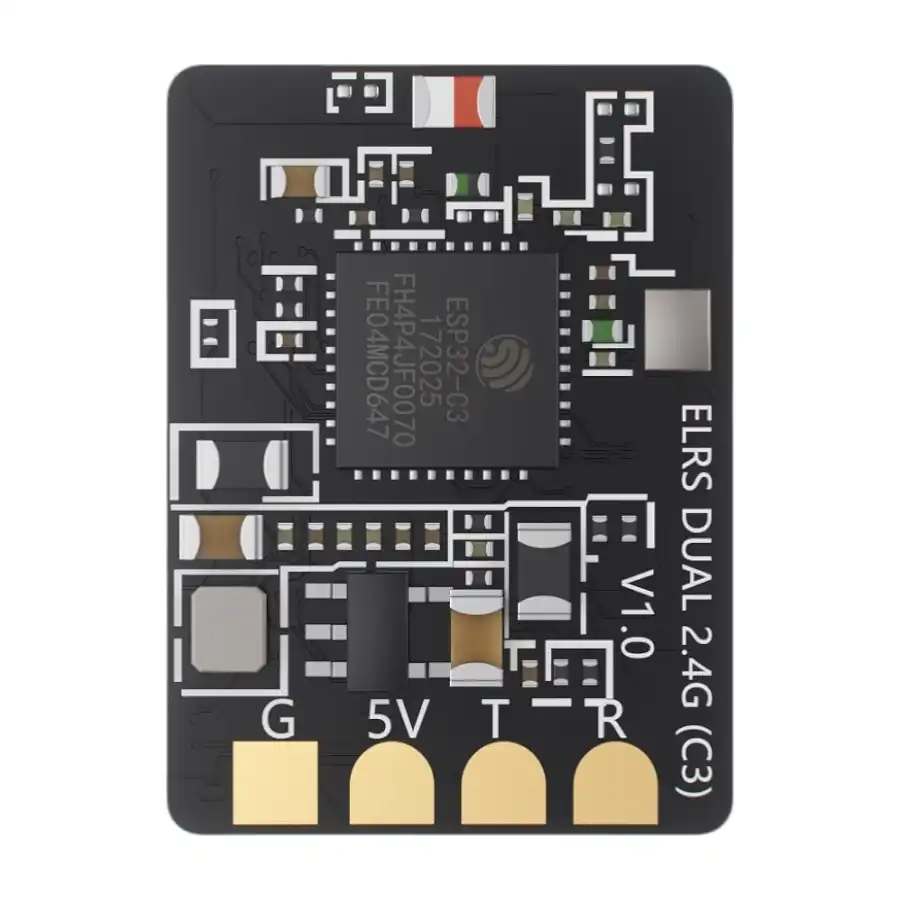

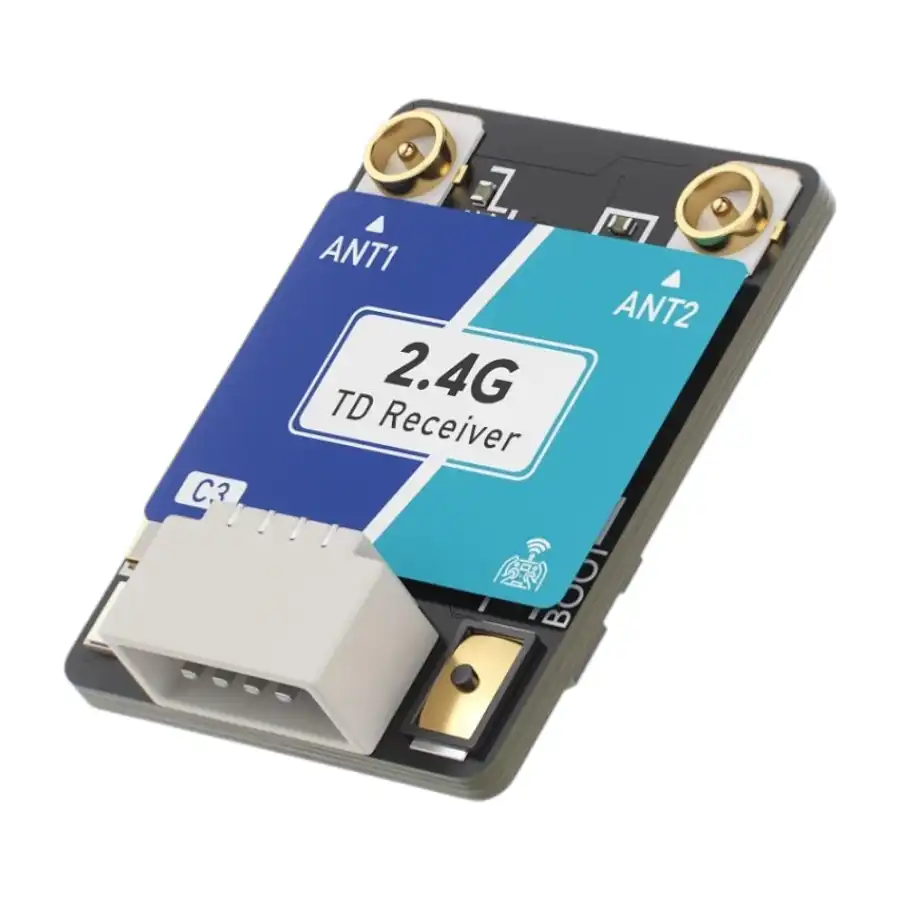

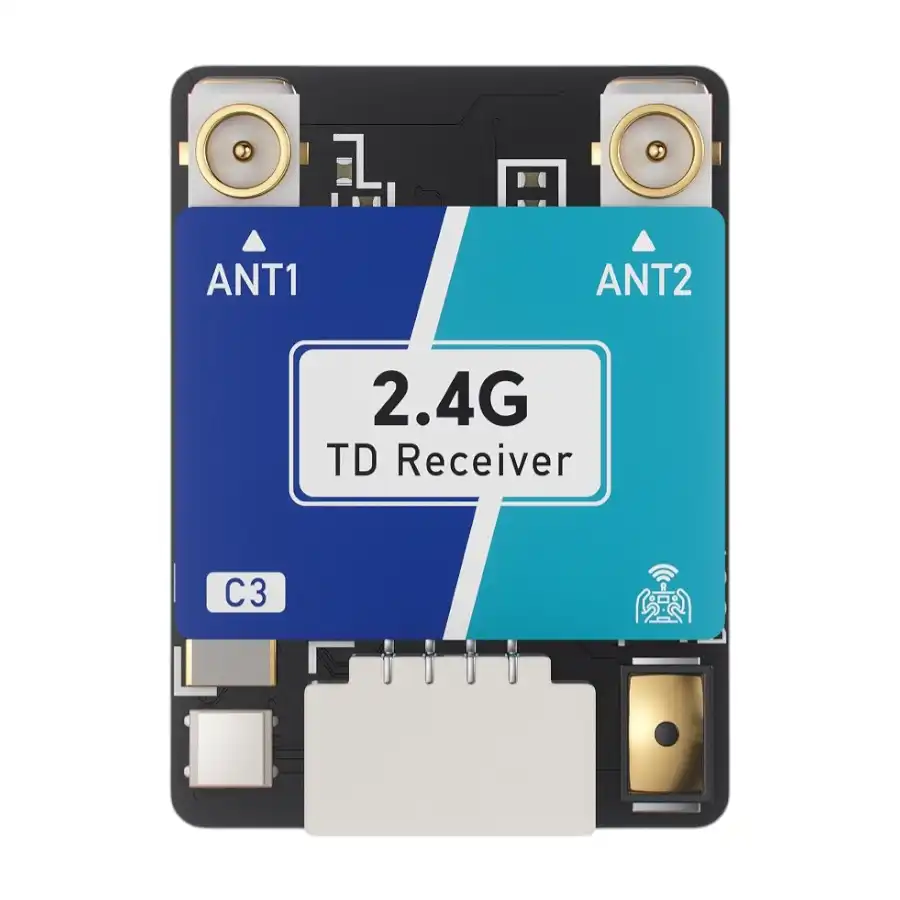

GEPRC ELRS Nano DUAL 2.4G C3 True Diversity Receiver
Description:
GEPRC ELRS Nano DUAL 2.4G True Diversity Receiver is a new generation of true dual-antenna diversity receiver system based on the ExpressLRS open source project. ExpressLRS features long range operation, low latency, maximum 1000Hz refresh rate, and low price.
The ELRS Nano DUAL 2.4G True Diversity Receiver has a reasonable placement of dual antennas for wider signal reception and more stable connection than ordinary single antenna receiver systems. It uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes.
Feature
- Advanced ExpressLRS 915M/2.4G dual-frequency system
- Based on Semtech’s third-generation LR1121 RF chip
- Compact at 18×23.6×5.7mm and weighing just 1.7g
- Supports 915M Gemini, 2.4G Gemini, 915M+2.4G dual-RF
- Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures
- Telemetry power up to 100mW
- Refresh rate up to 1000Hz
- Supports WiFi firmware updates
- Includes an SH1.0 connector for easy installation
Specifications
- Model: GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver
- Dimension: 18×23.6×5.7mm
- Weight: 1.7g (only receiver)
- Chips: ESP32-PICO-D4, LR1121x2
- Crystal Oscillator: TCXO
- Frequency Bands: 915MHz Gemini,2.4GHz Gemini,915M+2.4G Dual-Band
- Refresh Rate: 25Hz-1000Hz
- Operating Voltage: 5V
- Antenna Connector: ipex1
- TLM Power: 100mW
- Firmware: GEPRC 900/2400 Gemini Xrossband RX
Includes
1 x ELRS 915M/2.4G Gemini Xrossband Receiver
2 x 915M/2.4G Dual-band T-Antennas
1 x Heat shrink tube
1 x 4-pin silicone connect cable
1 x User manual
Long Range Cruiser Drone: 7-Inch Build for Exploration
Table of Contents Understanding Long Range Cruiser Drone Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
Drone Winch System: Pick and Place Payload Delivery UAV
Drone Winch System: Pick and Place Payload Delivery UAV The idea of drones that can autonomously pick up...
Read More →
Drone Thermal Camera: FLIR Lepton Integration Guide
Drone Thermal Camera: FLIR Lepton Integration Guide for DIY Builders Thermal imaging from drones is transforming industries across...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Interface / Protocol | ELRS, 4G |
| SKU | AI8010 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC ELRS Nano DUAL 2.4G C3 True Diversity Receiver is a versatile drone transmitter and receiver used across a wide range of applications including FPV drone control, RC aircraft, ground vehicles, and long-range drone operations.
Common use cases:
- Setting up a new FPV quad with digital link
- Replacing a receiver after a crash
- Building a long-range fixed-wing aircraft
This product is ideal for FPV pilots, RC hobbyists, and drone builders.
Technical Tip: ELRS (ExpressLRS) offers excellent range and low latency at 2.4GHz. Ensure your transmitter and receiver use the same protocol.
