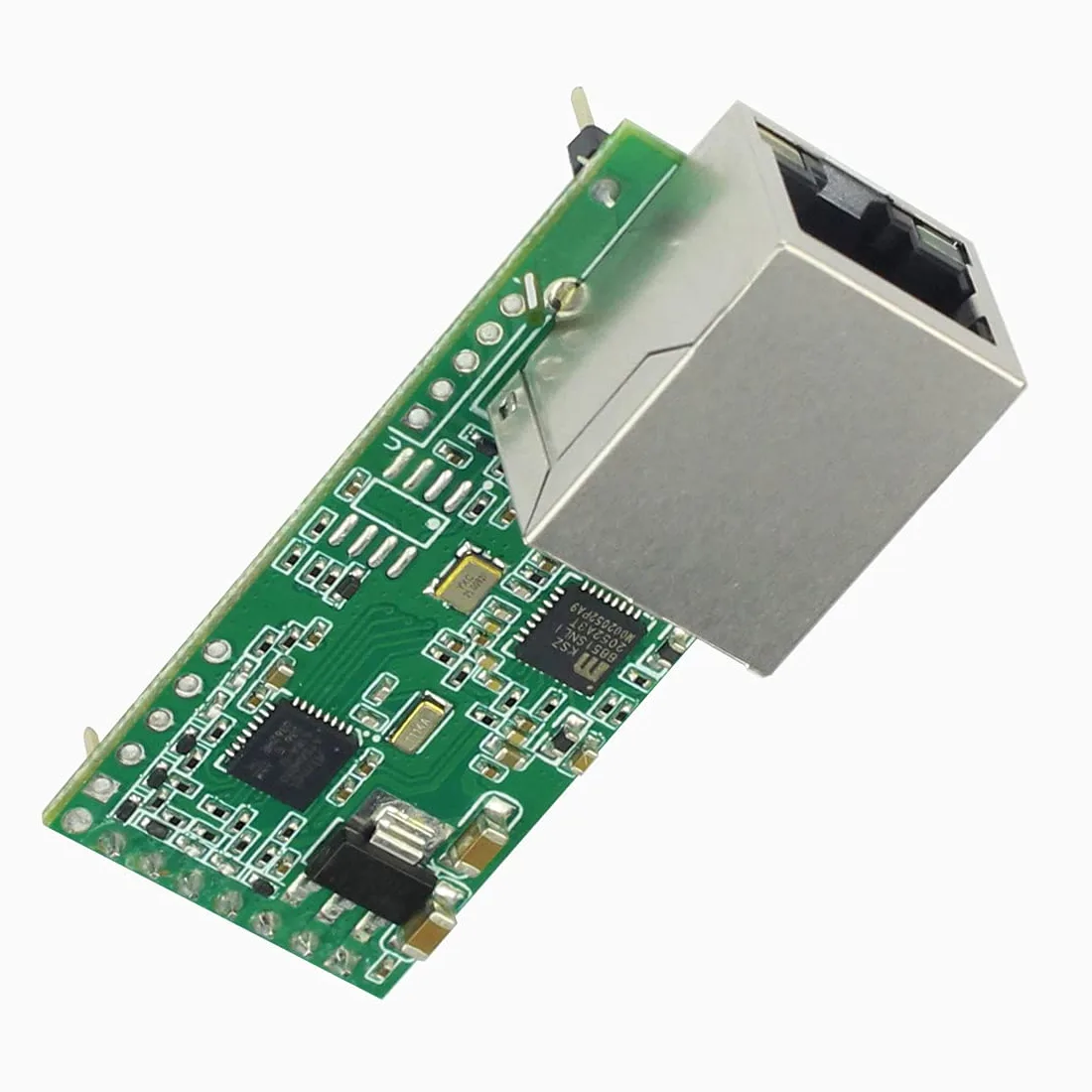

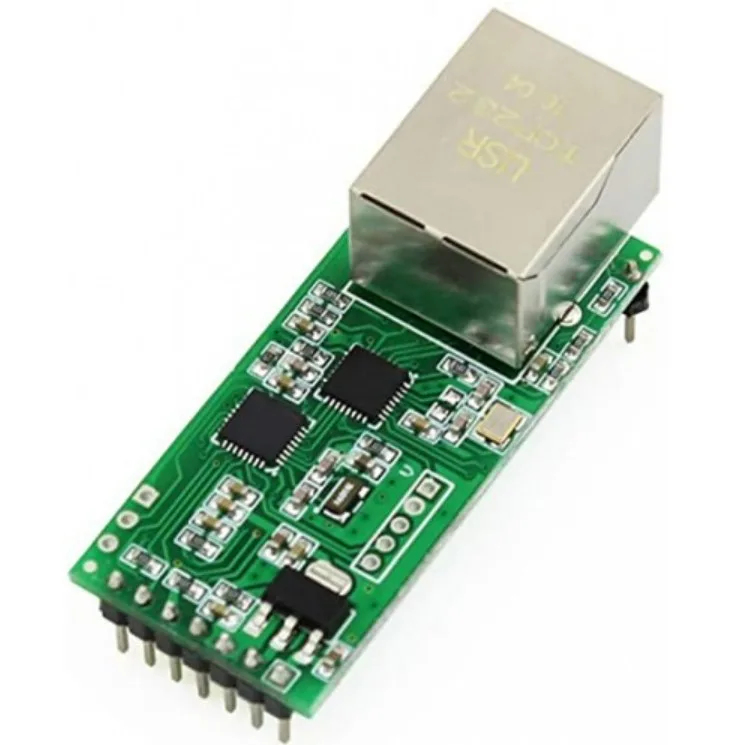

Serial UART TTL to Ethernet TCP/IP UDP Converter Module – USR-TCP232-T2

Ethernet to Serial TTL Converter Module – USR-TCP232-T2

This module is an accessory board that can convert TCP/UDP data from Ethernet network into Serial TTL Data. The UART TO ETH module provides an easy way to communicate between UART and Ethernet, it can be configured via web page.

Features

• M0 series 32-bit ARM processor, fast speed, high efficiency
• 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
• Auto-reconnecting, provides a reliable TCP connection
• Supports time-out reboot (no-data reboot), configurable reboot time
• Flexible serial port data framing, allows kinds of customized packeting
• Baudrate configurable, from 600bps up to 460800bps, supports five parity check options: None, Odd, Even, Mark, Space
• Supports customized heartbeat packets, make sure the connection is truthful
• Supports customized registration packets, detect the connection status, customizable packet header, make the register packets with selectedMAC address
• Supports customized web page, allows user to customize the module configuration page
• Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may chang
• Supports DNS domain name resolution, configurable DNS server
• Supports DHCP, auto-obtained IP or static IP
• Firmware is upgradable via the network
• Restore to factory settings via software and/or hardware
• Comes with default MAC address, which is customizable
• Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client
• Supported protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
• Configurable via web page, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
• Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
• Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc

Specifications

• Ethernet: RJ45 connector x 1
• COM port: TTL x 1
• Protection: built-in 2KV electromagnetic isolation
• Pinheader: 2.54mm pitch
• Power supply: 3.3V DC or 5V DC
• Dimension (L×W×H mm): 33×16.8×13.6
• Operating temperature: industrial -25~75°C

Package Includes:

1 x Serial UART TTL to Ethernet TCP/IP UDP Converter Module – USR-TCP232-T2

Serial UART TTL to Ethernet TCP/IP UDP Converter Module – Overview

The USR-TCP232-T2 is a compact converter module that bridges Serial UART TTL signals and Ethernet networks using TCP/IP or UDP protocols. It enables seamless data transmission between microcontroller-based systems and Ethernet infrastructure, with industrial-grade temperature tolerance and on-board electromagnetic isolation.

Key Features of Serial UART TTL to Ethernet TCP/IP UDP Converter Module –

• 32-bit ARM M0 processor for high-speed, efficient data handling
• 10/100 Mbps Auto-MDI/MDIX RJ45 interface—no crossover cable required
• Supports TCP Client/Server and UDP modes with auto-reconnecting and no-data timeout reboot
• Built-in 2 kV electromagnetic isolation for reliable protection against surges
• Wide 3.3 V or 5 V DC power input and standard 2.54 mm pitch pinheader
• Industrial operating range from –25 °C to 75 °C for harsh environments
• Genuine product, fast shipping from Zbotic

Applications and Use Cases

• Connecting Arduino, Raspberry Pi or other TTL-level devices to LAN or Internet
• Remote monitoring and control of sensors or actuators in industrial automation
• Integrating legacy serial equipment into modern Ethernet-based SCADA systems
• Data acquisition and telemetry over TCP/IP or UDP networks
• Embedded system debugging and firmware upload via network
• Home automation hubs requiring Ethernet-enabled serial peripherals

How to Use Serial UART TTL to Ethernet TCP/IP UDP Converter Module –

Wire the module’s VCC (3.3 V or 5 V) and GND to your power supply, and connect your device’s TX/RX pins to the TTL input. Plug in an Ethernet cable to the RJ45 port and power on. Access the built-in web configuration page via the default IP address in a browser to set TCP/IP or UDP parameters. After saving the settings, the module will transparently forward serial data over the network.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What voltage levels does the USR-TCP232-T2 support?

The module accepts a DC supply of either 3.3 V or 5 V and uses TTL-level signals (0–VDD) for its UART interface. Ensure your host microcontroller’s logic levels match the chosen supply.

How do I configure the network settings on this converter?

Connect to the module’s default IP address via a web browser (see user manual for the exact default address). Use the on-screen web interface to assign a static IP or enable DHCP, set TCP/UDP port parameters, and save your configuration.

Is the module protected against electrical interference?

Yes. The USR-TCP232-T2 includes built-in 2 kV electromagnetic isolation between the Ethernet side and the serial/power side, enhancing reliability in industrial environments.
