Product Description

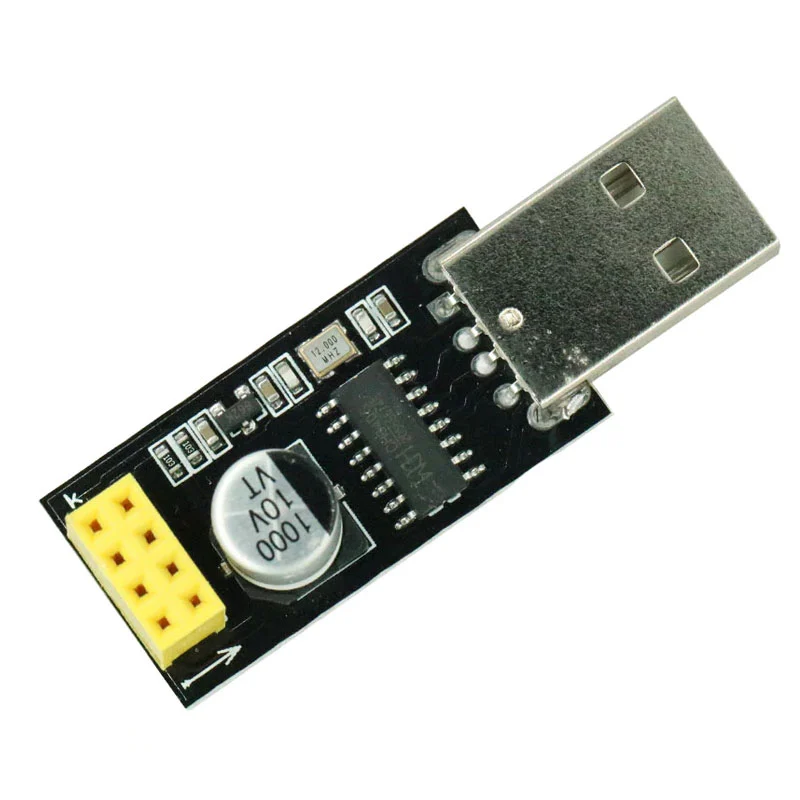

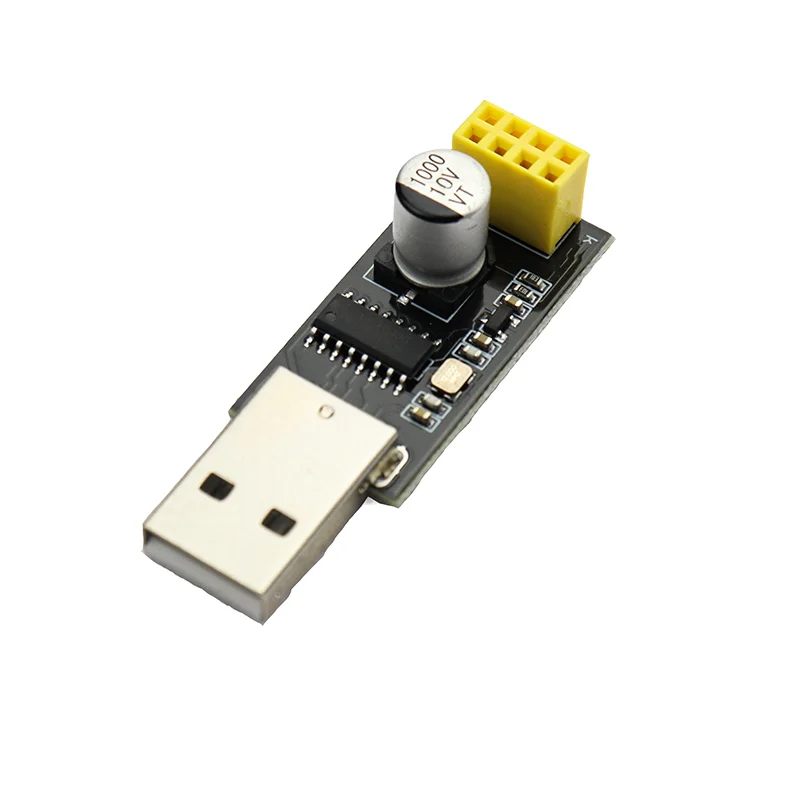

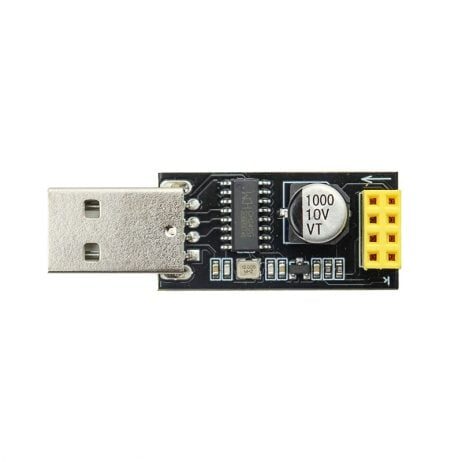

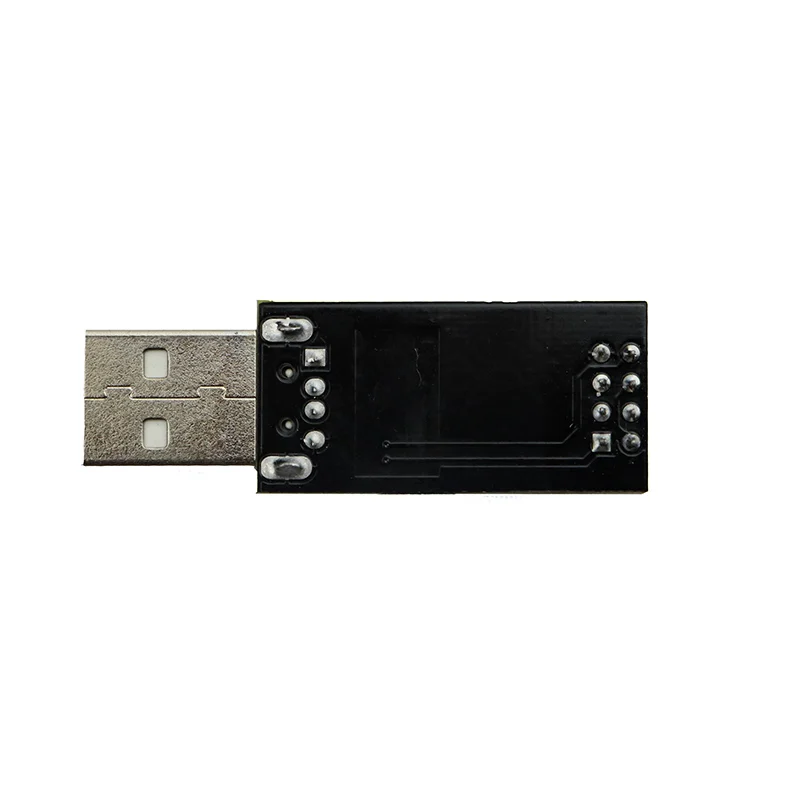

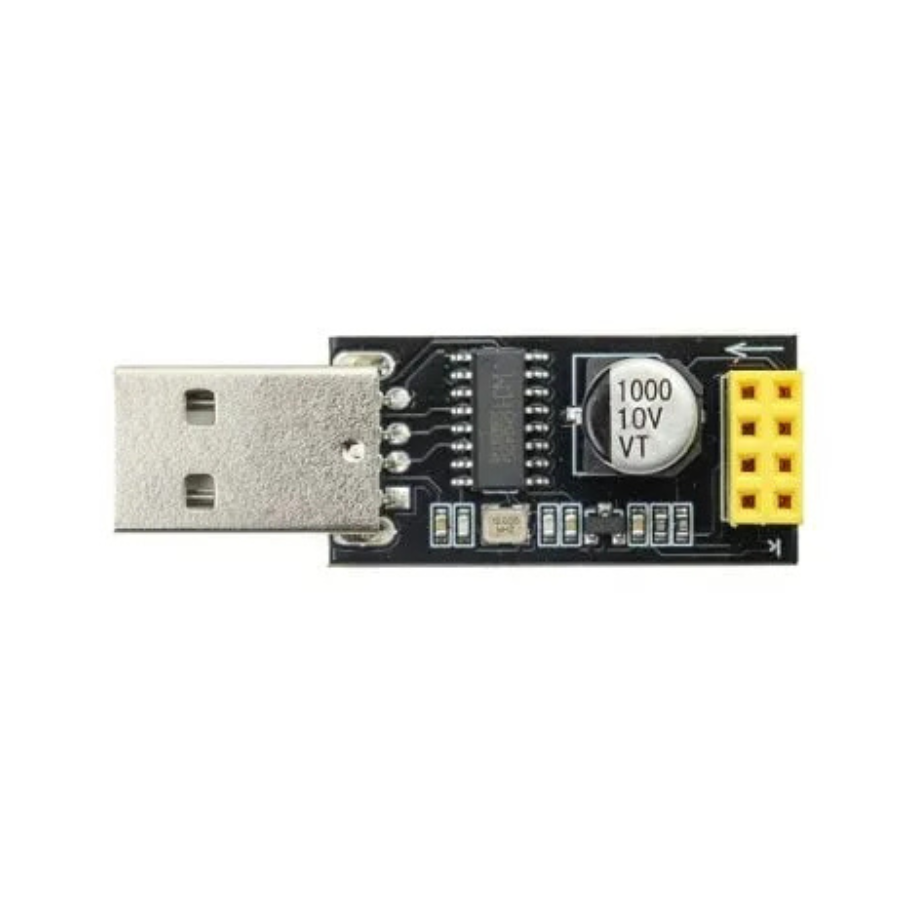

This adapter module allows you to program ESP-01 WiFi modules with ESP8266 chips using a USB interface on your PC or laptop. It has a CH340G chip that converts the USB signal to match the serial module of ESP8266.
The CH340G chip is reliable and high-performance, and it works with most Windows systems. The adapter also has integrated capacitors that can sustain a current of 1000 μF.
You can plug the ESP-01 serial wifi module directly into the yellow pin header on the USB to ESP-01 adapter module, without any wires. The adapter has a CH340G USB to TTL driver IC onboard, which enables you to debug the ESP-01 module with your computer.
Features:
- Using CH340 turns serial port chip for stable performance and compatibility.
- Supports all basic windows versions.
- The adapter plate integrated 1000μF solid capacitors to ensure the current supply
- The power supply will not be a problem to make WIFI module crashes unresponsive.
- Using 3225 SMD crystal oscillator, improve the stability of serial work, on a beautiful and tall.
- The interposer board is specifically designed for ESP8266 The USB Turn serial port.
Specification:
| Operating Voltage (VDC) | 4.5 ~ 5.5 |
|---|---|
| Operating Current (A) | 0.3 |
| Driver IC | CH340G |
| Logic Input (V) | 3.3 |
| Length (mm): | 50 |
| Width (mm) | 17 |
| Height (mm) | 14 |
| Weight (g): | 6 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 6 × 3 × 1 cm |
Package Includes :
1 x CH340 USB to ESP8266 WIFI Module Adapter Board.
Technical Specifications
| Interface / Protocol | UART, USB, WiFi |
|---|---|
| SKU | AI2797 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The USB to UART/ESP8266 Adapter Programmer for ESP-01 WiFi Modules with CH340G Chip is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
