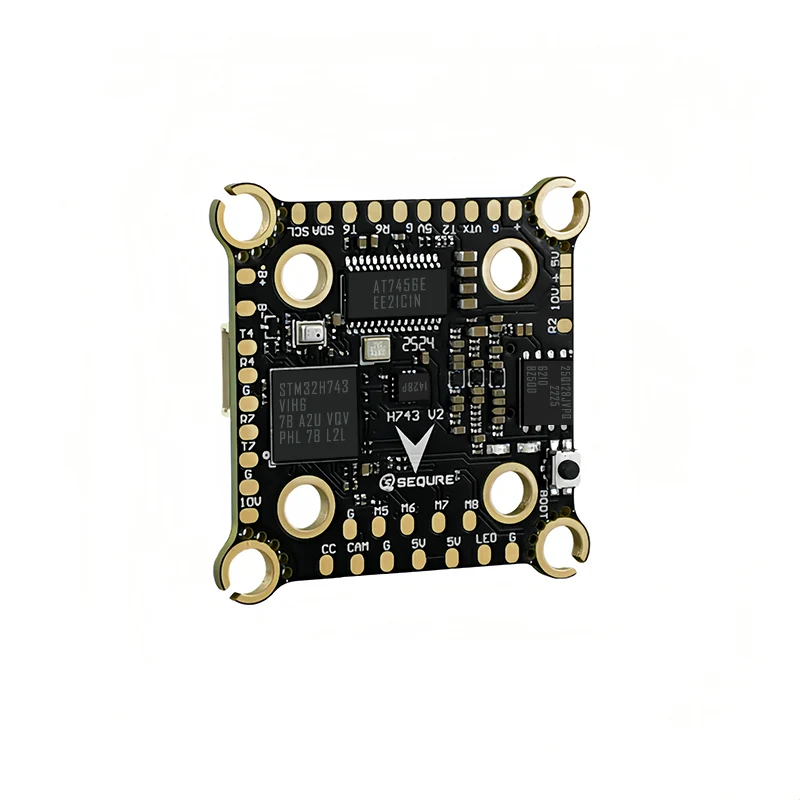

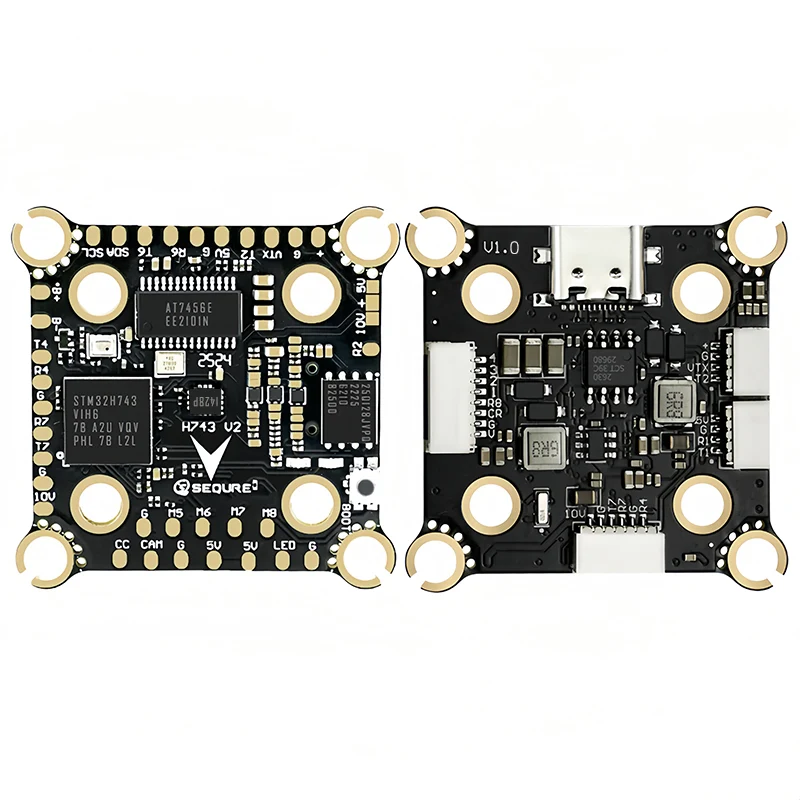

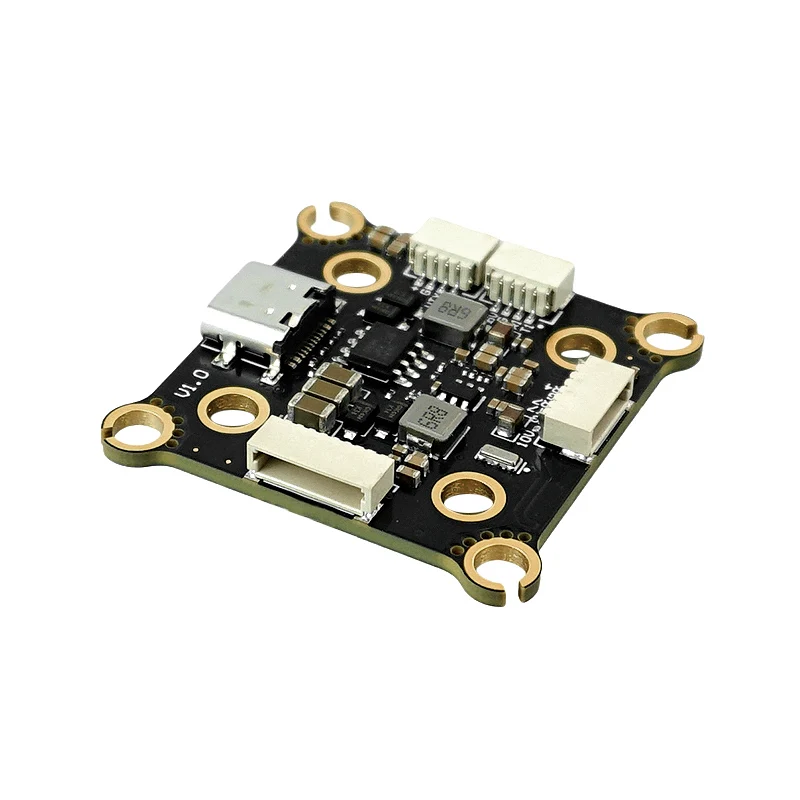

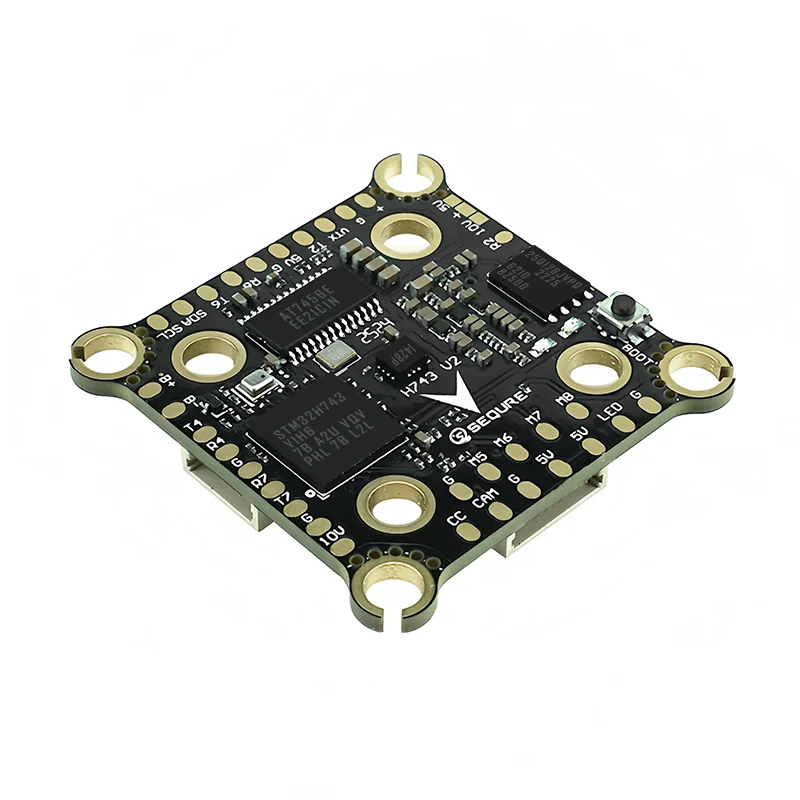

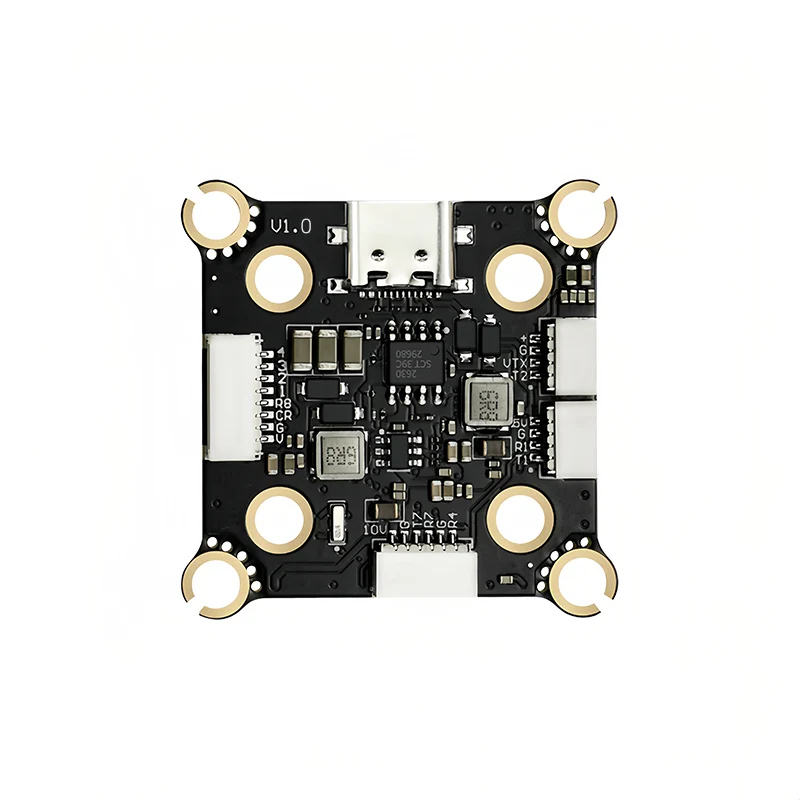

SEQURE H743 V2 Flight Controller with ICM42688P
Description:
(1) Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response.
(2) Adopts ICM42688P gyroscope, this FC realizes precise gesture sensing and stable control, improving the reliability of the system.
(3) SEQURE H743 has an onboard barometer, OSD, and 16MB large capacity black box, which effectively records the flight data.
(4) Reserve 6 UARTS to meet the needs of most devices.
(5) It can control up to 8 motors, easily constructing X8.
(6) Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage, allowing the DJI O3/O4/O4 Pro and analog VTX to plug in for use directly.
(7) Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc.
| Product Name | SEQURE H743 V2 |
| Processor | STM32H743 |
| Gyroscope | ICM-42688-P |
| Barometer | BMP280/DPS310/DPS368 |
| OSD Chip | AT7456E |
| Black Box | 16MB |
| Firmware Type | Betaflight (default), INAV, ArduPilot |
| Firmware Name | SEQUREH7V2 |
| Input Voltage | 4-8S Lipo/LiHV |
| BEC Output | 5V/2.5A，10V/2A |
| UARTS | 6 |
| Control Motor | M1-M8 |
| LED | WS2812 LED Strip |
| Buzzer | Support |
| ESC Telemetry | RX8 |
| USB | Type-C |

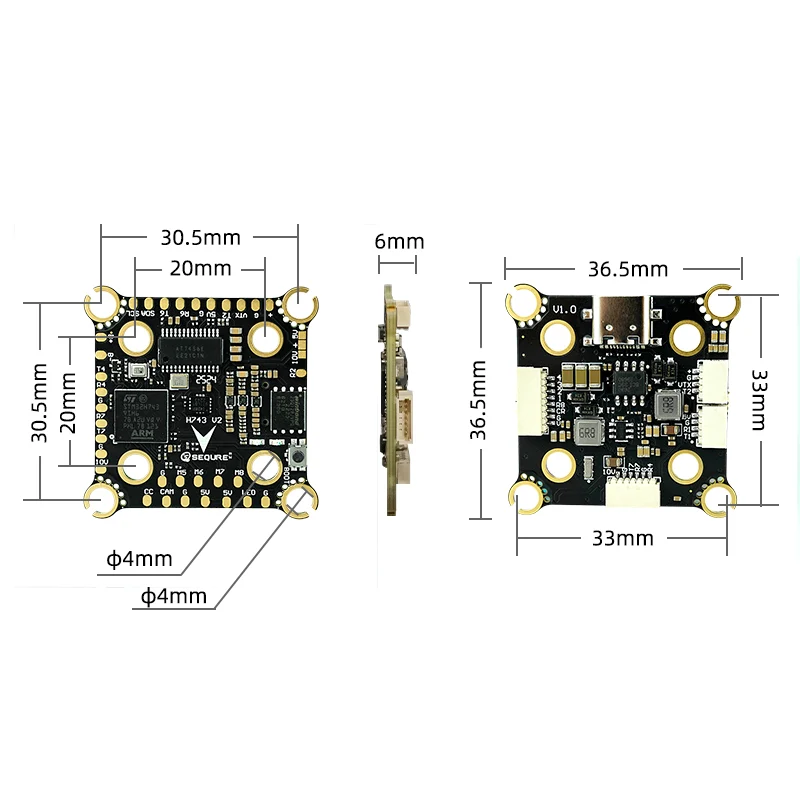

| Installation Hole Distance | 20x20mm,Φ4mm/M3 | 30.5×30.5mm,Φ4mm/m3 |

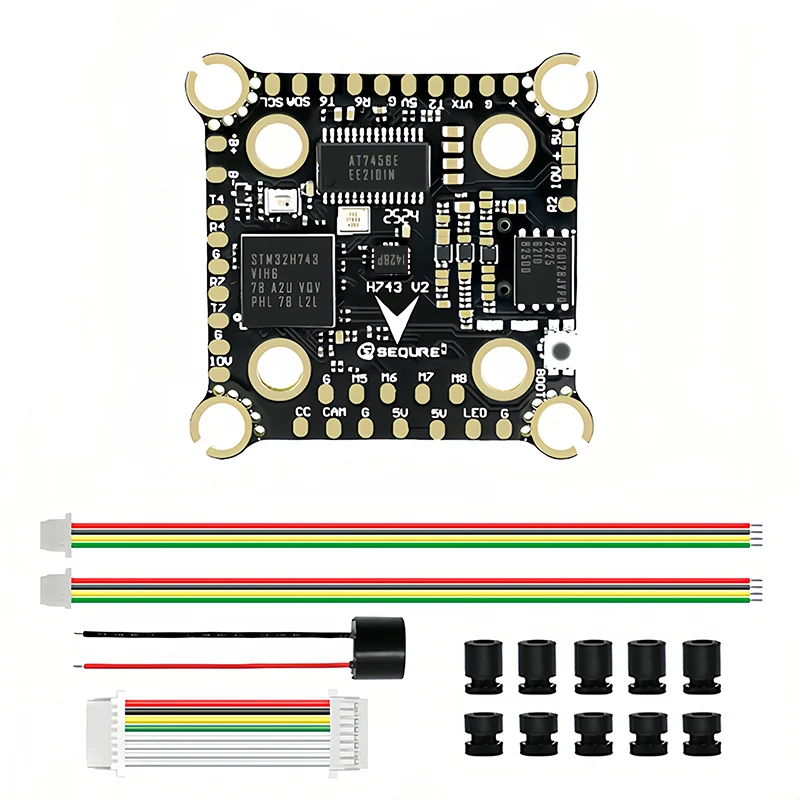

Package Included:
1x SEQURE H743 V2 FC
1x 30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable
2x 30AWG 100mm Single-head SH1.0-4P Flat Cable
1x 60mm Length 12095 5V Buzzer
5x M3*8mm Shock-absorbing Ball(Black)
5x M3*6.6mm Shock-absorbing Ball(Black)
ArduPlane Setup: Complete Guide to Building a Fixed-Wing Autonomous UAV (2026)
ArduPlane is the world's most capable open-source autopilot system for fixed-wing unmanned aerial vehicles. Developed by the ArduPilot...
Read More →
Walksnail Avatar HD: Budget Digital FPV System India
Table of Contents What is Walksnail Avatar HD Walksnail vs DJI FPV System Avatar HD VTX and Camera...
Read More →
Drone Propeller Selection: Pitch, Diameter, and Material
Table of Contents Understanding Drone Propeller Selection Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Brand | SEQURE |
|---|---|
| SKU | AI4957 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The SEQURE H743 V2 Flight Controller with ICM42688P is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine SEQURE product sourced from authorized channels
