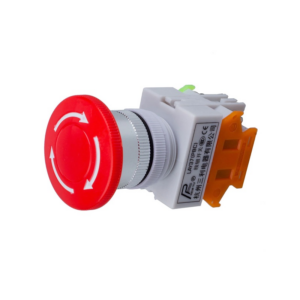

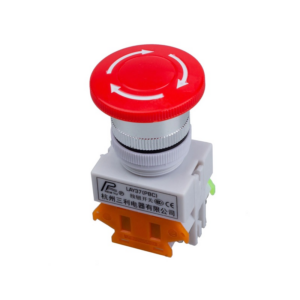

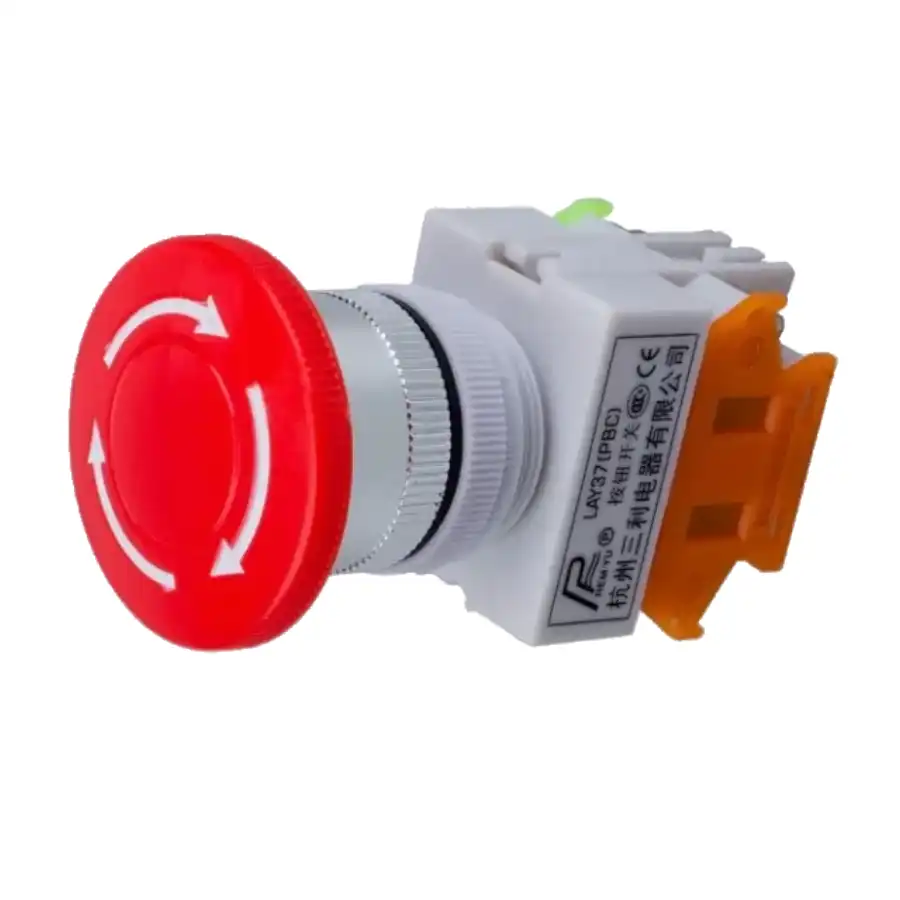

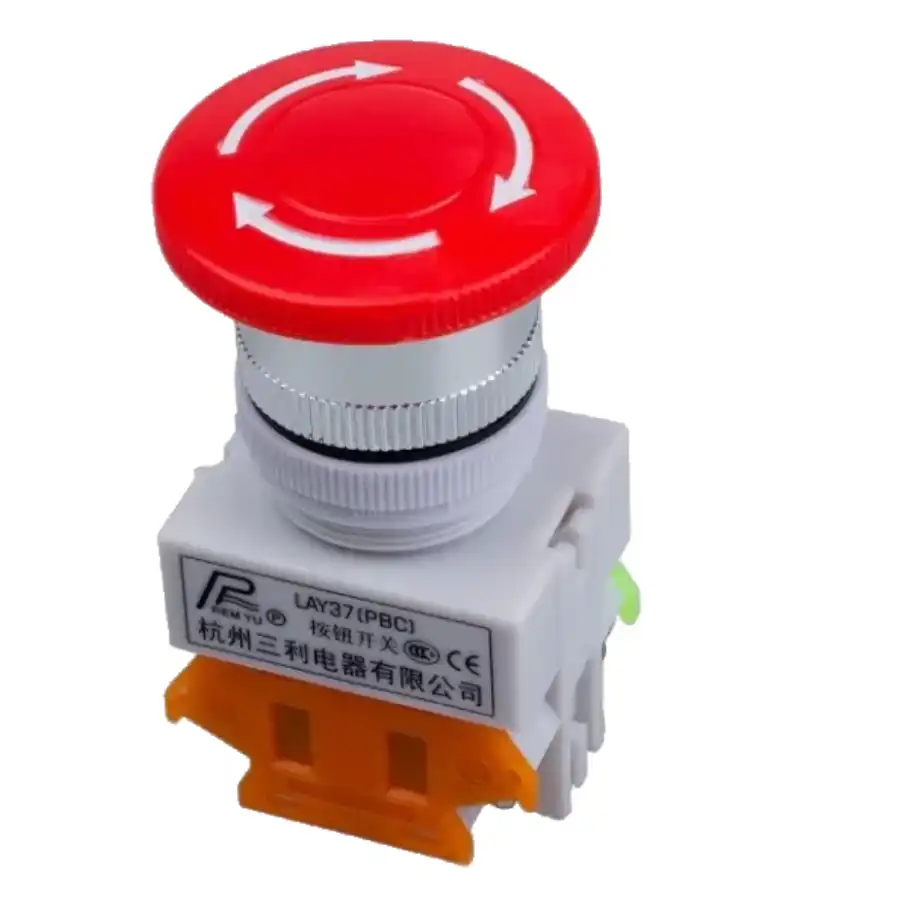

This is the Red variant of the Red Mushroom Cap LAY37-, 11ZS 1NO 1NC DPST, Emergency Stop Push, Button Switch AC 660V 10A, Switch Equipment Lift, Elevator Latching Self Lock in Metal Push Button Switch. Available at ₹79.06 (₹67.00 + GST) with free shipping across India.
Looking for Lay37 Switch? Red Mushroom Cap LAY37-, 11ZS 1NO 1NC DPST, Emergency Stop Push, Button Switch AC 660V 10A, Switch Equipment Lift, Elevator Latching Self Lock is available at Zbotic with fast shipping across India.
The AC 660V 10A LAY37 DPST Emergency Stop Push Button Switch is specifically designed for use in lifts, elevators, and CNC machines as an emergency stop mechanism. Constructed from high-quality materials, it ensures durability and a long service life. The switch features a built-in screw-type connecting cable for convenient installation.
To reset the switch, simply turn the button in the direction indicated by the arrows. It’s important not to turn the button inversely, as indicated by the design, to ensure proper functionality and safety. This push button switch provides a reliable and effective emergency stop solution for various industrial applications.
- Rated Insulation Voltage (Ui) : 600V
- Agreed Thermal Current (Ith):10A
- Switch Top Diameter: 39 mm
- Switch Mount Neck Diameter: 23 mm
- Material: Plastic and metal
Specification:
| Rated Insulation Voltage (Ui) | 600V |
|---|---|
| Agreed Thermal Current (Ith) | 10A |
| Switch Top Diameter | 39 mm |
| Switch Mount Neck Diameter | 23 mm |
| Material | Plastic and metal |
| Weight (gm) | 50 |
| Shipping Weight | 0.1 kg |
| Shipping Dimensions | 6 × 5 × 3 cm |
Package Includes:
1 x AC 660V 10A LAY37 DPST Emergency Stop Push Button Switch
Red Mushroom Cap LAY37-, 11ZS 1NO 1NC DPST, Emergency Stop Overview
The Red Mushroom Cap LAY37 DPST emergency stop push button switch combines a prominent red actuator with a double-pole design featuring one normally open (1NO) and one normally closed (1NC) contact. Built for industrial environments, it delivers a reliable AC 660V 10A cut-off for lifts, elevators, CNC machines and other heavy-duty equipment.
Key Features of Red Mushroom Cap LAY37-, 11ZS 1NO 1NC DPST, Emergency Stop
- High-voltage rating: AC 660V at 10A for robust power interruption.
- DPST contacts (1NO + 1NC) ensure both power and control circuits are interrupted simultaneously.
- Bright red mushroom cap for quick identification during emergencies.
- Latching self-lock mechanism with twist-to-reset operation for clear status indication.
- Built-in screw-type terminals simplify wiring and secure cable connections.
- Fast shipping from Zbotic across India for prompt integration into control panels.
Applications and Use Cases
- Emergency stop in elevator and lift control cabinets.
- Safety cutoff on CNC milling and turning centers.
- Power isolation for conveyor and assembly line machinery.
- Emergency shutdown of hydraulic presses and injection moulding machines.
- Integration into control panels for industrial robots and automation stations.
How to Use Red Mushroom Cap LAY37-, 11ZS 1NO 1NC DPST, Emergency Stop
Drill a 23 mm panel hole and secure the switch from the front using its locking nut. Wire your power and control leads to the screw-type terminals labeled NO and NC. Press the mushroom cap to engage the emergency stop; twist the cap in the direction of the arrow to reset after resolving the fault.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I reset the LAY37 emergency stop switch?
After pressing the red mushroom head to stop power, simply grasp and twist it in the direction marked by the arrow. This releases the latching mechanism and returns contacts to their normal state.
What panel hole size is required for mounting?
This push button is designed for a 23 mm panel cutout. The included nut clamps from the front for a secure, vibration-resistant fit.
Can this switch handle 10A at 660V AC continuously?
Yes. The LAY37 is rated for AC 660V up to 10A with a rated insulation voltage of 600V, making it suitable for high-voltage industrial circuits.
Technical Specifications
| Model | LAY37 |
|---|---|
| Operating Voltage | 660V |
| Current Rating | 10A |
| Color | Red |
| SKU | AI3480 |
| Weight | 0.05 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Red Mushroom Cap LAY37-, 11ZS 1NO 1NC DPST, Emergency Stop Push, Button Switch AC 660V 10A, Switch Equipment Lift, Elevator Latching Self Lock is a versatile metal push button switch used across a wide range of applications including industrial control panels, automotive dashboards, outdoor enclosures, marine electronics, and professional equipment.
Common use cases:
- Adding a waterproof power switch to an outdoor enclosure
- Building a professional-looking control panel
- Replacing a corroded switch in marine equipment
This product is ideal for industrial designers and professional equipment builders.
Technical Tip: IP65/IP67-rated metal switches are waterproof. LED ring illumination helps visibility in dark environments. Check panel cutout diameter before ordering.
