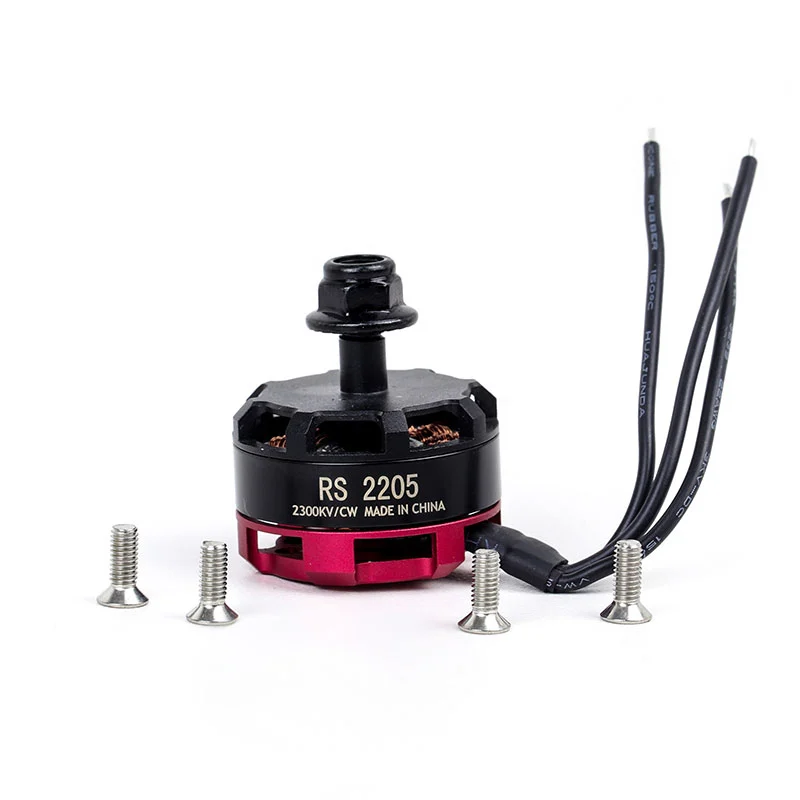

The RS2205 2300KV BLDC Motor is specifically designed for FPV racing, making it an excellent choice for beginners learning the basics of flying FPV. This medium-priced, high-quality brushless DC motor is suitable for drones or quadcopters like the QAV250 and QAV300 racing drones.

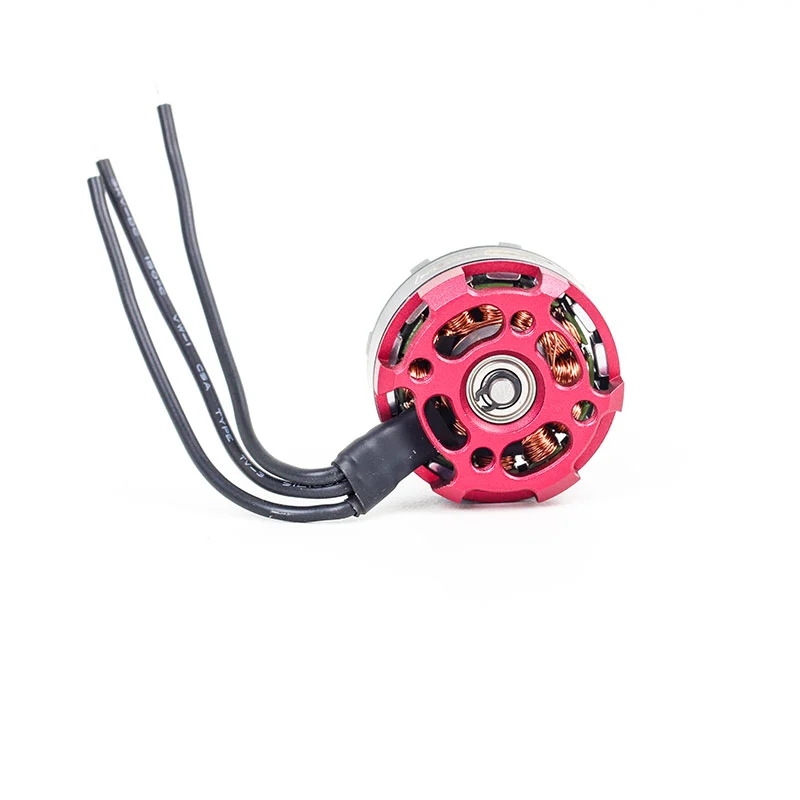

One of its standout features is the self-cooling technique, which can reduce the motor’s temperature by up to 30%, thereby extending its service life. The motor also boasts cooling fins and high-grade N52 Neodymium magnets, which set it apart from other drone DC motors. Additionally, the genuine Japanese NMB bearings and enhanced anti-off U ring contribute to its superior performance.
When paired with an Orange 3S LiPo battery and a 5-inch propeller, this motor delivers outstanding acceleration and good stopping power at high RPMs, with a thrust value of around 1024 grams. It is compatible with 3-4S ESCs and is available in CW rotation. For CCW rotation and more 5-inch propellers, additional options are available.
Features :
- High Strength N52 Neodymium Magnets
- Active Cooling Fins Greatly Reduces the operating motor temperature.
- Low CG and Light Weight Design.
- Japanese Bearing for providing quality performance.
- Enhance Anti Off U Ring For safe and stable operational characteristics
Specification:
| Model | RS2205 |
|---|---|
| Nut Type | CW |
| Motor KV (RPM/V) | 2300 |
| Maximum Thrust (gm) | 1024 |
| Compatible LiPO Batteries | 3S ~ 4S |
| Framework | 12N14P |
| Shaft Diameter (mm) | 5 |
| Compatible Propellers Size (inch) | 5 |
| Length (mm) | 27.9 |
| Width (mm) | 27.9 |
| Height (mm) | 31.7 |
| Weight (gm) | 30 |
| Shipping Weight | 0.033 kg |
| Shipping Dimensions | 6 × 6 × 5 cm |
Package Includes :
1 x RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Drone
1 x Mounting Screw set.
Reviews
There are no reviews yet.
