Radiomaster XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver
Description:
The Radiomaster XR4 Gemini Xrossband ExpressLRS Receiver offers cutting-edge dual-band reliability in an ultra-compact package. Supporting both 2.4GHz and Sub-G 900MHz frequencies via twin LR1121 RF chips, it ensures unmatched RF stability. Integrated with ExpressLRS v3.5.1 and true diversity, this receiver enables rapid data handling, boasting up to 1000Hz refresh rates.
Ideal for drones and fixed-wing aircraft, the XR4’s lightweight 1.7g design and dual CRSF/UART bus interfaces make it an elite choice for demanding pilots. Enhanced with built-in Wi-Fi for easy configuration, it delivers precision and rock-solid performance wherever your flight takes you.
Features:
- Dual Semtech LR1121 transceivers for enhanced range
- ExpressLRS Gemini & Gemini Xrossband (Gem-X) protocol
- Compact and ultra-lightweight for drones & wings

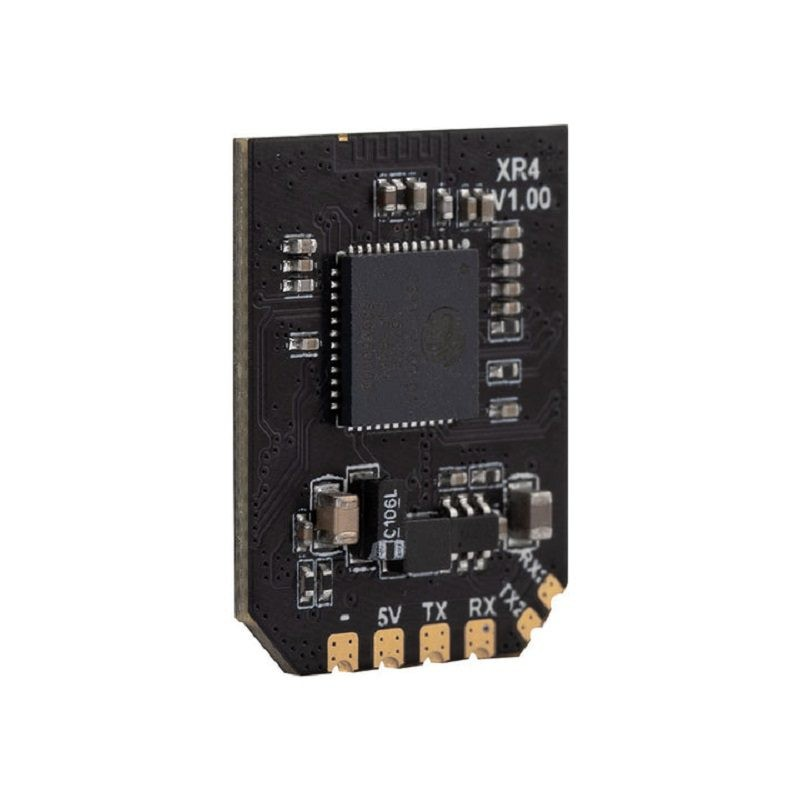

- ESP32D4 MCU with integrated Wi-Fi for WebUI access
- True diversity for stable RF links in tough conditions
- CRSF and UART interfaces for flexible setups
- Refresh rate up to 1000Hz with ultra-low latency

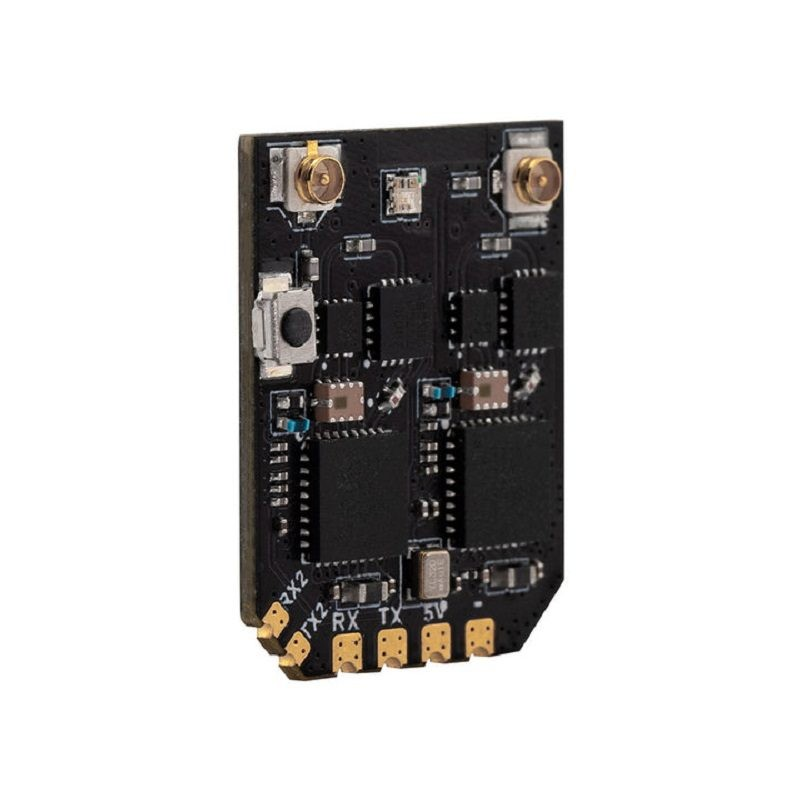

- Easy soldering with castellated pads
Specifications:
| Frequency (GHz): | 2.4 |
|---|---|
| Modulation Type: | LoRa |
| Color: | Black |
| Band-Range (GHz) | 2.4G – 2.5 |
| Bandwidth (KHz) | 62.5 |
| Charging Port (Y/N) | N |
| Code Type | ExpressLRS |
| Operating Voltage (VDC): | 4.5V – 8.4V |
| RF Power | 100mW |
| Item Type: | XR4 Gemini Xrossband Dual-Band Receiver |
| RF Chip | R1121 x 2 |
| RF connector | IPEX-1 X 2 |
| Frequency Range: | 2.4GHz ISM Band |
| Working Voltage | DC 4.5 – 8.4V |
Radiomaster XR4 Gemini Xrossband Dual-Band ExpressLRS Overview
The Radiomaster XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver is a compact, lightweight RF module designed for high-performance FPV drones and fixed-wing aircraft. It provides reliable long-range control with dual-band 2.4 GHz/900 MHz support and true diversity reception.
Key Features of Radiomaster XR4 Gemini Xrossband Dual-Band ExpressLRS
- Dual-Band Support: Simultaneous 2.4 GHz and Sub-G 900 MHz operation for robust link performance.
- Twin Semtech LR1121 Chips: Ensures redundancy and stable RF reception in demanding environments.
- Ultra-Compact & Lightweight: Measures 22×18×4 mm and weighs just 1.7 g for minimal impact on build weight.
- ExpressLRS v3.5.1 Pre-Installed: Ready to use with the latest firmware offering up to 1000 Hz refresh rates.

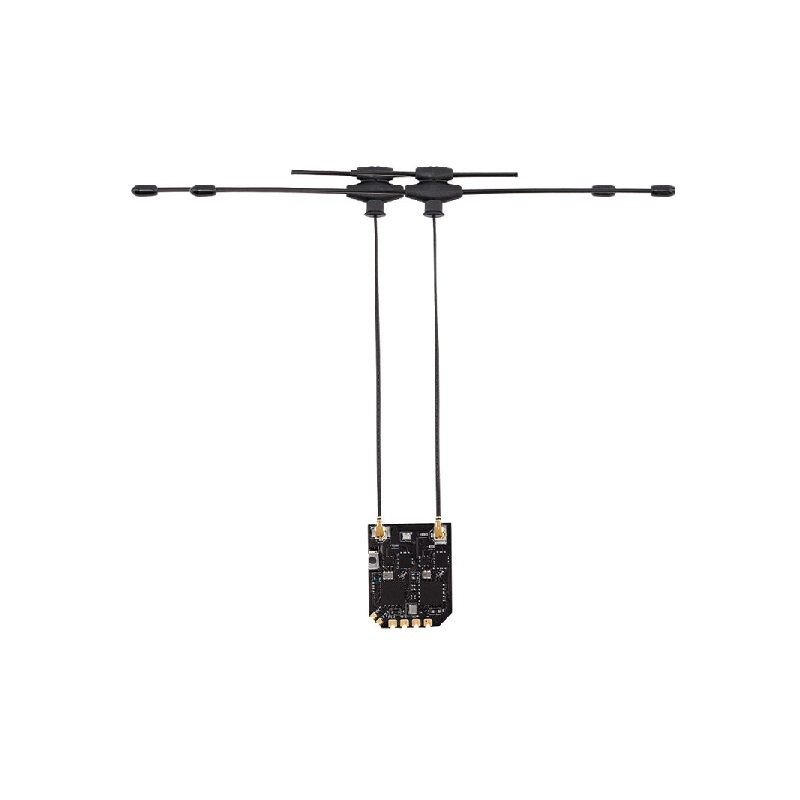

- True Diversity Antennas: T-type dual-band antennas provide optimal signal strength and reduced dropouts.
- Dual Bus Interfaces: CRSF and UART ports for flexible integration with flight controllers.
- Fast Shipping from Zbotic: Dispatched within 24 hours across India.
Applications and Use Cases
- Long-range FPV racing drones requiring reliable signal diversity.
- Fixed-wing aircraft where compact, lightweight telemetry is critical.
- Freestyle quads operating in environments with RF interference.
- High-altitude long-endurance (HALE) UAVs leveraging dual-band control links.
- RC gliders and sailplanes needing minimal antenna drag.
- Search and rescue UAVs demanding stable telemetry over varied terrain.
How to Use Radiomaster XR4 Gemini Xrossband Dual-Band ExpressLRS
To set up the XR4 Gemini, solder the supplied dual-band antennas to the T-type connectors and mount the receiver on your aircraft. Bind it to your ExpressLRS transmitter using the CRSF or UART interface, then configure your flight controller’s receiver settings to CRSF or UART mode. Power up the system, verify telemetry data at up to 1000 Hz, and adjust antenna orientation for optimal diversity reception.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use both 2.4 GHz and 900 MHz bands simultaneously?
Yes, the XR4 Gemini’s twin LR1121 RF chips enable true diversity, allowing simultaneous reception on 2.4 GHz and Sub-G 900 MHz bands for enhanced link reliability.
How do I bind the receiver to my ExpressLRS transmitter?
Power on the receiver in binding mode by shorting the bind pads, then initiate bind on your ExpressLRS transmitter. Once the LED indicates a successful link, remove the bind short and reboot.
Which interface should I use: CRSF or UART?
Use CRSF for tighter integration with CRSF-capable flight controllers offering telemetry and control over a single bus. UART can be used for legacy setups or separate telemetry channels.
Datasheet:
Package Includes:
- 1 x XR4 Gemini Xrossband Dual-Band Receiver
- 2 x Dual-Band T-Antenna
- 1 x CRSF Wire
- 3 x Heat-Shrinkable Tube
- 1 x Manual Card
