Radiomaster Bandit ExpressLRS 915MHz RF Module

Looking for 915mhz Module? Radiomaster Bandit ExpressLRS 915MHz RF Module is available at Zbotic with fast shipping across India.

915mhz Module – Description:

The Radiomaster Bandit ExpressLRS 915MHz RF Module is not just about performance; it’s also built to endure. Its rugged CNC machined aluminum case not only exudes a sleek and modern aesthetic but also serves as a heat sink, efficiently dissipating heat and maintaining optimal operating temperatures under even the most strenuous conditions.

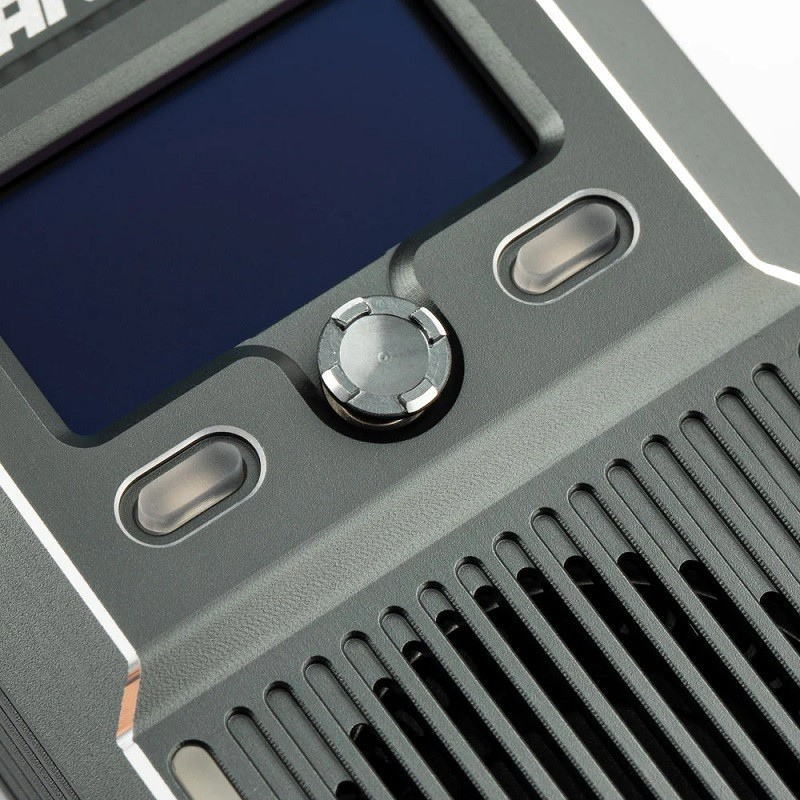

The Radiomaster Bandit ExpressLRS 915MHz RF Module  features an OLED display, a five-directional navigation key, and customizable shortcut buttons, providing you with immediate access to all the essential controls. Easily adjust settings and tailor the module’s behavior to your specific needs, ensuring an unparalleled flying experience.

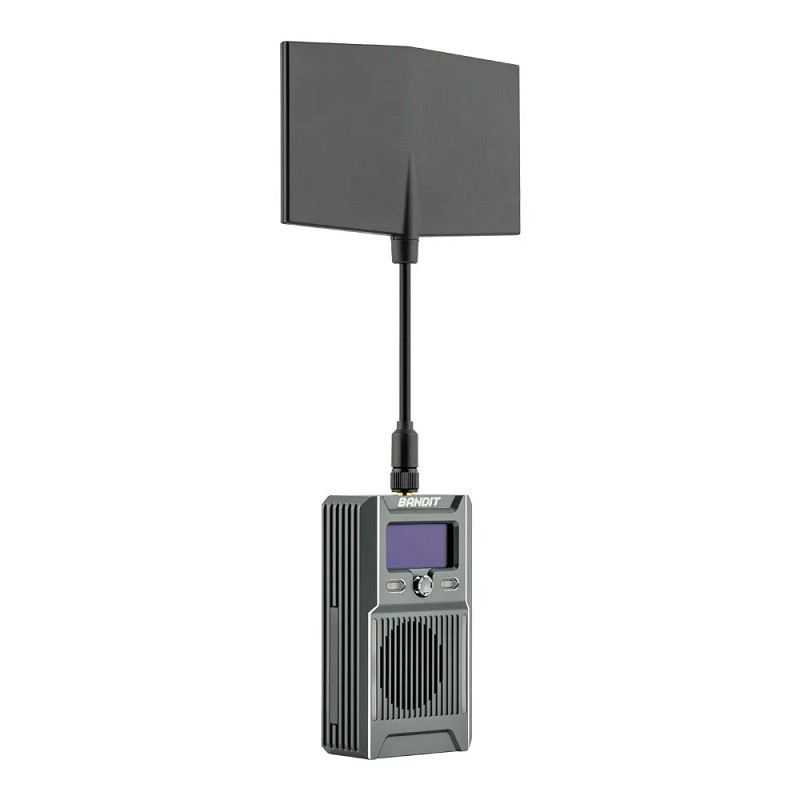

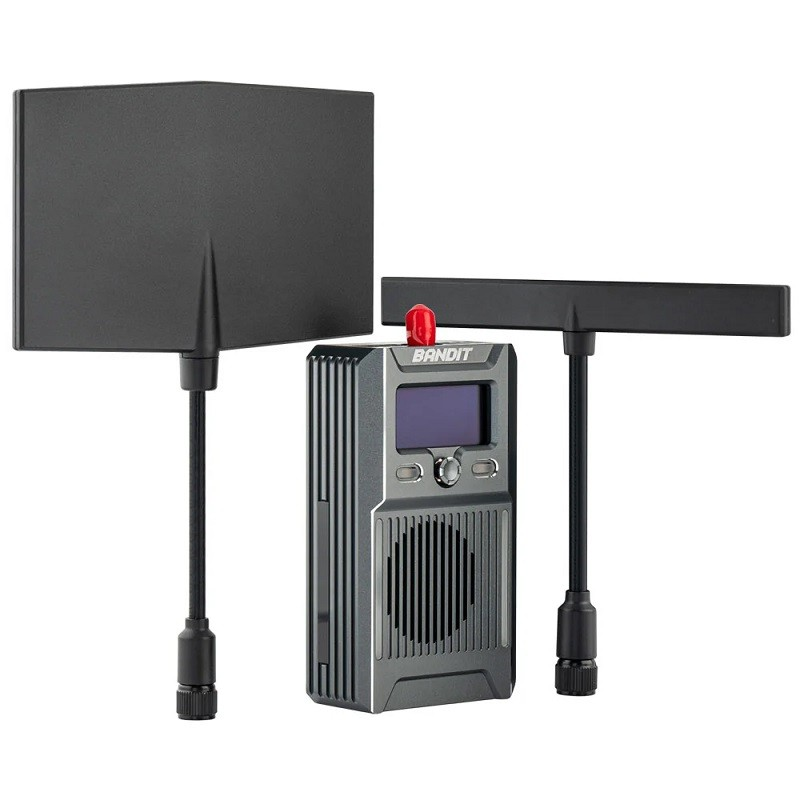

The Radiomaster Bandit  comes equipped with a RadioMaster T Antenna for general-purpose flying and a RadioMaster Moxon antenna for long-range directional applications. This versatility empowers you to adapt your setup to suit any flying scenario, from everyday recreational flights to professional drone and UAV operations.

Features:

• Up to 1 Watt power output
• Packet rates up to 200Hz
• Optimized circuitry for ultra-low power consumption
• Built-in TCXO oscillator
• Low noise, high comfort
• High contrast OLED display
• Rugged gunmetal CNC housing
• Awesome RGB light effects
• High efficiency cooling system
• Wifi and Bluetooth support
• Built-in ExpressLRS backpack
• Built in accelerometer
• Directional nav key and customizable shortcut buttons
• Micro and Nano adapters included
• 915/868MHz Moxon Antenna and T Antenna included
• Futaba CRSF Cable included
• UART Cable included

Specifications:

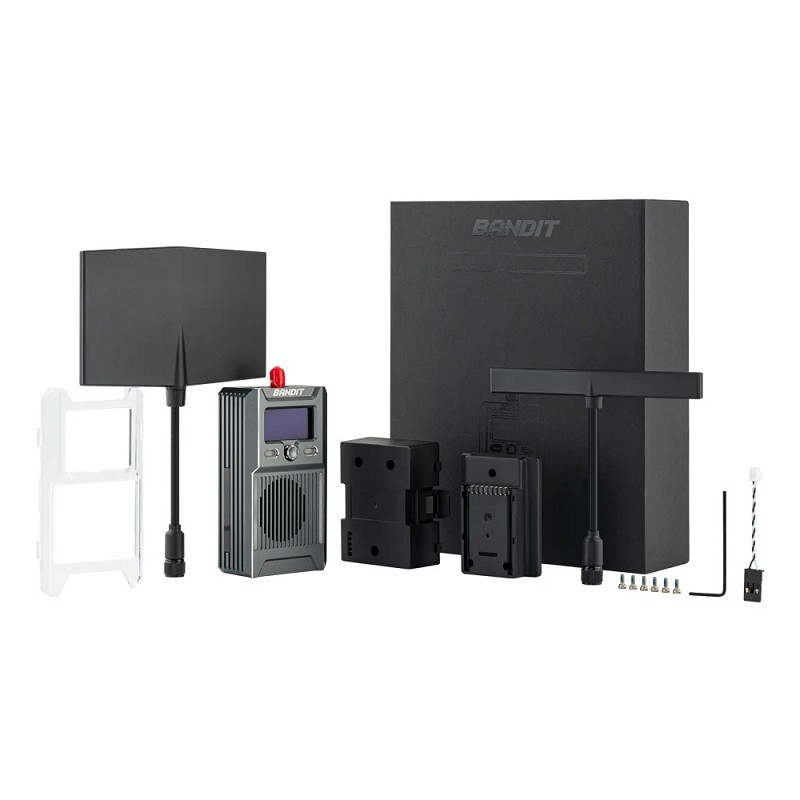

Package Includes:

• 1 x Bandit ExpressLRS RF Module
• 1 x  T Antenna
• 1 x  Moxon Antenna
• 1 x  Micro Adapter
• 1 x  Nano Adapter
• 1 x Transparent Protective Cover
• 1 x UART Cable
• 1 x  Futaba CRSF Cable
• 1 x  1.55mm Allen Key
• 6 x  M2*6 Screws
• 1 x  Manual

Radiomaster Bandit ExpressLRS 915MHz RF Module Overview

The Radiomaster Bandit ExpressLRS 915MHz RF Module is a high-performance 915MHz radio frequency transmitter module designed for long-range remote control applications. It integrates an ESP32 main MCU and a Semtech SX1276 RF chip, delivering low-latency links up to 200Hz for FPV drones, fixed-wing aircraft, and other RC platforms.

Key Features of Radiomaster Bandit ExpressLRS 915MHz RF Module

• 915MHz frequency band with Semtech SX1276 RF chip for robust, long-range connectivity
• ESP32 main MCU ensuring fast processing and stable link performance
• Adjustable refresh rates from 25Hz up to 200Hz for customizable responsiveness
• CNC-machined aluminum housing doubles as an efficient heatsink for high-load operation
• Built-in OLED screen and RGB status lights for real-time telemetry and visual feedback
• Five-direction navigation key plus customizable shortcut buttons for on-the-fly adjustments
• Genuine Radiomaster product with fast shipping from Zbotic across India

Applications and Use Cases

• Long-range FPV drone flights where reliable CRSF telemetry is critical
• RC airplanes and gliders requiring stable, low-latency control links
• High-speed FPV racing with refresh rates up to 200Hz for ultra-responsive handling
• Ground-based robotic platforms needing real-time telemetry feedback
• Fixed-wing UAV surveying or mapping missions with extended range requirements

How to Use Radiomaster Bandit ExpressLRS 915MHz RF Module

Slide the Bandit module into your compatible radio transmitter’s external RF bay and secure it. Power on the radio, navigate the OLED display using the five-direction key to enter ExpressLRS settings, select your desired refresh rate and RF power, then initiate binding with your ExpressLRS receiver. Once bound, monitor link quality on the OLED and use shortcut buttons for quick profile swaps during flight.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What binding procedure does this module use?

The Bandit module uses the ExpressLRS binding protocol. Enter binding mode via the OLED menu, then power on your ExpressLRS receiver in bind mode. The module will detect and complete binding automatically.

Can I adjust the RF output power on this module?

Yes. Use the on-screen menu accessed by the navigation key to set RF power levels. The CNC aluminum case helps dissipate heat for higher-power settings.

Is the OLED screen configurable for custom telemetry fields?

You can choose from pre-loaded telemetry layouts directly on the OLED display. For advanced customization, update firmware via the ExpressLRS Configurator tool on your PC.
