Description:

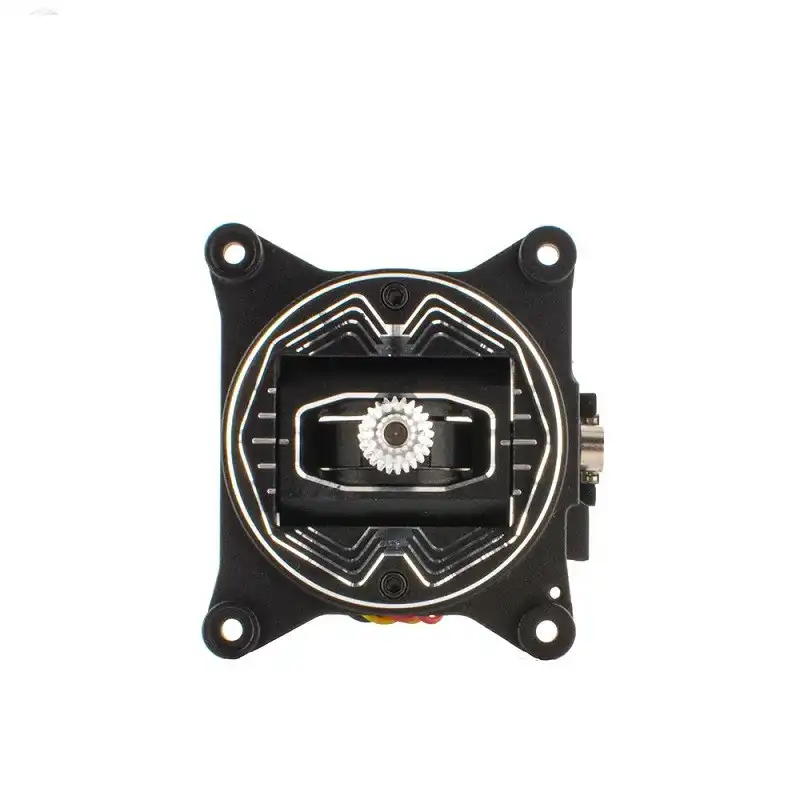

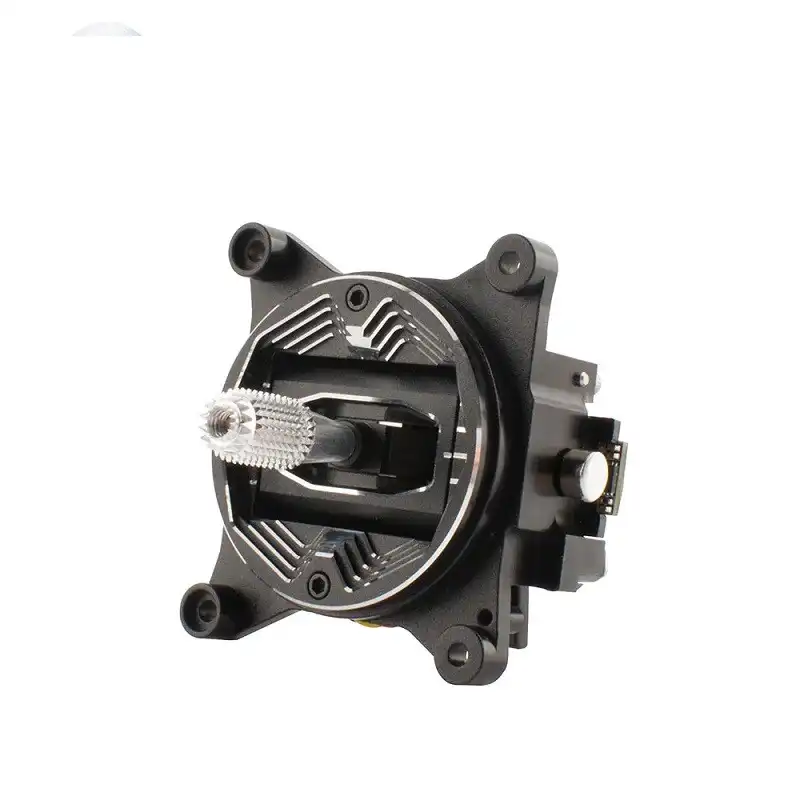

Radiomaster AG01 MINI CNC Hall Gimbals for TX12 & Zorro Custom designed for the RadioMaster Zorro and TX12, these gimbals allow for unparalleled precision and stick feel.
From the aviation-grade aluminum construction, non-contact hall sensors, and pre-installed Sticky360 Mini Gimbal Sticks, be prepared to revolutionize your compact radio experience!
Features:
- Made with CNC processed aviation grade aluminum.
- Sticky360 Mini Gimbal Sticks as standard.

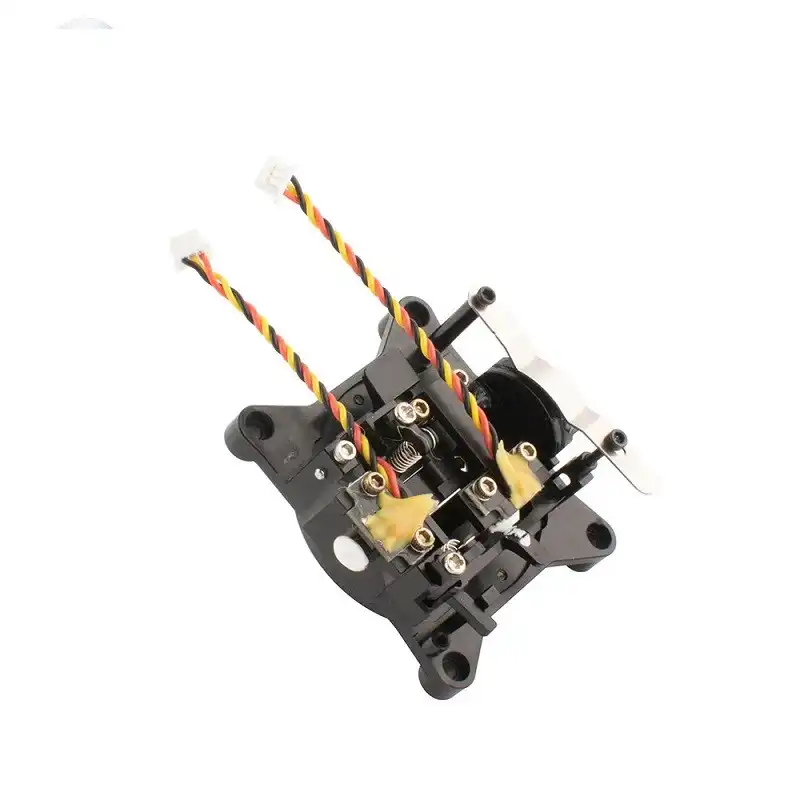

- Non contact hall sensors for accurate control inputs and precise centering.
- Quad precision bearings for unparalleled stick feel.
- Adjustable vertical travel angle (Min. 38°, Max. 54°).
- Custom designed for RadioMaster Zorro & TX12.
Specifications:
| Item Type: | Hall Gimbals |
|---|---|
| Sensor Type | Hall Sensor |
| Operating Voltage (V): | DC 3.3V |
| Operating Temperature (°C): | -20°c-85°c |

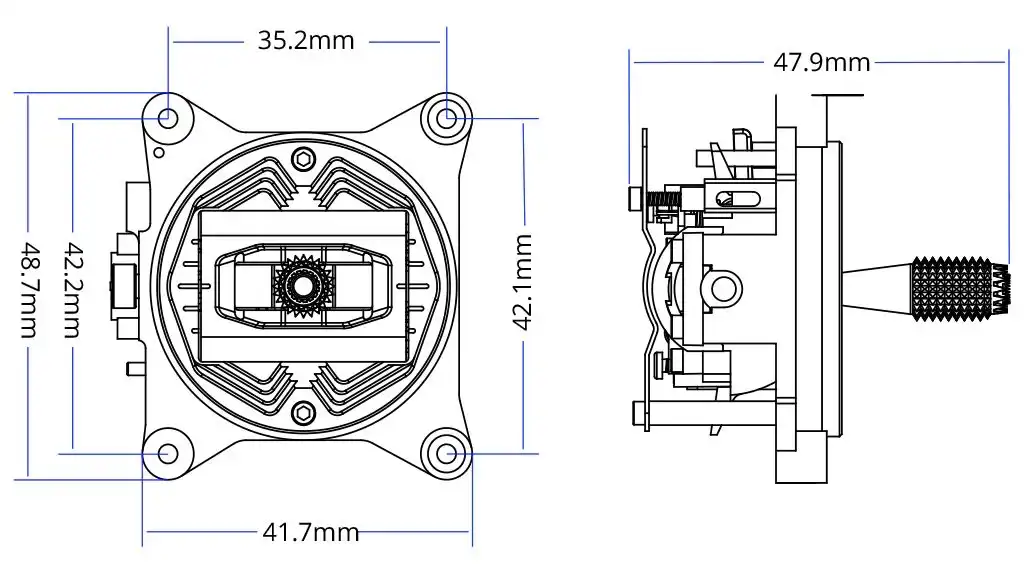

| Length (mm): | 49 |
| Width (mm): | 42 |
| Height (mm): | 48 |
Package Includes:

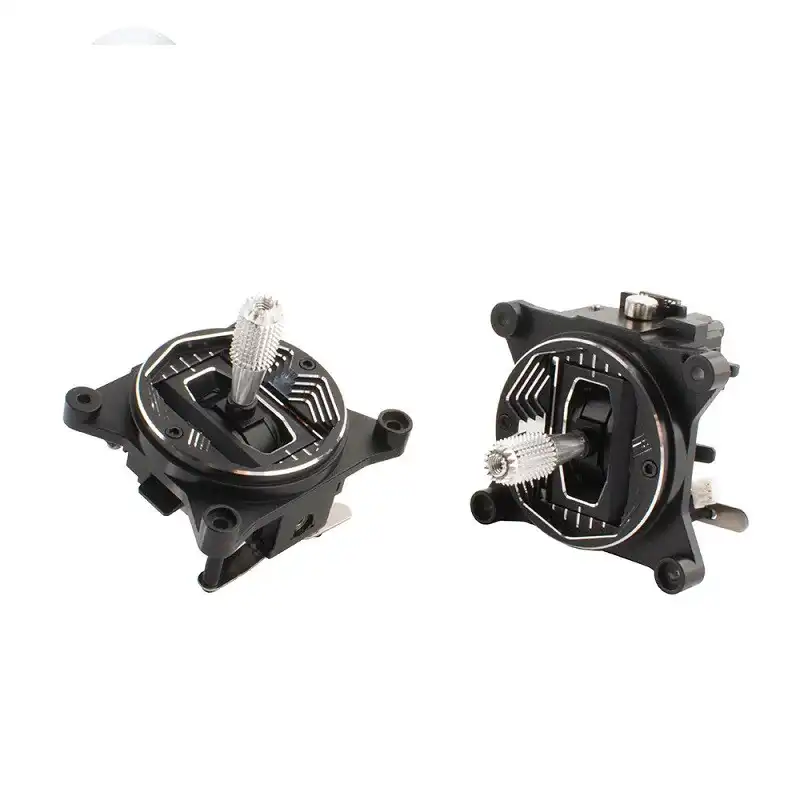

- 2 x AG01 Mini Hall CNC Gimbal
- 1 x Hex tool
- 4 x Installation screw
- 1 x Spare tension spring
- 1 x Throttle tension screw
Radiomaster AG01 MINI CNC Hall Gimbals for TX12 & Zorro Overview
The Radiomaster AG01 MINI CNC Hall Gimbals are precision stick modules designed specifically for the RadioMaster TX12 and Zorro transmitters. Crafted from aviation-grade CNC aluminum and equipped with non-contact Hall sensors, these gimbals deliver smooth, accurate control inputs and a customizable stick feel for compact radio rigs.
Key Features of Radiomaster AG01 MINI CNC Hall Gimbals for TX12 & Zorro
- Premium CNC-processed aviation-grade aluminum construction for durability and light weight
- Non-contact Hall sensors ensure precise control inputs and consistent centering
- Pre-installed Sticky360 Mini Gimbal Sticks for enhanced stick grip and tactile feedback
- Quad precision bearings deliver ultra-smooth movement and reduced play
- Adjustable vertical travel angle from 38° to 54° to suit different flying styles
- Genuine Radiomaster product, fast shipping from Zbotic within 24 hours
Applications and Use Cases
- Upgrading stock gimbals on RadioMaster TX12 for tighter control in FPV racing
- Replacing worn or loose sticks on the Zorro transmitter for improved responsiveness
- Customizing stick travel angle for fixed-wing endurance flights or multirotor freestyle
- Enhancing tactile feedback during long-range or drone photography missions
- Fine-tuning simulator setups by matching transmitter feel to real-world controls
How to Use Radiomaster AG01 MINI CNC Hall Gimbals for TX12 & Zorro
To install, remove the back cover of your TX12 or Zorro transmitter, disconnect and unscrew the original gimbals, then mount the AG01 units in their place. Reconnect the ribbon cable, adjust the vertical travel angle to your preference using the set screws, and secure the back cover. Power up your radio and verify stick centering before flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Are these gimbals compatible with RadioMaster TX12 and Zorro transmitters?
Yes. The AG01 MINI CNC Hall Gimbals are custom-designed to fit the mounting points and ribbon cable interface of both the TX12 and Zorro transmitters without modifications.
Can I adjust the stick travel angle on the AG01 MINI CNC Hall Gimbals?
Absolutely. Use the included hex key to loosen the angle adjustment screws and set the vertical travel anywhere between 38° and 54°, then retighten for a secure fit.
What maintenance is required for these Hall gimbals?
Thanks to the non-contact Hall sensors and sealed precision bearings, maintenance is minimal. Periodically remove dust and debris, check that mounting screws are tight, and avoid exposure to moisture.
