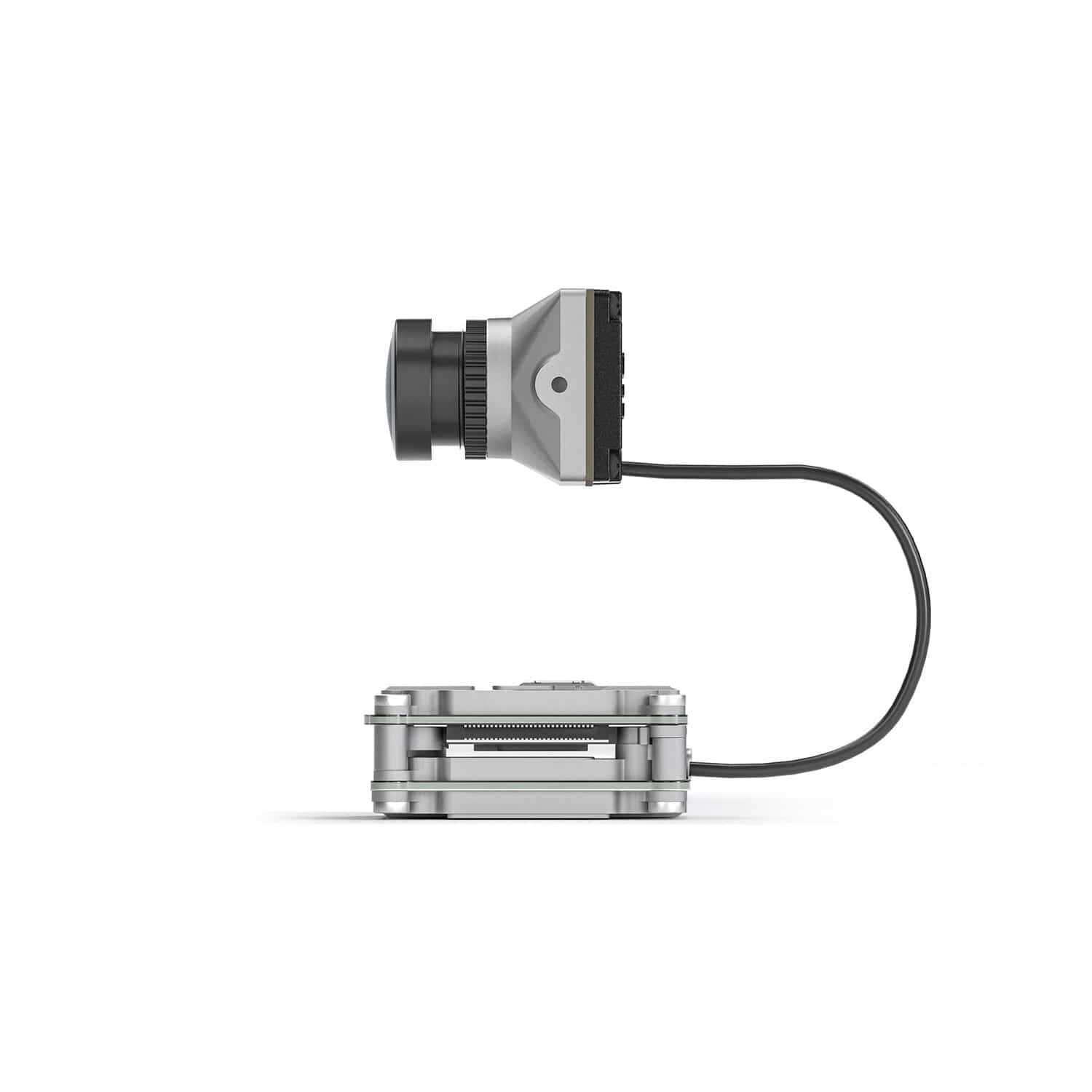

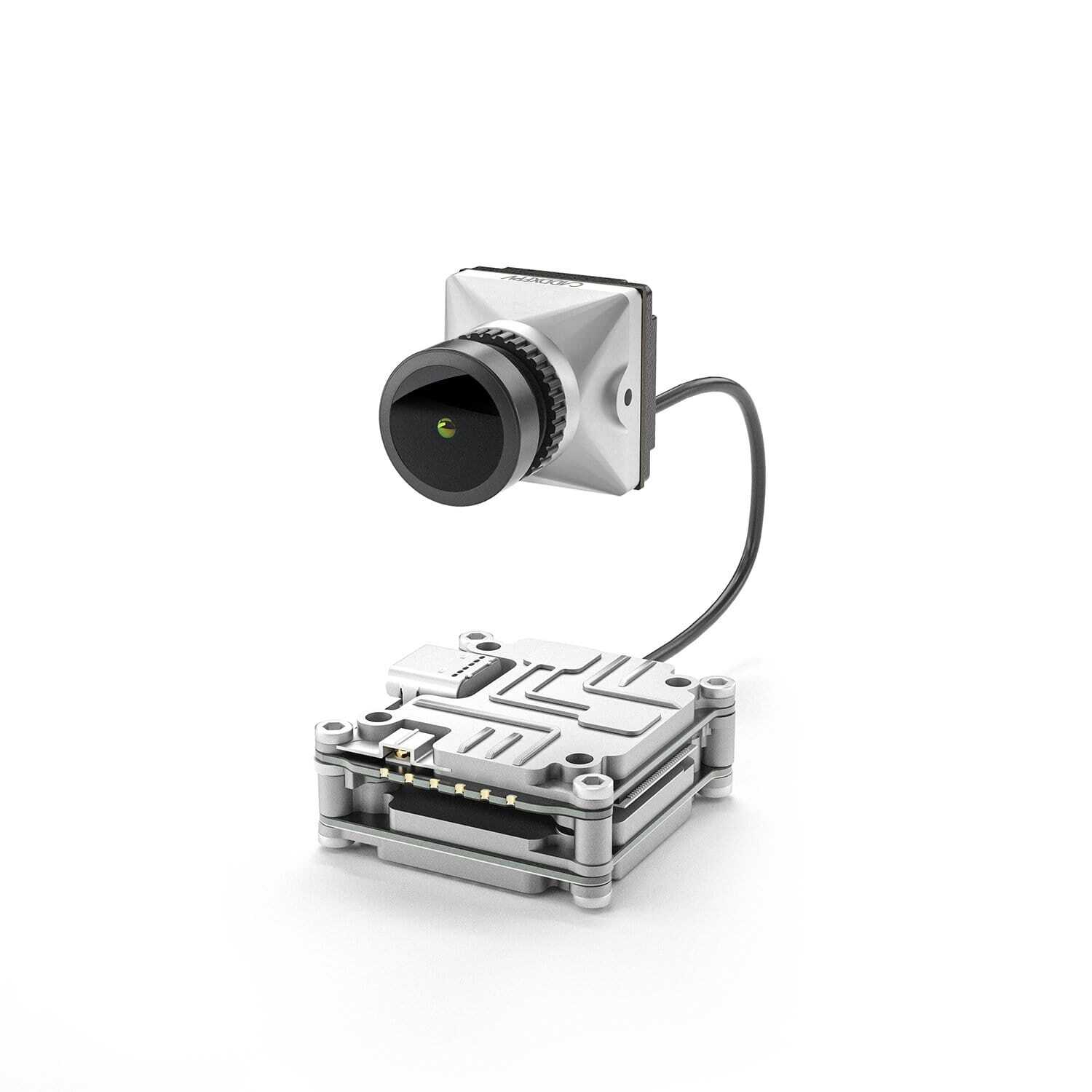

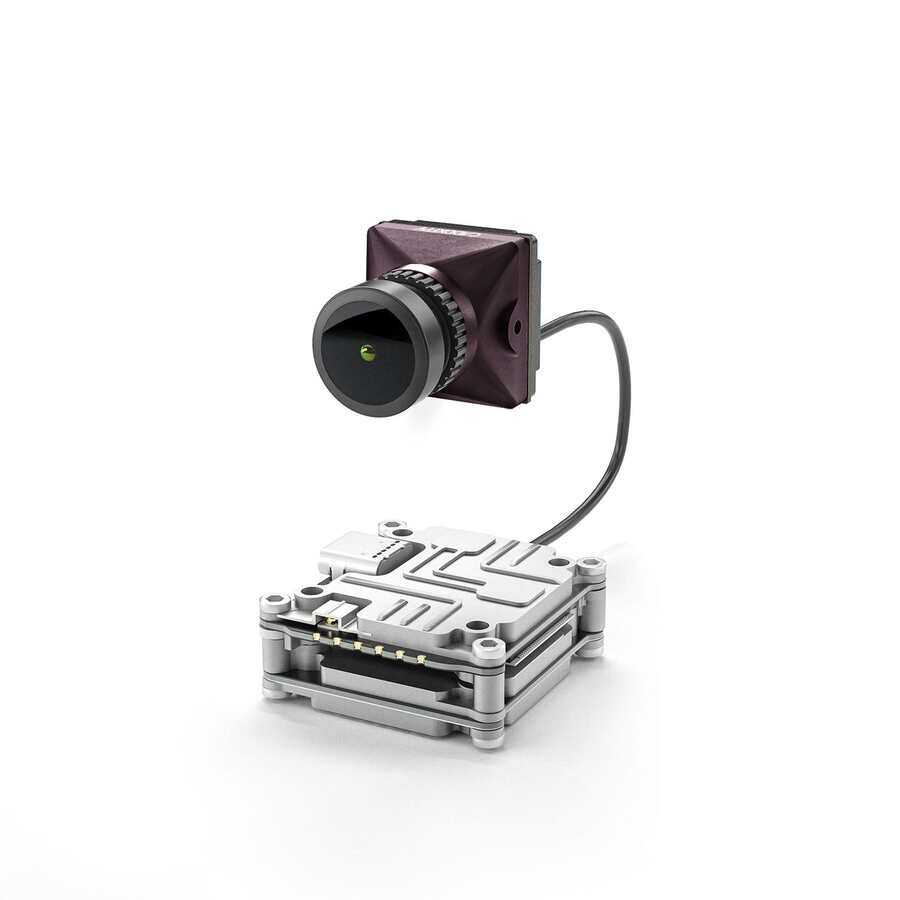

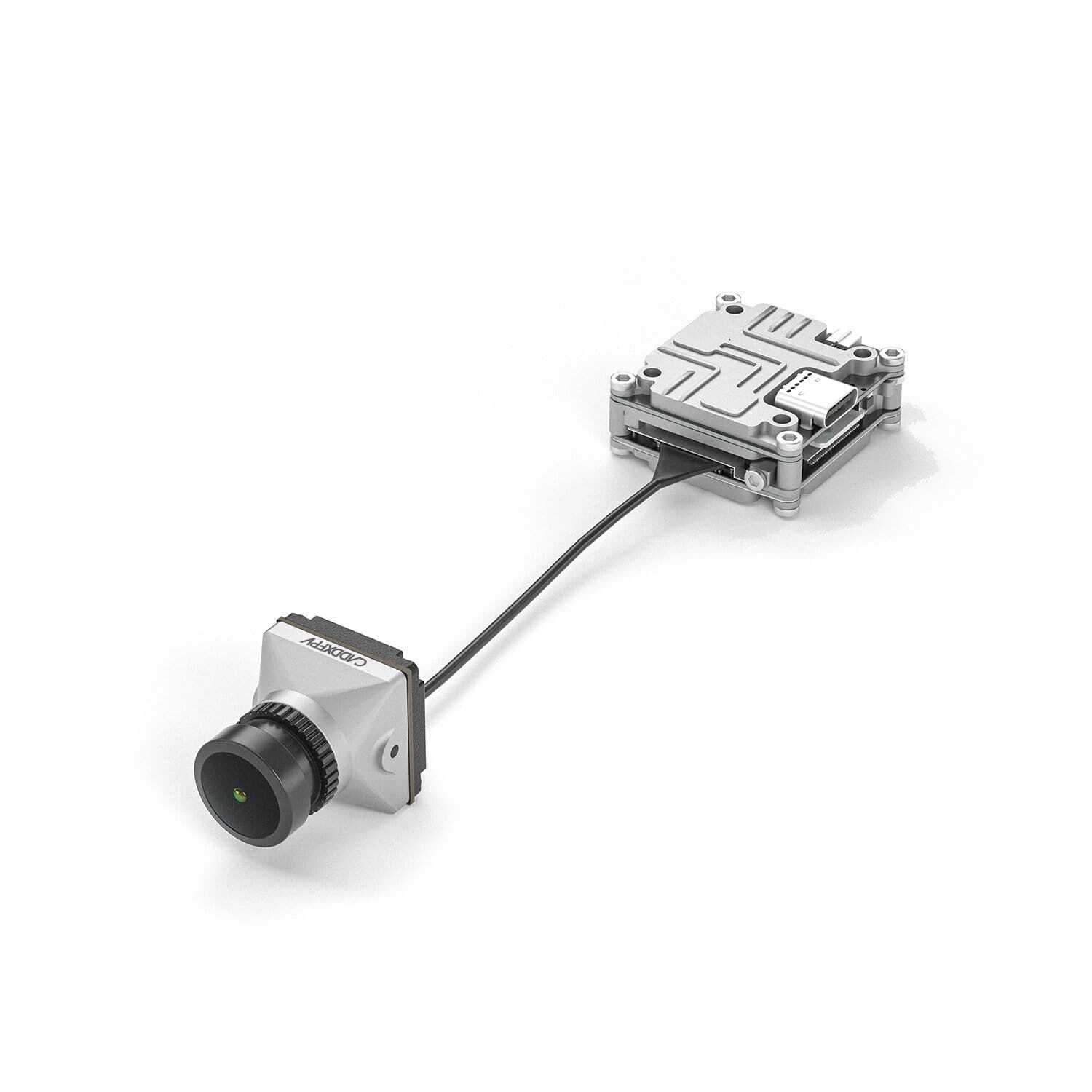

Polar Vista Kit
Description:
High-quality night shot presentation:1/1.8-Inch HD Digital Starlight Sensor.Min. Illumination: 0.00003Lux, Individual pixel size of 4 µm Excellent low light capability. Custom F/1.6 Large Aperture Lens:800W Pixels Lens、162° FOV, Support brightness and saturation adjustment. Secure encryption chip: Compatible with video transmitter upgrade. New 1.5g lightweight antenna: Radiation efficiency 98%、Average gain 2dbi、VSWR<1.4. Supported Flight control System: F3.F4.F7:7ms、low latency transmission between the DJI FPV RC and vista,720p/60fps、Video recorded by the DJI FPV Goggles
Features:
- Custom F/1.6 Large Aperture Lens:800W Pixels Lens
- 162° FOV, Support brightness and saturation adjustment
- Compatible with video transmitter upgrade
- Radiation efficiency 98%
Specification:
| Item Type: | FPV Camera |
|---|---|
| Operating Frequency | 5.7 – 5.8GHz |
| Transmitter Power (EIRP) | FCC/SRRC/MIC:<30dbm CE: 14dbm |
| Min Latency | 720 60fps:<32ms |
| Max. transmission distance | FCC/SRRC: 4km ; CE: 0.7km |
| I/O Interface | USB-C , IPEX-3-IN -1PORT |
| Supported systems | F3:F4:F7 |
| Input Voltage (V): | 7.4 v to 26.4v |
| Power Output | 25mW/200mW/500mW/700mW |

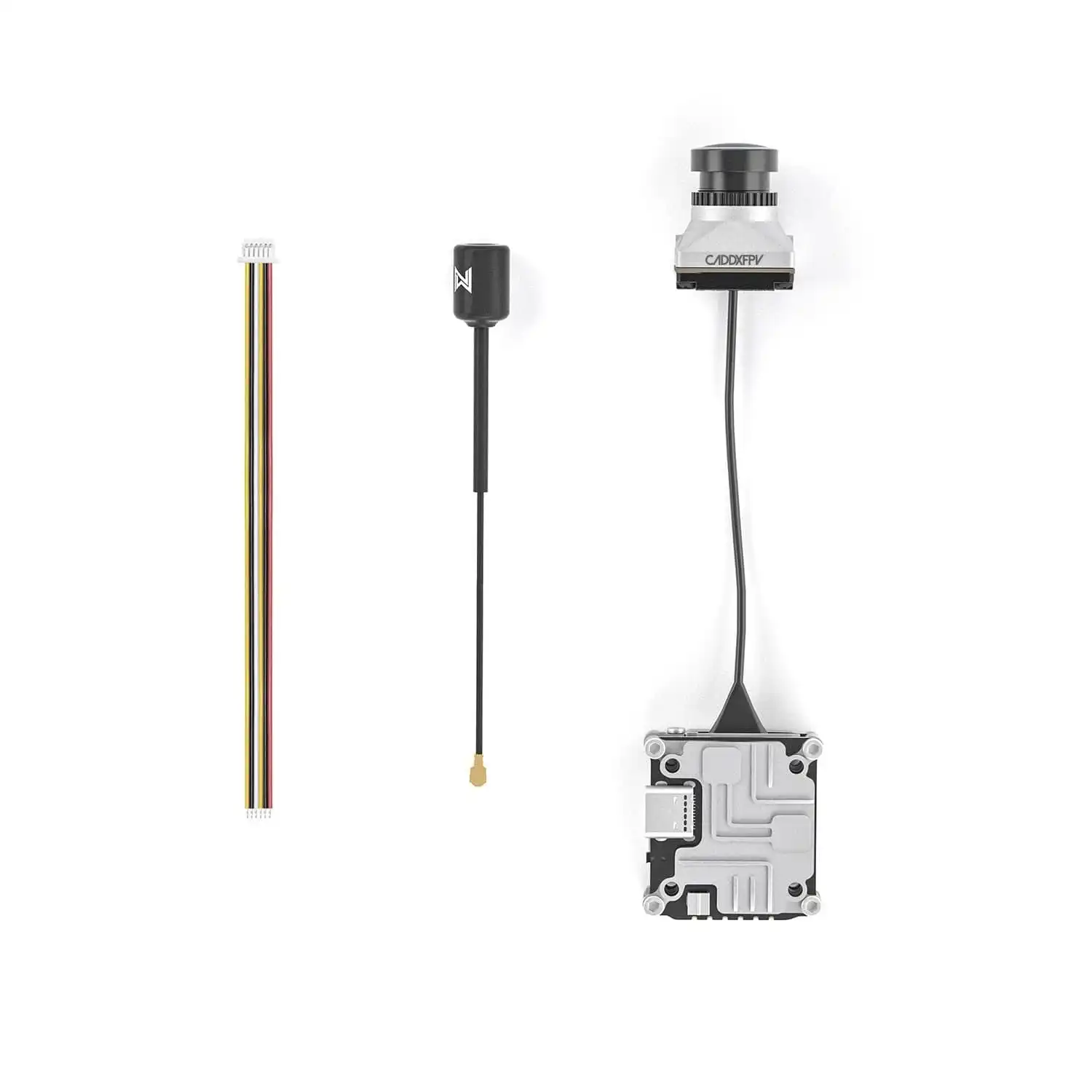

| Hardware included | Polar Vista Kit/ m2 screw/Gasket ring/menu cable /3 in 1 cable /coaxial cable /antenna |
| Goggles | work with DJI goggles |
| Camera Details | Sensor: 1/8″ starlight CMOS min illumination 0.00003lux Lens f/1.6 & 8 mega Shutter: rolling shutter FOV:162 degree (D) , 138 degree(H) ,75 degree(V) |
| Aspect Ratio | 0.672916667 |
| Shipping Weight | 0.085 kg |
| Shipping Dimensions | 16 × 6 × 3 cm |
Package Includes:
1 x Polar Vista Kit
Technical Specifications
| Brand | CADDXFPV |
|---|---|
| SKU | AI7997 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Polar Vista Kit is a versatile fpv cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
