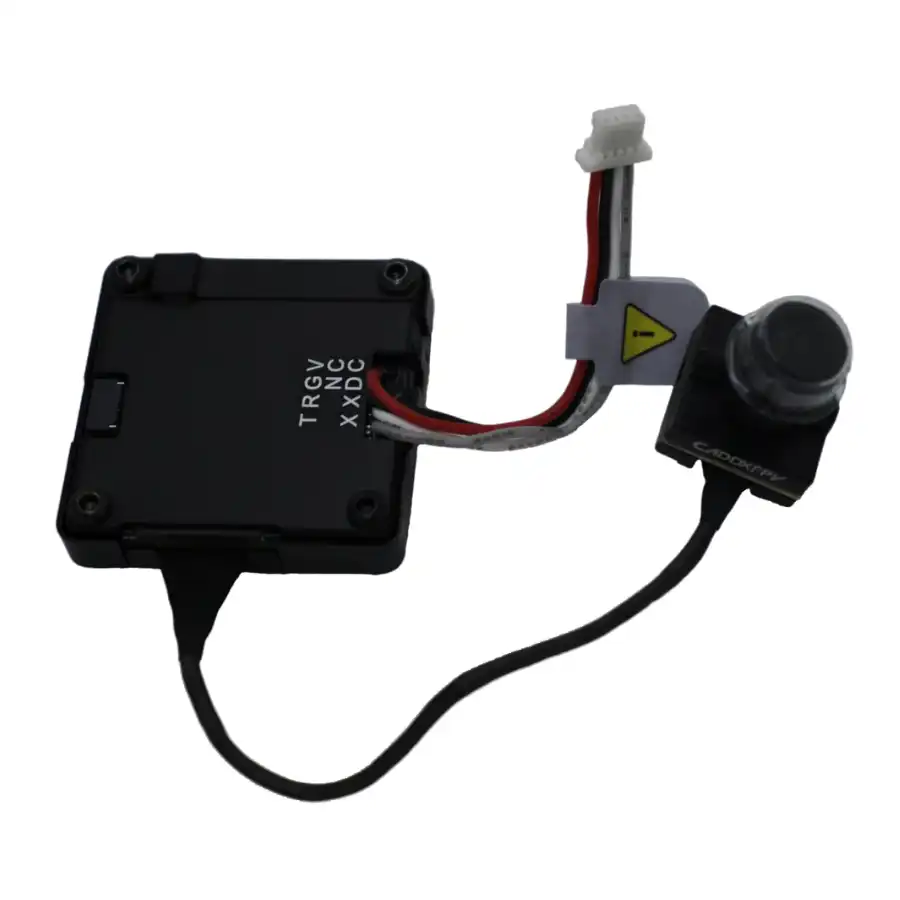

Walksnails Avatar VRX + Avatar HD Nano Kit V3
Description:
The Walksnails Avatar VRX + Avatar HD Nano Kit V3 is an innovative virtual reality (VR) experience that allows users to fully immerse themselves in a virtual world through the use of cutting-edge technology and advanced avatar customization.

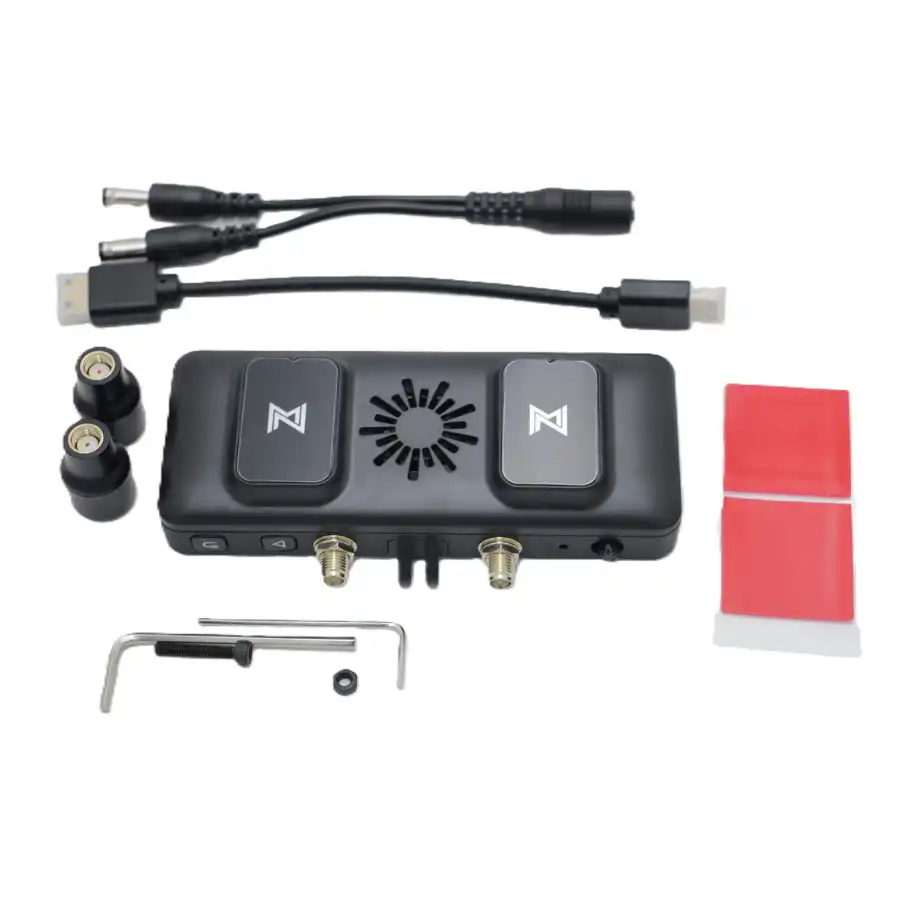

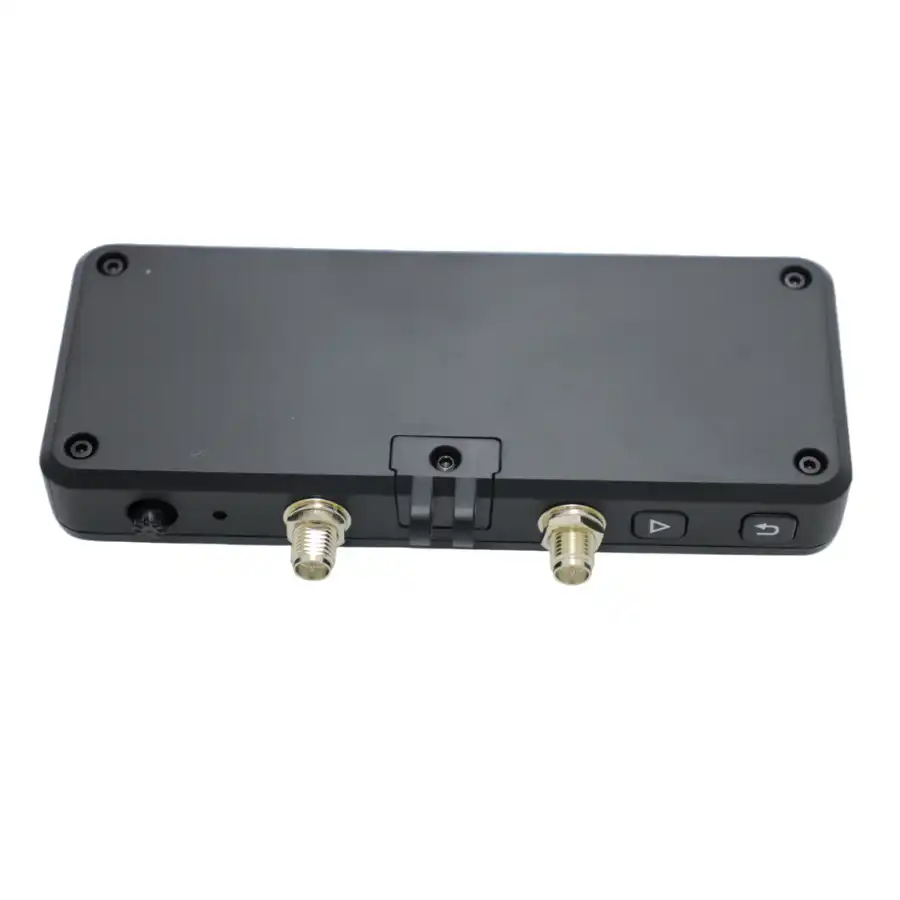

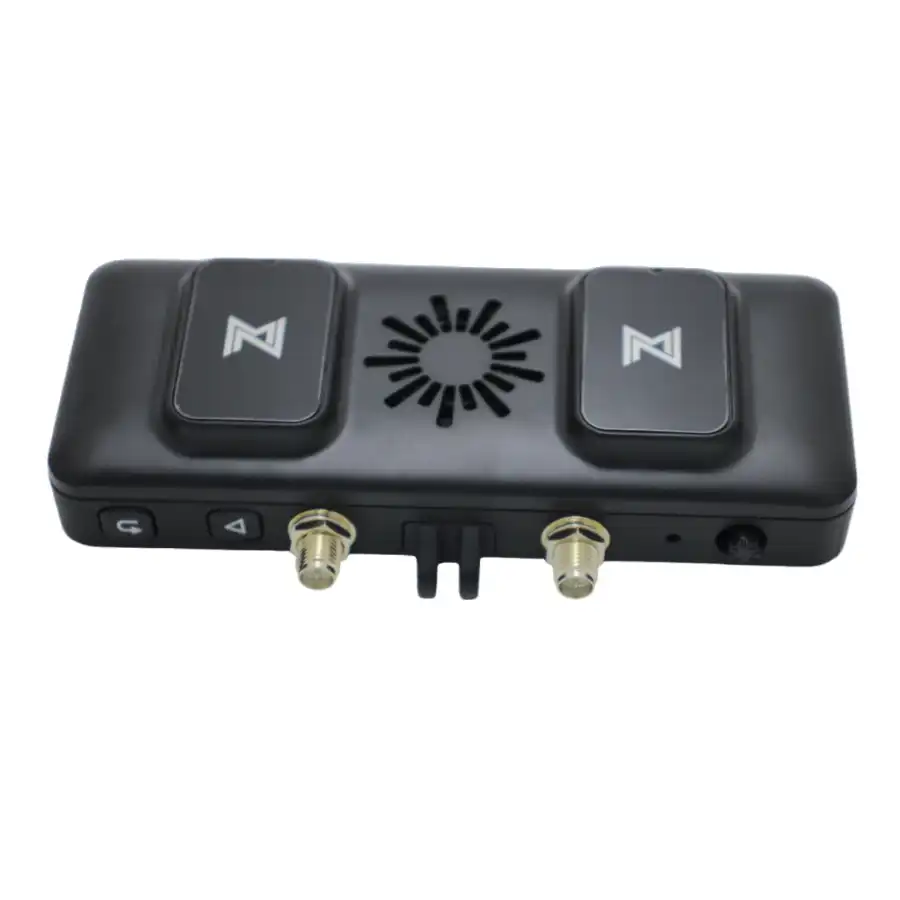

The Avatar VRX component of the kit provides a high-quality VR headset that offers an incredibly immersive visual experience. The headset features high-resolution displays, ensuring stunning graphics and life-like details. With a wide field of view, users can enjoy a truly expansive and realistic virtual environment. The headset is lightweight and comfortable, designed to be worn for extended periods without causing discomfort.
Features:
- Lightweight design, ultra-thin experience
- Walksnail VRX adopts 4 antenna design
- The maximum transmission distance is 4km
- 2 directional antennas,1080P/60FPS Walksnail VRX adopts industry-leading H.265 encoding technology
- Provide a minimum delay of 22ms and a maximum resolution of 1080p

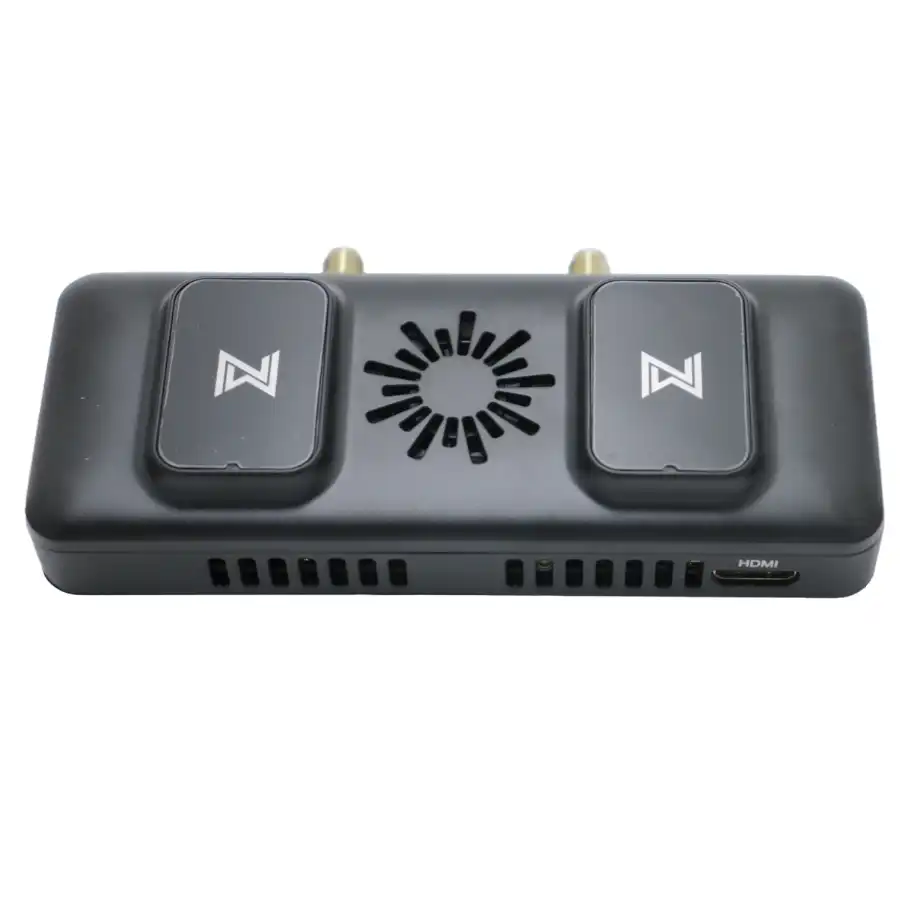

- HDMI output ensures you enjoy uncompressed video signals from the Walksnail HD system
- Supports beta flight full OSD display, supports beta flight
- you can easily adjust the parameters you want by remote control
Specification:
| Item Type: | FPV System |
|---|---|

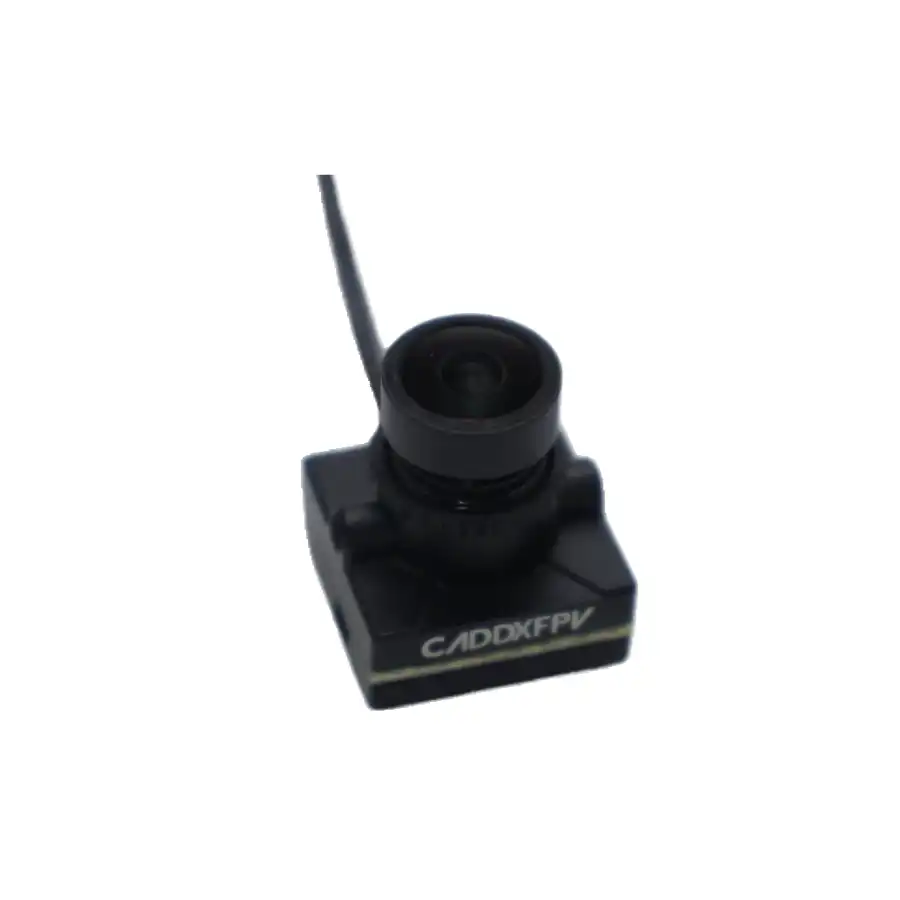

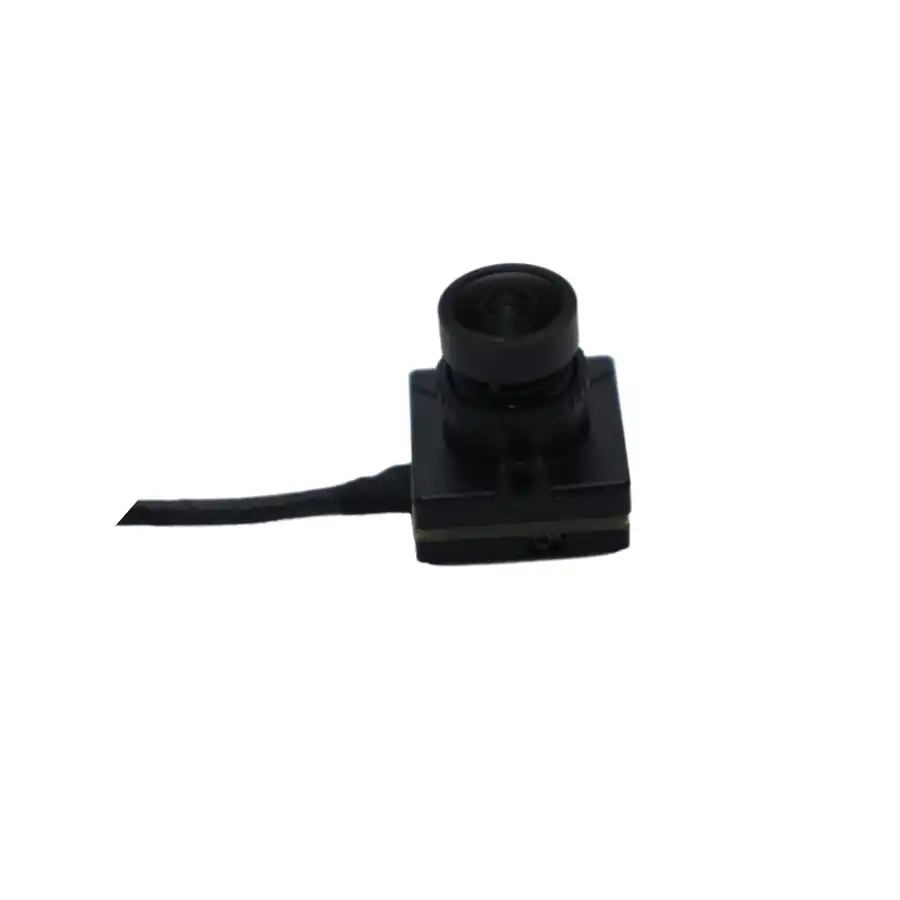

| Model Name: | Avatar nano/Avatar camera |
| Image Sensor | 1/2.7”1nch |
| Resolution: | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 16/9 4/3 |
| Lens | 2.1mm |
| Field of View (FOV): | 170° |
| Aperture | F2.0 |
| Shutter Type: | Rolling Shutter |
| Min. Illumination | 0.001Lux |
| Weight (g): | 3.5g/6g |
| Coaxial Cable | 90mm/140mm |
| VTX Model | Avatar module |
| VTX Communication Frequency | 5.725-5.850GHz |
| VTX 1/O Interface | JST1.0*6(Power in)JST1.0*4(USB) |
| VTX Mounting Holes | 25.5*25.5mm |
| VTX Storage | 8G |
| VTX Channels | 8 |
| Wide Power Input | 6V-25.2V |
| Supported FC System | Betaflight |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna (Y/N): | 2(IPEX) |
| Goggles Antenna Model | Red bird |
| Polarization | LHCP |
| Bandwidth (KHz) | 5.6GHz-6.0GHZ |
| Average Gain | 1.9dBi |
| Radiation Efficiency | ≥97% |
| VSWR: | ≤1.3 |
| Cross-Polar Rejection | -15to-30dB |
| Connector: | RP-SMA |

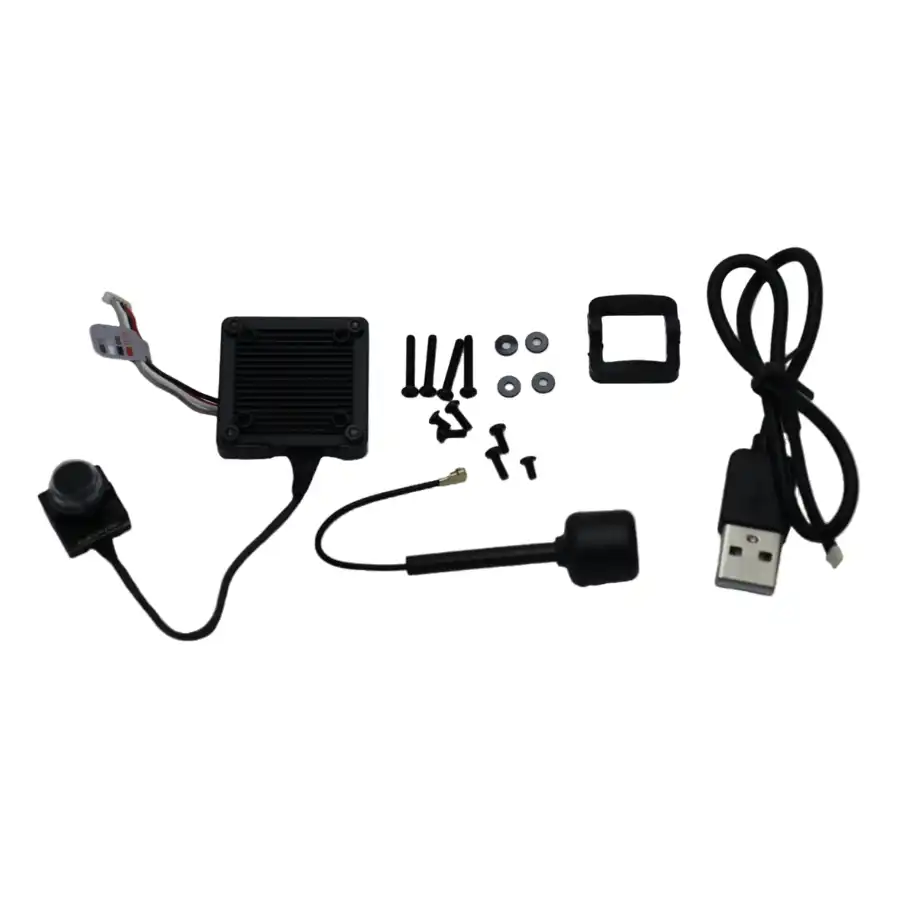

Package Includes:
1 x Walksnails Avatar VRX + Avatar HD Nano Kit V3
Technical Specifications
| Brand | CADDXFPV |
|---|---|
| SKU | AI7990 |
| Weight | 0.07 kg |
| Availability | In Stock |
Applications & Use Cases
The Walksnails Avatar VRX + Avatar HD Nano Kit V3 is a versatile fpv cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
