Caddx Walksnail Avatar HD Goggles X
Description:
The Caddx Walksnail Avatar HD Goggles X are high-performance FPV goggles designed for drone racing and FPV flying. They feature high-definition screens, advanced optics, and immersive 3D display technology for a stunning viewing experience. The goggles are comfortable to wear for extended periods and come with a built-in DVR for recording flights. They offer versatile compatibility with various FPV cameras and video sources, making them suitable for both analog and digital FPV systems. Overall, the Avatar HD Goggles X provides pilots with an exceptional FPV experience, allowing them to enjoy immersive flying and capture high-quality footage of their flights.
Features:
- Supports diopter adjustment from +2 to -6 for customizable vision correction.
- Offers a wide field of view (FOV) of 50° for immersive viewing.
- Allows for interchangeable lenses to suit individual preferences.
- Supports interpupillary distance (PD) adjustment from 57mm to 72mm.
- Features a DIY front cover for customization.
- Includes infrared sensing technology for intuitive controls.
- Capable of recording 1080P video at 100 frames per second (FPS).
- Offers sharing mode for easy sharing of video footage.
- Provides HDMI input for external video sources.
- Supports VRX (video receiver) replacement for enhanced compatibility.
- Features HDMI output for connecting to external displays or recording devices.
- Incorporates a built-in gyro (under development) for stabilization.
- Offers AV input for analog video sources.
- The code rate of the system is a maximum of 50 Mbps
- Includes a built-in Bluetooth and Wi-Fi module (under development) for wireless connectivity.
Specifications:
| Item Type: | FPV Goggles |
|---|---|
| Frequency (GHz): | Communication (5.725-5.850) |
| Input Power (W): | 7-26V(2S-6S) |
| Transmit Power (dBm) | CE:<14dBm, FCC:<30dBm, MIC:<25dBm, SRRC:<20dBm |
| Channels | 8 |
| Resolution: | 1080p 100fps, 1080p 60fps, 720p 100fps, 720p 60fps |
| Gain: | Average 2dBi |
| Low Latency | Average 22ms |
| Ranging Distance | ＞4km |
| Interface: | 5Pin 3.5mm Audio Port, DC5.5*2.1mm Port, HDMI Input, HDMI Out, Micro SD Card Slot |
| Polarization | LHCP |
| Material: | OLED |
| Angle (FOV) | 50 Deg |
| Micro SD Card (Y/N): | Support 256G |
| System | Avatar HD system |

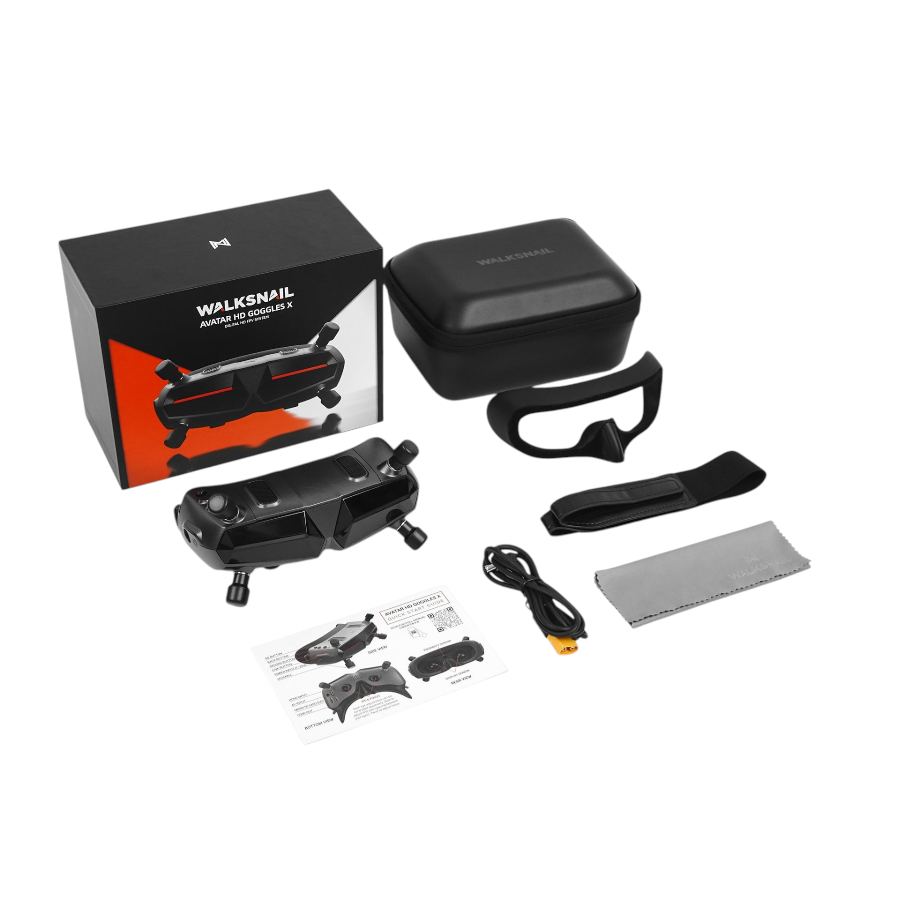

Package Includes:
1 x Caddx Walksnail Avatar HD Goggles X
Technical Specifications
| Brand | CADDXFPV |
|---|---|
| SKU | AI7989 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The Caddx Walksnail Avatar HD Goggles X is a versatile fpv cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
