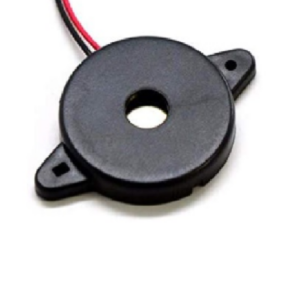

Pixhawk buzzer
This buzzer connects to Pixhawk and PX4 autopilot systems and produces status tones. It has a two-position DF14 connector on one side for plugging into the Pixhawk or PX4 FMU board. It also has a JST-SH connector on one side for plugging into the Pixhawk. The buzzer makes different sounds for different modes.

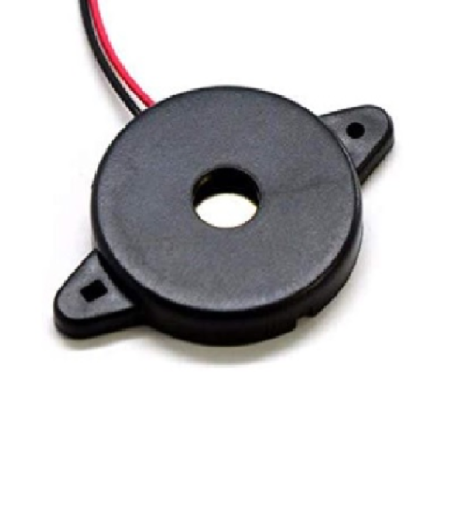

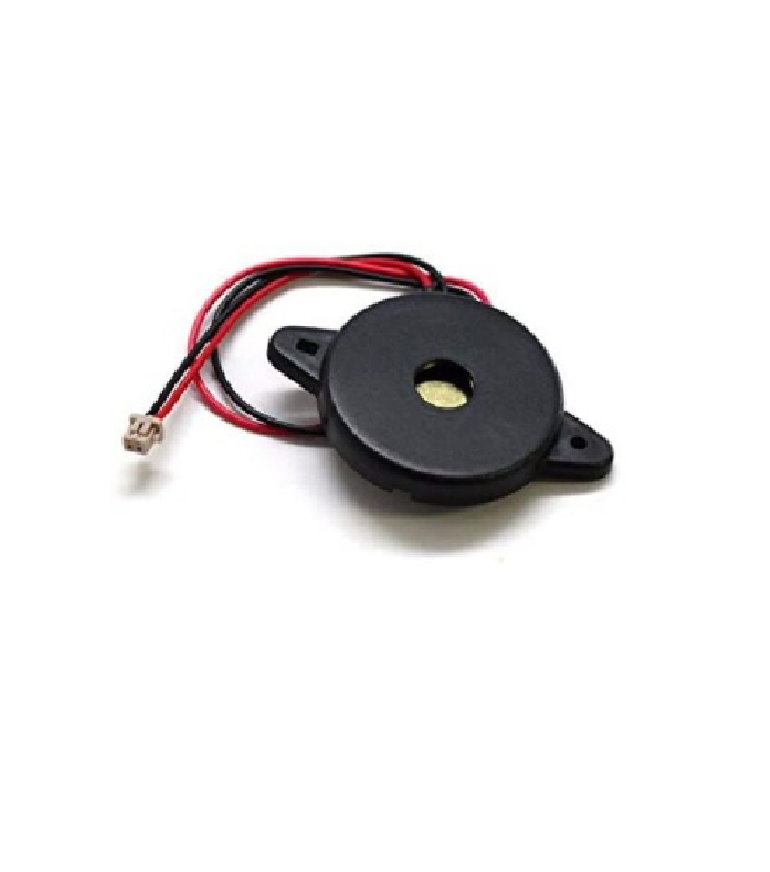

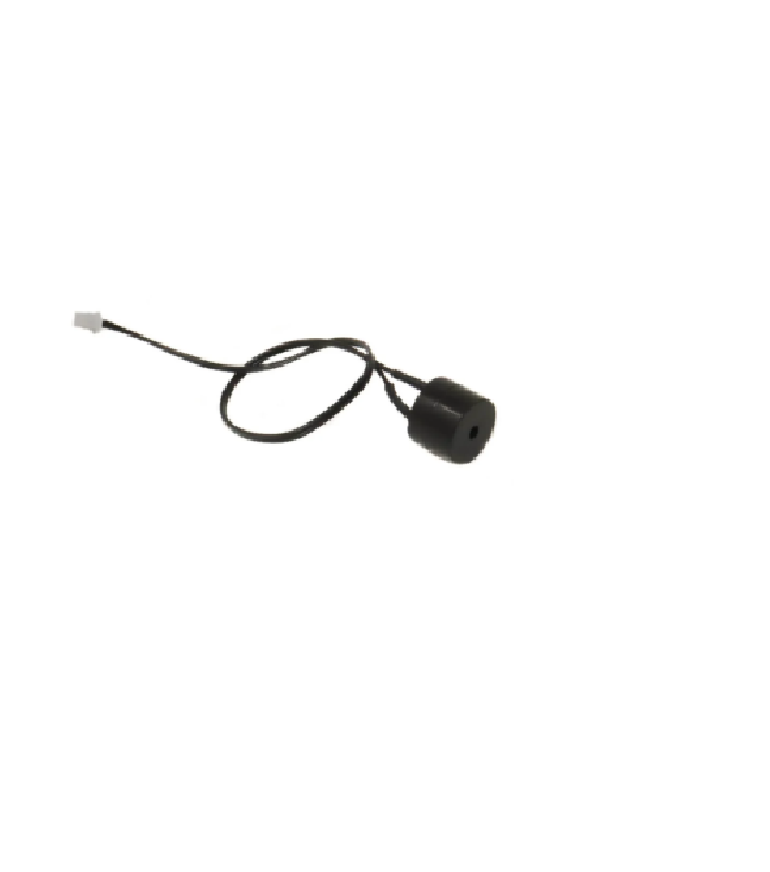

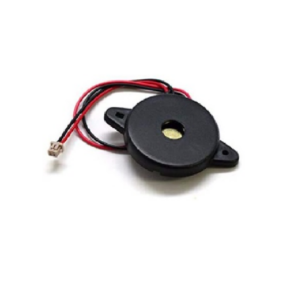

Note: Pixhawk buzzer comes with two types as shown in images you will receive random.
Specifications:
- Fit for Pixhawk PX4 flight controller.
- Different tones in different flight modes
- DF13 Plug, cable length 18cm.
| Volume | 50 dB |
|---|---|
| Interfaces | 1.25-2P plug |
| Connector | DF13 Plug |
| Wire Length(mm) | 190mm |
| Size(mm) | 30mm |
| Shipping Weight | 0.004 kg |
| Shipping Dimensions | 9 × 6 × 1 cm |
Package includes:
1 x Buzzer
Pixhawk buzzer Overview
The Pixhawk buzzer is an audio alert module designed specifically for Pixhawk and PX4 flight controllers. It emits distinct status tones in various flight modes, helping pilots quickly identify system states and warnings during pre-flight checks and in-flight operations.
Key Features of Pixhawk buzzer
- Produces clear 50 dB alert tones for mode changes and warnings
- Compact 30 mm diameter housing fits neatly on flight controller frames
- DF13 two-pin plug compatible with Pixhawk and PX4 FMU ports
- 190 mm cable length for flexible mounting positions
- Supports multiple tone patterns for Armed, Disarmed, Failure, and RTL modes
- Fast shipping from Zbotic ensures you get your buzzer within 24 hours
Applications and Use Cases
- Audio confirmation of arming and disarming your Pixhawk-equipped drone
- Warning alerts for low battery or GPS signal loss during flight
- Mode-change notifications for switching between Manual, Stabilize, and RTL
- Locate a downed UAV by following the buzzer’s periodic beeps
- Pre-flight system check audio feedback to confirm sensor calibration
How to Use Pixhawk buzzer
Connect the DF13 plug on the Pixhawk buzzer to the Buzzer port on your Pixhawk or PX4 flight controller. Secure the buzzer to your frame with double-sided tape or a zip tie, then power up the flight controller. The buzzer will automatically produce distinct tones when you arm, disarm, or encounter flight mode changes.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which connector does the Pixhawk buzzer use?
The buzzer uses a two-pin DF13 plug that directly fits the dedicated Buzzer port on Pixhawk and PX4 flight controller units.
What volume level does the buzzer output?
The Pixhawk buzzer outputs approximately 50 dB, loud enough for outdoor drone operations and pre-flight checks.
Can I mount the buzzer remotely from the flight controller?
Yes. With its 190 mm cable length, you can position the buzzer away from the controller for optimal sound projection.
