This is the 5V variant of the PDB-XT60 With BEC 5V & 12V For GEPRC Leopard LX5 220 in Drone Frame and Accessories. Available at ₹276.15 (₹263.00 + GST) with free shipping across India.

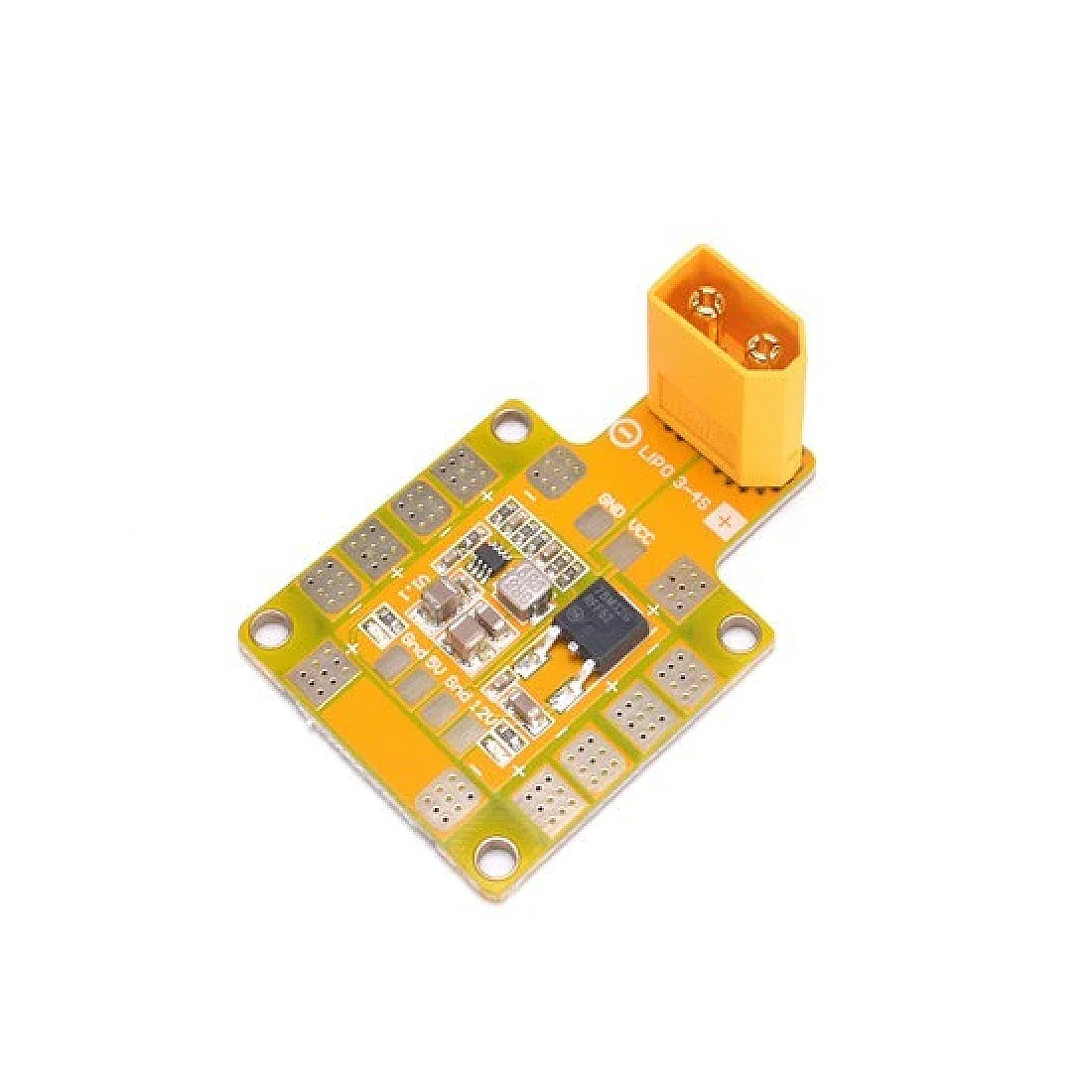

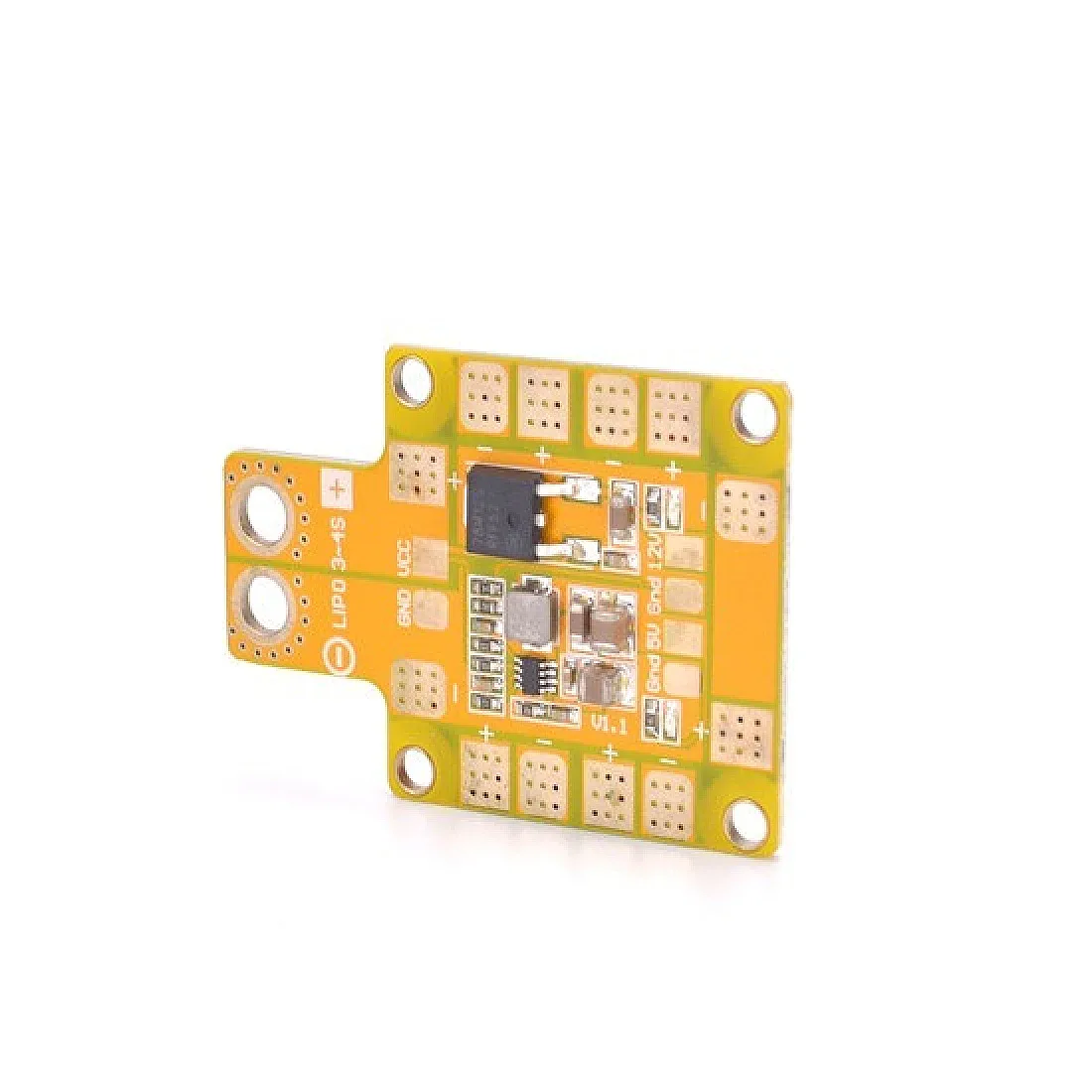

PDB-XT60 with BEC 5V and 12V Power Distribution Board have been engineered to provide the highest possible performance and reliability in a 36x50mm, 4 layer PCB. It comes with an XT60 for easy connection to LiPo batteries.
Using becs it distributes power from 3-4 lipos packs to 6 escs, as well as providing synchronized and regulated DC 5V outputs for RC Receivers, flight controllers, OSD, and servos
It also provides linear regulated DC 12V for powering cameras Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc. It offers an XT60 socket to connect the lipo pack conveniently.
The PDB-XT60 with BEC 5V and 12V is a great package to get your Racing Drones powered up for racing.
Features :
- 4-layers and 1.6mm PCB
- Total 6 pairs ESC solder tabs are fit for H or X type frame
- 5V and 12V Output LED indicators
- Regulated 5V and 12V outputs
- BEC 5V output: 5V/2A (Max.2.5A 10s/minute)
- Output Ripple: 40mV (VIn= 16V, VOut= 5V@2A load)
- Short-circuit tolerant: 5 seconds/minute
- BEC 12V output (4S LiPoly, 13~18V DC): 12V/500mA (Max.0.8A 5s/minute)
- BEC 12V output (3S LiPoly): =3S LiPoly voltage – 1V
Specification:
| Brand | HSKRC |
|---|---|
| Track Material | 2oz Copper |
| Short Circuit Tolerant Voltage(V) | 9 to 18 |
| Output Continuous Current | 25A @4 and 15A @6 |
| Output Peak Current(for 10 seconds) | 30A @4 and 20A@6 |
| Length (mm) | 36 |
| Width (mm) | 50 |
| Height (mm) | 4 |
| Weight (gm) | 11 |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 6 × 8 × 2 cm |

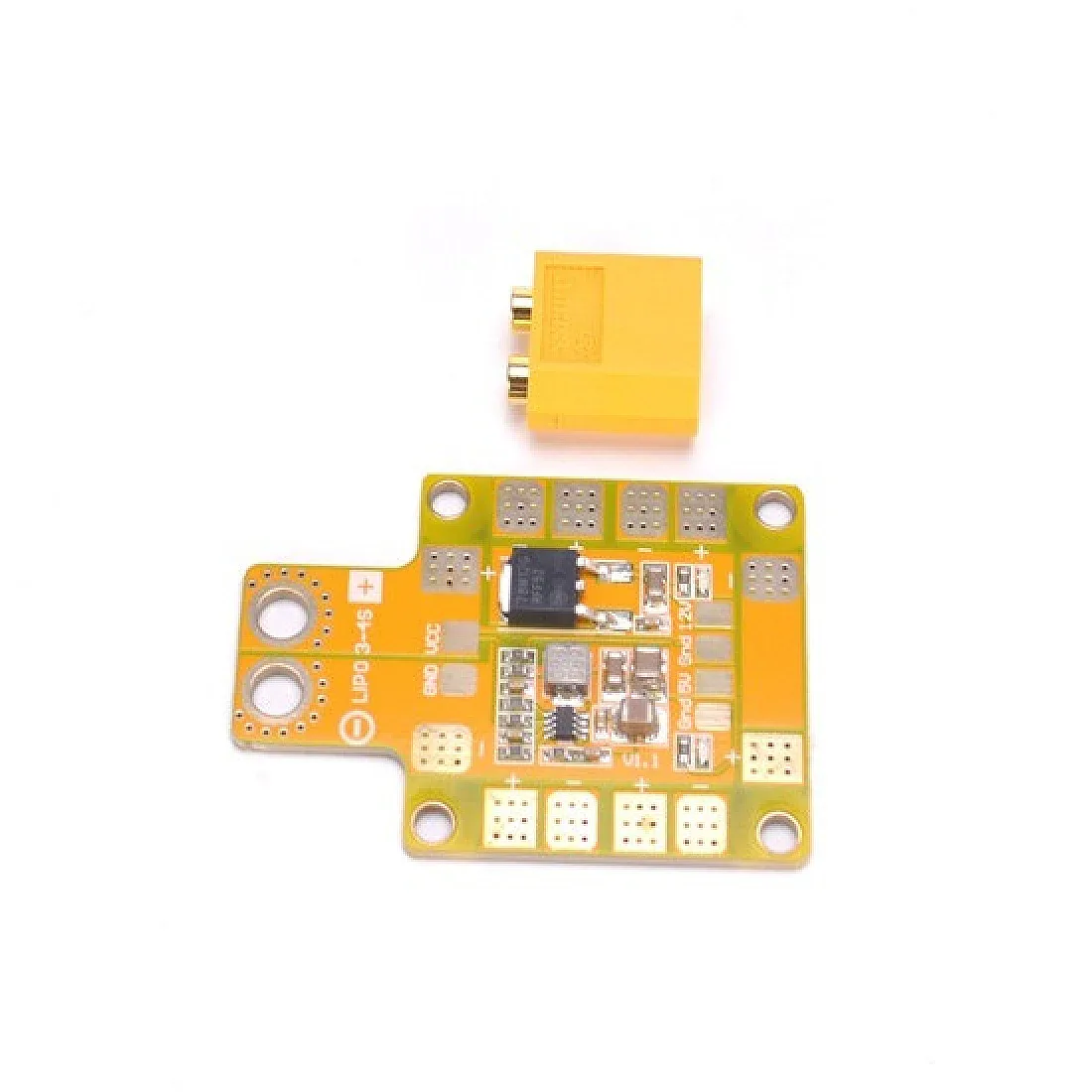

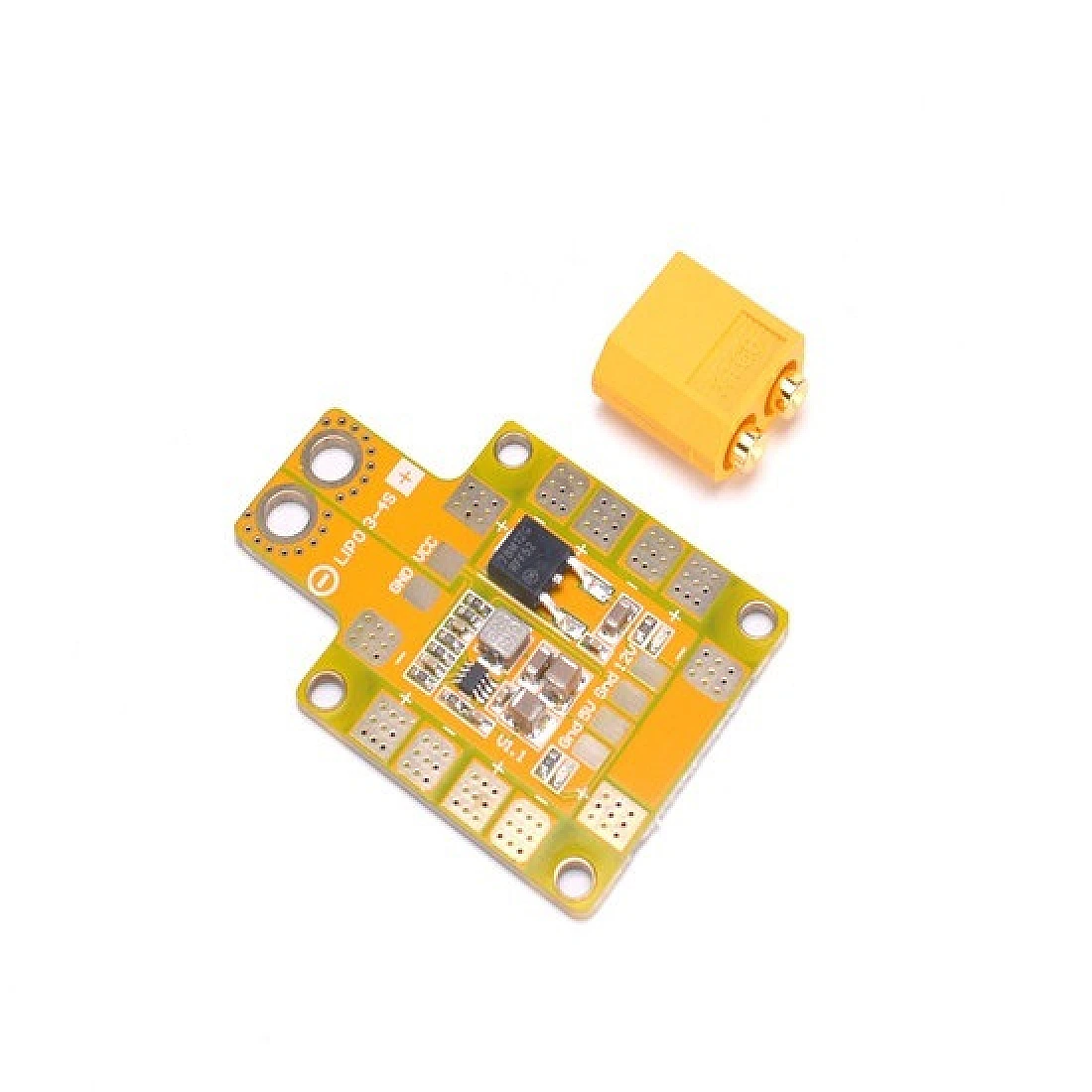

Package includes :
1 x PDB-XT60 W/BEC 5V and 12V board
1 x XT60 male Connector
Drone Magnetometer Calibration: Fix Compass Errors Fast
Drone Magnetometer Calibration: Fix Compass Errors Fast Nothing is more frustrating than watching your drone drift sideways, spin...
Read More →
DGCA Drone Weight Categories in India: Green, Yellow & Red Category Explained (2026)
DGCA Drone Weight Categories in India: Green, Yellow and Red Category Explained (2026) India's drone regulations have undergone...
Read More →
Drone Thermal Camera: FLIR Lepton Integration Guide
Drone Thermal Camera: FLIR Lepton Integration Guide for DIY Builders Thermal imaging from drones is transforming industries across...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Model | PDB-XT60 |
| Voltage Range | 5V - 12V |
| Connector Type | XT60 |
| Package Quantity | 5 pcs |
| SKU | AI4364 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The PDB-XT60 With BEC 5V & 12V For GEPRC Leopard LX5 220 is a versatile drone frame and accessories used across a wide range of applications including FPV racing builds, freestyle drones, cinematic drones, and agricultural spraying platforms.
Common use cases:
- Building a new racing quad
- Replacing a broken frame arm after a crash
- Mounting a camera gimbal on a custom platform
This product is ideal for FPV builders, drone racing enthusiasts, and commercial drone operators.
Technical Tip: Carbon fiber frames offer the best strength-to-weight ratio. Ensure motor-to-motor distance matches your propeller size.
