Holybro X500 V2 Kits (Included Motor, Prop and ESC)

Looking for X500 Motor? Holybro X500 V2 Kits (Included Motor, Prop and ESC) is available at Zbotic with fast shipping across India.

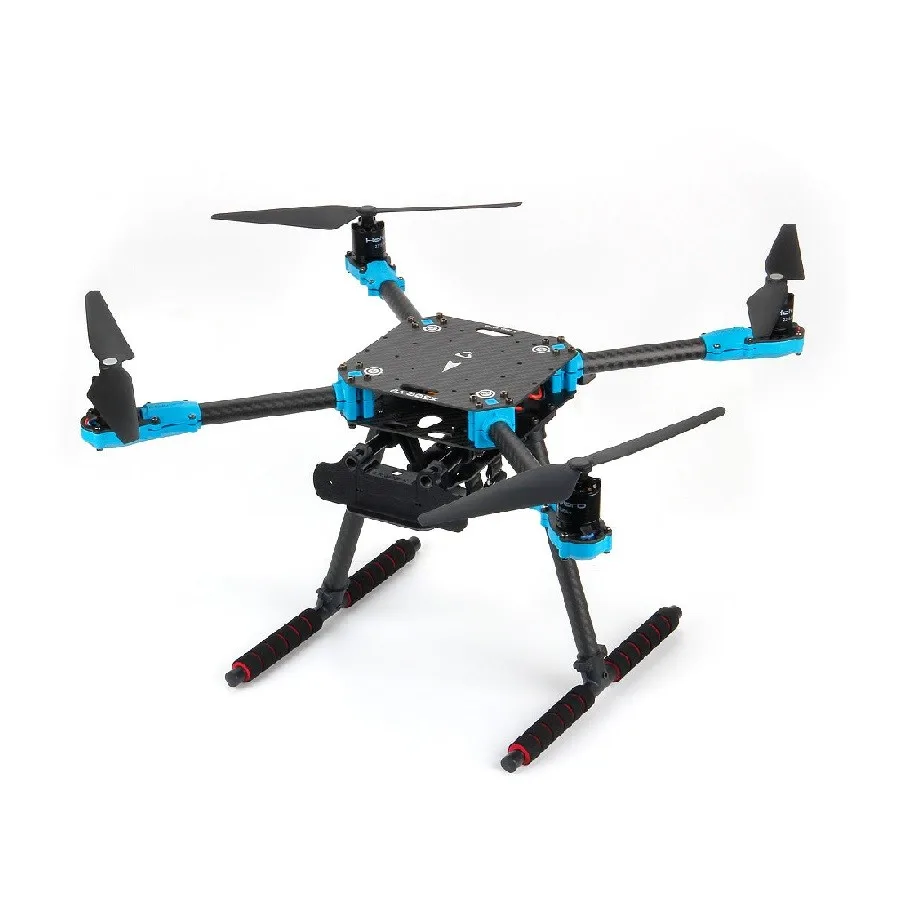

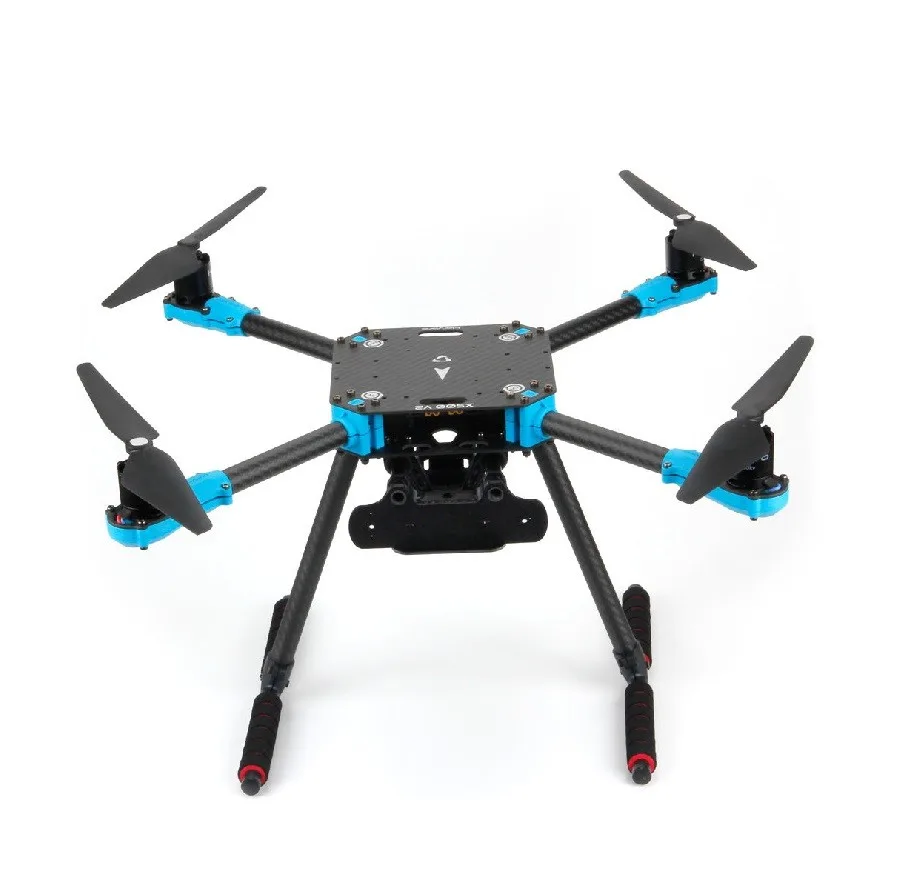

The X500 V2 ARF (Almost Ready-to-Fly) Kit is an economical, lightweight, and sturdy carbon fiber drone kit that is simple to assemble in under 15 minutes. It includes the X500 V2 Frame Kit with motors, ESCs, power distribution boards, and propellers already installed. This kit is fully compatible with a range of flight controllers, including the Holybro Pixhawk series, Durandal, Pix32 V5, and more, featuring several enhancements over the previous model.

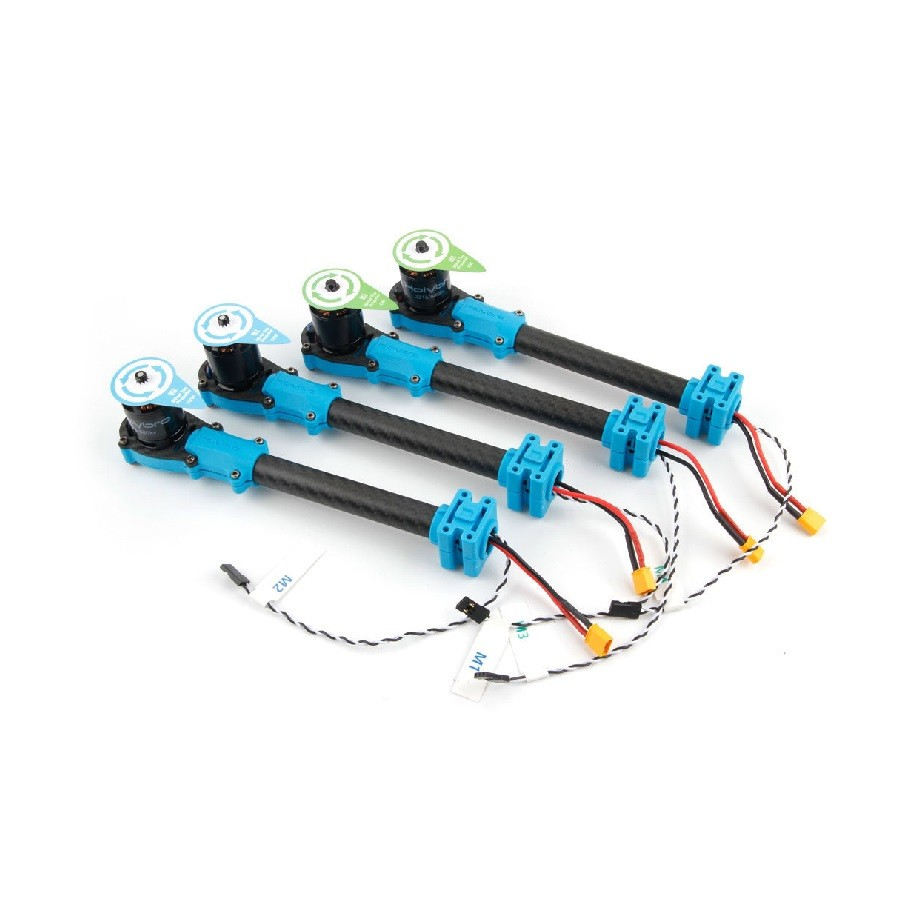

The X500 V2 Frame Kit is crafted from full carbon fiber twill, with carbon fiber tube arms supported by newly designed fiber-reinforced nylon connectors that feature convenient notches on both motor and body sides for an easier and more straightforward installation. The landing gear is made of 16mm and 10mm diameter carbon fiber tubes with thickened and strengthened connectors.

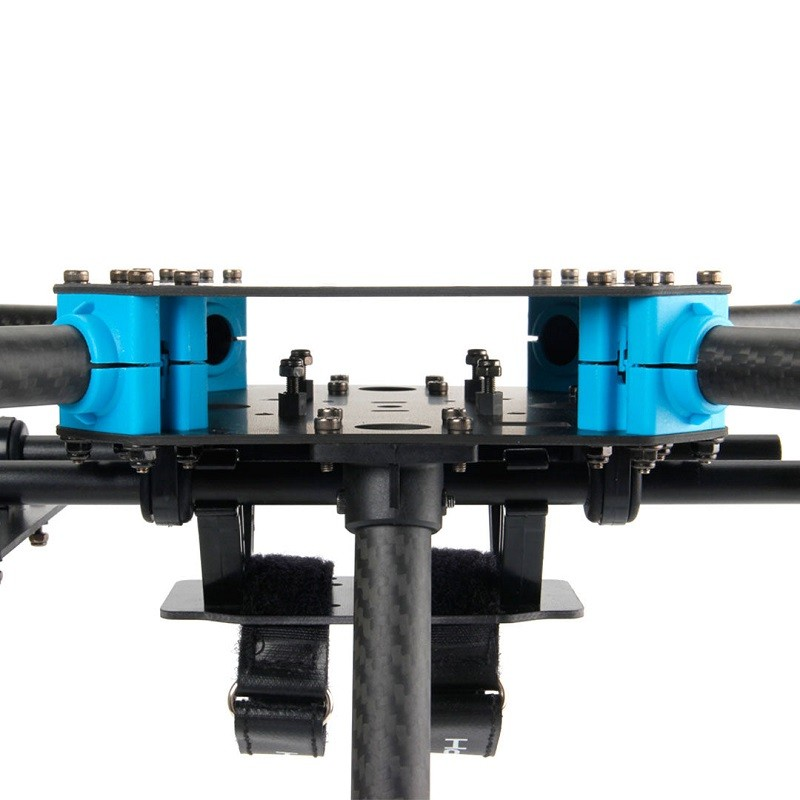

The gap between the top and bottom carbon fiber plates has been widened for better access. The platform board now includes mounting holes for GPS and popular companion computers like the Raspberry Pi 4 and Jetson Nano. The adjustable battery mounting board has been expanded to accommodate larger batteries for extended flight times. The rail mounting system is prepared to support a variety of camera mounts and gimbals for different applications. Additionally, there is an optional mount available for various depth cameras, such as the Intel RealSense series and Structure Core Depth Cameras (sold separately). All necessary tools for installation are provided in the box.

 Feature:

1. New design and minimal assembly time (~15 minutes)
2. Carbon Fiber frame with fiber-reinforced nylon connectors providing easy & straightforward installation.

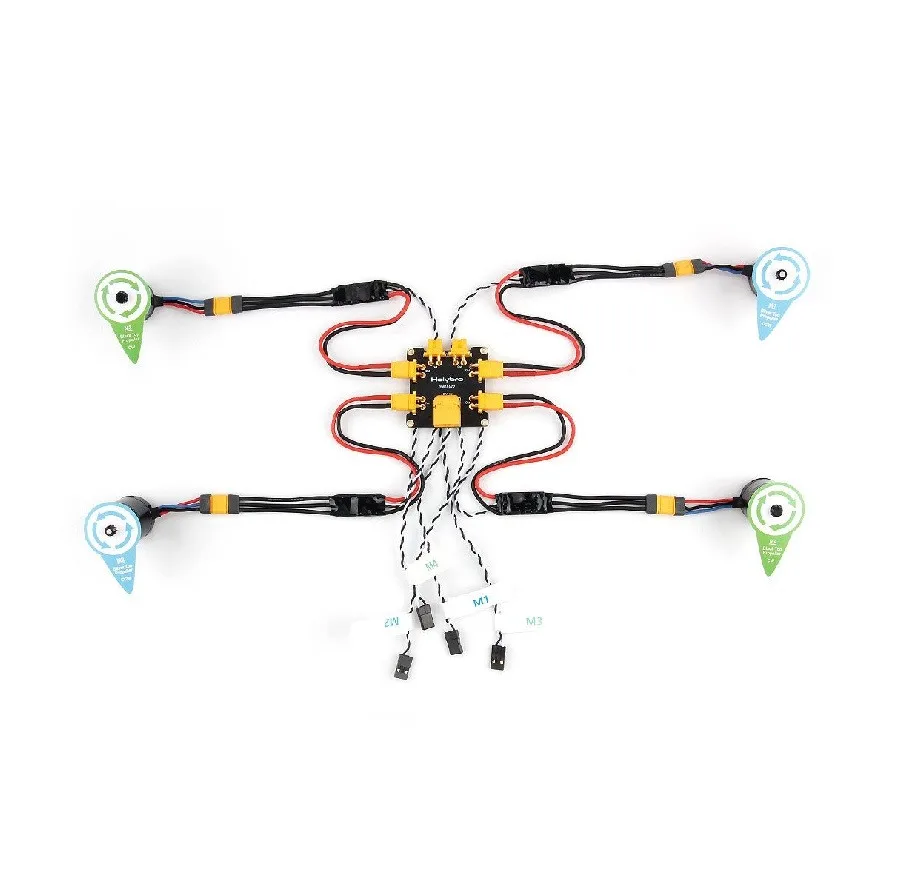

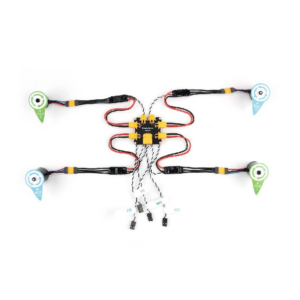

3. Pre-installed motors & ESCs with simple XT30 power plugs for PDB
4. Power distribution board (PDB) with XT60 & XT30 plugs – no soldering needed
5. Mount for companion computer such as Raspberry Pi & Nvidia Jetson Nano
6. Optional depth camera mount for Intel RealSense & Structure Core

Mechanical Specification:

1. Wheelbase: 500mm
2. Motor mount pattern: 16x16mm
3. Frame Body: 144x144mm, 2mm thick
4. Landing gear height: 215mm
5. Space between top and bottom plates: 28mm
6. Weight: 610g
7. Flight time: ~18 minutes hover with no additional payload. Tested with 5000mAh Battery.
8. Payload: 1500g (without Battery, 70% Throttle)
9. Battery Recommendation: 4S 3000-5000mAh 20C+ with XT60 Lipo Battery (Not Included)

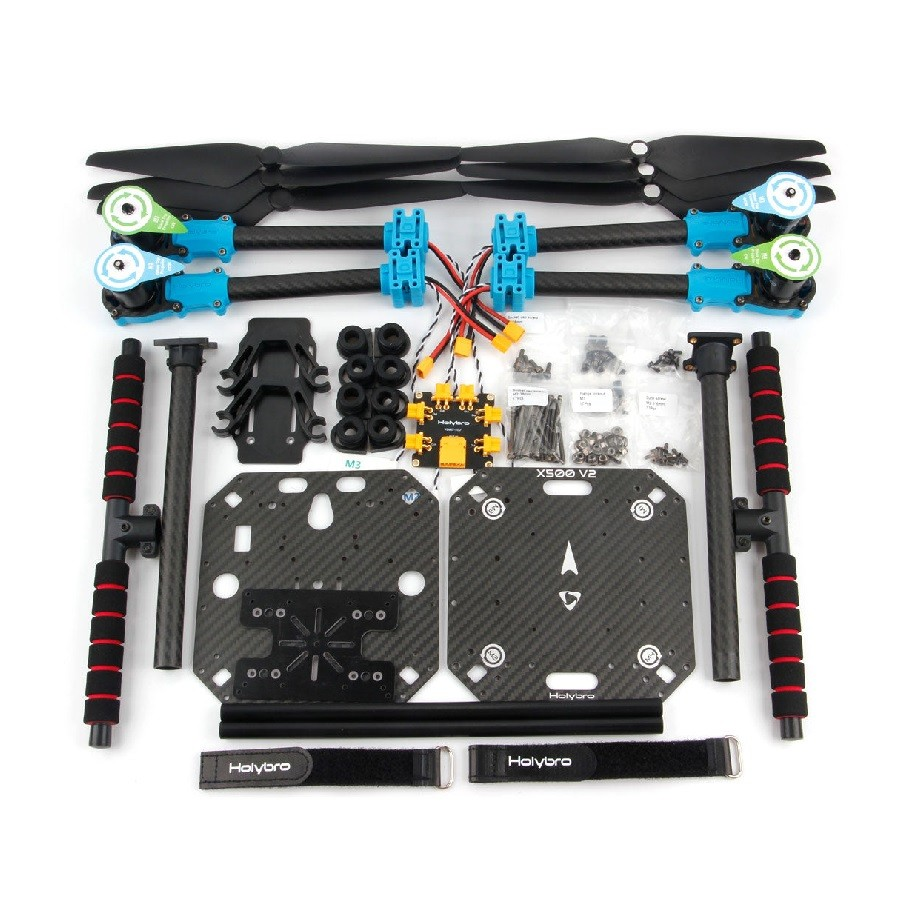

Package Includes:

1. X500 V2 Frame Kit
2. With Preinstalled Items:
3. Motors – Holybro 2216 KV920 Motor (4 pcs) with XT30 Plug (Motor Specification can be found here)
4. 4 x ESCs – BLHeli S ESC 20A
5. 6 x 1045 Propellers
6. Power Distribution Board – XT60 plug for battery & XT30 plug for ESCs & peripherals
7. Note: Depth camera mount is sold separately.

Assembly guide

Specifications and test report

Holybro X500 V2 Kits Overview

The Holybro X500 V2 Kit (Included Motor, Prop and ESC) is an ARF (Almost Ready-to-Fly) carbon fiber drone frame package designed for fast assembly and reliable performance. It combines a lightweight X500 V2 carbon fiber frame with preinstalled motors, electronic speed controllers (ESCs), power distribution board and propellers, ready for your choice of flight controller.

Key Features of Holybro X500 V2 Kits

• Full carbon fiber twill frame with tube arms and fiber-reinforced nylon connectors for durability
• Preinstalled 2206 motors, compatible 30A ESCs and propellers—assembly in under 15 minutes
• Versatile mounting system supporting Holybro Pixhawk series, Durandal, Pix32 V5 and similar controllers
• Enhanced motor mount design with precision notches for secure arm connections
• Economical kit offering robust construction at an affordable price point
• Fast shipping across India from Zbotic—get your kit delivered promptly

Applications and Use Cases

• Custom aerial photography platforms with high payload capacity
• FPV drone builds for racing and freestyle flying
• Surveying and mapping UAVs in agriculture or construction
• Research and development prototypes for robotics projects
• Educational builds for drone assembly training and workshops

How to Use Holybro X500 V2 Kits

Unbox the X500 V2 Kit, mount your selected flight controller onto the frame’s PDB, connect ESC signal wires and power leads, secure the carbon fiber arms via the nylon connectors, attach the top plate, and install your telemetry or GPS module. After propellers are fitted, calibrate ESCs and perform a system check before first flight.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What flight controllers are compatible with the X500 V2 Kit?

The frame’s versatile mounting holes and PDB design support Holybro Pixhawk series, Durandal, Pix32 V5 and most standard 30x30mm flight controller boards.

How long does assembly typically take?

With motors, ESCs and propellers preinstalled, the X500 V2 Kit can be fully assembled in under 15 minutes, excluding flight controller configuration.

Can I upgrade the motors or ESCs later?

Yes, you can swap out the preinstalled motors and 30A ESCs for higher-spec units, provided they match the frame’s mounting pattern and power distribution connections.
