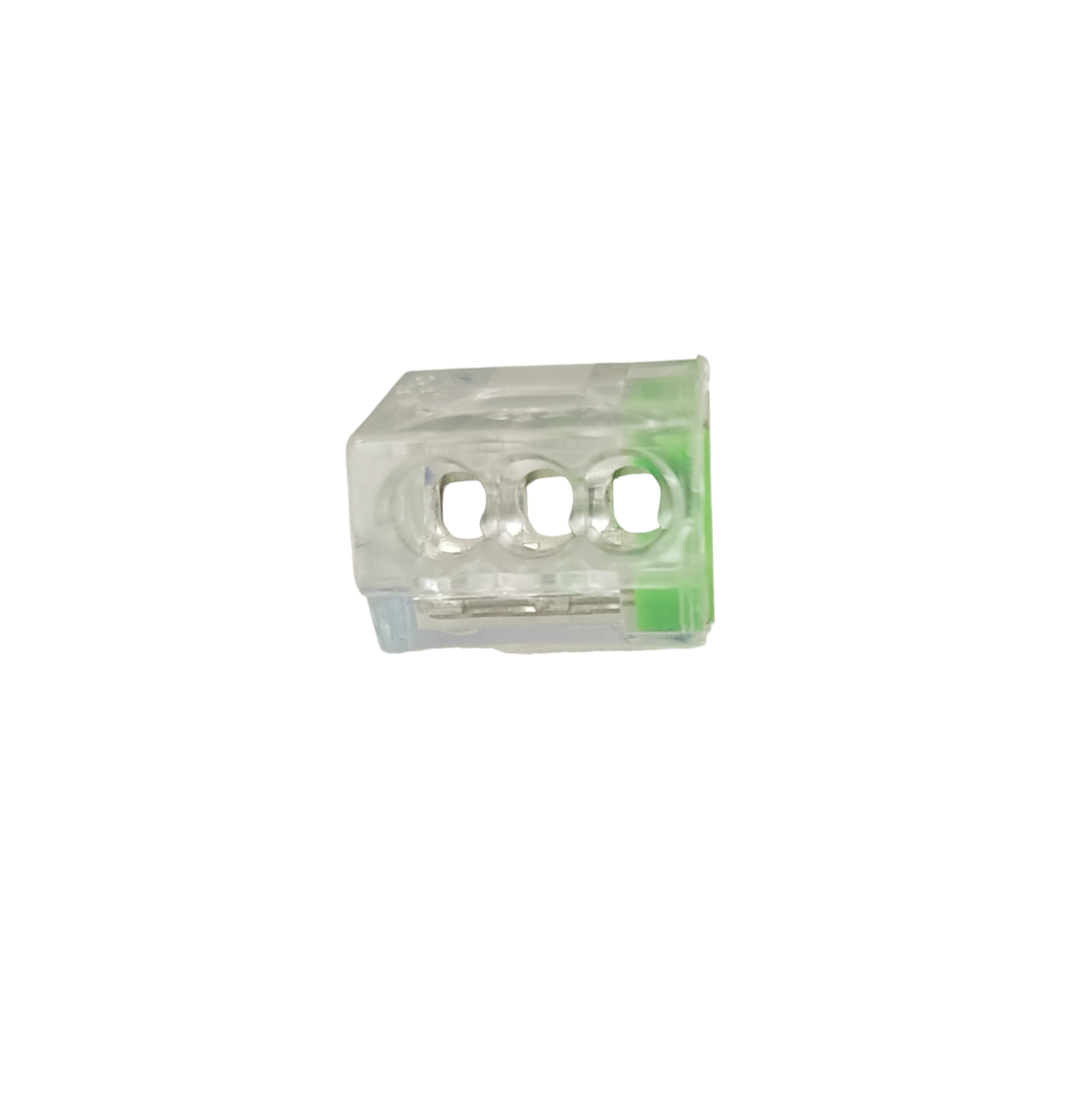

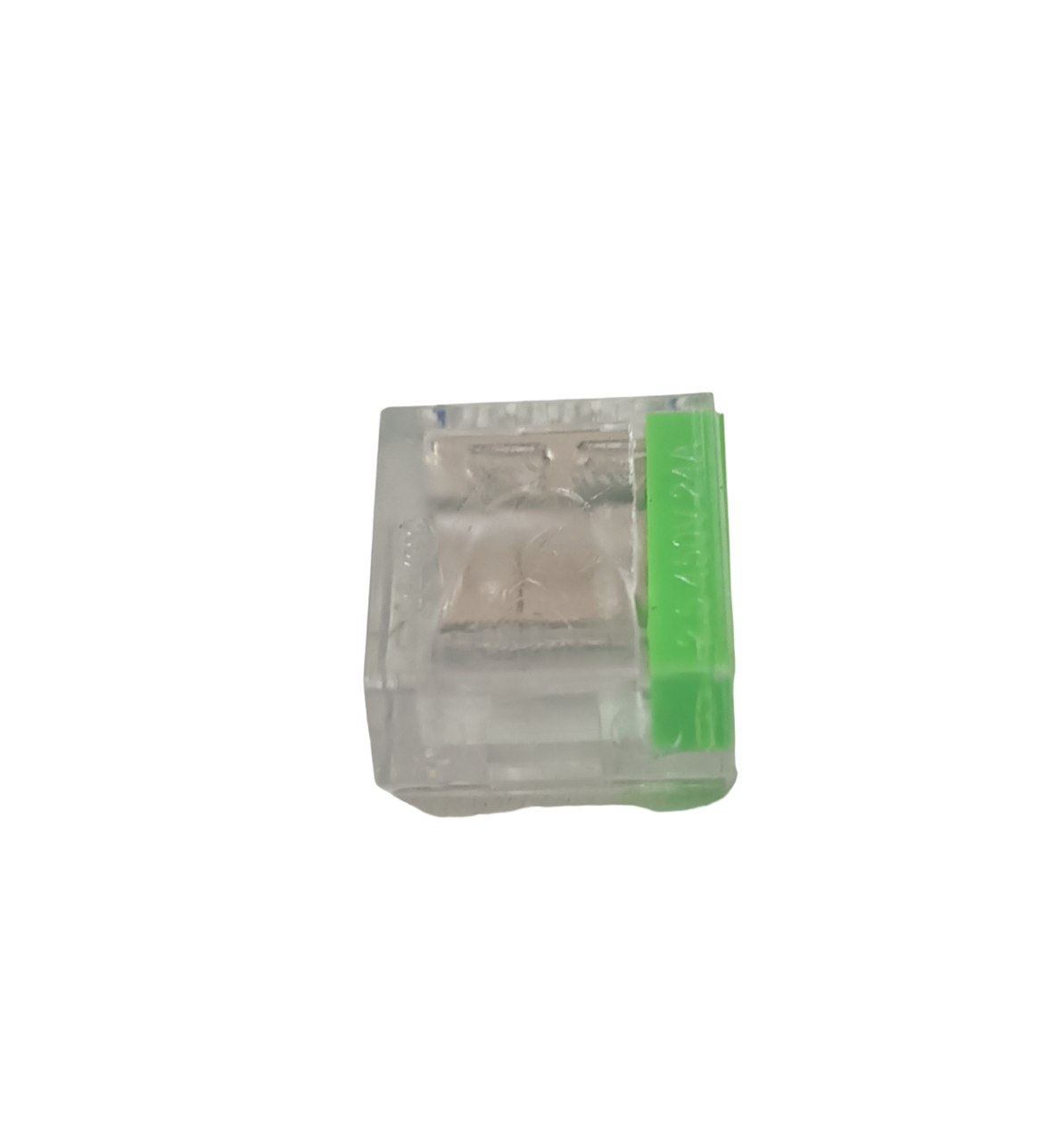

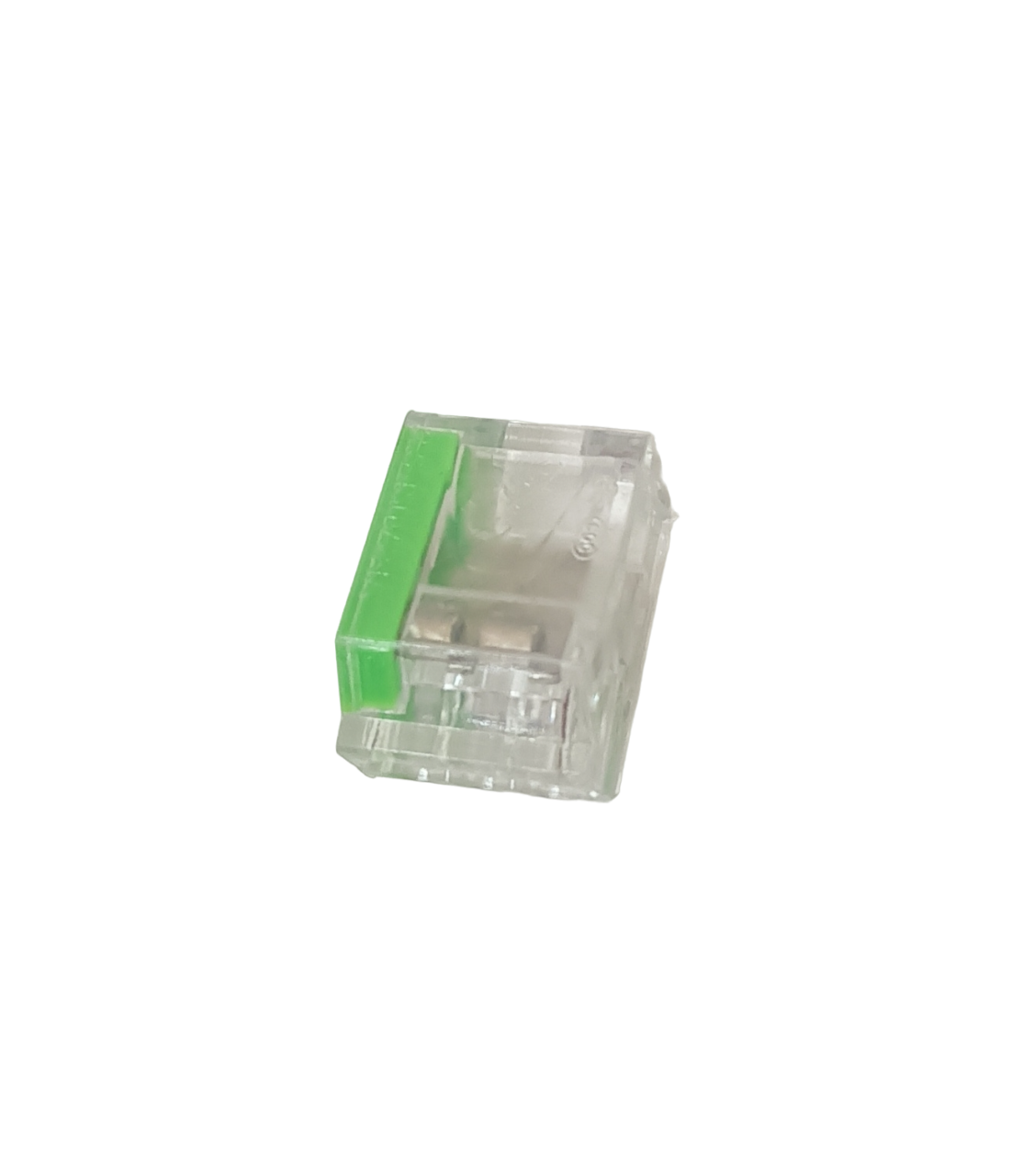

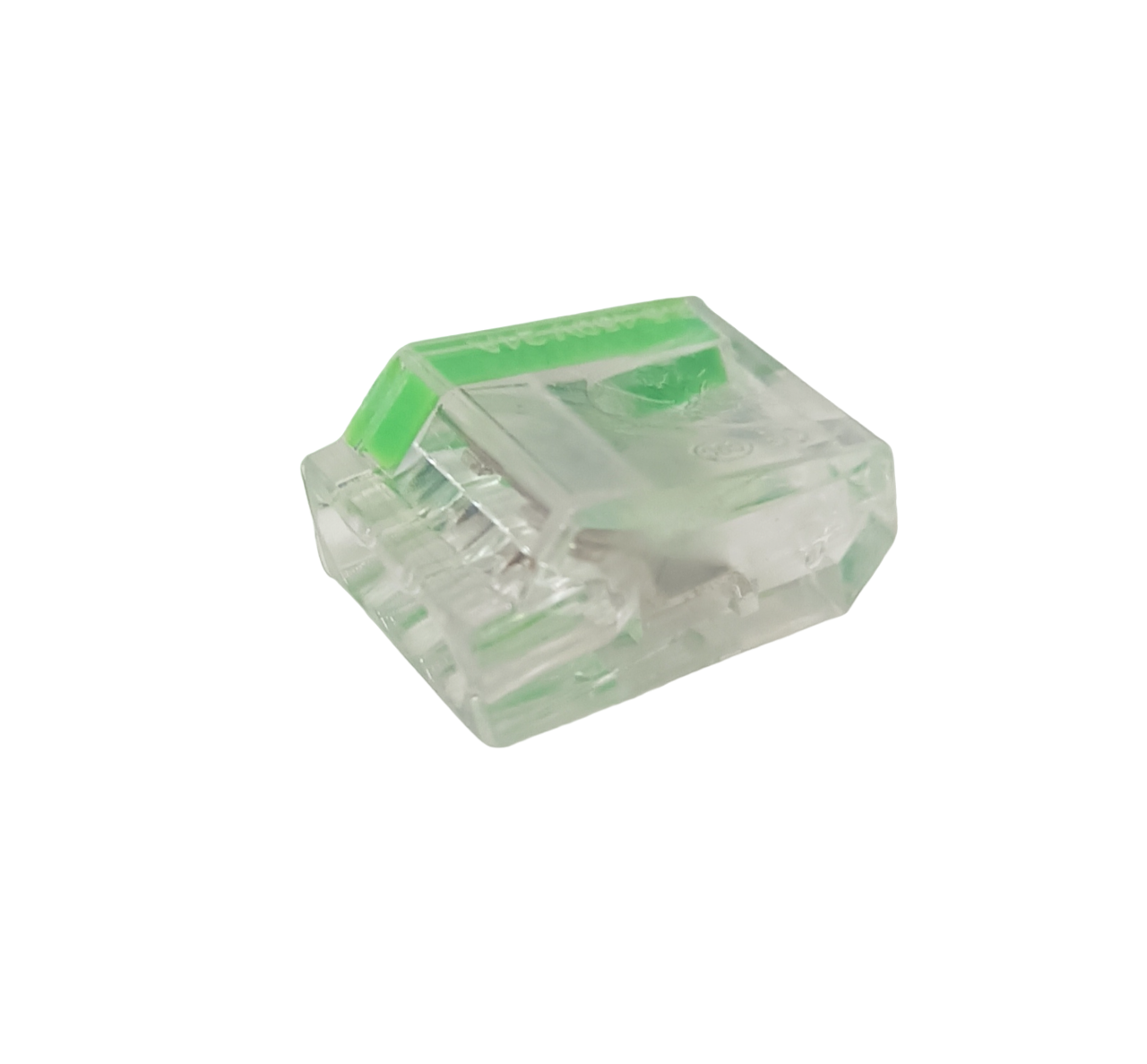

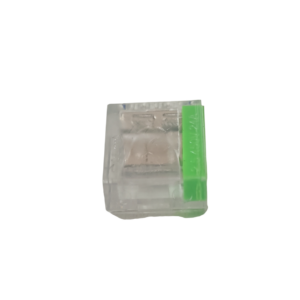

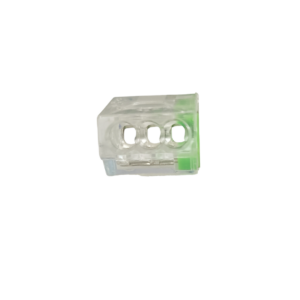

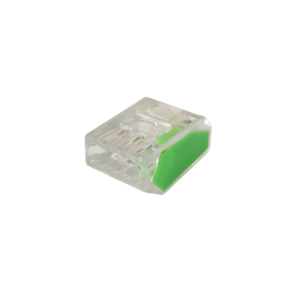

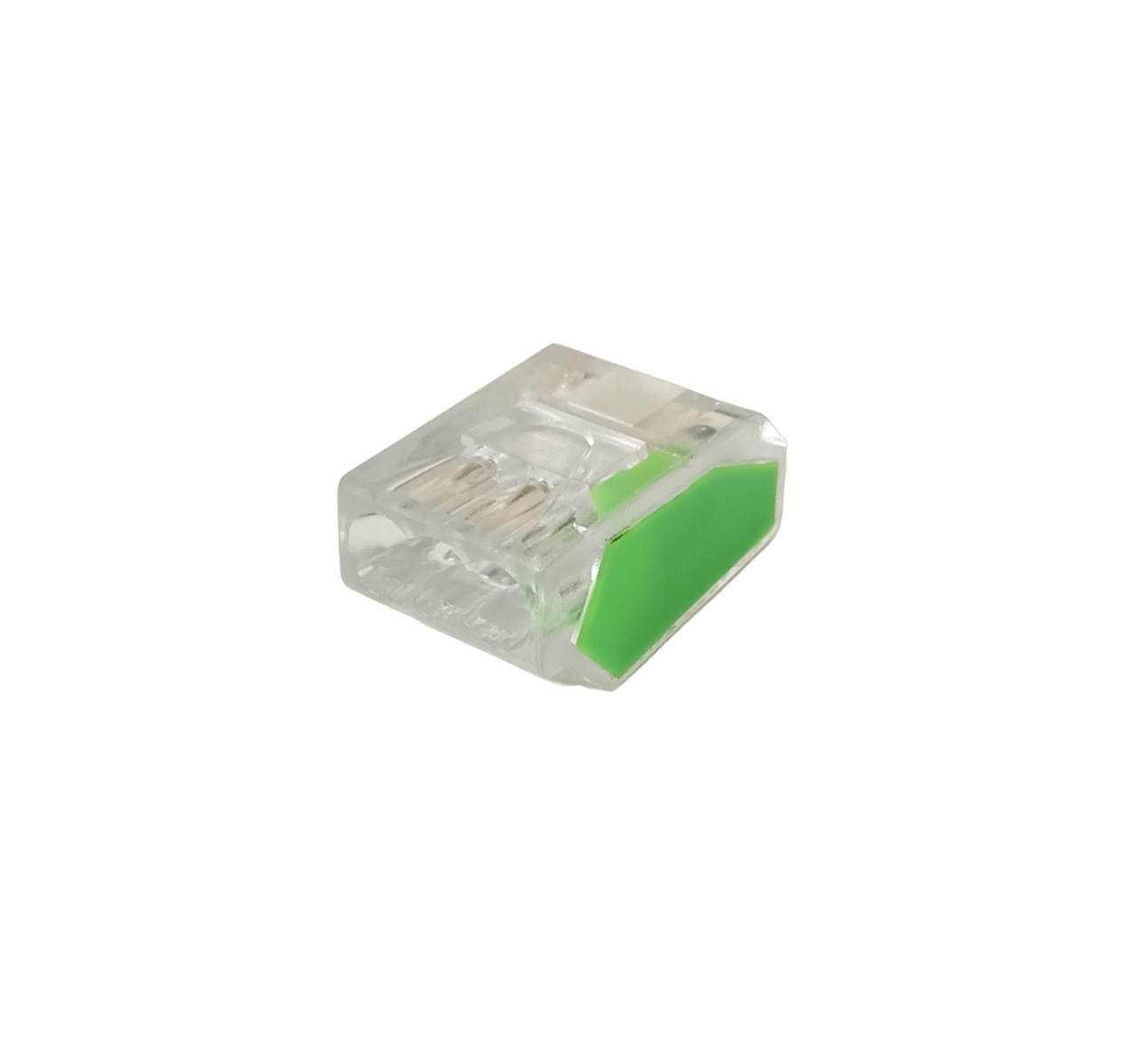

PCT-253 Quick Connection Terminal
The PCT-253 Universal Terminal is a reliable electrical connector designed for secure cable connections. Part of the PCT Spring Connector series, it features a spring lever mechanism that firmly locks the wire in place. This terminal is compatible with single-strand hard wires ranging from 0.08mm² to 2.5mm², and soft wires from 0.08mm² to 4.0mm² (AWG 28 to AWG 12). With a rated voltage of up to 400V and a peak current of 32A, it can handle a maximum power of 7KW, making it ideal for high-performance electrical applications.
Specification:
| Rated Voltage/Rated Current | Â 400V/24A |
| Wire Range | 0.5-2.5mm2(sol) |
| Withstanding voltage | 4.0KV |
| Ambient temperature | -40°C~+105°C |
| Strip length | 9-10mm |
| Poles | 03P |
| Housing Material | PA66 UL94 V-0 |
| Contact | Copper |
PACKAGE INCLUDES
1 X PCT-253 Quick Connection Terminal
