Product Description

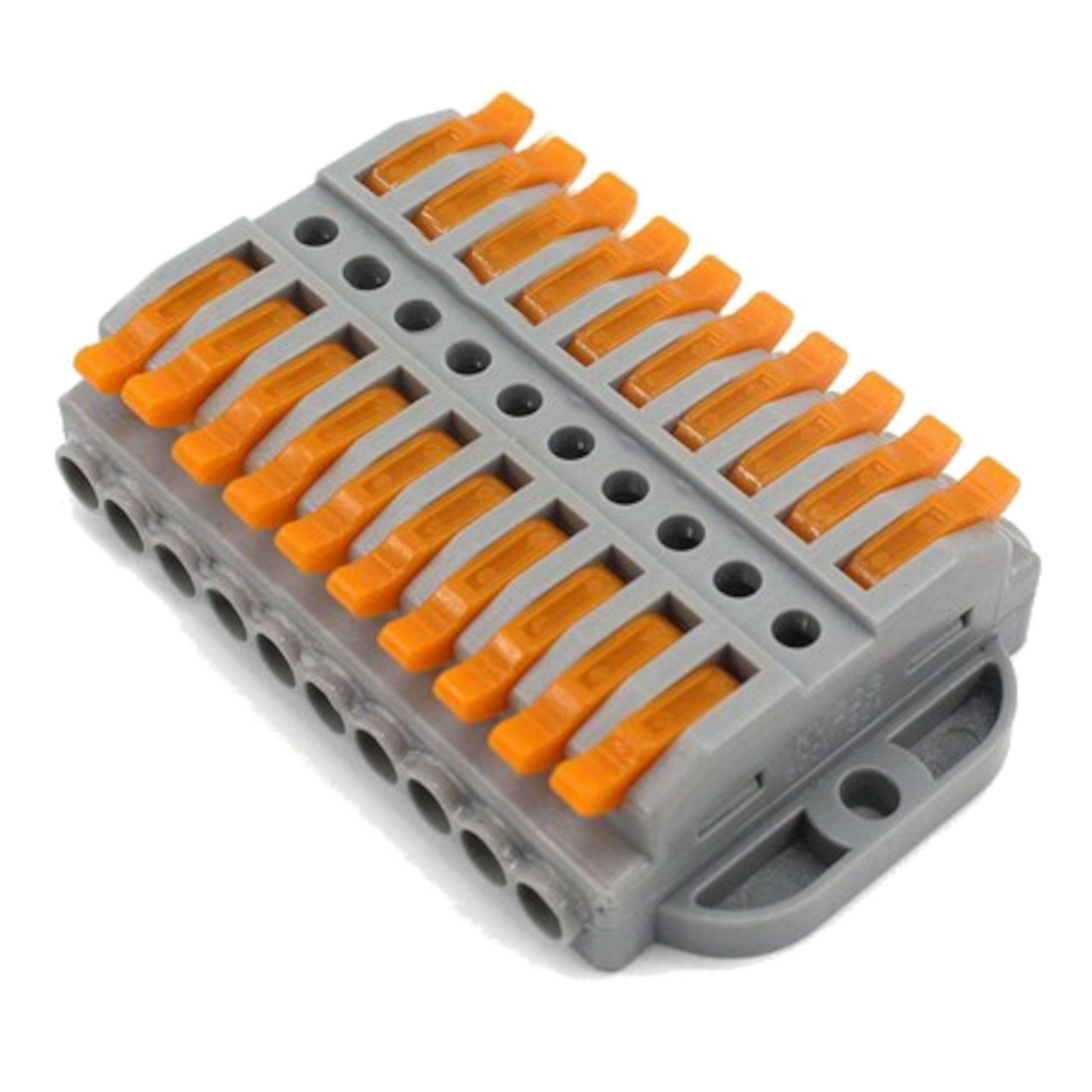

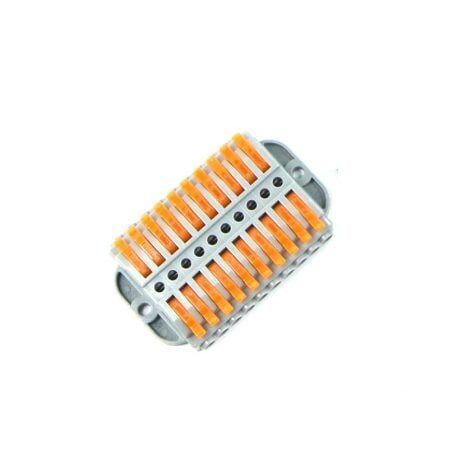

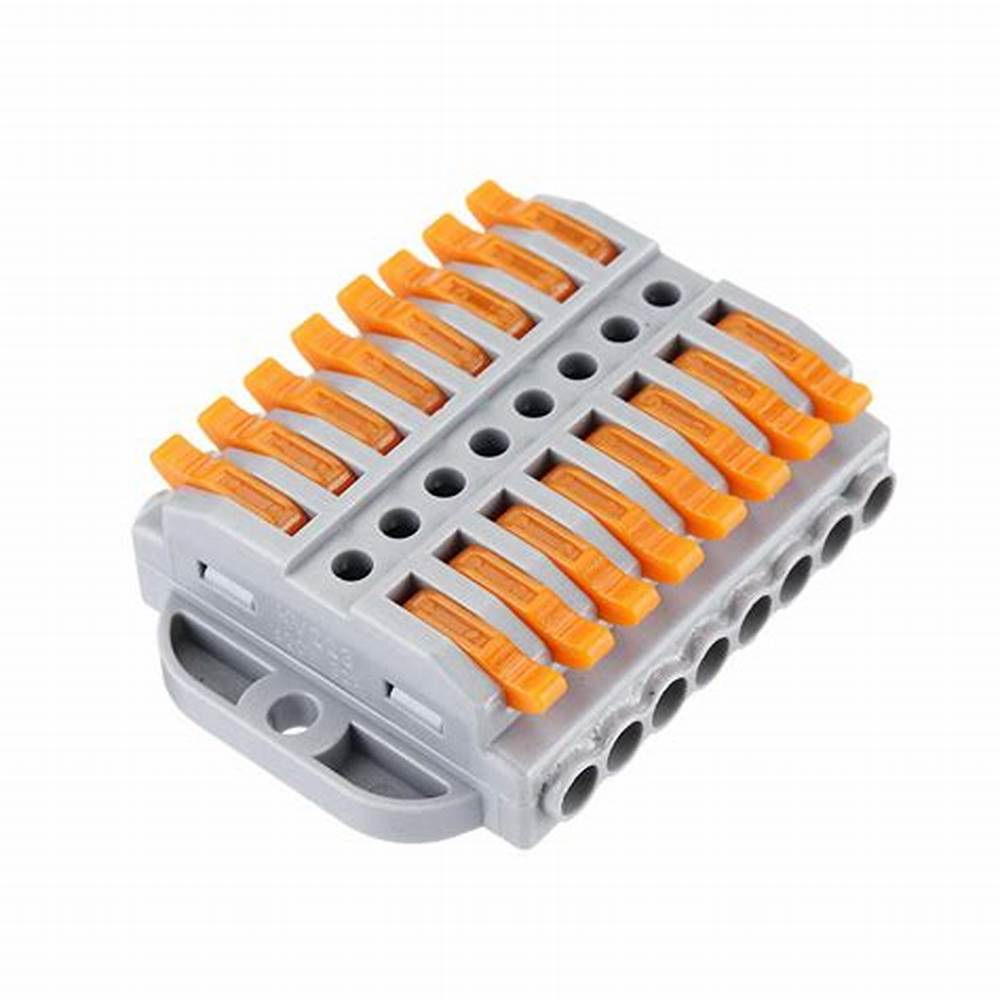

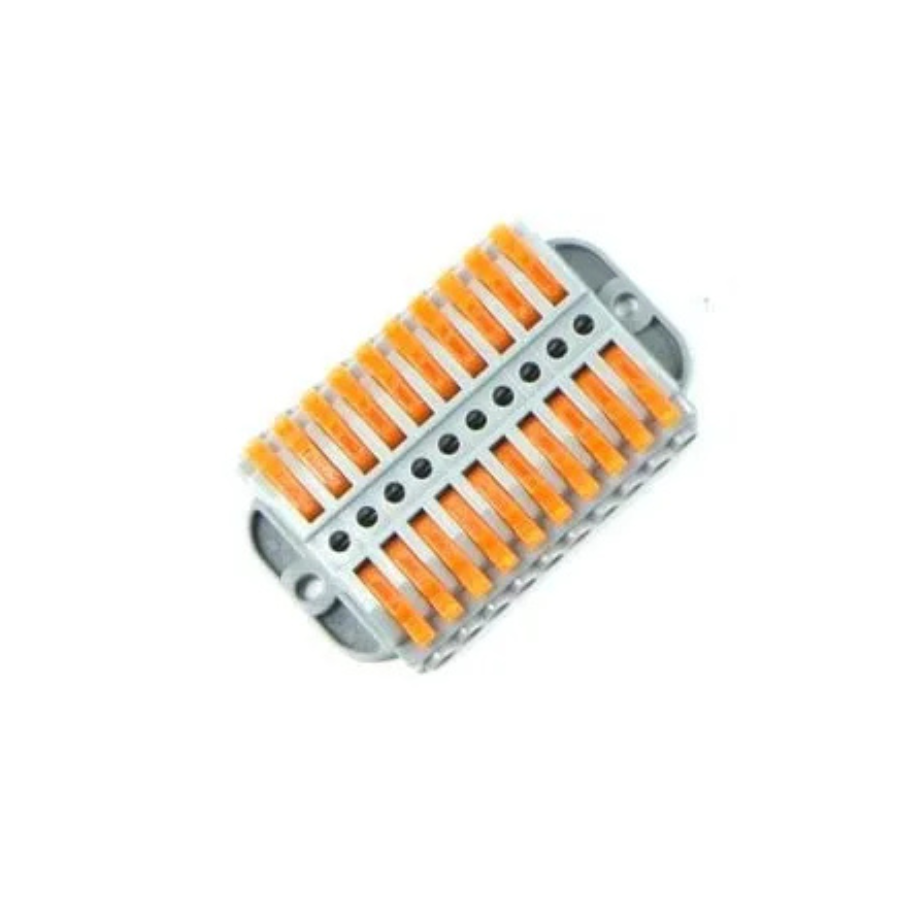

This a PCT-223-10 10 Pole Wire Connector Terminal Block with a Spring Lock Lever. It is a compact device that connects cables by locking them with a spring lever. It can handle hardwire cables with a cross-sectional area of 0.08mm to 4mm2 or softwire cables with a cross-sectional area of 0.08mm to 4.0mm2 (or AWG28 to AWG12). The device can withstand a rated voltage of up to 600V and a peak electric current of 32A. This is a stationary type of quick connection terminal.
If you need PCT-223-10 Stationary Type Quick Connection Terminal connectors, you can choose from various options. You can select the model, size, and number of poles that suit your cable locking needs. Click on the link below to buy the connectors that match your specifications.
Features:
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- Compact Splicing Connector
- 10-Conductor Terminal Block
- With Operating Levers
- Max. Continuous Service Temperature 85°C
Specifications:
- Rated voltage: 600V
- Rated current: 32A
- Number of poles: 10
- Wire section :0.08~4.0mm2
- Number of clamps: 20
Package Includes:
1 x PCT-223-10 Stationary Type Quick Connection Terminal
Technical Specifications
| Model | PCT-223-10 |
|---|---|
| SKU | AI2560 |
| Weight | 0.04 kg |
| Availability | Out of Stock |
Applications & Use Cases
The PCT-223-10 Stationary Type Quick Connection Terminal is a versatile pct and dc power connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
