Applications:
- I/O isolation for MCUs (Micro Controller Units)
- Noise Suppression in Switching Circuits
- Signal Transmission Between Circuits of Different Potentials and Impedances
Features:
- Driving Port Signal Voltage: 3.6-24V
- Output Port Voltage Port: 3.6-30V
- Output Can Be Switched From Pull-Up or Pull-Down With Jumpers.
Specification:
| No. of Channels | 2 |
|---|---|
| Input Voltage (V) | 3.6-24DC |
| Output Voltage (VDC) | 3.6-30 |
| Length (mm): | 38 |
| Width (mm): | 29 |
| Height (mm): | 12 |
| Weight (g): | 5 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 5 × 4 × 1 cm |
Package Includes:

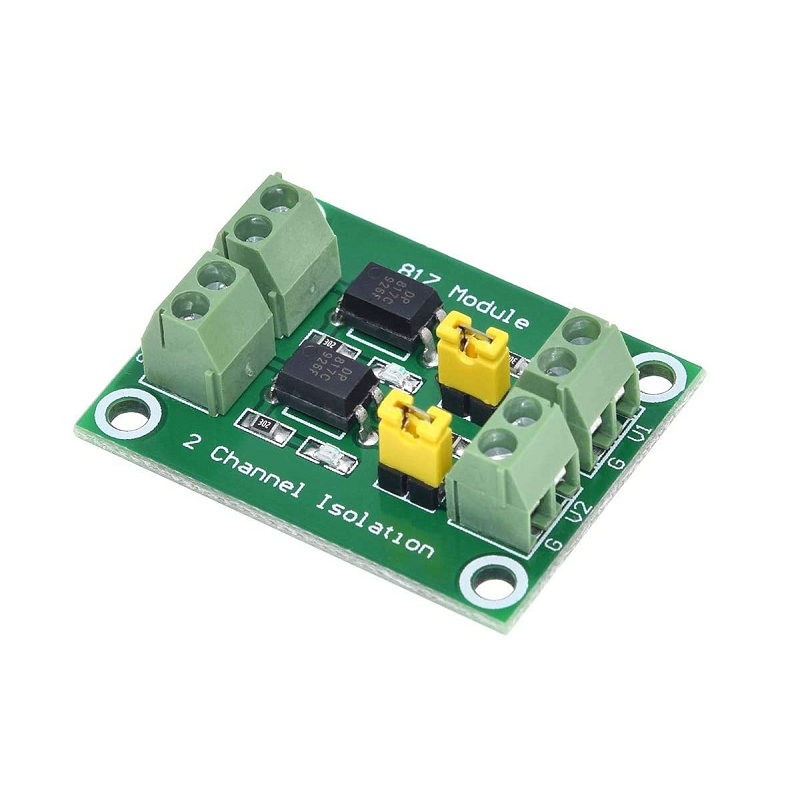

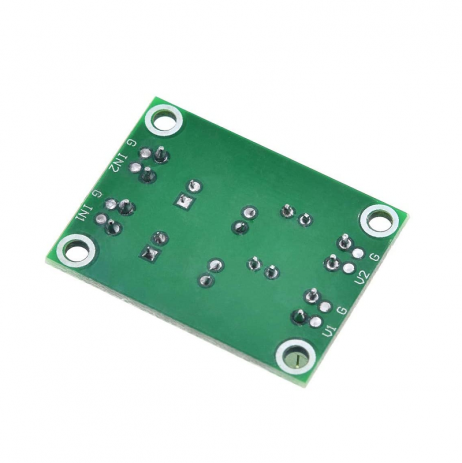

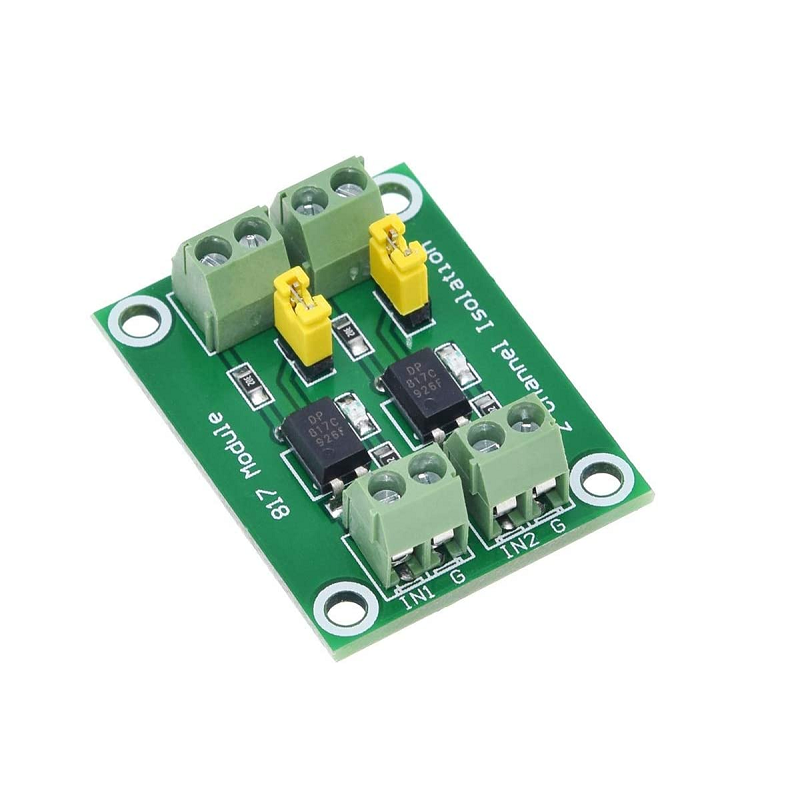

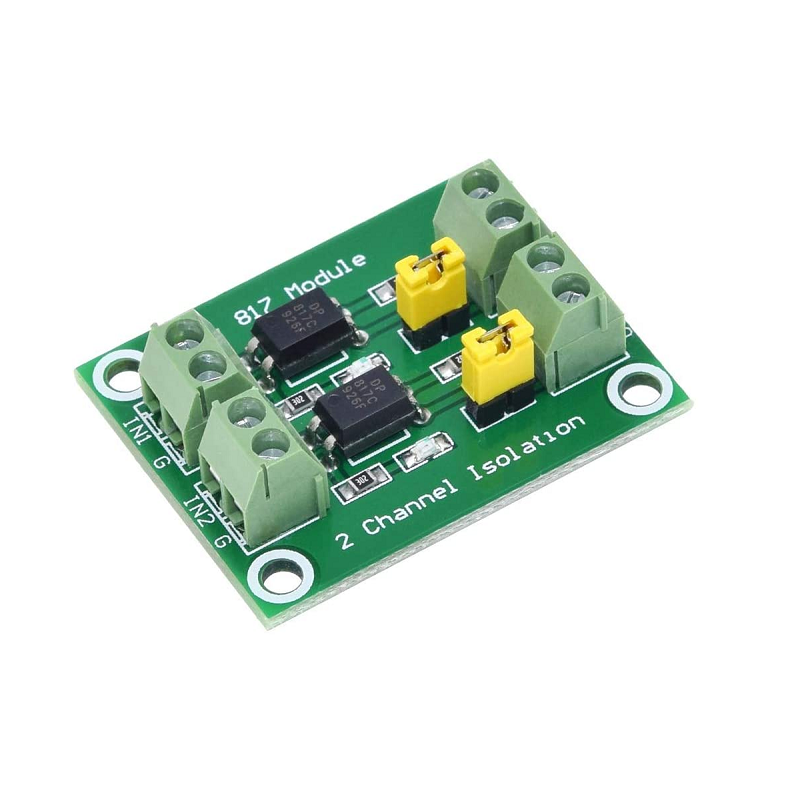

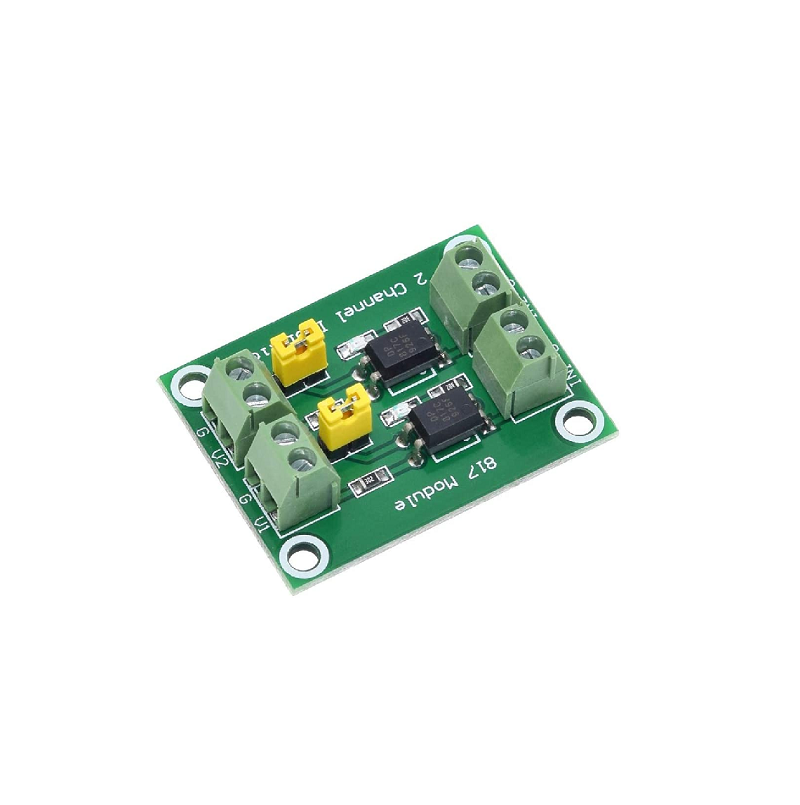

1 x PC817 2 CH Optocoupler Isolation Module
Smart Gym IoT: Equipment Usage and Environment Monitor
Table of Contents Smart Gym Overview Equipment Usage Monitoring Environment Monitoring Occupancy and Flow Analysis Member Experience Enhancements...
Read More →
ESP8266 Power Consumption: Reducing Current in Sleep Mode
If you are building a battery-powered IoT device with the ESP8266, understanding and reducing ESP8266 power consumption in...
Read More →
IoT Home Insurance Sensor Kit: Leak, Smoke, and Motion
Table of Contents IoT and Home Insurance Water Leak Detection Smoke and Fire Detection Motion and Intrusion Sensing...
Read More →Technical Specifications
| Model | PC817 |
|---|---|
| Channels | 2-channel |
| SKU | AI5225 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The PC817 2 CH Optocoupler Isolation Module is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
