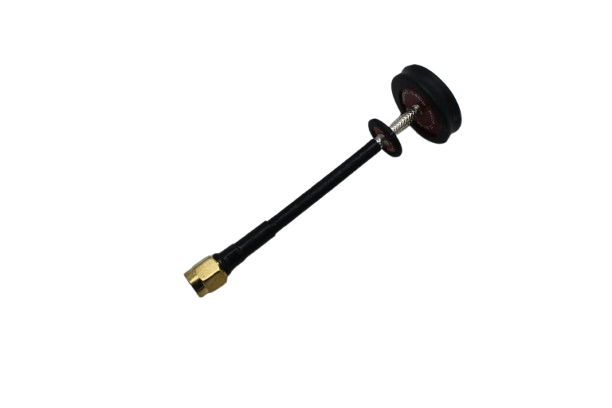

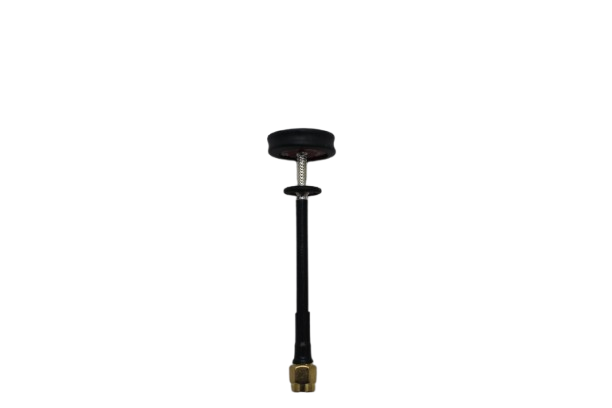

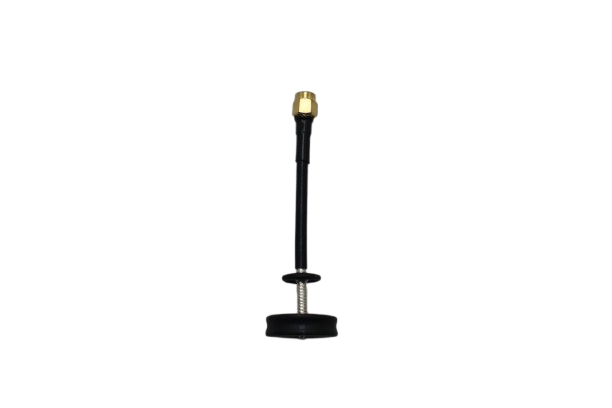

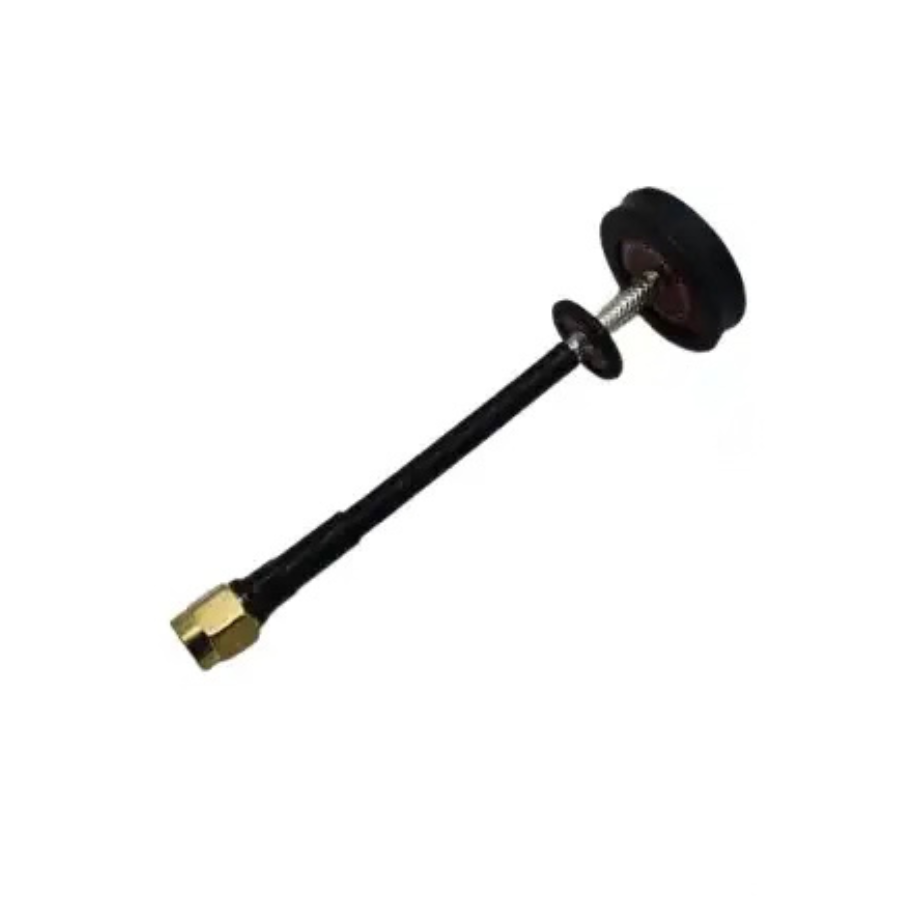

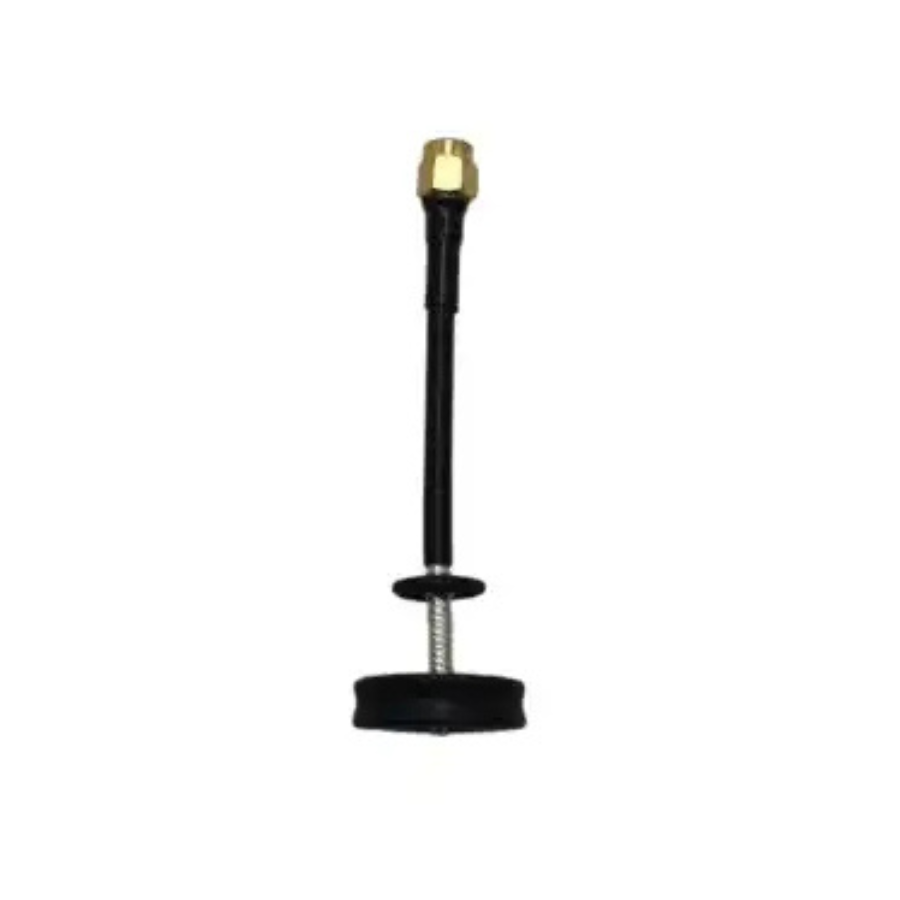

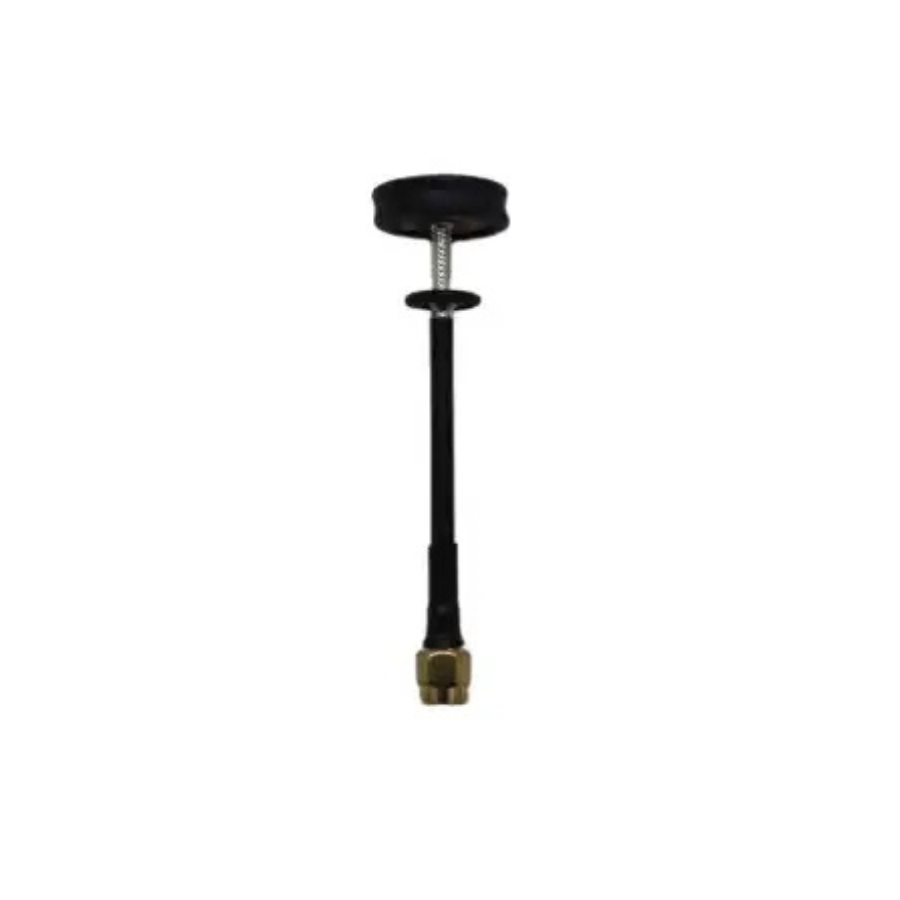

Pagoda RP-SMA Antenna (Long)
This thoughtfully designed circular polarized antenna utilizes a 3 tiered 1 oz copper PCBs to replace the typically fragile wire elements. The antenna only weighs 8 gm and will include the optional heavy duty polyolefin heat shrink to help protect PCB from damage. It has a very good axial ratio measurement <1.3 and SWR of 1.2.
It will work great as either TX or RX antenna and for best performance we recommend using it as matched set. They will be sold in a set of 2 antennas with the option for Stubby at 50mm and Standard 85mm lengths. Initial sets will be RHCP but LHCP sets will soon follow.
Specifications:
Center frequency: 5.8 GHz
Bandwidth: 500 MHz (5.55 – 6.05 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Radiation efficiency: 95%
RP-SMA Male connector
Weight 8 gm
Package Include:
1 x Pagoda RP-SMA Antenna (Long)
