The SkyRC IMAX B6 V2 60W 6A Original Charger is an advanced device that can charge, balance and discharge various types of batteries, such as LiIon, LiPoly, LiFe (A123), NiCd and NiMH. It has a microprocessor control system that ensures the optimal balance of each cell in your Li-XX batteries.
You can adjust the charging current from 0.1 to 6.0A and charge up to 6S packs. The device also has input voltage protection to prevent draining your car battery at the field. Moreover, it can store your batteries at a safe voltage level when you are not using them. The device works with any power supply that delivers from 11~18V, making it very versatile.
Note: Power supply is not included. Also, JST-XH Charging plug is not included, you have to purchase it separately.
This is a GENUINE IMAX B6. If you would like a lower priced 6S charger please check our website for other brands.
Features:
- Microprocessor controlled
- Lithium Battery Balancer
- Battery Discharge
- Maximum Safety
- A123 (Life)
- Temperature Sensor*1
- Delta-peak sensitivity
- Individual cell balancing
- LiIon, LiPoly, and LiFe capable
- NiCd and NiMH capable
- Large range of charge currents
- Storage charge function
- Time limit function
- Input voltage monitoring (Protects car batteries at the field)
- Data storage (Store up to 5 packs in its memory)
- Battery break in and cycling.
*1 This function is available by connecting an optional temperature sensor probe, which is not included in the Package.
Special Features:
This iMax B6 is a rapid charger with a high-performance microprocessor and specialized operating
Optimized Software for Operating:
iMax B6 has an AUTO function that adjusts the charge rate during charging and discharging. This can prevent overcharging Lithium batteries, which may explode if the user sets the charge rate incorrectly. The charger will disconnect the circuit and sound an alarm if it detects any malfunction. All the operating modes of this charger are controlled by two-way communication between the charger and the battery for maximum safety. The user can customize all the settings.
Internal independent lithium Battery Balancer:
iMax B6 employs an individual-cell-voltage balancer. It is not necessary to connect an external balancer for balance charging.
Balancing individual cells battery Discharging:
During the process of discharging, the eXtreme 605 can monitor and balance each cell of the battery individually. An error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.
Adaptable to various types of Lithium Battery:
iMax B6 is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.
“Fast” and “Storage” mode of Lithium Battery:
There are various methods of charging Lithium batteries. “Fast” charge reduces the charging time whereas “store charge” can control the final voltage of your battery. This method is best for long term storage and protects the useful life of the battery.
Maximum Safety:
Delta-peak sensitivity: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the battery’s voltage exceeds the threshold, the process will be terminated automatically.
Automatic Charging Current Limit:
You can set the upper limit of the charge current when charging your NiCd or NiMH batteries. This is useful for NiMH batteries of low impedance and capacity in the ‘AUTO’ charging mode.
Temperature Threshold:
The batteries internal chemical reaction can cause the temperature of the battery to rise during charging. If the temperature limit is reached (set by the user), the charging process will be terminated. This function is available by connecting an optional temperature probe, which is not included in with the charger.
Processing Time Limit:
The user can set the maximum charging time. If the charging time exceeds the limit, the process will be terminated automatically when you set the maximum time for the charging mode.
Data Store/Load:
It can store data from ten different batteries. The user can set the charging / discharging parameters for a particular battery type and “call up” these settings to charge a battery without additional programming needed.
specification-
| DC Input Voltage Range (V) | 11 ~ 18 |
|---|---|
| Output Power(Watt) | 60 |
| Charge Current Range (A) | 0.1 to 6 |
| Maximum Discharge Power (W) | 5 |
| Dischage Current Range (A) | 0.1 ~ 2.0 |
| Pb battery voltage | 2 ~ 20 |
| Dimensions (mm) LxWxH | 115x84x31mm |
| Weight (gm) | 277 |
| Shipping Weight | 0.35 kg |
| Shipping Dimensions | 18 × 15 × 5 cm |

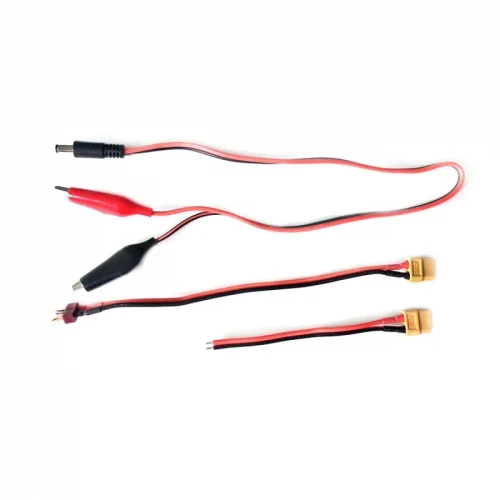

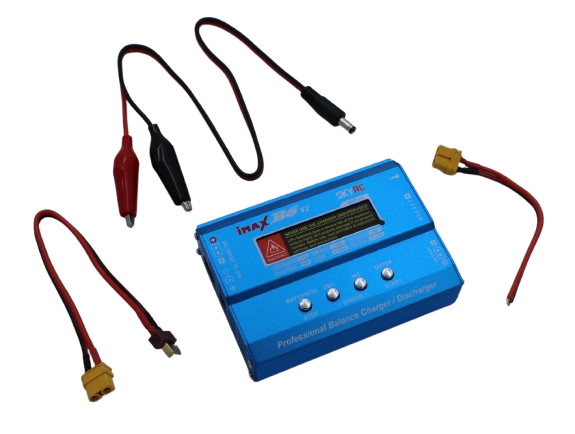

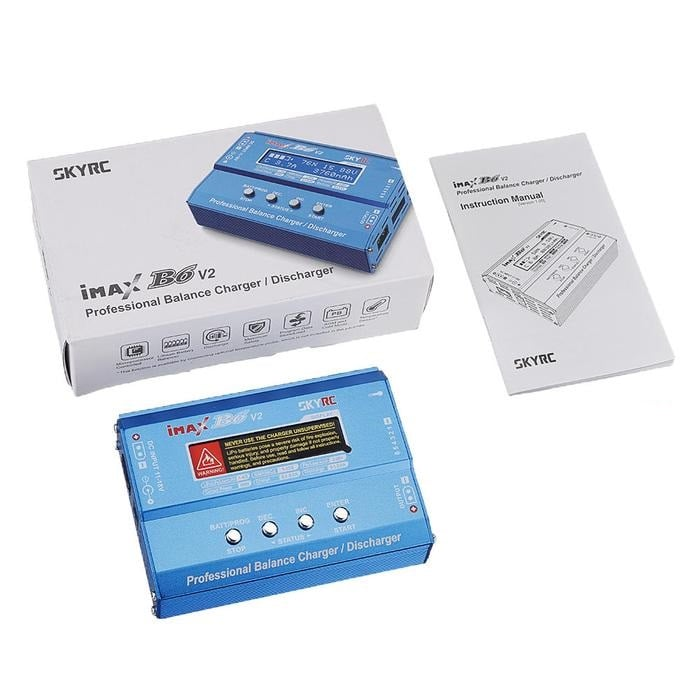

Package Includes :
1 x SkyRC IMAX B6 V2 Charger.
1 x DC input cable
1 x Dean Charging Cable
1 x Bare Charging Cable
1 x Instruction Manual.
