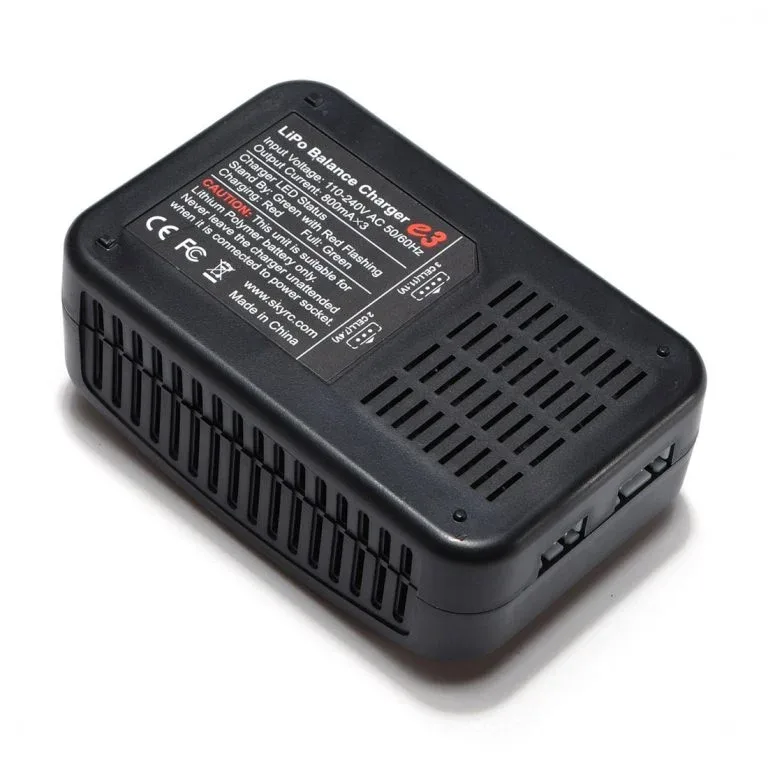

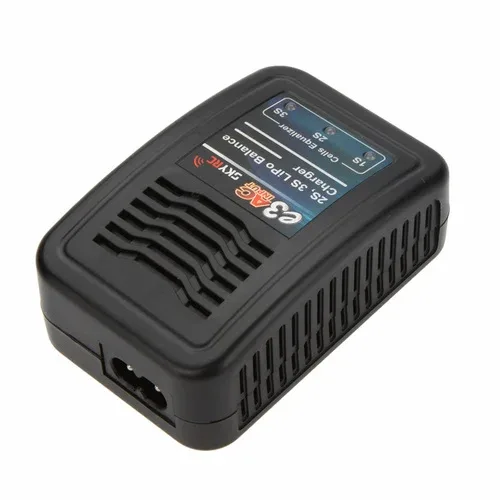

SKYRC E3 AC 2S~3S Li-Po Battery Balance Charger (V2)
This product is an original SKYRC E3 AC 2S / 3S Li-Po Battery Charger (V2). It can work with any power supply from 100 to 240 volts, making it suitable for any country in the world. The charger does not have any buttons, so you just need to wait until the green lights turn on, indicating that the battery is fully charged. Charging an 11.1V 2200mah Li-Po Battery Pack takes about two to three hours with this charger.

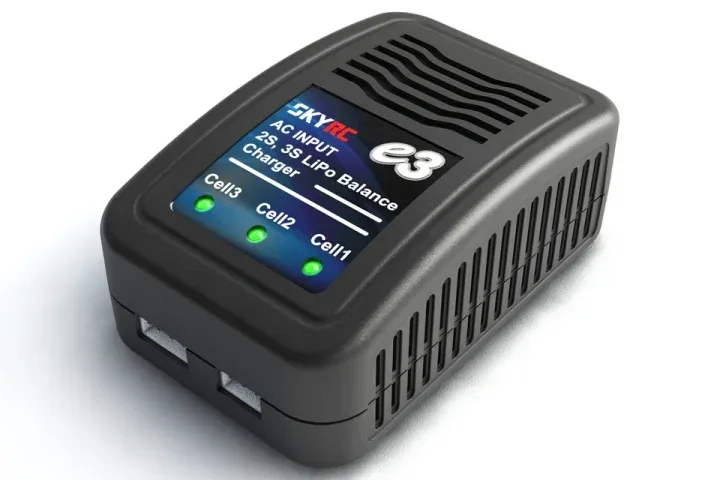

Charge Status LED:
| LED Indicator | Charger Status |
| LED stays green and flashes red | The charger is ready to charge |
| LED glows constant red | The charger is charging |
| LED glows constant green | The charging process finishes |
Error Message:
| All LEDs flashes red once and stop 1 second in cycle | The battery connects incorrectly |
| All LEDs flashes red twice and stop 1 second in cycle | The charger encounters overload or short circuit |
| All LEDs flashes red four times and stop 1 second in cycle | The voltage of a single cell is too high or too low |
| All LEDs flashes red six times and stop 1 second in cycle | There is a 300mv difference of voltage between a battery pack |
Specifications and Features :
- Version 2.0.
- Input: AC 100V-240V AC.
- Dimension approx: 88 X 57 X 35mm.
- Cell count range: 1-3 cells.
- Max Charge Current: 1.2 A.
- Operational mode display: via 3 Leeds.
specification-
| Input Voltage (V AC) | 100 ~ 240 |
|---|---|
| Output Power(Watt) | 11W ± 10% |
| Charge Current Range (A) | 0.1 ~ 1.2 |
| Li-ion/Po cell count | 2 ~ 3 |
| Dimensions (mm) LxWxH | 88 x 57 x 35 |
| Weight (gm) | 103 |
| Shipping Weight | 0.15 kg |
| Shipping Dimensions | 9 × 6 × 4 cm |
Package Includes:

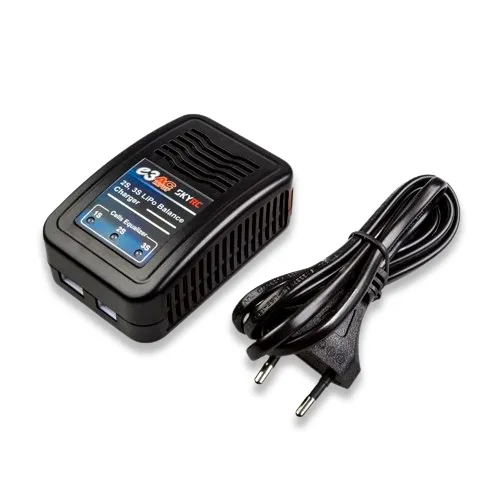

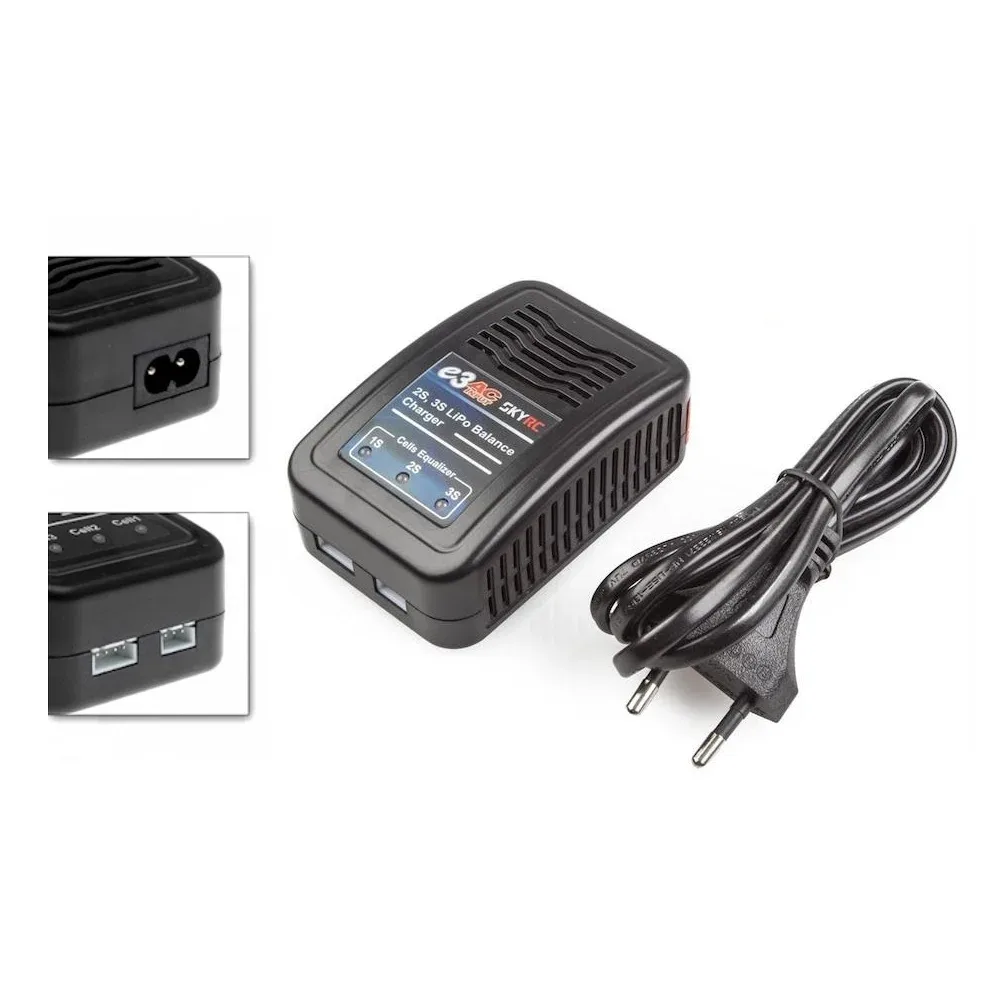

1 x SKYRC E3 AC 2S / 3S Li-Po Battery Charger (V2) (Original).
1 x AC Power Cord (Indian Plug)
How to Revive a Dead 18650 Battery Safely: Tips & Risks
If you are a maker or hobbyist in India who regularly works with lithium-ion cells, you have almost...
Read More →
Battery BMS 3S 4S: Balance Charging Circuit for 18650
Building a multi-cell lithium battery pack from 18650 cells without a Battery Management System (BMS) is one of...
Read More →
Lithium Ion 18650 Battery: Specifications and Buying Guide
If you've ever built a power bank, an e-bike battery pack, or a portable electronics project, you've almost...
Read More →Technical Specifications
| Brand | SKYRC |
|---|---|
| Cell Configuration | 2S |
| SKU | AI5195 |
| Weight | 0.27 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Original SKYRC E3 AC 2S~3S Li-Po Battery Balance Charger (V2) is a versatile ni-mh & li-po & li-ion battery chargers used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
