PRODUCT DESCRIPTION

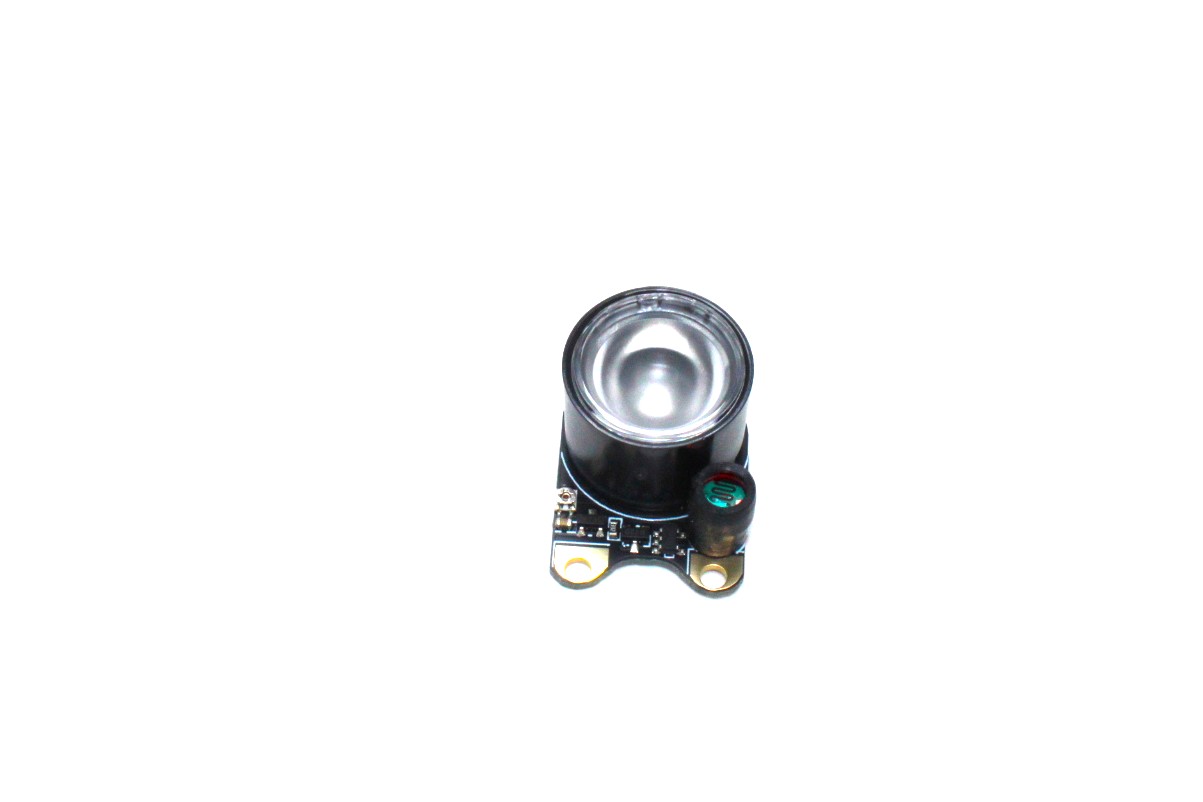

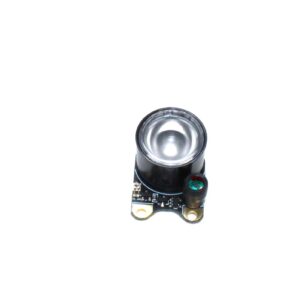

Enhance your night vision surveillance project with the Night Vision Sensitive Infrared Light 3W for Raspberry Pi Camera.
This infrared light includes an onboard photoresistor that detects ambient light levels, automatically adjusting the infrared LED based on the surrounding light conditions. The built-in adjustable resistor allows you to fine-tune the light threshold for optimal performance.
Compact and efficient, this infrared light is designed to work seamlessly with our Infrared IR Night Vision Surveillance Camera Module 500W Webcam, making it a perfect addition to your Raspberry Pi-based surveillance system.
How to Use :
1. Connect the Infrared LED Board to the camera PCB by screws.
2. The screw holes are used for both attachment and power supply.
3. Adjust the adjustable resistor to set a proper ambient light threshold, which toggles the infrared LED automatically.
4. When ambient light is lower than the threshold value, the infrared LED is on, vice versa.
Note :
1st – The 3W high-power infrared LED might cause the Pi to increase heating, heat sinks are suggested.
2nd – Ideal imaging distance is within 3m. When the distance goes up to 6m, the night vision camera can just capture blurry outlines.
Important Note: Package Does not include any camera module, to buy the compatible camera
Features :
- Small size and Lightweight module.
- Easy to use.
- Compatible with our Night Vision Surveillance Camera Module 500W Webcam
- Equips onboard photoresistor and adjustable resistor
- Allows adding night vision function to RPi Camera (E) or RPi Camera (F).
Package Includes :

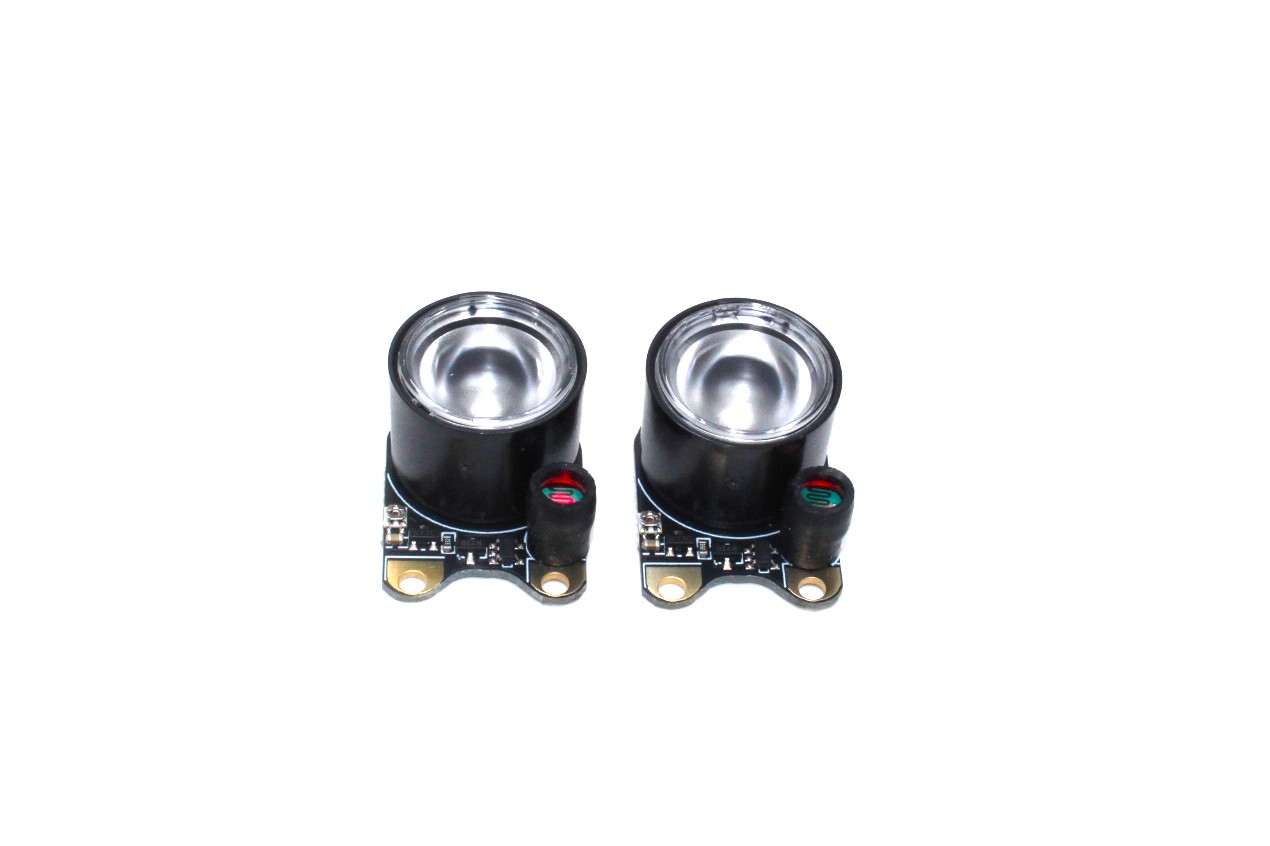

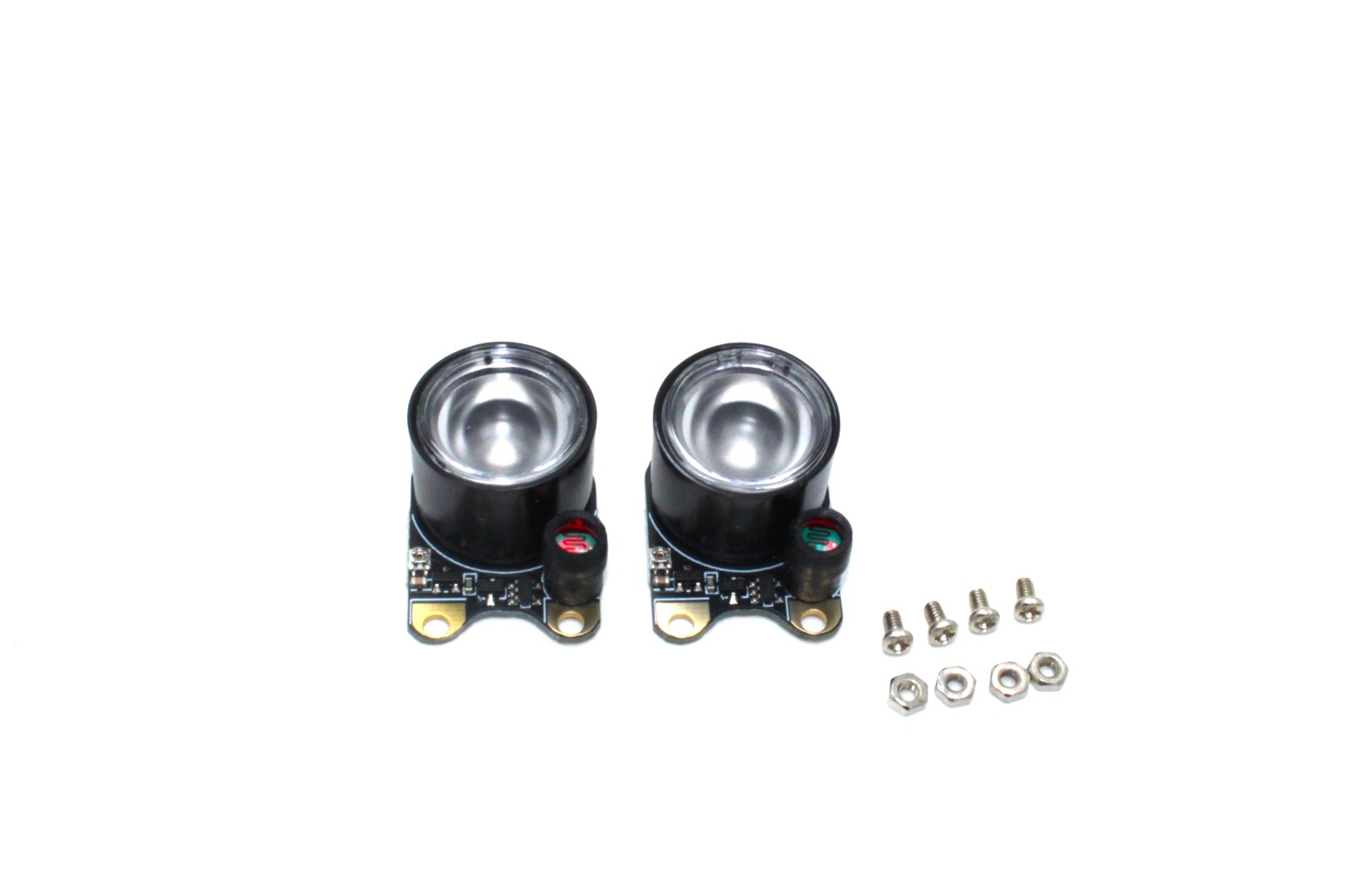

2 x Night Vision Sensitive Infrared Light 3W for Raspberry Pi Camera
1 x Screw Set
