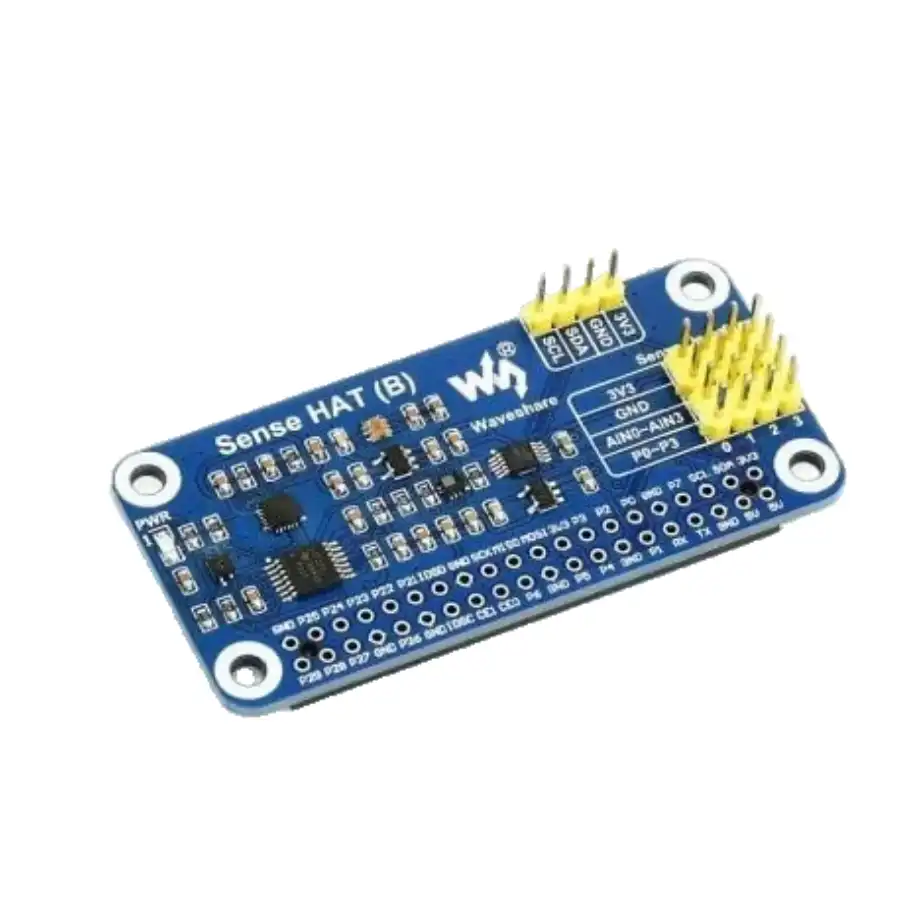

Waveshare Sense HAT (B) for Raspberry Pi, Multi Powerful Sensors

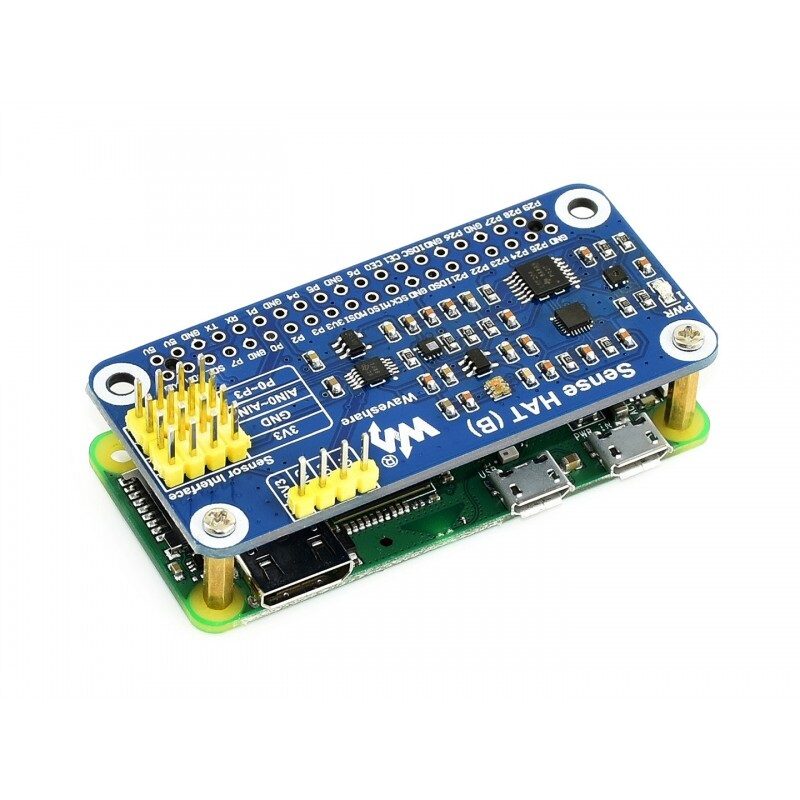

The Sense HAT (B) is specially designed for Raspberry Pi, integrates multi powerful sensors such as a gyroscope, accelerometer, magnetometer, barometer, temperature and humidity sensor, etc. It is communicated via the I2C interface and allows you to connect more external sensors if you need. It mounts right on top of your Raspberry Pi and all you need to do is run your code.
Trying to make the Pi become a robot that can detect movement and orientation? Or using the Pi to collect environmental temperature, humidity, and barometric pressure data? This HAT would be your ideal choice.
The Sense HAT supports a whole host of projects for the Raspberry Pi, it can measure how fast is the Pi itself traveling (i.e. measure your speed), how hot is it? how humid is it? (air humidity), which direction is the Raspberry Pi facing? And more.
Writing programs for the Sense HAT are very simple with a Python library available to get started quickly and easily.

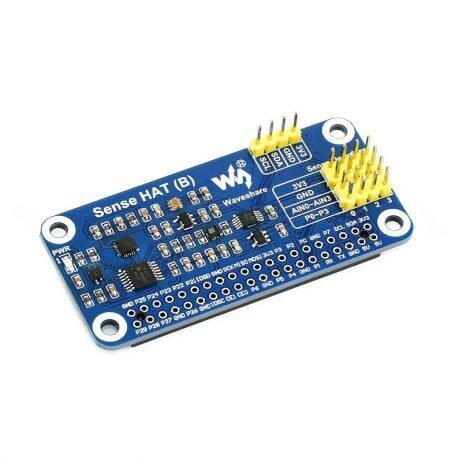

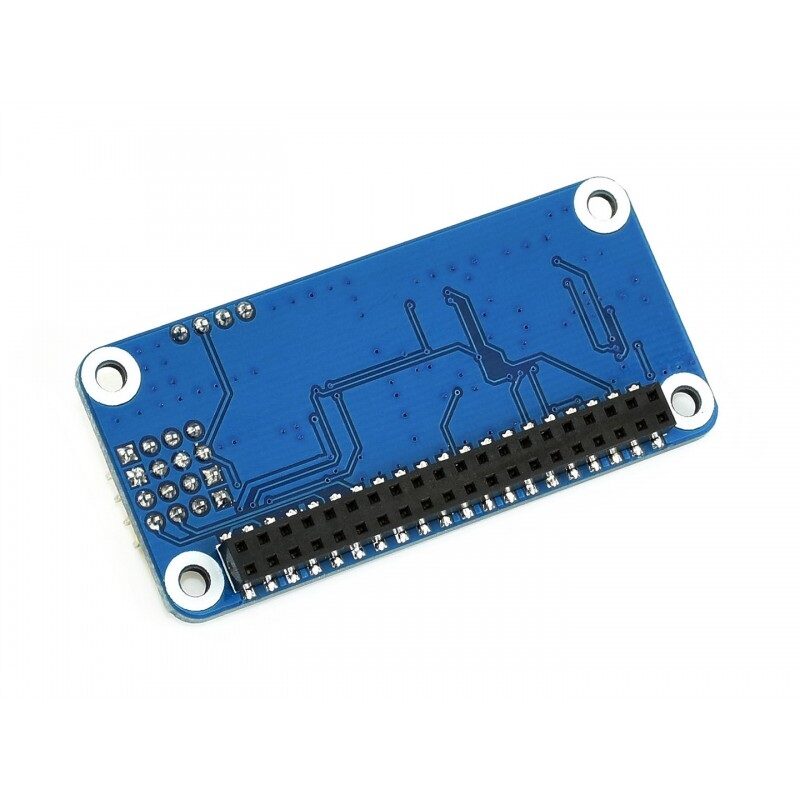

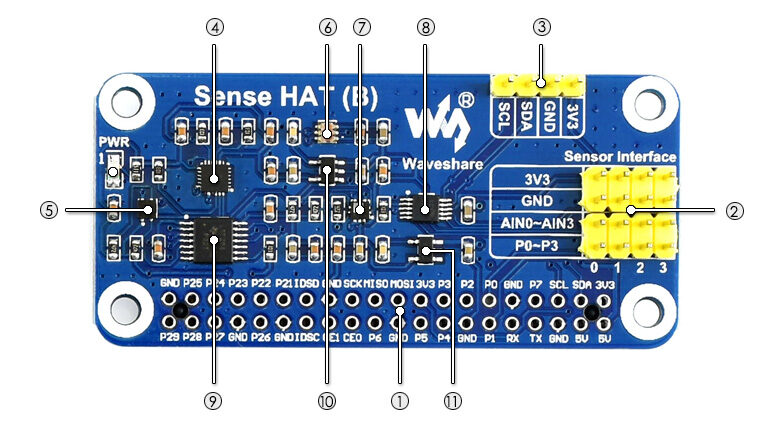

What’s on Board:
- Raspberry Pi GPIO connector: for connecting with Raspberry Pi

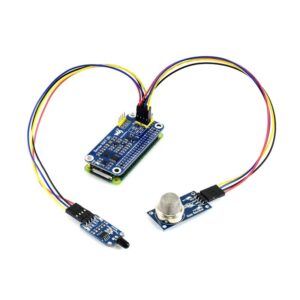

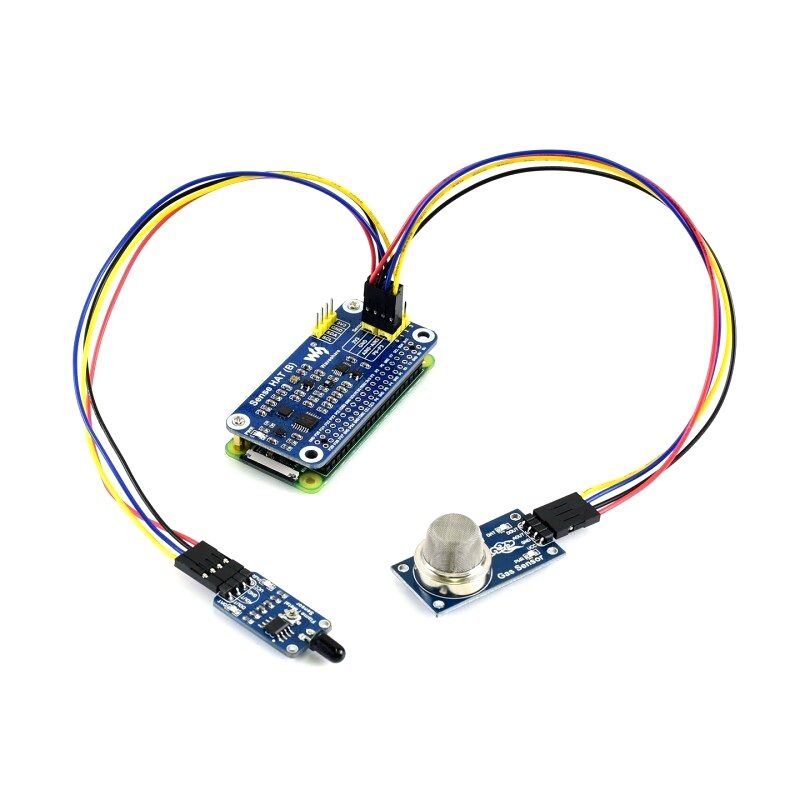

- Sensor Interface: for external sensors
- I2C extension header: for connecting host boards like Arduino/STM32
- ICM-20948: 9-axis movement sensor
- SHTC3: temperature and humidity sensor
- TCS34725: color sensor
- LPS22HB: barometric pressure sensor
- ADS1015: 12-bit ADC
- LSF0204PWR: 4-ch voltage level translator
- RT9193-18: 1.8V linear regulator
- RT9193-33: 3.3V linear regulator
Note: Raspberry Pi and external sensors are NOT included.
Features:
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Onboard ICM20948 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer), detects movement, orientation, and magnetic
- SHTC3 digital temperature and humidity sensor onboard allows monitoring the environment
- LPS22HB barometric pressure sensor onboard allows monitoring the environment
- TCS34725 color sensor onboard identifies the color of a nearby object
- ADS1015 ADC, 4-ch 12-bit precision, AD expansion onboard to support more external sensors
- Brings I2C control pins, for connecting other host boards like STM32
- Comes with development resources and manual (examples for Raspberry Pi/STM32)
Specification:
| Operating Voltage (VDC): | 3.3 |
|---|---|
| Interface | I2C |
| Accelerometer | Resolution: 16-bit Ranging: ±2/±4/±8/±16g |
| Gyroscope | Resolution: 16-bits Ranging: ±250/±500/±1000/±2000°/sec |
| Magnetometer | Resolution: 16-bits Ranging: ±4900µT |
| Barometer | Resolution: 24-bits (Pressure), 16-bits(Temperature) Accuracy: ±0.025hPa Speed: 1 Hz – 75 Hz |
| Temperature & Humidity | Accuracy (humidity):±2% rH Ranging(humidity): 0% ~ 100% rH Accuracy(temperature): ±0.2°C Ranging(temperature): -30 ~ 100°C |
| Color sensor | Resolution: 4-channels RGBC, 16-bits per channel |
| ADC | Resolution: 12-bits |
| Length (mm): | 65 |
| Width (mm): | 30.5 |
| Height (mm): | 15 |
| Weight (g): | 19 |

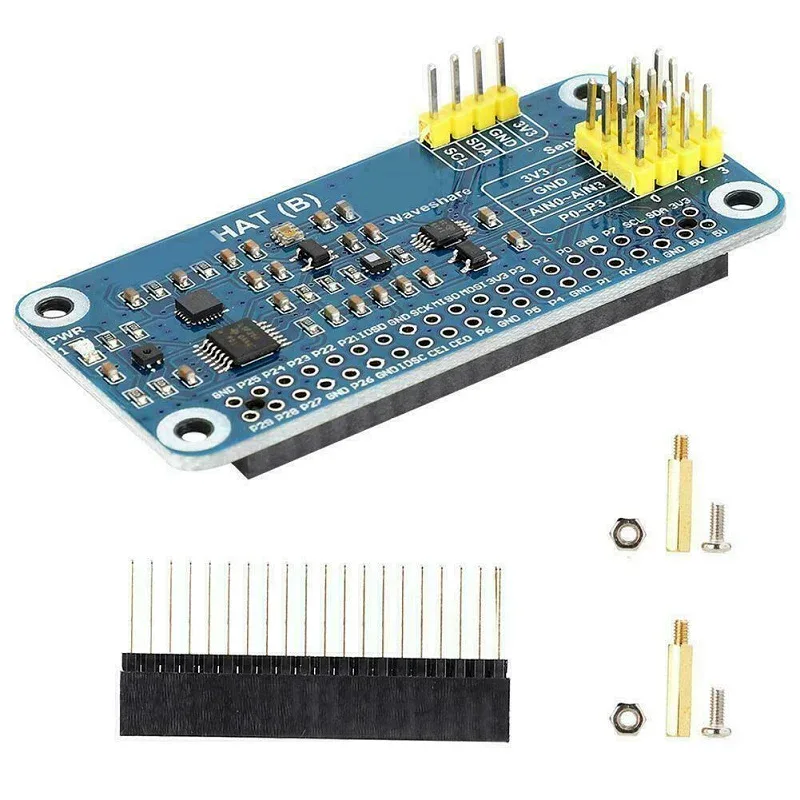

Package Includes:
1 x Sense HAT (B)
1 x RPi screws pack (2pcs)
1 x 2x20PIN female header
Useful Link:
Waveshare Sense HAT (B) for Raspberry Pi, Multi Powerful Overview
The Waveshare Sense HAT (B) for Raspberry Pi is a hardware expansion board that integrates multiple motion and environmental sensors onto a single add-on. Designed for 3.3V operation and communicating over I2C, it plugs directly into the Raspberry Pi GPIO header to provide real-time data on orientation, pressure, temperature and humidity for robotics, data logging and interactive projects.
Key Features of Waveshare Sense HAT (B) for Raspberry Pi, Multi Powerful
- Integrated 9-axis IMU: gyroscope, accelerometer and magnetometer for precise motion sensing
- Built-in barometric pressure, temperature and humidity sensor for environmental monitoring
- I2C communication at 3.3V logic level for direct Raspberry Pi GPIO compatibility
- On-board LSF0204PWR 4-channel voltage level translator to protect sensor lines
- Dual linear regulators: RT9193-18 (1.8V) and RT9193-33 (3.3V) for stable power delivery
- Instant plug-and-play mounting on the 40-pin Raspberry Pi header; genuine product with fast shipping from Zbotic
Applications and Use Cases
- Building orientation-aware robots or self-balancing platforms
- Developing a home or outdoor weather station for pressure, temperature and humidity logging
- Prototyping drone stabilization and heading control using onboard IMU
- Creating interactive STEM tutorials for students learning sensor integration
- Implementing motion-based game controllers or VR interfaces
- Monitoring indoor climate conditions in smart greenhouse or server rack setups
How to Use Waveshare Sense HAT (B) for Raspberry Pi, Multi Powerful
Simply align the Sense HAT (B) over the Raspberry Pi’s 40-pin header and press gently to seat it. Enable I2C in raspi-config, install the official Python libraries or your preferred SDK, and start reading sensor values with a few lines of code. The on-board regulators and level translators handle power and logic stability, so you can focus on data collection and project development.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I mount the Sense HAT (B) on my Raspberry Pi?
Align the 40-pin connector on the Sense HAT (B) with the Raspberry Pi GPIO header, then press down evenly until it sits flush. No additional cables are needed—power and data pass through the header.
Which sensors are included on the Sense HAT (B)?
This HAT integrates a 9-axis IMU (gyroscope, accelerometer, magnetometer) plus a barometer, temperature sensor and humidity sensor, all accessible via the I2C bus at 3.3V.
What power and logic levels does the board use?
The Sense HAT (B) operates at a 3.3V supply and logic level. It features on-board RT9193-18 and RT9193-33 regulators for power and an LSF0204PWR 4-channel level translator to protect the Pi’s I2C lines.
