Looking for M8m Module? NEO-M8M GPS Module with Ceramic Active Antenna is available at Zbotic with fast shipping across India.

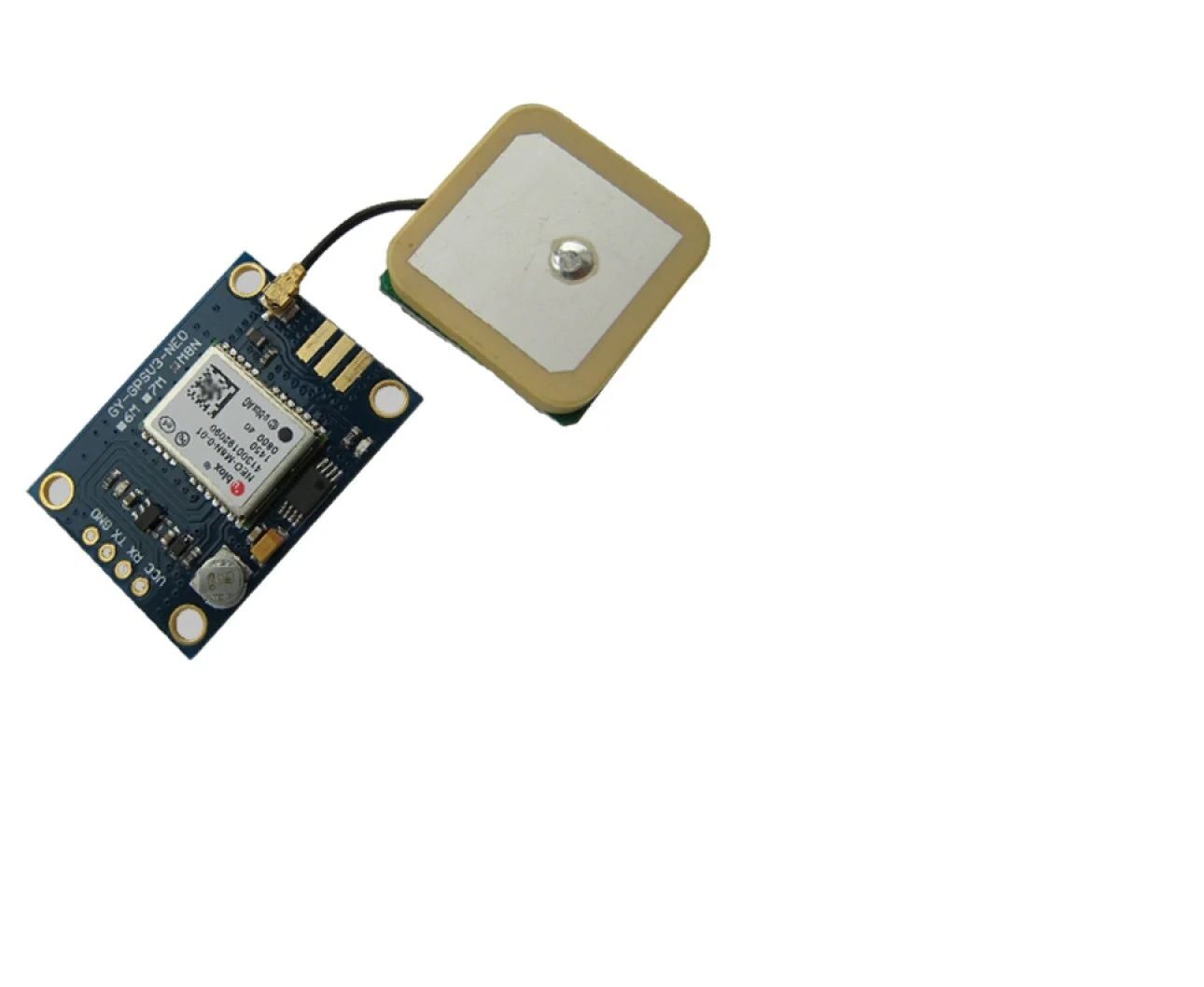

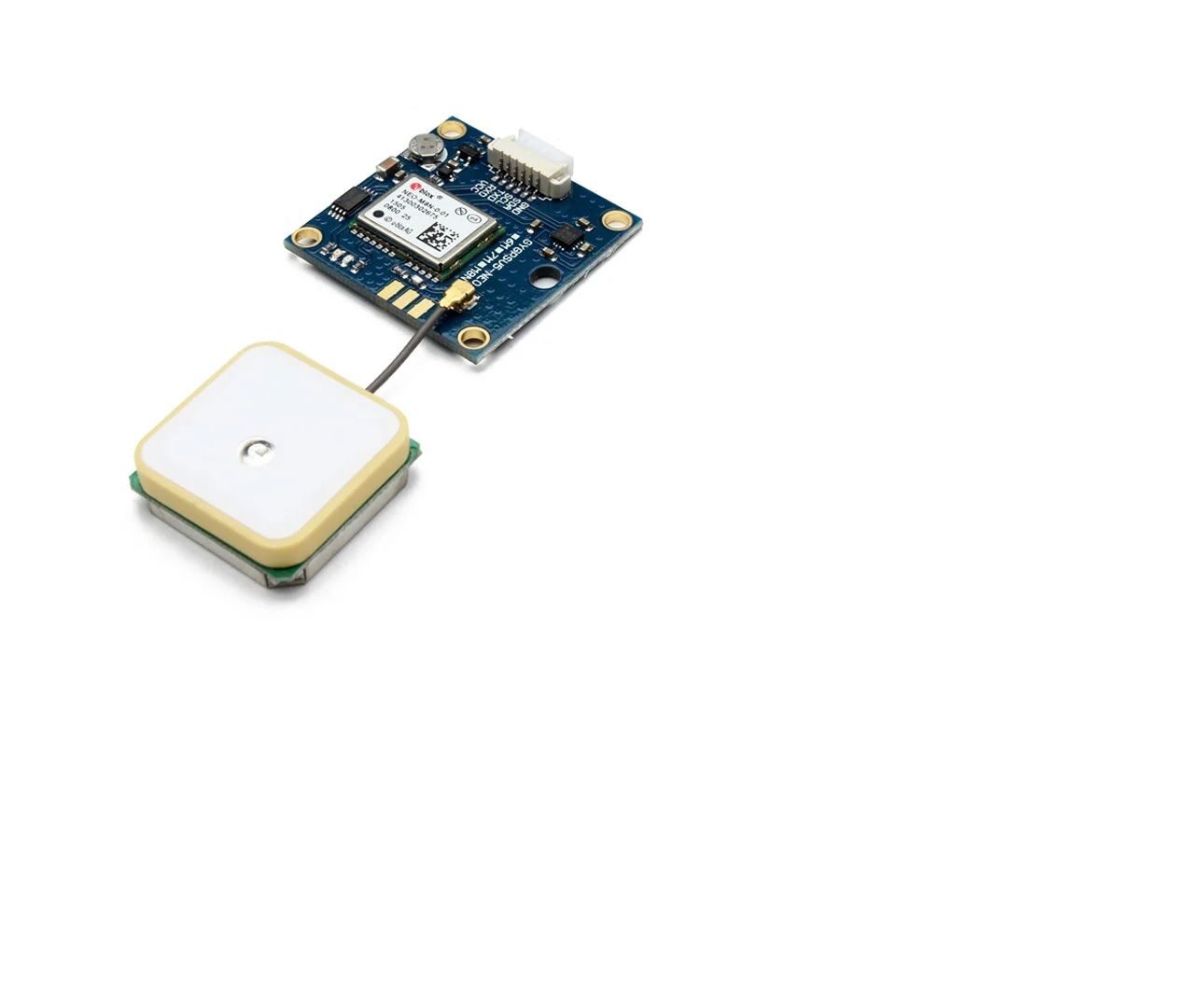

NEO-M8M GPS Module with Ceramic Active Antenna
The NEO-M8M GPS Module with Ceramic Active Antenna series of concurrent GNSS modules is built on the high performing M8 GNSS engine in the industry proven NEO form factor.
The NEO-M8M is optimized for cost-sensitive applications, while NEO-M8N/M8Q provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.
The NEO-M8 modules can also benefit from the u-box AssistNow assistance service. The Online service provides GNNS broadcast parameters, e.g. ephemeris, almanac plus time or rough position to reduce the receiver’s time to first fix significantly and improve acquisition sensitivity. The extended validity of AssistNow Offline data (up to 35 days) and AssistNow Autonomous data (up to 6 days) provide faster acquisition after a long time.
- DDC
- SPI
- UART
- USB
Specifications:
| Supply Voltage(V) | 1.7 ~ 3.6 |
|---|---|
| Max. supply current (mA) | 67 |
| Operating temperature (°C) | -40 ~ +85 |
| Horizontal position accuracy (m) | 2.5 |
| NEO-M8M GPS Dimensions | As per below |
| Length (mm): | 36 |
| Width (mm): | 26 |
| Height (mm): | 4.5 |
| Weight (g): | 5 |
Applications:
Features:
- Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou).
- industry-leading–167 dBm navigation sensitivity.
- Security and integrity protection.
- Onboard ROM memory.
- Supports all satellite augmentation systems.
- Advanced jamming and spoofing detection Backward compatible with NEO-7, NEO-6 and NEO-5 families.
Package Includes:
1 x NEO-M8M GPS Module.
1 x Ceramic Active Antenna.
NEO-M8M GPS Module with Ceramic Active Antenna Overview
The NEO-M8M GPS Module with Ceramic Active Antenna is a high-precision GNSS receiver combining the u-blox M8 engine and an integrated ceramic active antenna. Designed for compact applications, it delivers reliable satellite positioning data using multiple constellations including Galileo, making it ideal for navigation, tracking, and timing solutions.
Key Features of NEO-M8M GPS Module with Ceramic Active Antenna
- Multi-constellation support: GPS, Galileo for enhanced positioning accuracy
- Receiver sensitivity down to –167 dBm for reliable signal acquisition
- Flexible communications: NMEA, RTCM and UBX protocols over UART
- Wide supply range of 1.7 – 3.6 V DC for compatibility with various power sources
- Compact SMD form factor for automated PCB assembly
- Integrated ceramic active antenna for improved signal gain
- Fast shipping from Zbotic across India
Applications and Use Cases
- Asset tracking devices for logistics and fleet management
- Unmanned aerial vehicles (drones) requiring precise geolocation
- Automotive telematics and in-vehicle navigation systems
- Wearable safety gear with real-time location reporting
- Agricultural monitoring equipment for precision farming
- Portable mapping and surveying instruments
How to Use NEO-M8M GPS Module with Ceramic Active Antenna
To get started, solder the NEO-M8M module onto your PCB using the SMD pads, then connect VCC (1.7–3.6 V) and GND. Attach UART TX/RX lines to your host MCU and configure the communication protocol (NMEA or UBX) at your desired baud rate. Position the ceramic active antenna clear of metal obstructions and use u-blox’s u-center software or your firmware to visualize satellite signals and adjust settings.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What communication protocols are supported by the NEO-M8M?
The NEO-M8M supports NMEA, RTCM and UBX binary protocols over a UART interface, allowing seamless integration with microcontrollers and host processors.
Can I update the firmware on this GPS module?
This NEO-M8M variant does not include internal flash for firmware updates; it is optimized for cost-sensitive applications. For future firmware upgrades, consider NEO-M8N/M8Q series.
How do I mount the module on my PCB?
The module is available in an SMD form factor with plated pads. Simply design a matching footprint on your PCB, apply solder paste, and reflow-solder the module in place.
