PRODUCT DESCRIPTION

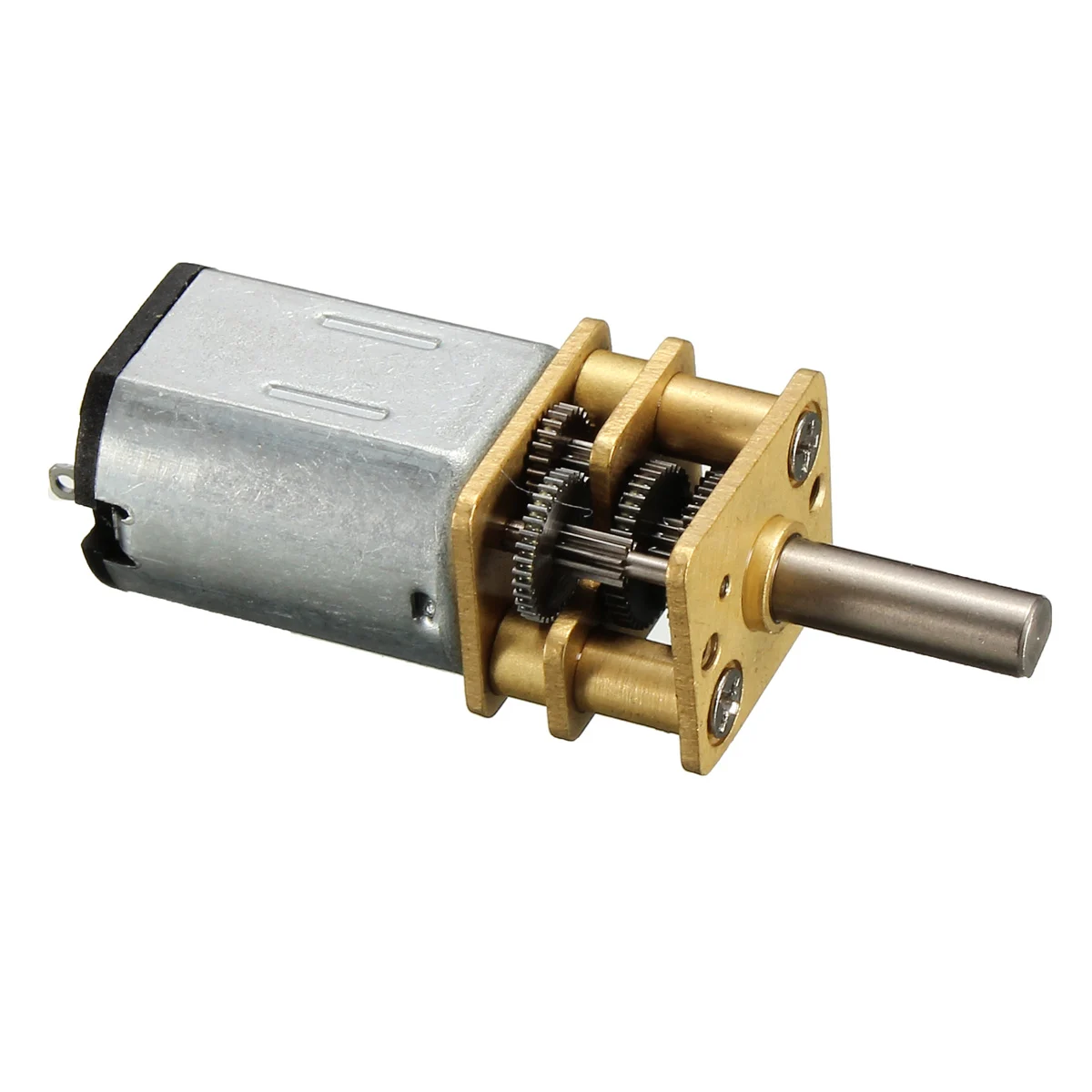

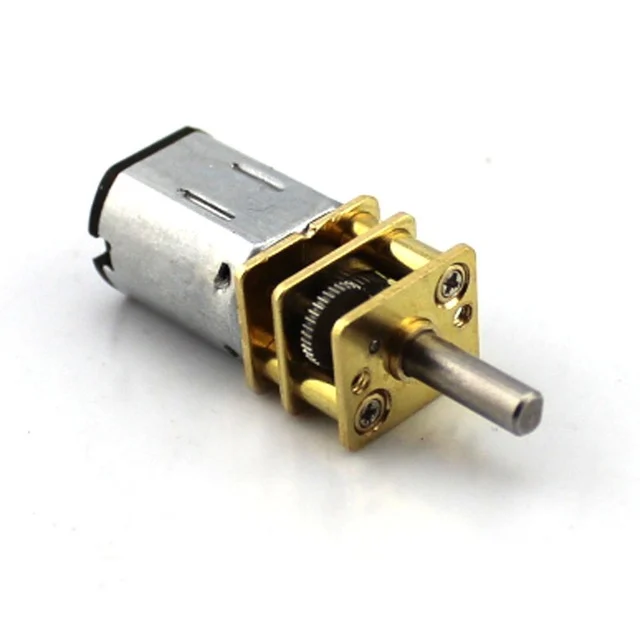

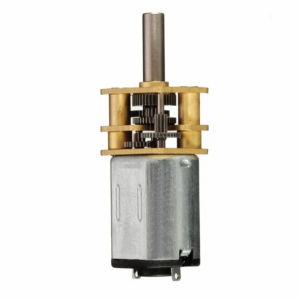

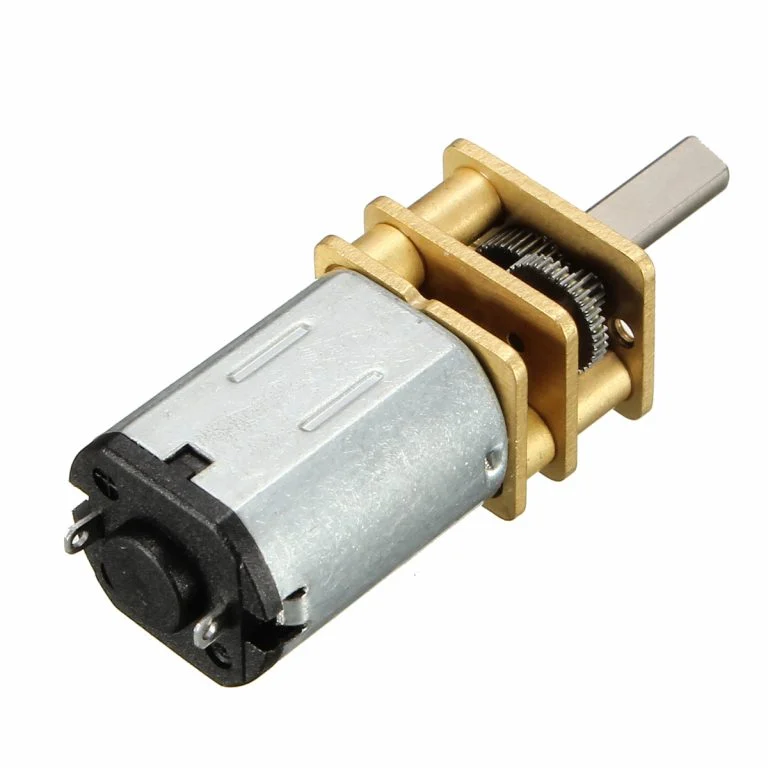

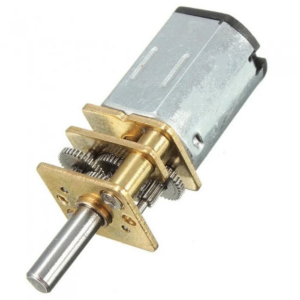

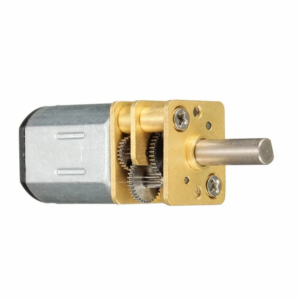

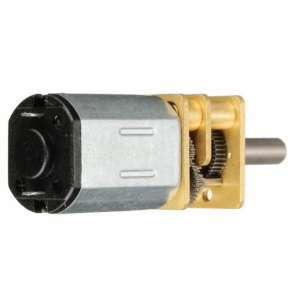

This N20-6V-600 Rpm Micro Metal Gear Motor is a compact, high-torque, and low-speed motor with an all-metal gear assembly that is durable and resistant to wear. It is an ideal replacement for damaged or rusty DC geared motors that reduce speed on machines. It can be used for various applications such as boats, cars, electric bicycles, fans, and home appliances.
The N20 Micro Gear 6V 600 RPM DC Motor (High Torque) has a lightweight design and a gearbox assembly that enhances its torque. It has a 10 × 12 mm cross-section, and a 9 mm long and 3 mm wide D-shaped output shaft. Its small size makes it suitable for fitting in tight spaces of small-scale applications. It can be attached to wheels to drive them while carrying heavy loads
.
Note: Image of product may differ from Actual Product.
Features:
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
Specification:
| Stall Current (A) | 0.67 |
|---|---|
| Rated Torque(kg-cm) | 0.14 |
| Stall Torque(Kg-Cm) | 0.54 |
| Motor Body Size (Diameter) (mm) | 12 |
| Operating Voltage (VDC) | 3 ~ 6 |
| Rated Operating Voltage (VDC) | 6 |
| No load Speed (RPM) | 600 |
| Rated Speed (RPM) | 600 |
| Shaft Type | D-type, Single Side |
| Shaft Diameter (mm) | 3 |
| Weight (gm) | 12 |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 6 × 6 × 2 cm |
Package Includes :
1 x N20-6V-600 Rpm Micro Metal Gear Motor
