PRODUCT DESCRIPTION

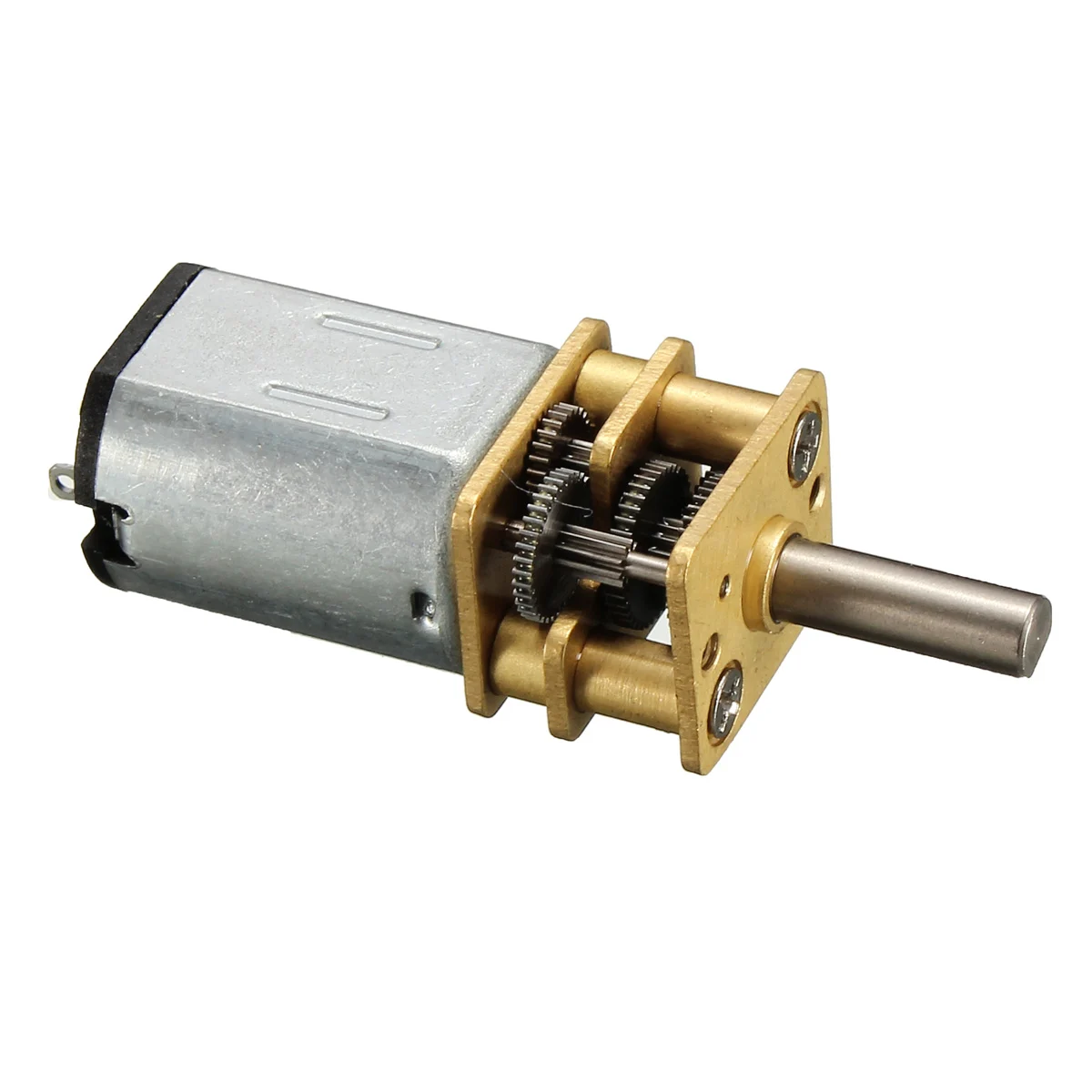

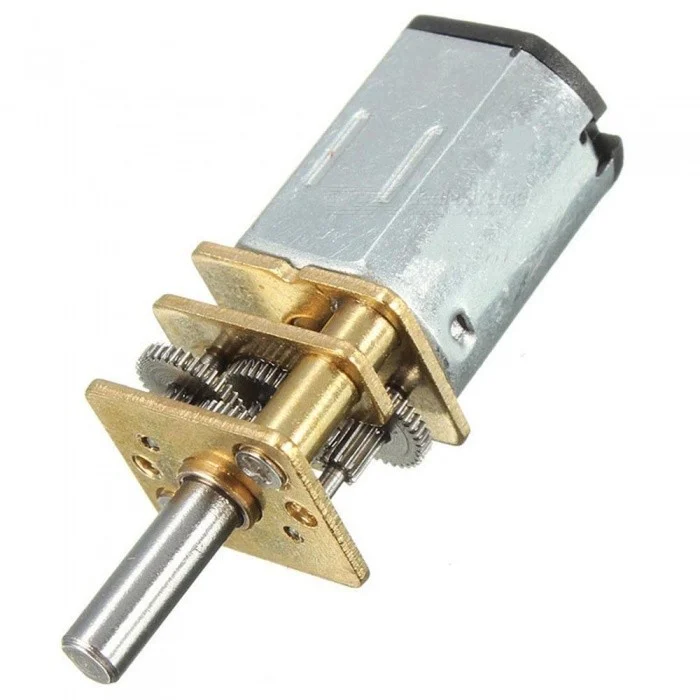

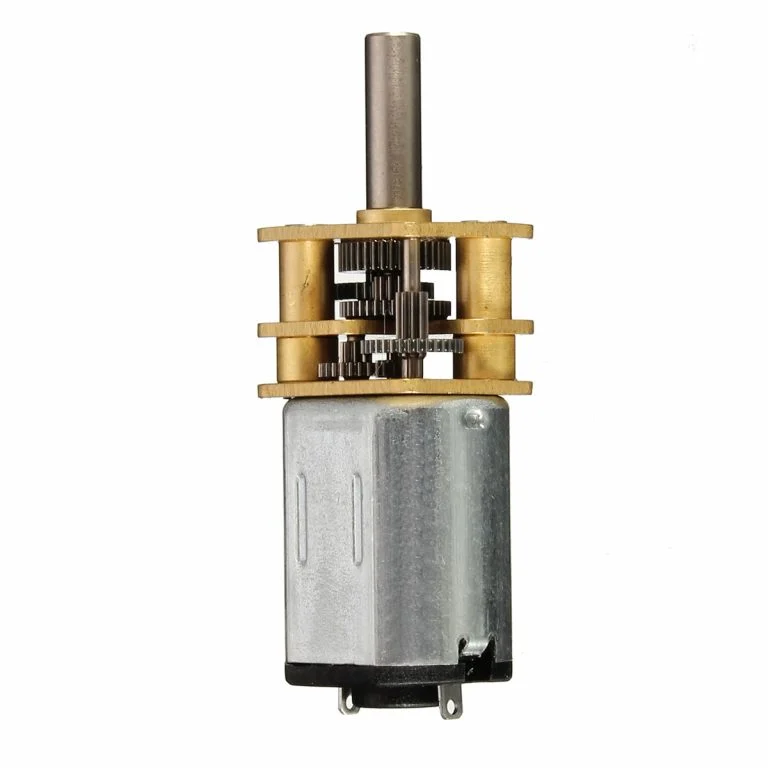

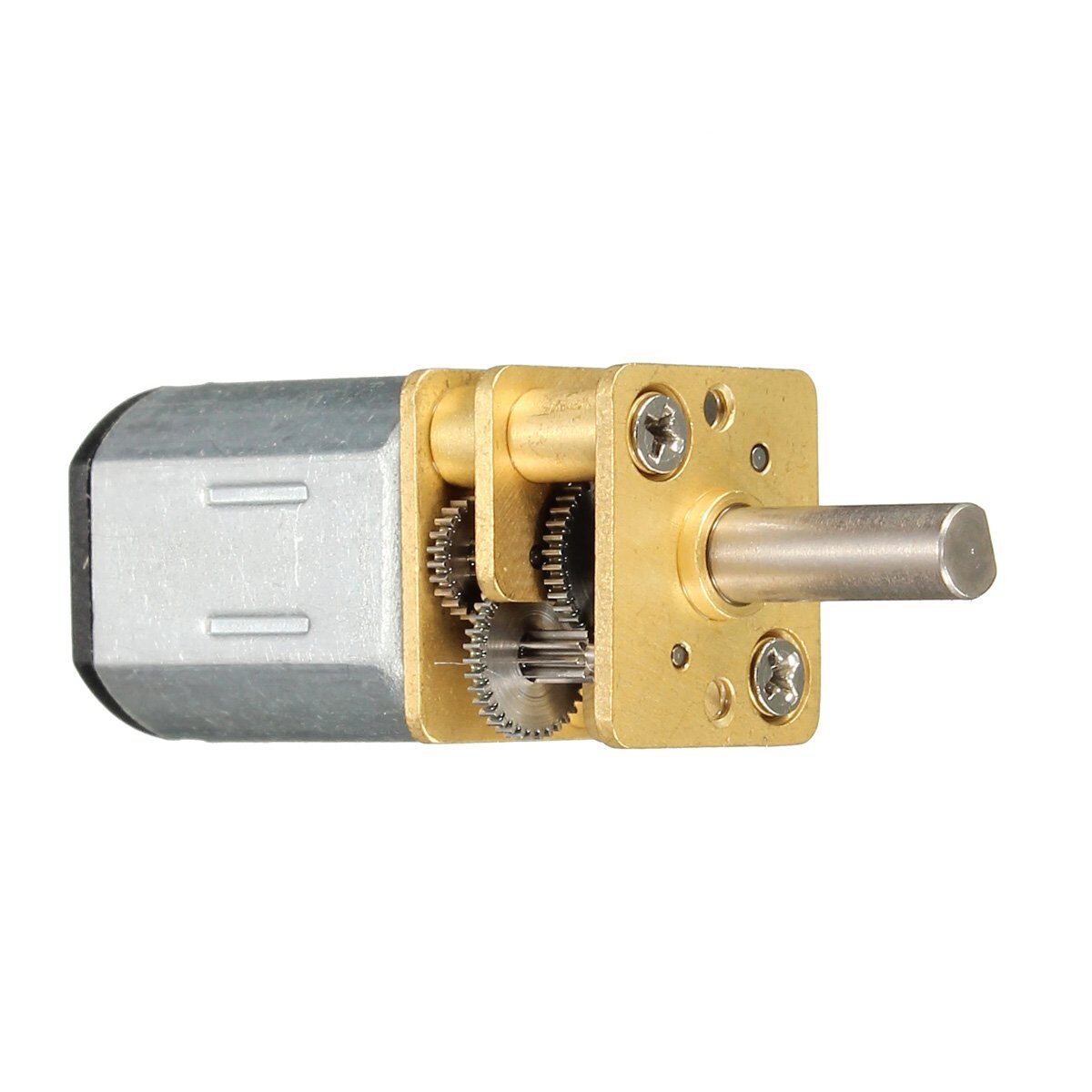

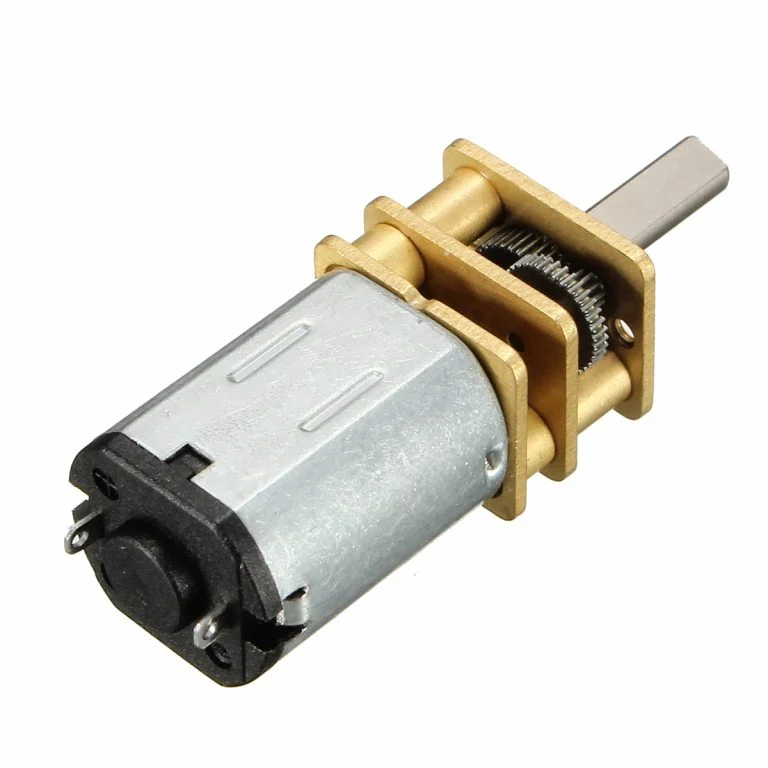

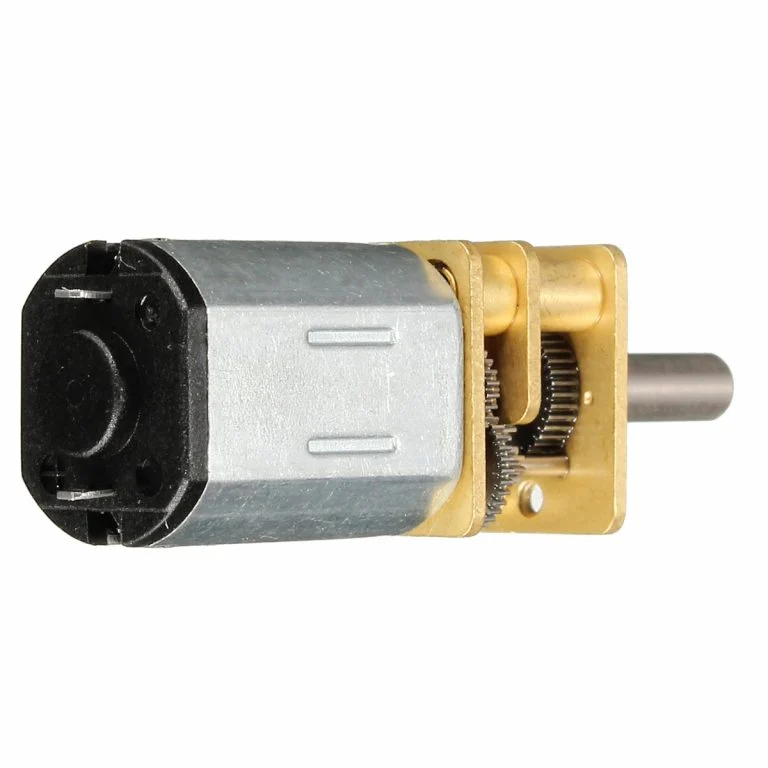

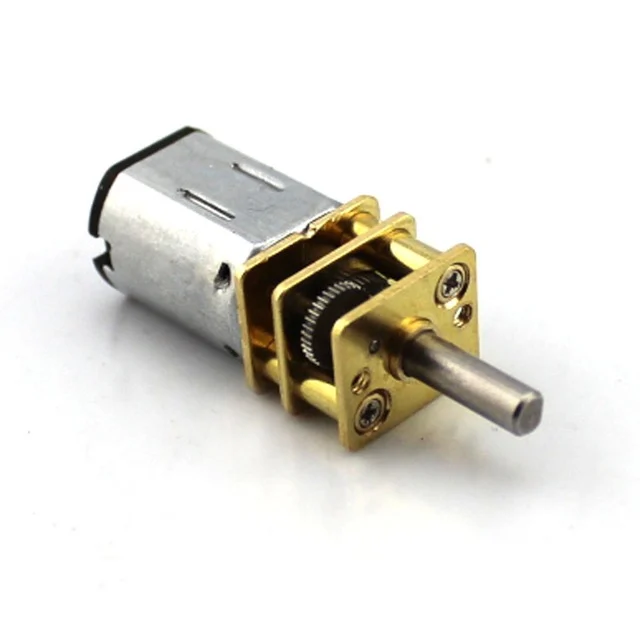

This N20-6V-300 Rpm Micro Metal Gear Motor has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
The N20 Micro Gear 6V 300 RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.
This N20 Micro Gear 300RPM 6V DC Motor (High Torque) has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
Note: Image of product may differ from Actual Product.
Features:
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
Specification:
Model No. | N20-6V-300 |
---|---|
No Load Current (mA) | 0.04 A |
Stall Current (A) | 0.67 |
Stall Torque(Kg-Cm) | 0.98 |
Rated Torque(kg-cm) | 0.35 |
Operating Voltage (VDC) | 3 ~ 6 |
Rated Operating Voltage (VDC) | 6 |
No load Speed (RPM) | 300 |
Rated Speed (RPM) | 300 |
Shaft Type | D-type, Single Side |
Shaft Diameter (mm) | 3 |
Motor Body Size (Diameter) (mm) | 12 |
Weight (gm) | 12 |
Output Axial Length (mm) | 10 |
Fuselage w/o Shaft Length | 26 |
Screw Size | M3 |
Shipping Weight | 0.016 kg |
Shipping Dimensions | 6 × 5 × 4 cm |
Package Includes :
1 x N20-6V-300 Rpm Micro Metal Gear Motor
