This is the 3V variant of the N20-3V-100 RPM Micro Metal Gear-box DC Motor in N20 Gear Motor without Encoder. Available at Original price was: ₹272.58.₹207.68Current price is: ₹207.68. (₹176.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION
This N20-3V-100 Rpm Micro Metal Gear Motor is a durable DC motor with a small size, a high torque, and an all-metal gear that resists wear and tear. It is an ideal replacement for the DC geared speed reduction motor that is rusty or damaged on your machine. You can use it for various applications, such as boats, cars, electric bicycles, fans, and home appliances.
The N20 Micro Gear 3V 100 RPM DC Motor (High Torque) is a low-RPM motor that is lightweight and has a high torque. It comes with a gearbox assembly that increases the motor’s torque. The motor has a 10 × 12 mm cross-section, and the gearbox output shaft is D-shaped, 9 mm long, and 3 mm in diameter. The motor’s small size makes it suitable for small-scale applications that require complex space arrangements. You can attach this Micro Gear Motor to wheels to move them from one place to another while carrying heavy loads.
Features :
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
Specification:
| Model No. | N20-3V-100 |
|---|---|
| Motor Type | Center Shaft DC Geared Motor |
| Rated Operating Voltage (VDC) | 3 |
| No Load Current (mA) | 0.01 |
| Stall Current (A) | 0.17 |
| Rated Speed (RPM) | 80 |
| Operating Voltage (VDC) | 1.5 ~ 5 |
| Rated Torque(kg-cm) | 0.11 |
| Stall Torque(Kg-Cm) | 1.0 |
| No load Speed (RPM) | 100 |
| Gear Ratio | 50 : 1 |
| Shaft Type | D-type, Single Side |
| Motor Body Size (Diameter) (mm) | 12 |
| Shaft Diameter (mm) | 3 |
| Weight (gm) | 10 |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
| Shipping Weight | 0.04 kg |
| Shipping Dimensions | 6 × 4 × 3 cm |
Package Includes:
1 x N20-3V-100 Rpm Micro Metal Gear-box DC Motor

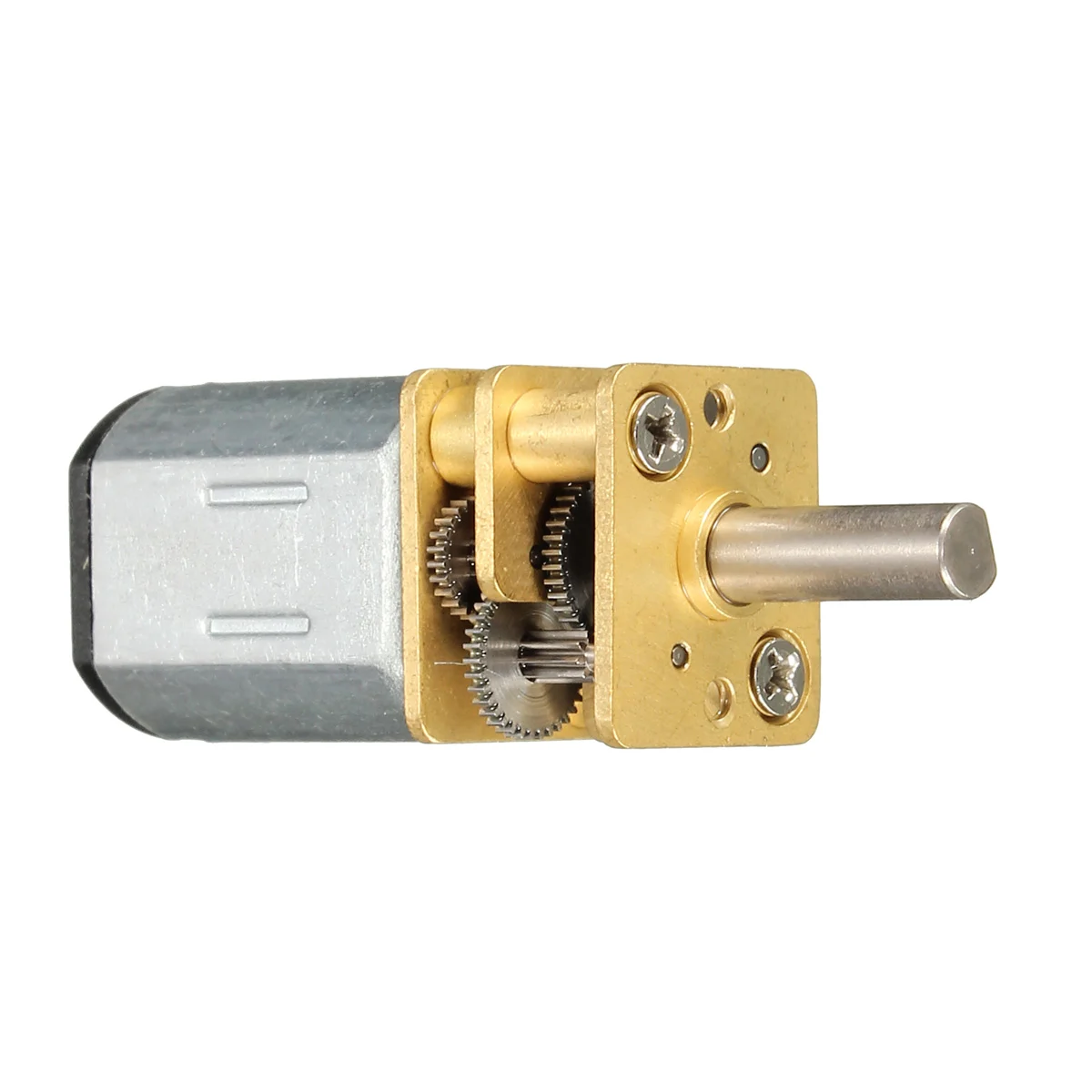

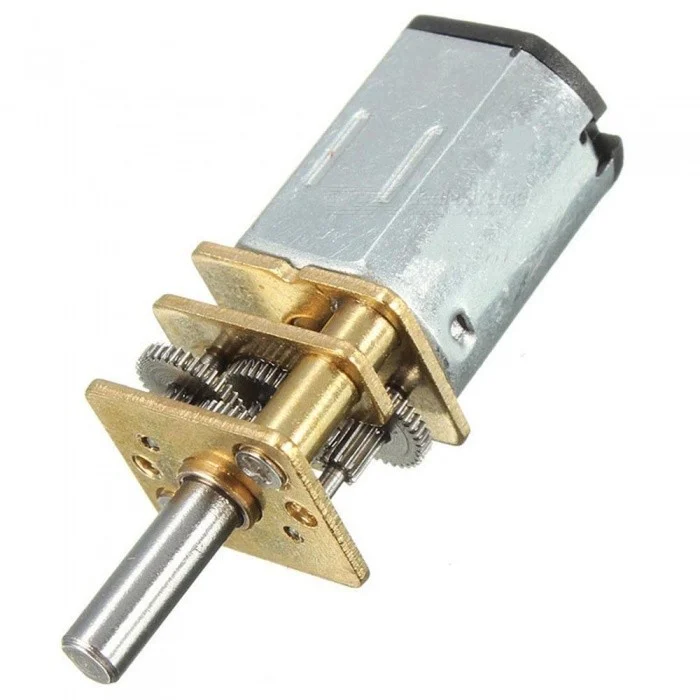

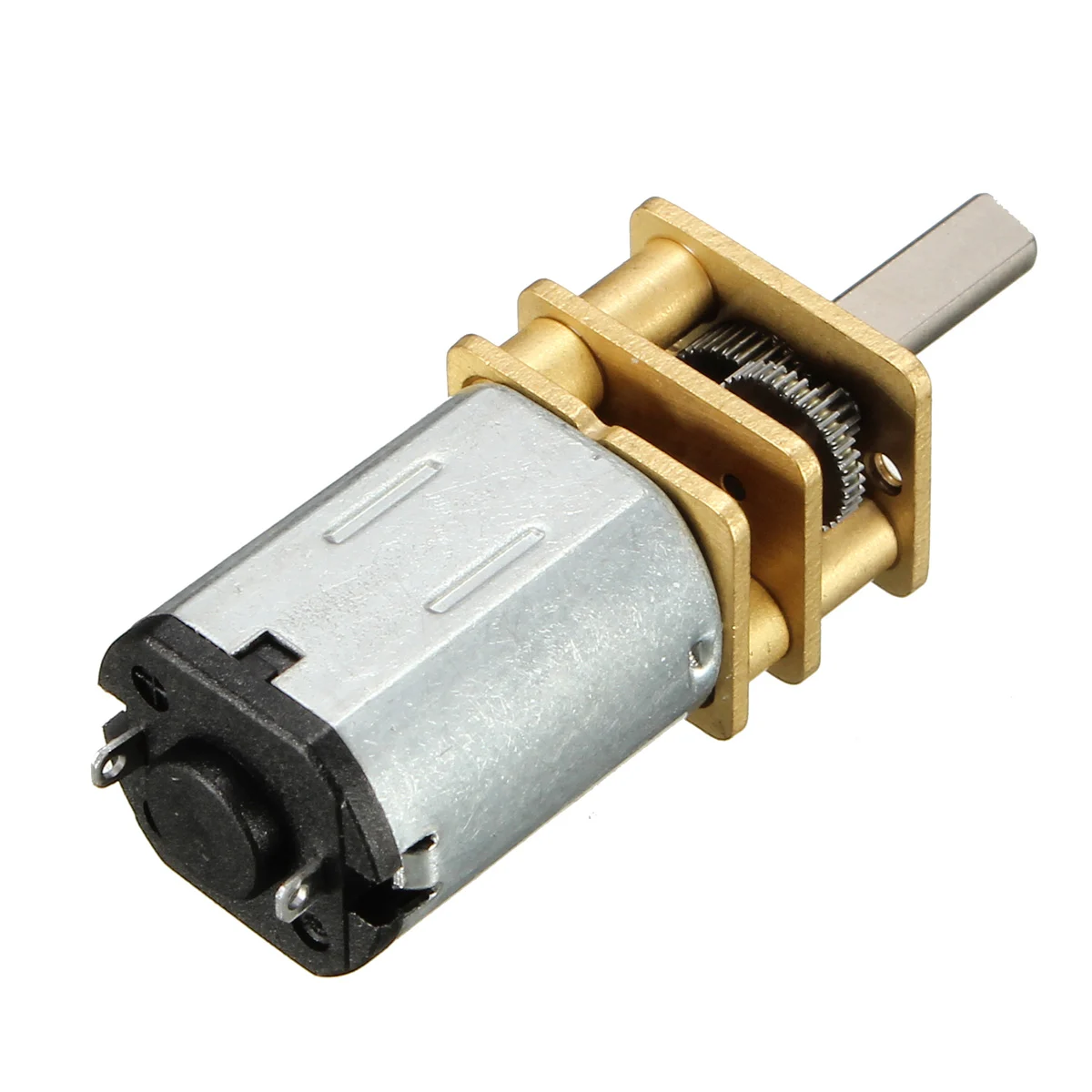

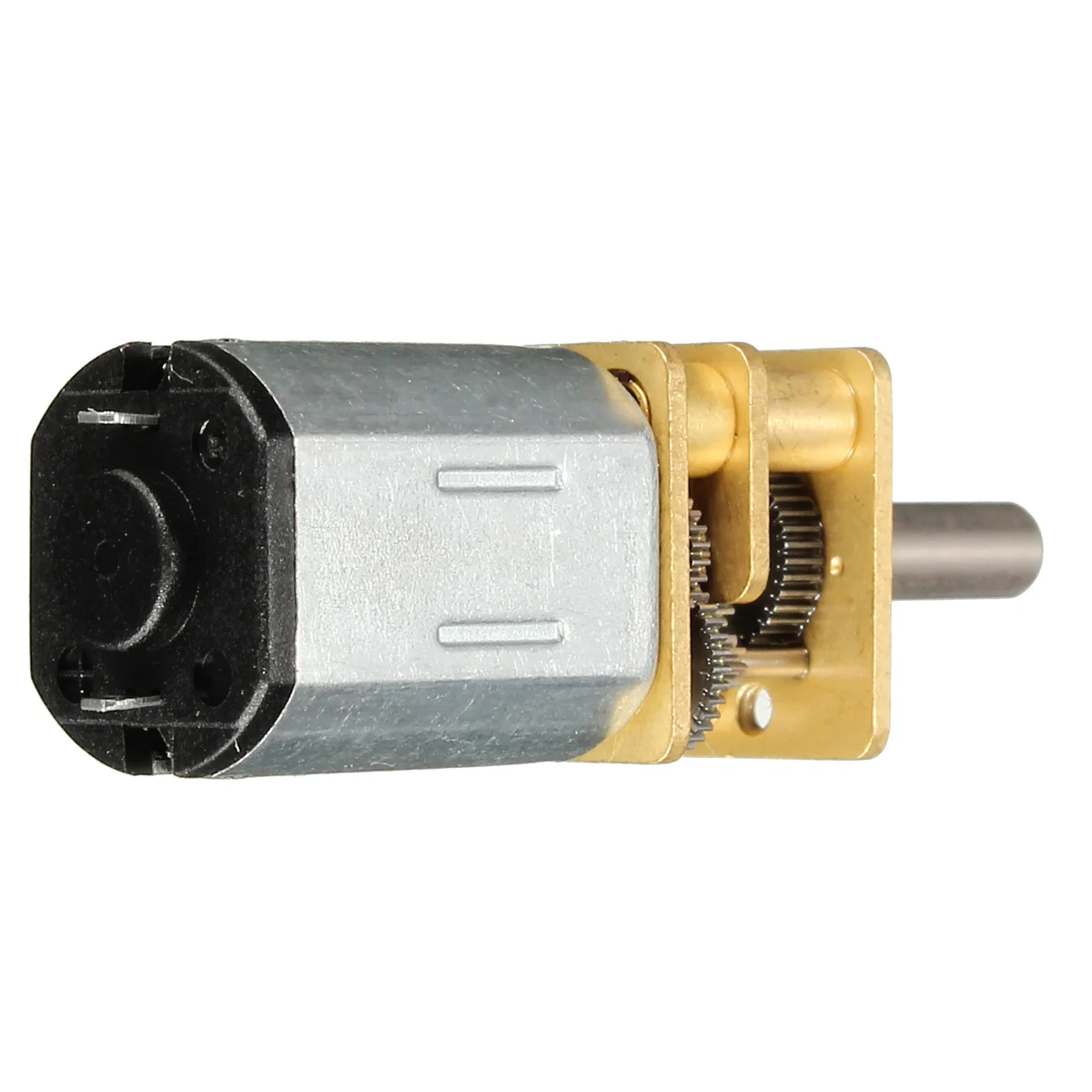

N20-3V-100 RPM Micro Metal Gear-box DC Motor Overview
The N20-3V-100 RPM Micro Metal Gear-box DC Motor is a compact, low-speed, high-torque motor designed for precision robotics and small-scale mechanical projects. Its all-metal gearbox and D-shaped output shaft make it durable and easy to integrate into mobile robots, automated mechanisms, and DIY devices.
Key Features of N20-3V-100 RPM Micro Metal Gear-box DC Motor
- Rated Voltage: 3 V DC for efficient low-voltage operation
- No-load Speed: 100 RPM—ideal for slow, controlled motion
- All-metal Gearbox: High durability and excellent stall torque characteristics
- Compact Gearbox Size: 10 × 12 mm cross-section fits tight spaces
- D-shaped Output Shaft: 3 mm diameter, 9 mm length for secure wheel or pulley mounting
- Lightweight Construction: Easy to mount without adding bulk
- Fast Shipping from Zbotic: Dispatched within 24 hours
Applications and Use Cases
- Miniature robotic cars and line-following robots requiring precise speed control
- Pan-tilt camera mounts or micro-positioning platforms
- Automated lock and latch mechanisms in smart home projects
- DIY conveyor belts or material feeders for small-scale automation
- RC micro boats and crawlers that benefit from high stall torque
- Educational STEM kits and hobbyist mechatronics assemblies
How to Use N20-3V-100 RPM Micro Metal Gear-box DC Motor
Mount the motor securely in your chassis or bracket, ensuring the D-shaped shaft is accessible for wheel or pulley attachment. Connect a regulated 3 V DC power supply with proper polarity—use a motor driver or PWM controller for speed regulation. Avoid continuous stalling to prevent overheating and secure wiring to prevent strain on solder joints.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage range can I use safely with this motor?
The motor is rated at 3 V DC. You can operate it between 2.5 V and 3.5 V for short periods, but best performance and longevity occur at the nominal 3 V.
How do I attach a wheel or pulley to the output shaft?
The gearbox shaft is D-shaped with a 3 mm diameter and 9 mm length. Use a matching bore wheel hub or pulley with a set screw or E-clip to secure it onto the flats of the shaft.
Can I stall this motor without causing damage?
Thanks to its metal gearbox, the motor tolerates occasional stall conditions with high torque output. However, continuous stalling can heat the motor windings—avoid prolonged stalls to maintain performance.
Worm Gear Motor Applications: Self-Locking Mechanism Guide
The worm gear motor's self-locking property is one of the most underappreciated features in the robotics and automation...
Read More →
Stepper Motor Acceleration & Deceleration: AccelStepper Library Guide
Stepper motors are brilliant for precise open-loop position control — no encoder required. But if you simply jump...
Read More →
Planetary Gear Motor: How It Works & Applications in Robotics
When a robot arm lifts a payload, a mobile robot climbs a ramp, or an automated door opens...
Read More →Technical Specifications
| Model | N20-3V |
|---|---|
| Speed | 100 RPM |
| SKU | AI3214 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The N20-3V-100 RPM Micro Metal Gear-box DC Motor is a versatile n20 gear motor without encoder used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
