This is the 48V variant of the YaluMY1020 48V 1000W Electric Go-kart Brushed DC Motor with Foot in Ebike Motors and Controllers. Available at Original price was: ₹7,644.04.₹7,614.54Current price is: ₹7,614.54. (₹6,453.00 + GST) with free shipping across India.
Looking for 48v Motor? YaluMY1020 48V 1000W Electric Go-kart Brushed DC Motor with Foot is available at Zbotic with fast shipping across India.

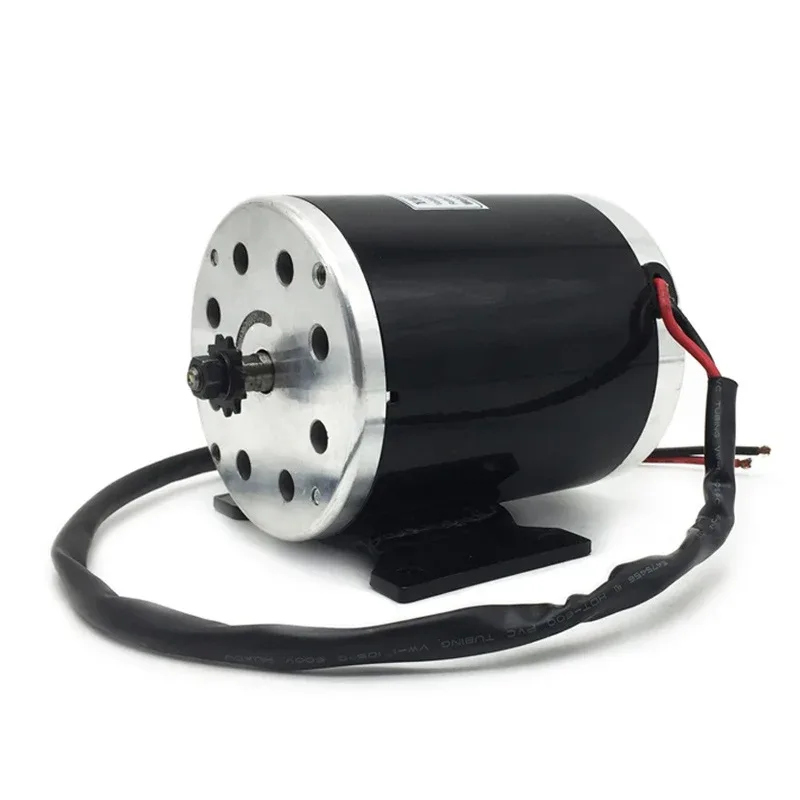

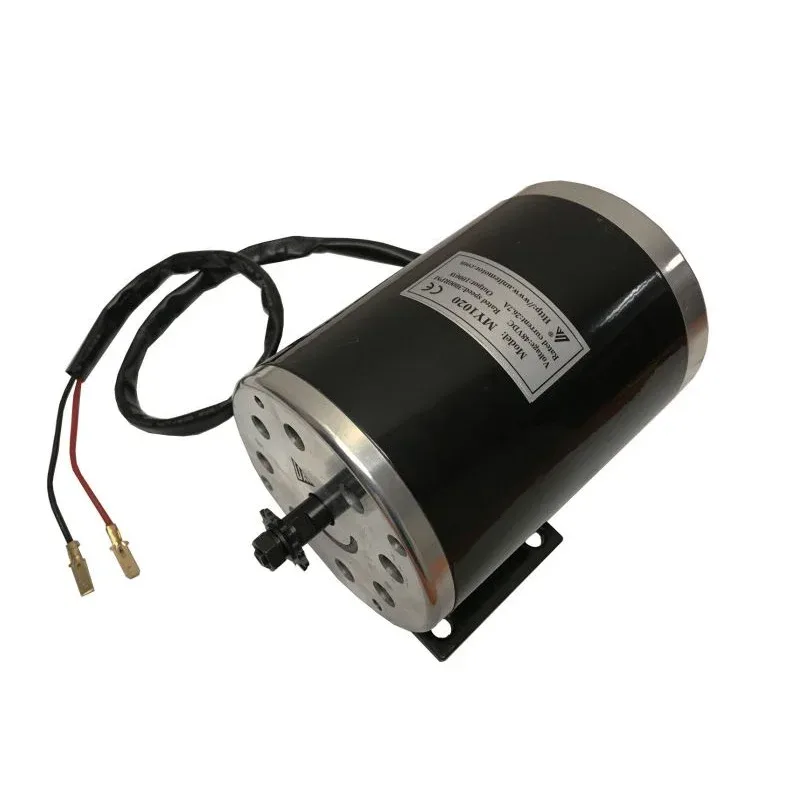

YaluMY1020 48V 1000W Electric Go-kart Brushed DC Motor with Foot:
If you are looking for a high-quality Brushed DC Motor MY1020 48V 1000W with foot for your electric bike, you can find it at zbotic.in at an affordable price. You can also get a brushless wheel hub motor and other assembly parts & kits to build your own e-bike at zbotic.in.
E-bikes usually have both pedal-assist sensors and a throttle. Some electric bikes only have an electric motor that works on demand. You can activate and control the electric motor manually with a throttle, which is similar to the ones on a motorbike or scooter.
This Motor MY1020 is very powerful and one of the largest motors in the brushed motor category. It can also be used as a pump for water or hydraulics. This model is an improved version of the original one. It is lighter and does not need a fan.
These motors are made in large quantities, which makes them economical, but they are still well-built. This motor can replace some Xtreme or Razor electric scooter, minibike or go-kart 1000W motors that look like this one. It can also work with any other brand that has similar specs in the motor.
Specification:
| Voltage(V) | 48V DC |
|---|---|
| Power(W) | 1000 W |
| Speed(RPM) | 3000 |
| Chain Drive | 11 teeth sprocket 25H/T8F chain |
| Model | MY1020 |
| Rated Speed(RPM) | 3000 |
| Rated Current(A) | 26.7 |
| Weight(kg) | 5.125 |
| Dimensions(LxWxH) | 17.5 x 12 x 11.8 |
| Shipping Weight | 5.4 kg |
| Shipping Dimensions | 19 × 13 × 13 cm |
Package Includes:
1 x MY1020 48V 1000W Electric Go-kart Brushed DC Motor with Foot
YaluMY1020 48V 1000W Electric Go-kart Brushed DC Motor with Overview
The YaluMY1020 is a high-performance 48V brushed DC motor delivering 1000W of continuous power at up to 3000RPM. Designed with an integrated foot mount, it’s ideal for electric go-karts, e-bikes, and compact electric vehicles requiring reliable torque and straightforward installation.
Key Features of YaluMY1020 48V 1000W Electric Go-kart Brushed DC Motor with
- Rated Voltage: 48V and Rated Power: 1000W for strong acceleration and load handling
- Maximum speed of 3000RPM for responsive throttle control
- Rated Current: 26.7A ensures consistent performance under varying loads
- Integrated foot mount for secure chassis installation
- Brushed DC design offers cost-effective maintenance and reliable operation
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Primary drive motor for recreational electric go-karts
- Propulsion unit in hub-conversion e-bike projects
- Power source for compact utility carts and garden transports
- Retrofit kit component converting petrol karts to electric drive
- Lightweight electric delivery trolleys for indoor environments
How to Use YaluMY1020 48V 1000W Electric Go-kart Brushed DC Motor with
Secure the motor to your vehicle’s chassis using the built-in foot bracket, wire it to a compatible 48V brushed DC controller (rated above 30A), and connect the throttle assembly. Align the motor shaft with your drive system, power up at low speed for initial testing, then gradually increase throttle input for normal operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can this motor handle continuous hill climbs?
Yes, at 1000W and 26.7A continuous rating, the MY1020 maintains sufficient torque on moderate inclines when paired with a suitable gear ratio and controller.
Is a separate controller required?
Yes, a compatible 48V brushed DC motor controller (30A or higher) is needed to regulate speed, current, and braking functions.
How often should I service the brushes?
Inspect carbon brushes every 200–300 running hours and replace them if worn to ensure optimal performance and prevent arcing.
Geared Motor with Encoder: Buy vs DIY for Robot Wheels India
If you are building a wheeled robot in India — whether a line follower, autonomous delivery bot, or...
Read More →
Servo Motor PID Control with Arduino: Smooth Positioning
Every robotics builder eventually wants smoother, more precise motion from their motors. Whether you are building a robotic...
Read More →
Motor Heat Sink: When and How to Add Cooling to Motor Drivers
One of the most common causes of failed motor driver boards is heat. The A4988 overheats and cuts...
Read More →Technical Specifications
| Brand | Yalu |
|---|---|
| Operating Voltage | 48V |
| Power Rating | 1000W |
| SKU | AI4785 |
| Weight | 6.5897 kg |
| Availability | In Stock |
Applications & Use Cases
The YaluMY1020 48V 1000W Electric Go-kart Brushed DC Motor with Foot is a versatile ebike motors and controllers used across a wide range of applications including electric bicycle conversion, e-scooter builds, electric go-karts, motorized wheelchairs, and cargo bikes.
Common use cases:
- Converting a regular bicycle to electric
- Replacing a worn e-bike motor
- Building a custom e-scooter
This product is ideal for e-bike builders and electric vehicle enthusiasts.
Technical Tip: Match controller voltage and current to your motor specs. Hub motors offer simple installation; mid-drive motors provide better hill-climbing torque.
