This is the 24V variant of the MY1016Z 350W 24V DC 3000 RPM Gear Brushed Motor in Ebike Motors and Controllers. Available at ₹3,785.44 (₹3,208.00 + GST) with free shipping across India.
Looking for My1016z Motor 350w? MY1016Z 350W 24V DC 3000 RPM Gear Brushed Motor is available at Zbotic with fast shipping across India.
Specification:
| Model | MY1016Z |
|---|---|
| Operating Voltage (VDC) | 24 |
| Operating Power | 350 watt |
| Rated Current(A) | 18 |
| Rated Speed (RPM) | 3000 |
| Rated Torque (Kg-Cm) | 110 |
| Stall Torque(Kg-Cm) | 350 |
| Sprocket | 9 teeth |
| Pitch(inch) | 1/2 |
| Weight (Kg) | 2.98 |
| Gearbox | Yes |
| Cable Length (Meter) | 0.5 |
| Gear ratio | 9.78 : 1 |
| Shipping Weight | 3.2 kg |
| Shipping Dimensions | 20 × 15 × 10 cm |
Package Include:
1 x MY1016Z 350W 24V 3000 RPM DC Gear Brushed Motor

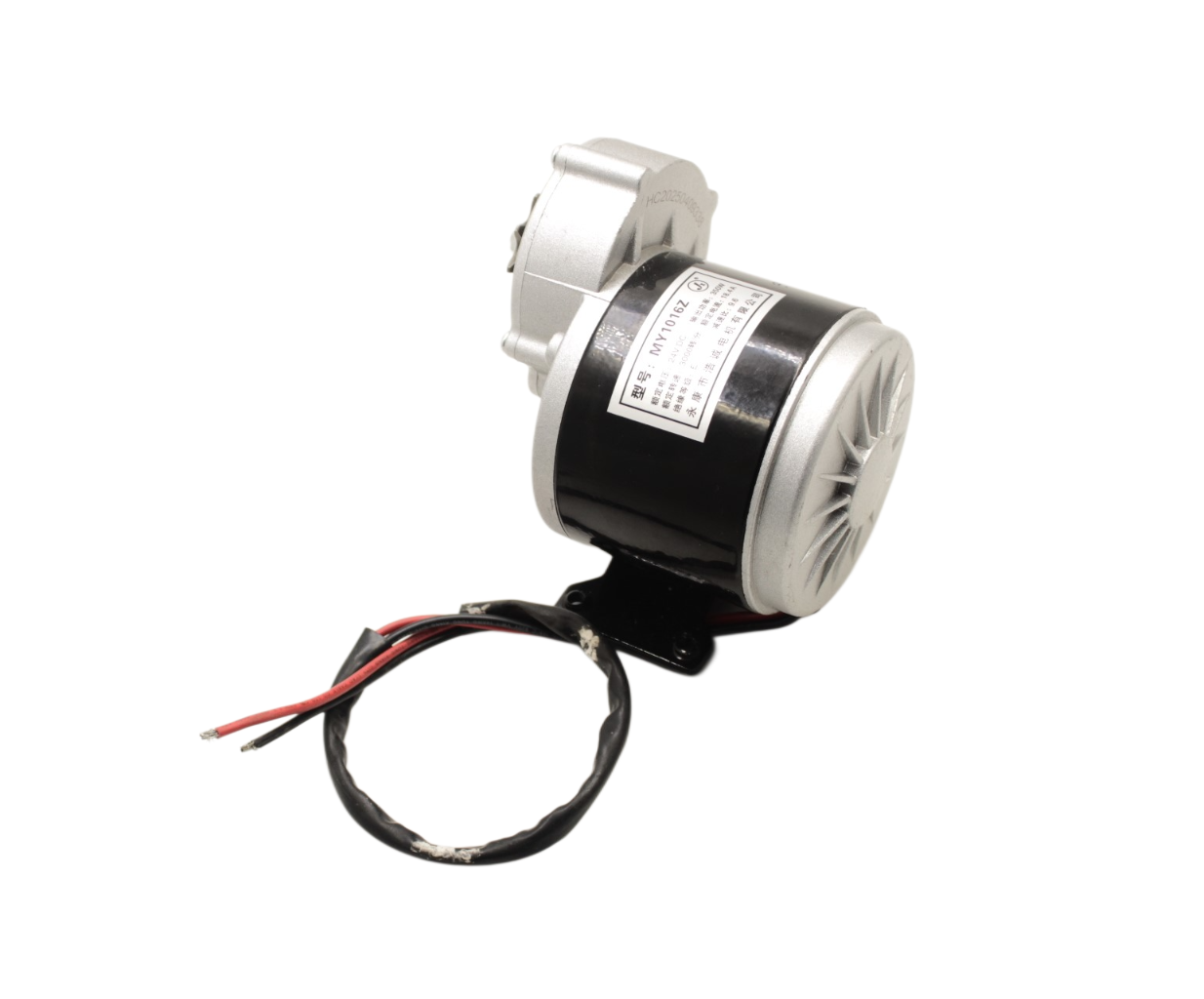

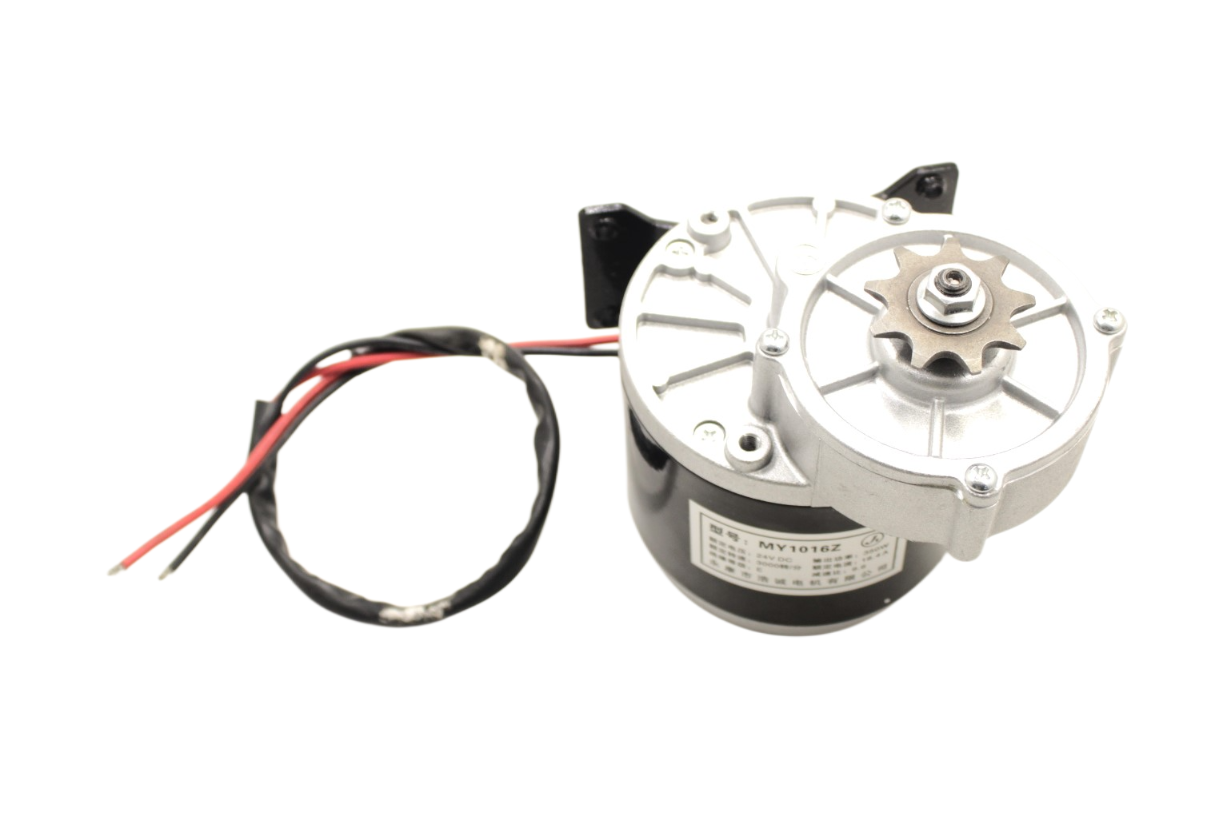

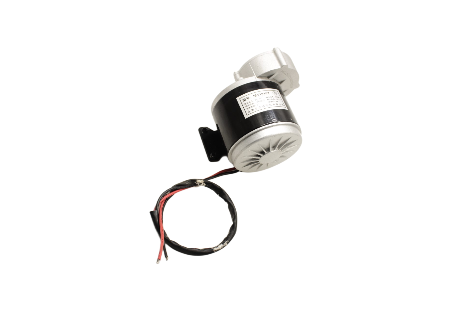

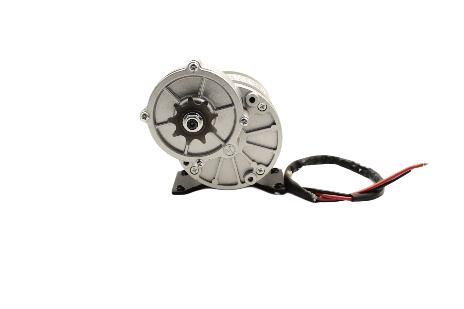

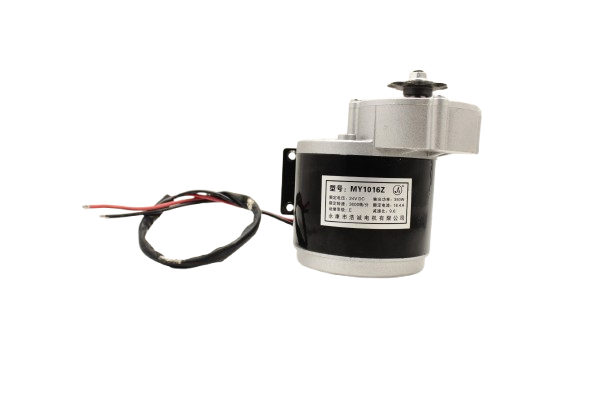

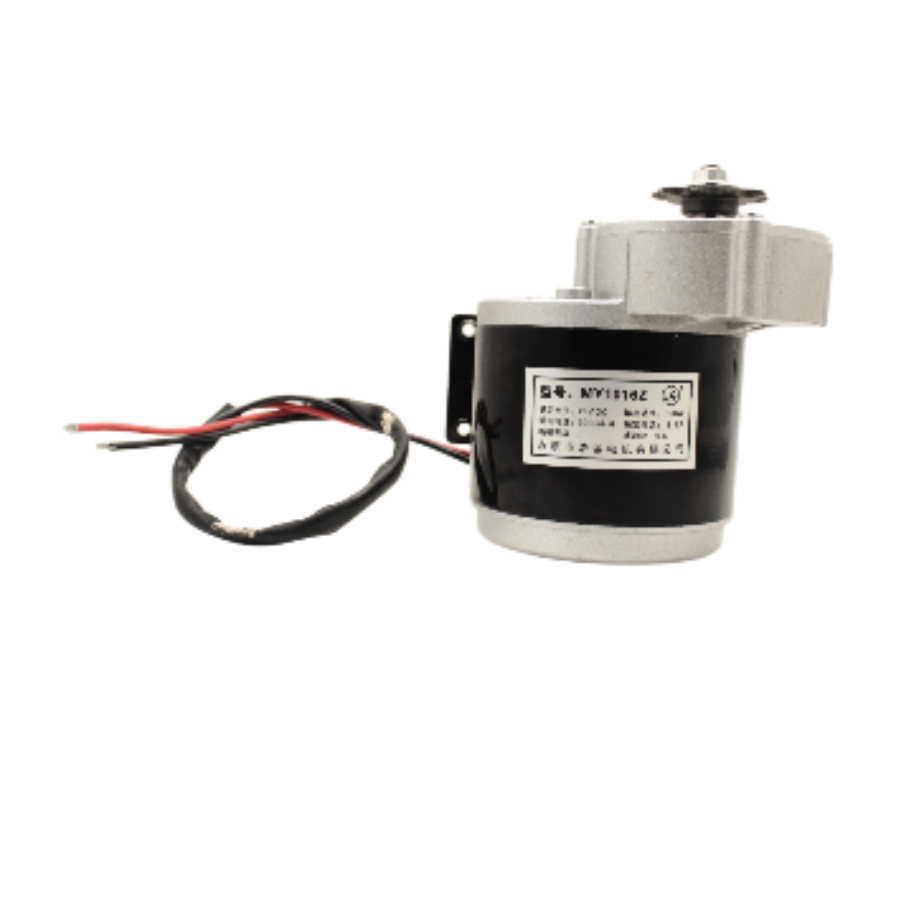

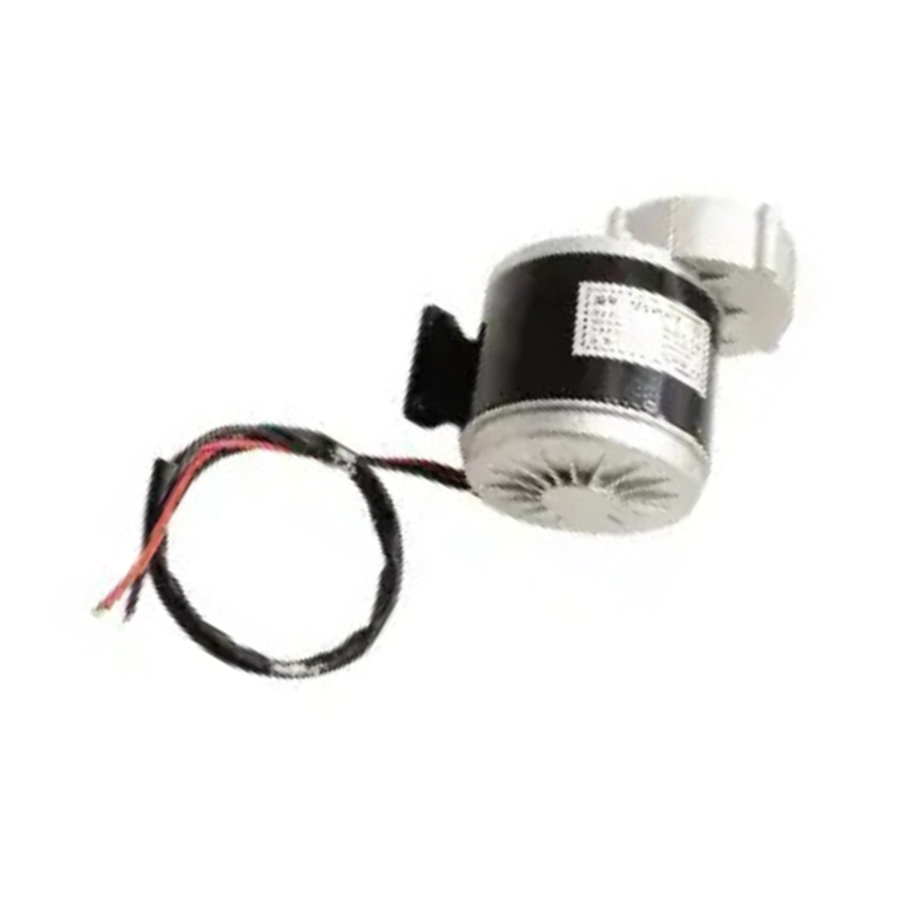

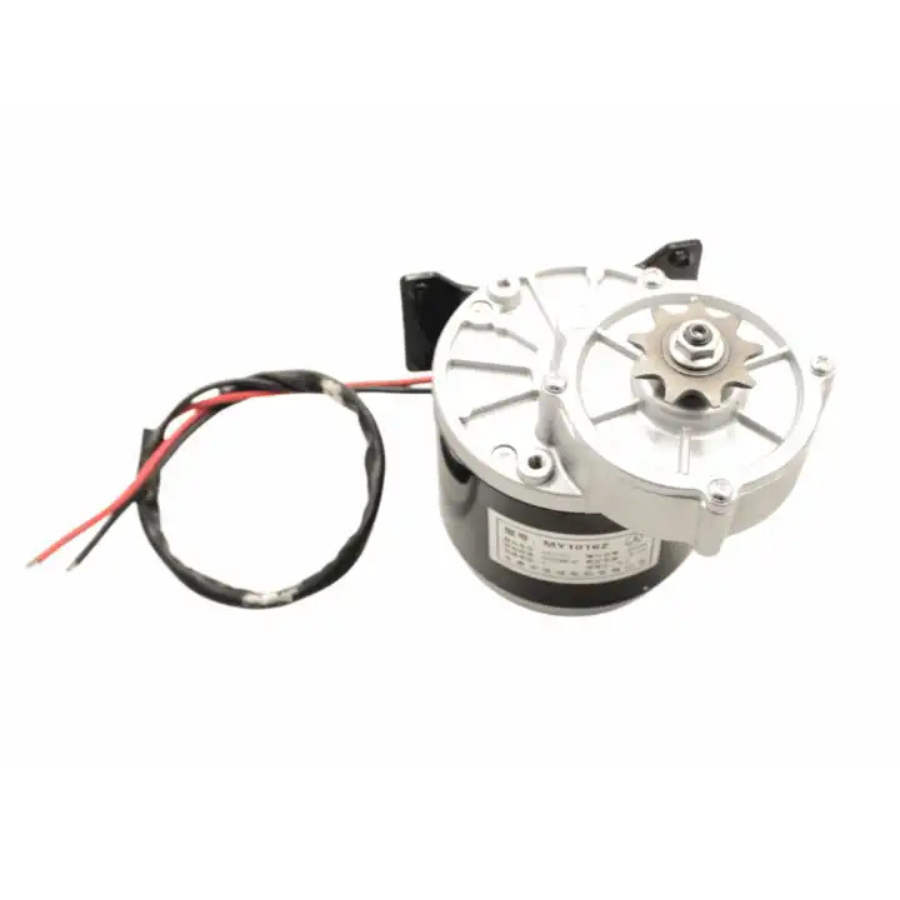

MY1016Z 350W 24V DC 3000 RPM Gear Brushed Motor Overview
The MY1016Z is a 350W, 24V DC gear-brushed motor delivering up to 3000 RPM. Its integrated gearbox and robust design make it ideal for light electric vehicles and DIY robotics projects requiring reliable torque and compact packaging.
Key Features of MY1016Z 350W 24V DC 3000 RPM Gear Brushed Motor
- 350 W continuous output power at a nominal 24 VDC supply
- Rated speed of 3000 RPM with 18 A current draw for efficient performance
- High rated torque: 110 kg·cm (stall torque 350 kg·cm) for strong acceleration
- Built-in gearbox with 9-tooth sprocket (½” chain pitch) for direct chain drive
- Compact, 2.98 kg housing designed for e-bikes, scooters, quads and small robots
- Fast shipping across India from Zbotic’s warehouse—genuine product guaranteed
Applications and Use Cases
- E-bikes and electric scooters driven by a 24 V battery pack
- Lightweight electric quads and go-karts needing high starting torque
- DIY Segway platforms and self-balancing robots
- Combat and ATV robots requiring durable gear reduction
- Small electric car prototypes and experimental mobility devices
- Home automation hoists or rotating display platforms
How to Use MY1016Z 350W 24V DC 3000 RPM Gear Brushed Motor
Mount the motor securely using its standard flange, align the 9-tooth sprocket with your ½” roller chain, and tighten all fasteners. Connect the two power wires to a 24 V DC motor controller rated for at least 18 A continuous. Gradually apply throttle or PWM signal, monitor current draw, and perform a brief run-in at low load to seat brushes and gearbox gears.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What motor controller is recommended for the MY1016Z?
Use a 24 V DC brushed motor controller capable of at least 18 A continuous current and 30 A peak. Controllers with adjustable PWM frequency (around 10 kHz) improve efficiency and reduce noise.
How do I maintain the gearbox and brushes?
Inspect brushes every 100 hours of operation and replace when wear reaches 50%. Apply a few drops of light machine oil to the gearbox input shaft seal every 200 hours to keep gears lubricated.
Can the factory sprocket be replaced?
Yes. The motor accepts any ½” pitch, 9-tooth sprocket. Ensure compatible hub diameter or use a shim kit to fit third-party sprockets securely.
