This is the 15cm variant of the Multipurpose PCB Ruler Engineering Measuring Tool-15CM in Other Measuring Instrument. Available at ₹84.96 (₹72.00 + GST) with free shipping across India.
Multipurpose PCB Ruler Engineering Measuring Tool-15CM

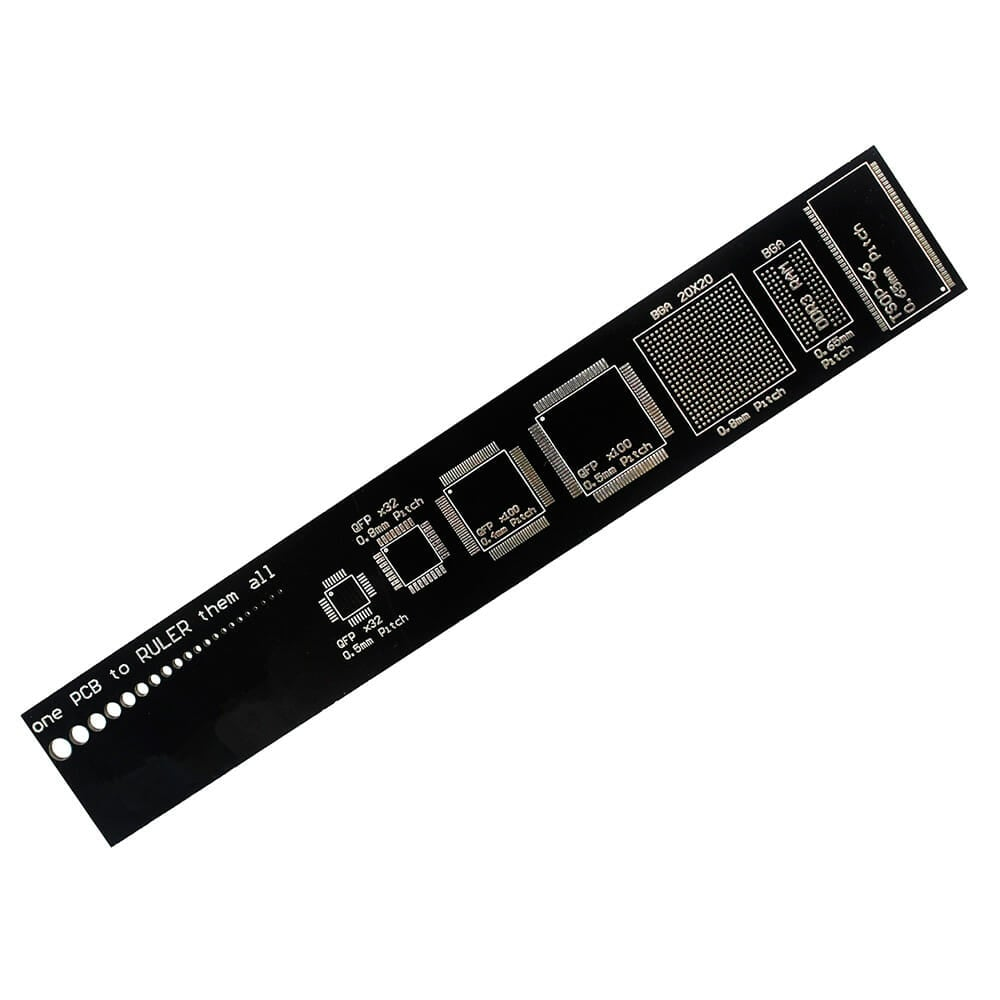

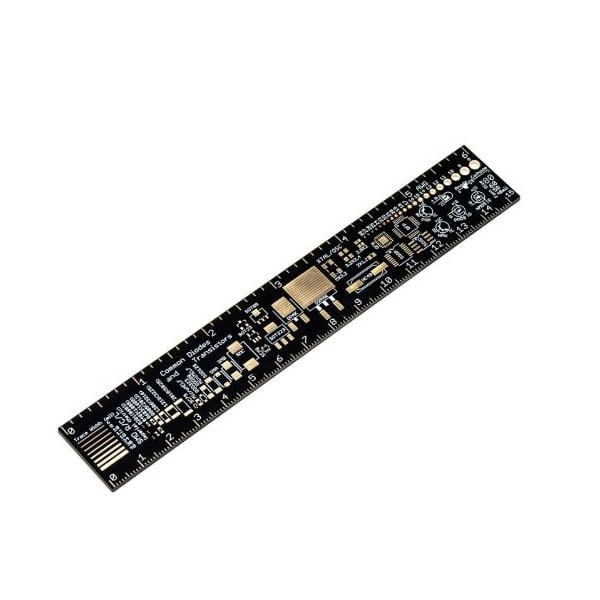

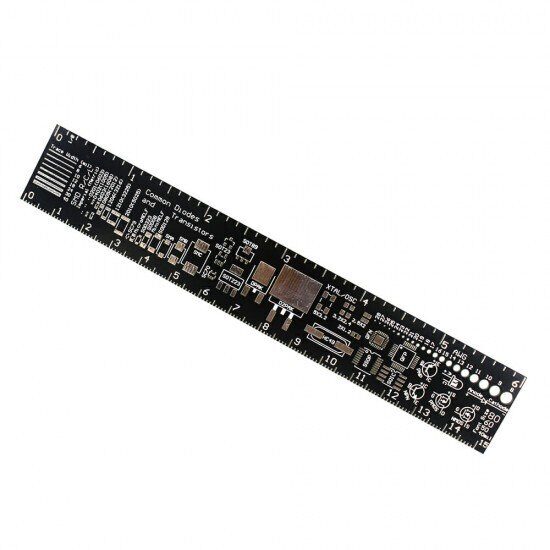

Introducing the Multipurpose 15cm PCB Ruler Engineering Measuring Tool, an indispensable tool for any PCB designer. Constructed from durable PCB material, this ruler features copper etching and gold plating for enhanced durability.

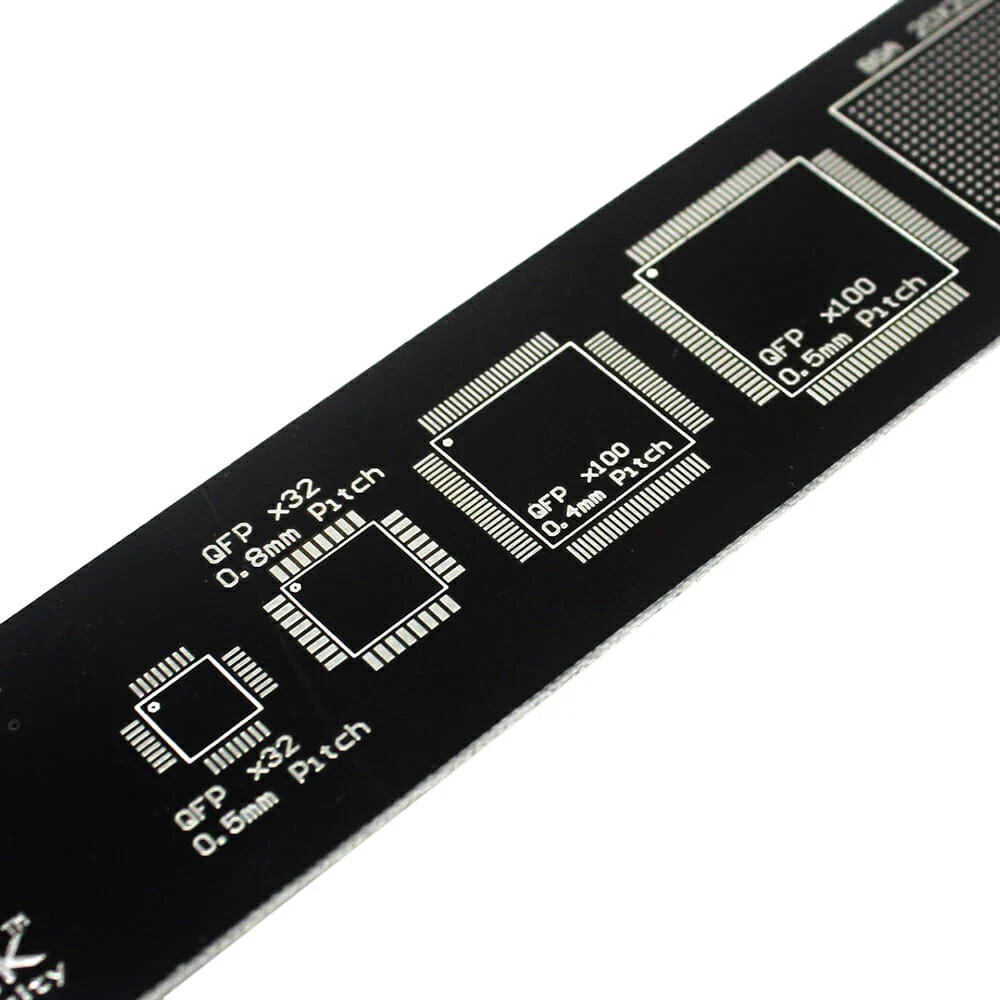

It provides dual-scale measurements in millimeters and inches, making it versatile for various projects. The ruler includes essential PCB design elements like angle gauges, IC package specifications, pin spacing charts, and SMD package dimensions for resistors and capacitors. It also has electronic component terminal identifiers and polarities, as well as guides for hole sizes and widths.
Crafted for ease of use, this compact and portable ruler integrates effortlessly into your workflow, available whenever you need it. Elevate your PCB design process with the Multipurpose PCB Ruler Engineering Measuring Tool, ensuring greater precision and efficiency.
Specifications:
| Length (mm): | 155 |
|---|---|
| Width (mm): | 25 |
| Height (mm): | 1.5 |
| Weight (g): | 12 |
Features
- Measuring length: 15 cm( 6 inches)
- Commonly used IC package: 1.SSOP16, 2.QFN32, 3.SOP16, 5.QFP32 4.TSSOP28
- Common hole diameter reference size (MIL) for hanging a slot
- 28 to 8 AWG hole on Scale
- Multipurpose Ruler Scale
- Gold plated Drawing
- Hard PCB material
- Compaq easy to carry in the toolkit.
- Dimensions : 155x25x1.5mm
- Weight : 12g
Package Includes
- 1 x Multipurpose PCB Ruler Engineering measuring Tool
Technical Specifications
| SKU | AI0886 |
|---|---|
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Multipurpose PCB Ruler Engineering Measuring Tool-15CM is a versatile other measuring instrument used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
