MS 4525DO Air Speed Sensor And Pitot Tube Set for Pixhawk
If you need a very precise measurement of your PIXHAWK airspeed, you should consider the Pixhawk Digital Airspeed Sensor with its own pitot tube. This sensor works with the Pixhawk PX4 autopilot system and has a high-quality MS 4525DO Air Speed Sensor And Pitot Tube Set.
This sensor has a high-resolution, low-offset digital pressure sensor that can detect very small changes in airspeed. Unlike older analog airspeed systems, this sensor is not affected by noise from long cables or by ratio-metric outputs.
The MS 4525DO sensor can measure speeds up to 100m/s (223mph/360kmh) with a resolution of 0.84 Pa. It uses a 24-bit delta-sigma ADC to deliver data at 14 bits. It also has a temperature sensor that allows calculating the true airspeed from the indicated airspeed using the MS5611 static pressure sensor on the Pixhawk PX4.
The Pixhawk Airspeed Sensor Kit has a Measurement Specialties 4525DO sensor with a 1 psi measurement range (about 100 m/s or 360 km/h or 223 mp/h). It also measures temperature to calculate the true airspeed from the indicated airspeed using the MS5611 static pressure sensor on Pixhawk. The temperature sensor is not influenced by the heat of nearby components, so it is more accurate than previous analog sensors. This kit supports all Pixhawk and PX4 autopilot boards and has M3 / 6-32 mounting holes.
This unit is only for fixed-wing aircrafts using the Pixhawk PX4 autopilot system. It is not needed for multi-copters.
Features:
- Digital airspeed sensor
- Rubber tubing
- Pitot tube
- Four-wire I2C cable
Specification:
| Model | MS 4525DO |
|---|---|
| Measurement Range | 1psi, 100m/s (223mph/360kmh) |
| Resolution | 0.84Pa |
| Shipping Weight | 0.06 kg |
| Shipping Dimensions | 8 × 6 × 2 cm |

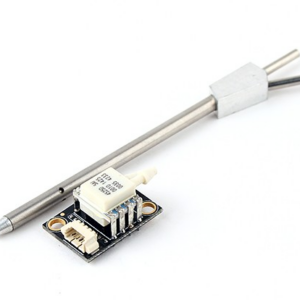

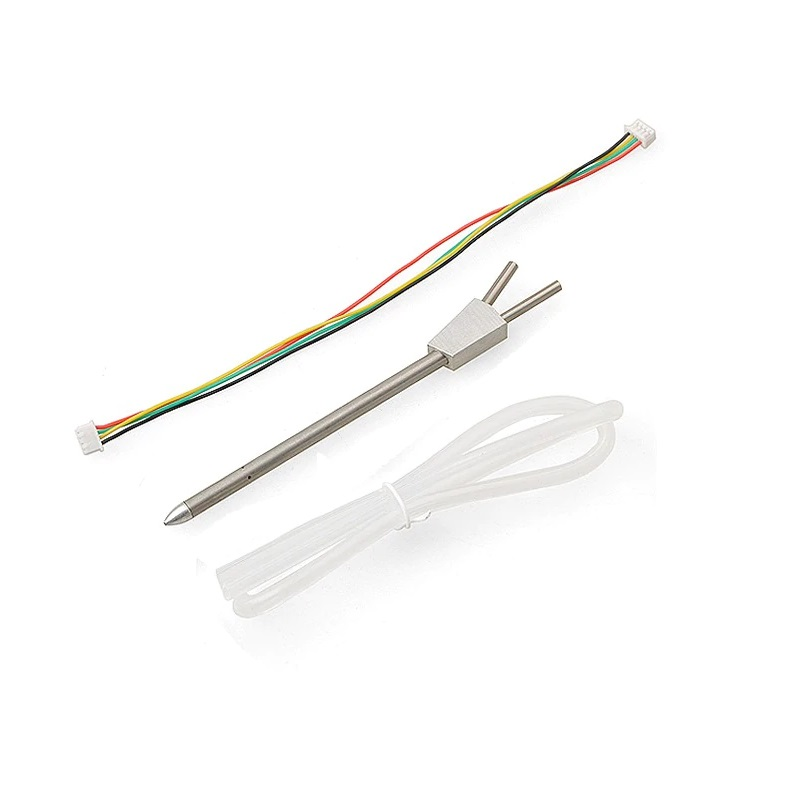

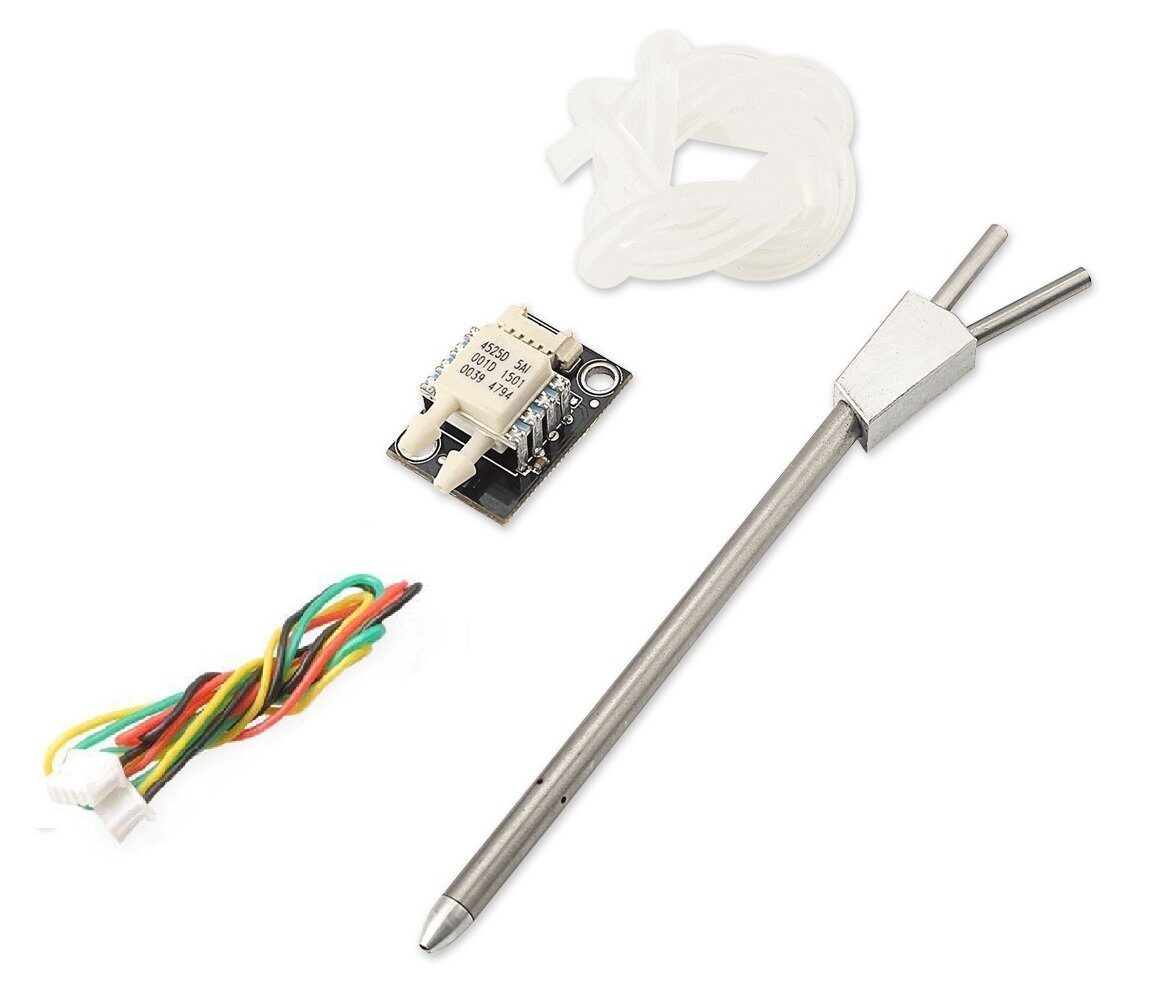

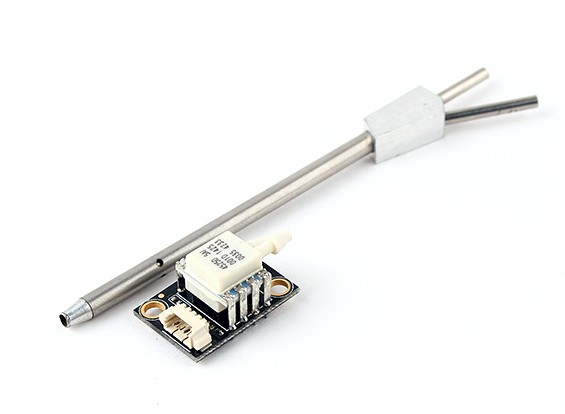

Package Includes:

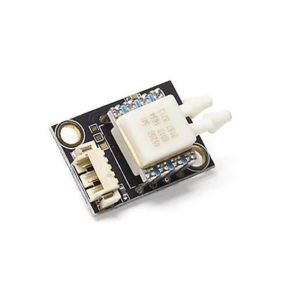

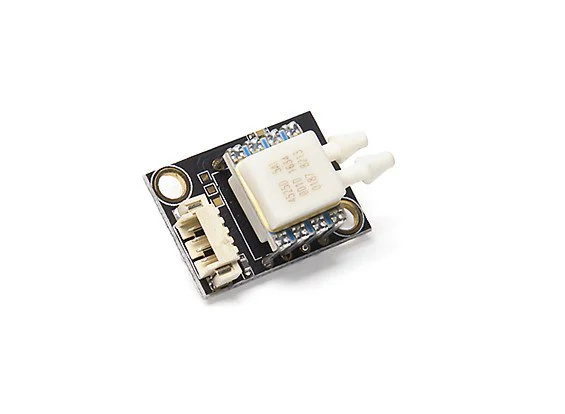

1 x MS 4525DO Air Speed Sensor Module
1 x Pitot Tube
A Silicone tube.

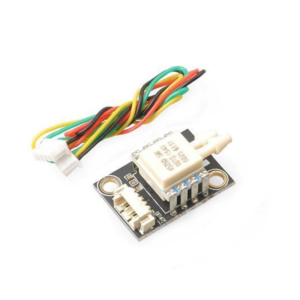

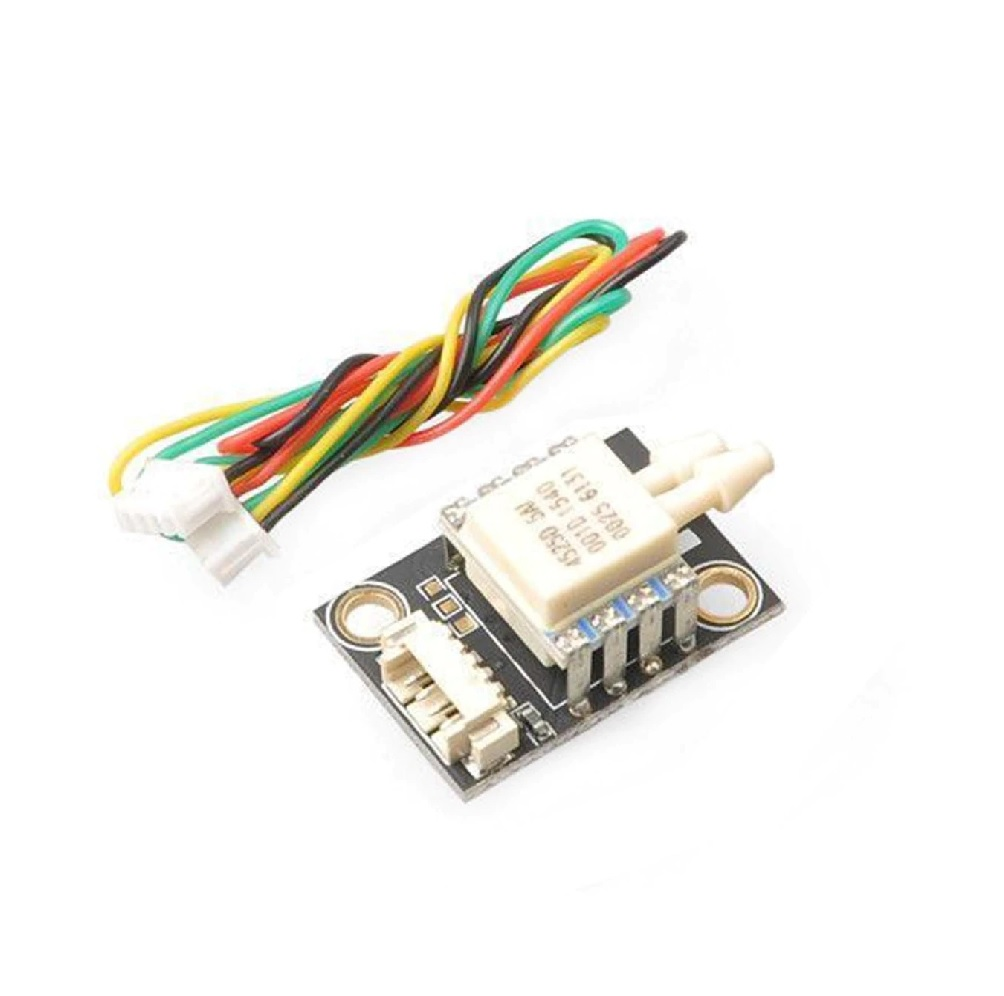

A 4 pin cable.
MS 4525DO Air Speed Sensor And Pitot Tube Set for Pixhawk Overview
The MS 4525DO Air Speed Sensor and Pitot Tube Set is a digital airspeed measurement solution designed specifically for Pixhawk PX4 autopilot systems. With its integrated pitot tube and high-resolution MS4525DO pressure sensor, it delivers accurate flight speed data up to 100 m/s for drone and UAV applications.
Key Features of MS 4525DO Air Speed Sensor And Pitot Tube Set for Pixhawk
- High-resolution, low-offset MS4525DO digital pressure sensor
- Measures airspeed from 0 to 100 m/s (223 mph/360 km/h) with 0.84 Pa resolution
- 24-bit delta-sigma ADC with 14-bit output for precise, low-noise readings
- Built-in temperature sensor ensures compensated and reliable measurements
- Includes pitot tube and tubing for direct mounting on Pixhawk airspeed port
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Fixed-wing drone airspeed monitoring for autonomous flight control
- Multirotor UAV speed feedback in PX4-based navigation loops
- Precision flight data logging and performance analysis
- High-speed drone racing telemetry and in-flight tuning
- Wind tunnel testing on scale aircraft models
How to Use MS 4525DO Air Speed Sensor And Pitot Tube Set for Pixhawk

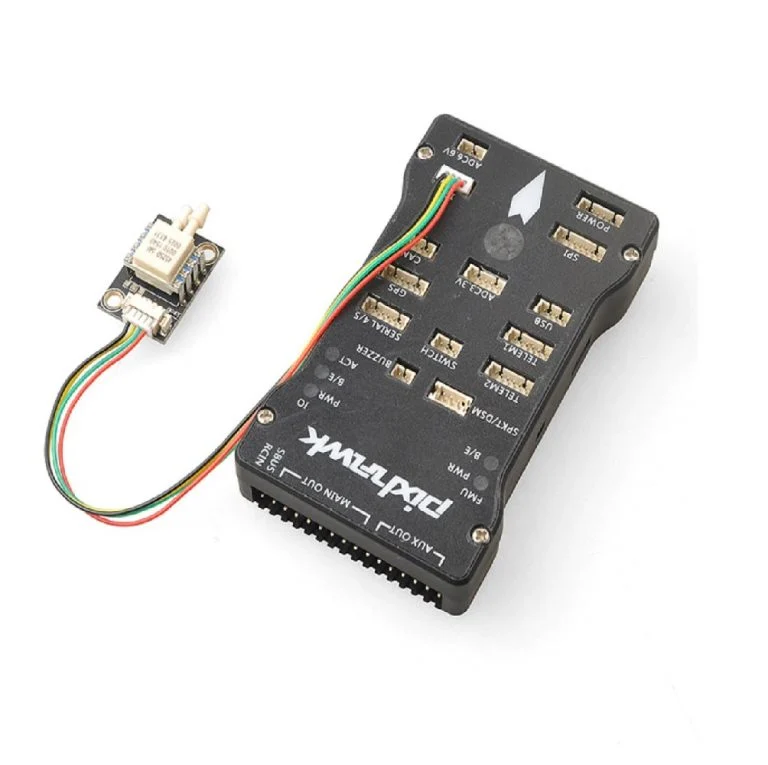

Mount the pitot tube at the nose of your airframe and connect the tubing directly to the MS4525DO sensor. Plug the sensor cable into the Pixhawk airspeed port, power up your autopilot, and configure the airspeed sensor parameters in QGroundControl or Mission Planner. Perform a zero-offset calibration on the ground before flight to ensure accurate readings.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the MS 4525DO sensor compatible with all Pixhawk models?
Yes. The MS 4525DO Air Speed Sensor interfaces with the standard Pixhawk PX4 airspeed port, making it compatible with Pixhawk 1, Pixhawk 2.4.8, Pixhawk 4 and other PX4-based autopilot variants.
What accessories are included in the pitot tube set?
The package includes the MS4525DO digital pressure sensor, a precision pitot tube assembly, silicone tubing, mounting screws and a Pixhawk-compatible cable for direct plug-and-play installation.
How do I calibrate the airspeed sensor?
After mounting and connecting the sensor, use QGroundControl or Mission Planner to run the airspeed calibration routine. With the drone stationary and the pitot tube unobstructed, follow the on-screen prompts to record zero-pressure offset and save the settings.
