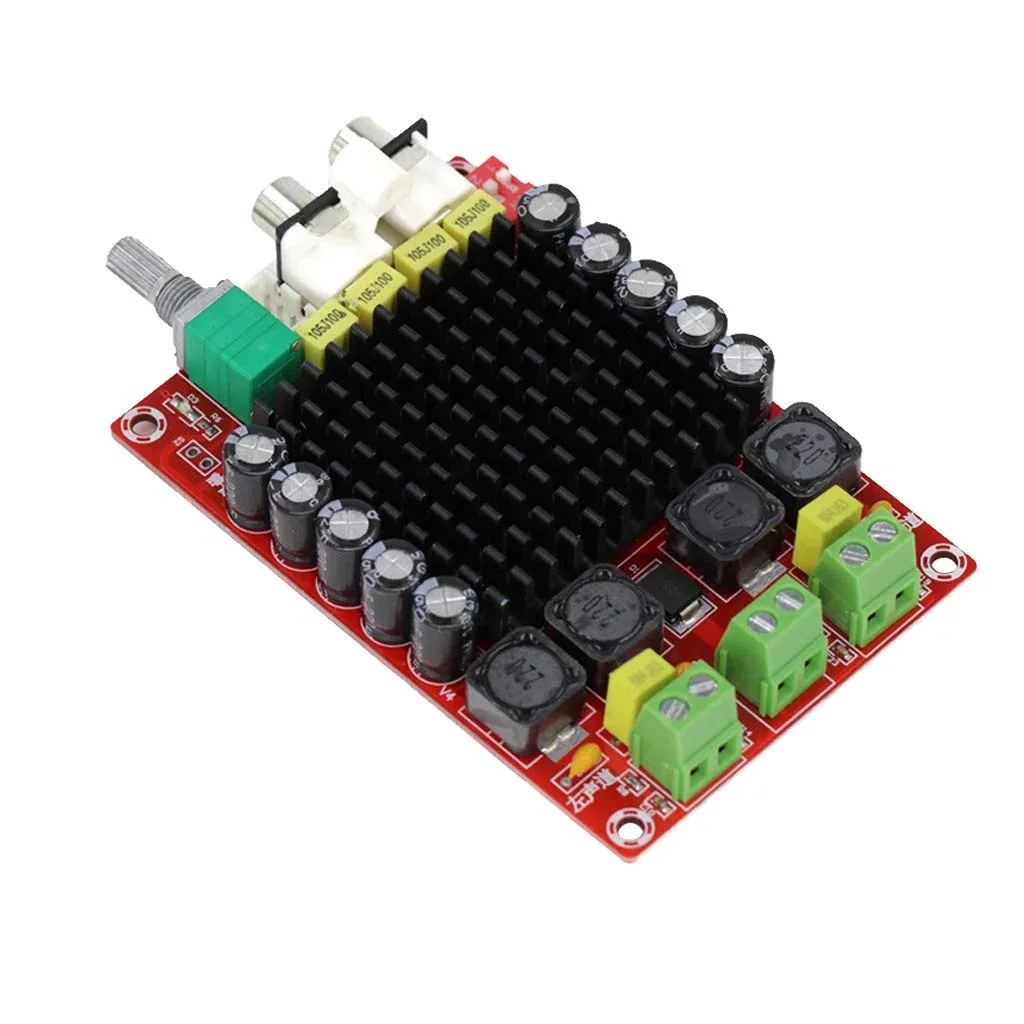

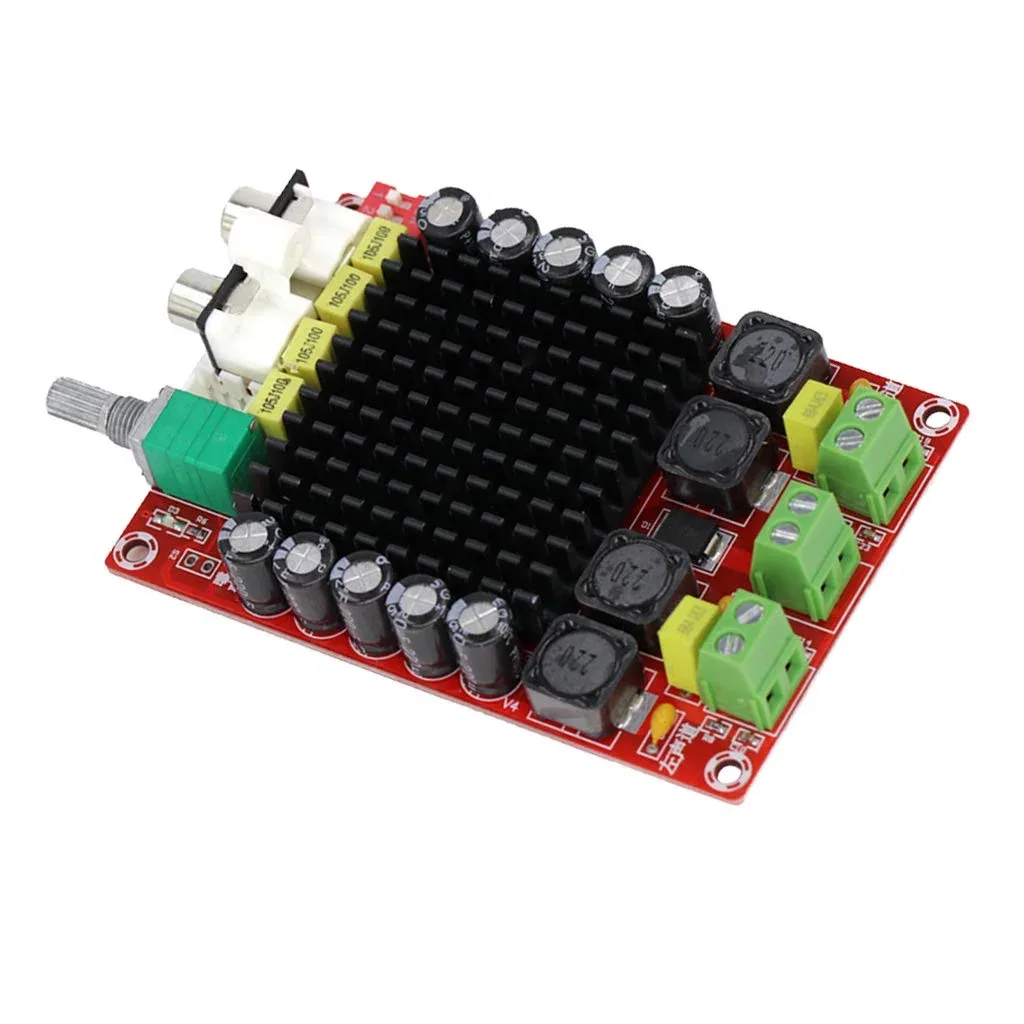

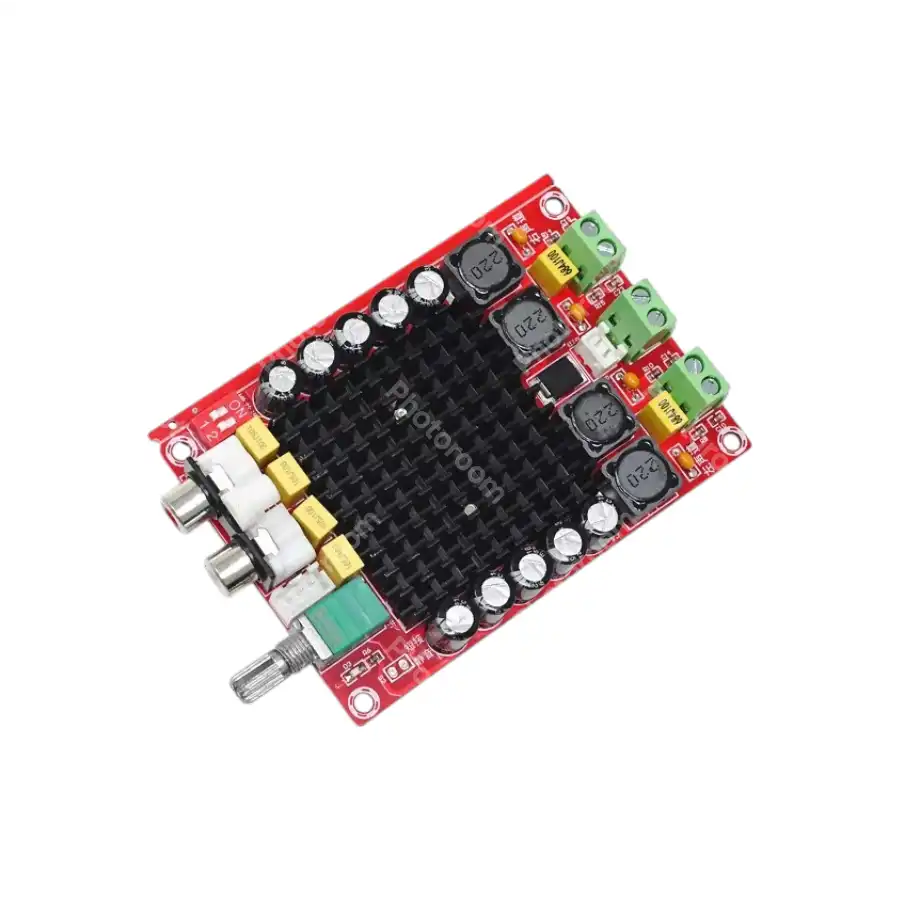

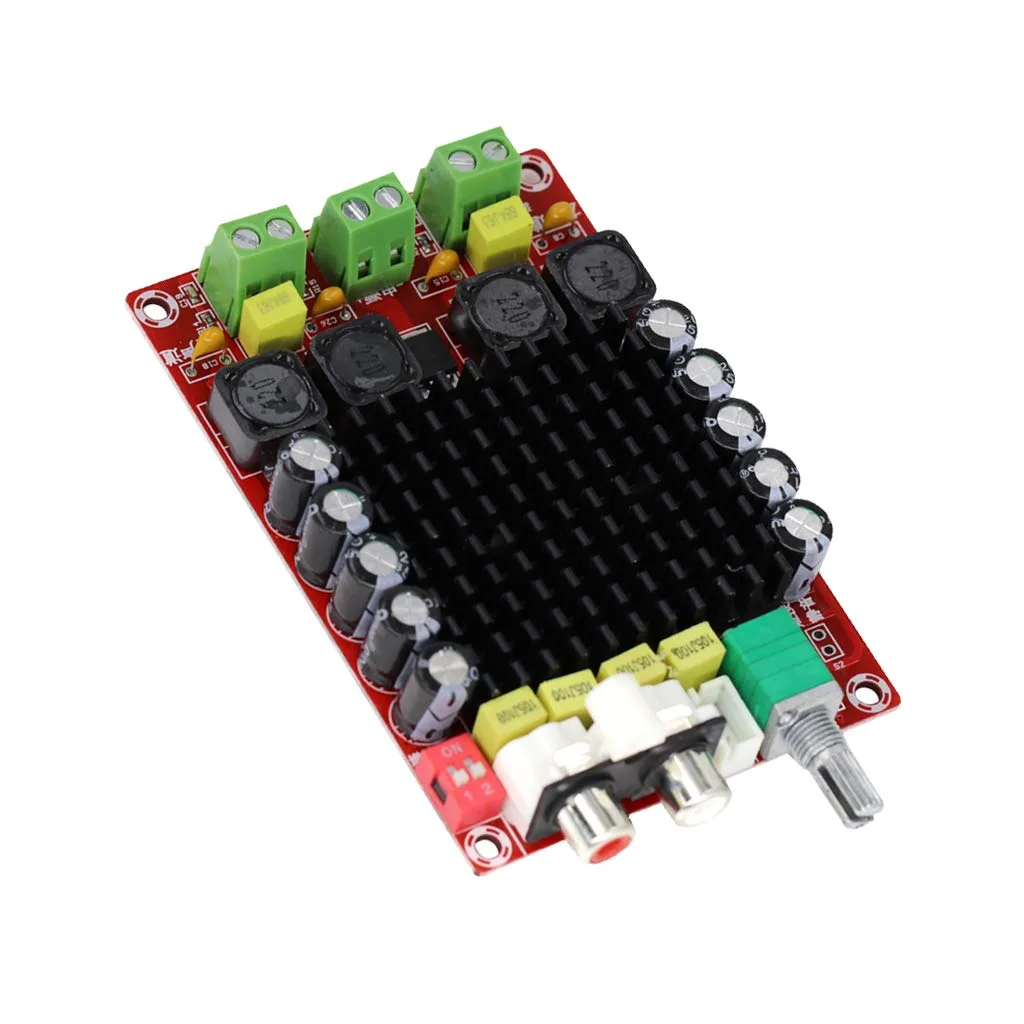

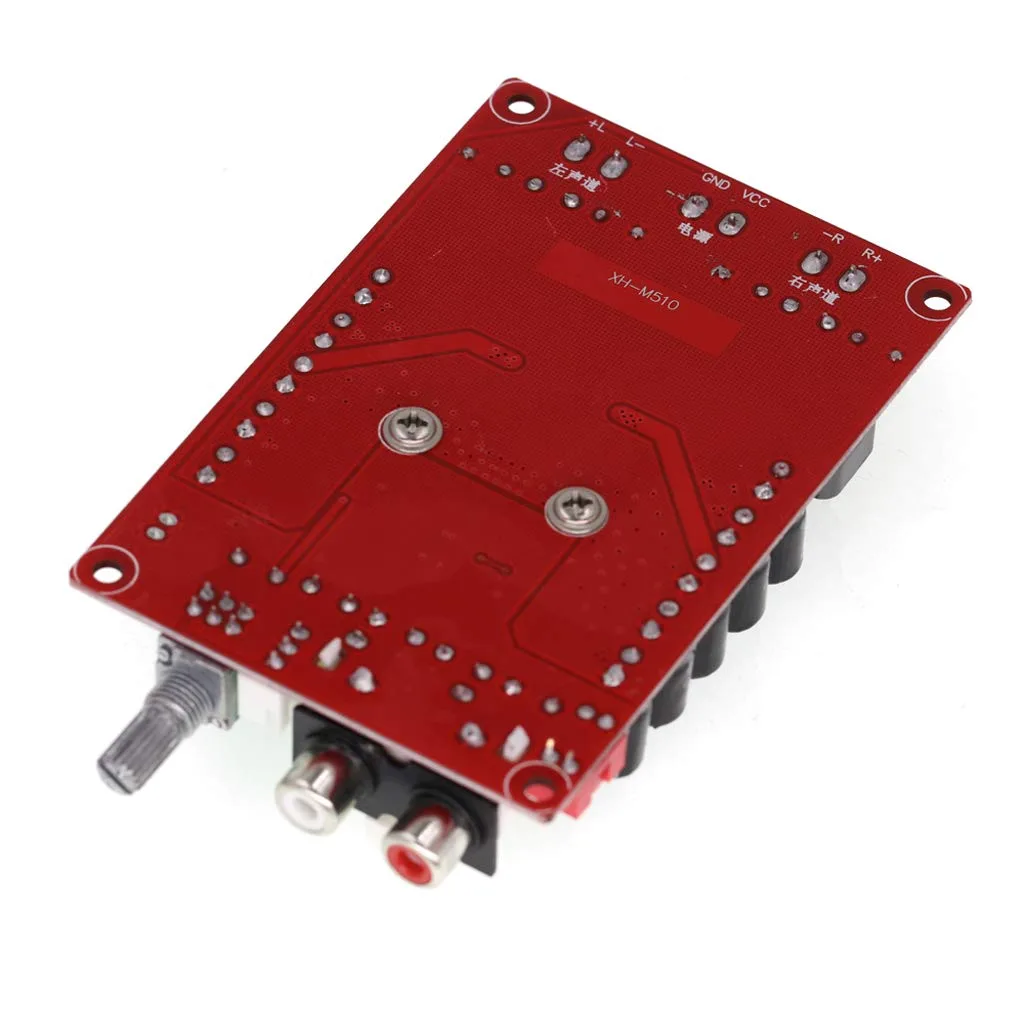

XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier Board
Enhance your DIY music system with the XH-M510 TDA7498 High Power Digital Class D Amplifier Board, delivering an impressive 200 watts of sound output for powerful, high-quality audio performance.
Packed with advanced features, this amplifier board offers exceptional versatility and reliability:
Wide Operating Voltage: Designed to operate within a DC 14-32V range, ensuring compatibility with various power sources for flexible integration.
High Power Output: Enjoy immersive, room-filling sound with a substantial 200-watt output, perfect for high-performance audio setups.
Gain Adjustment: Fine-tune your sound with four adjustable gain levels (21.6dB, 27.6dB, 31.1dB, 33.1dB), giving you precise control over the audio to match your speakers’ specifications.
Dual Stereo Channels: Delivers two stereo channel outputs, each capable of 100 watts, ensuring a balanced and rich auditory experience.
Differential Input: Minimizes common-mode noise for superior audio clarity, providing pristine sound quality.
Intelligent Protection: Equipped with overcurrent and overheat protection to safeguard both the amplifier and your speakers, ensuring safe and reliable operation.
Easy Setup: Enjoy hassle-free installation with Plug and Play functionality, making it perfect for building or upgrading a home audio system.
The XH-M510 TDA7498 Amplifier Boar is an ideal choice for anyone looking to create a high-performance, dependable audio system, offering top-tier performance, durability, and protection for all your sound projects.
Specification:
| Output power | 100W+100W |
|---|---|
| Output impedance | 4-8Ω |
| Amplifier Type | Class D |
| Harmonic Distortion | Po=1W/0.05% |
| Frequency Response Range | 18-100KHz |
| Switching Frequency | 360KHz |
| Signal to noise ratio | 110 dB |
| Length (mm): | 96 |
| Width (mm) | 70 |
| Height (mm) | 15 |
| Weight (gm) | 90 |
| Shipping Weight | 0.095 kg |
| Shipping Dimensions | 12 × 8 × 3 cm |
Package Include:
1 x XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier Board
XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier Overview
The XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier Board is a Class D audio amplifier module designed to boost low-level stereo signals into powerful output suitable for driving medium-to-large loudspeakers. Ideal for DIY audio projects, this board delivers up to 200 watts of high-fidelity sound across a wide voltage range.
Key Features of XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier
- Wide Operating Voltage: Supports DC 14–32 V input for compatibility with various battery or bench supplies
- High Power Output: Up to 200 W total audio power for clear, room-filling sound
- Class D Efficiency: Low heat dissipation and reduced power loss under load
- Built-In Protection: Intelligent overcurrent and overheating safeguards to prevent damage
- Compact PCB Design: Easy to integrate into custom speaker enclosures or portable rigs
- Fast Shipping from Zbotic: Dispatched within 24 hours across India
Applications and Use Cases
- DIY home audio systems and bookshelf speakers
- Active PA or public-announcement speaker builds
- Car or marine audio amplifier upgrades
- Portable Bluetooth or media player speaker projects (with external receiver)
- Guitar or keyboard practice amplifier modules
How to Use XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier
Connect a stable DC 14–32 V power supply to the board’s input terminals, observing correct polarity. Feed left/right RCA or AUX audio signals into the input jacks, secure speaker outputs to 4–8 Ω drivers, then switch on the power. Mount the board on a heatsink or inside a ventilated enclosure to ensure proper cooling during operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What speaker impedance does the XH-M510 support?
The amplifier board is optimized for 4 Ω to 8 Ω loudspeakers, delivering balanced performance and maximum power within this impedance range.
Do I need a heatsink for this amplifier board?
Yes. To maintain optimal thermal performance and protect the TDA7498 chip under high load, mount the PCB onto a suitable heatsink or ensure adequate ventilation in your enclosure.
Can I connect Bluetooth directly to the amplifier?
This board has analog audio inputs only. To add Bluetooth, use an external Bluetooth receiver module connected to the board’s L/R inputs.
