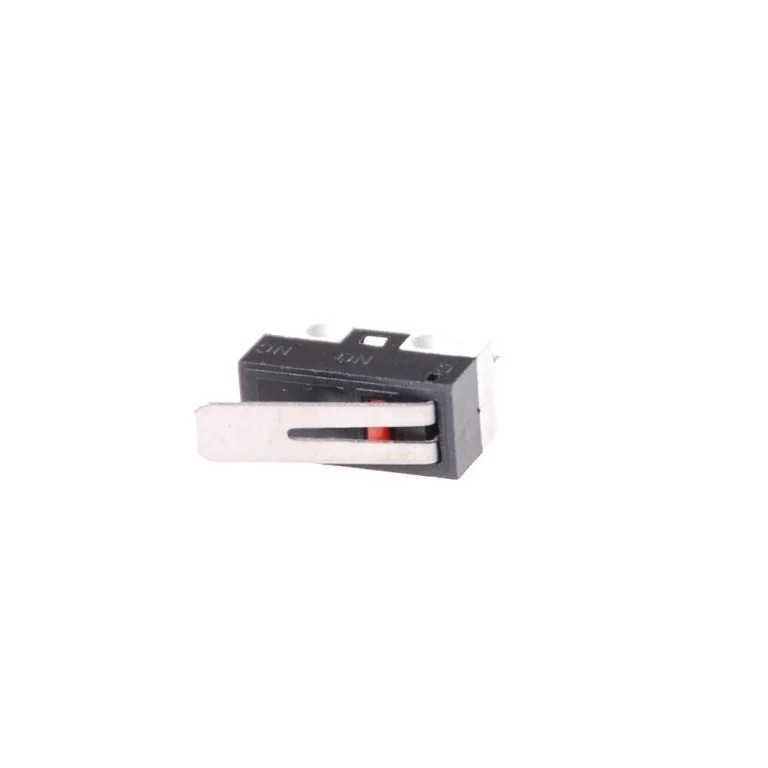

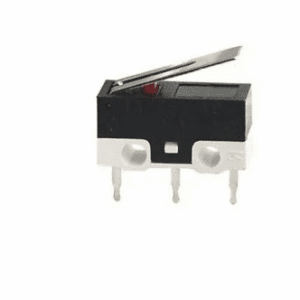

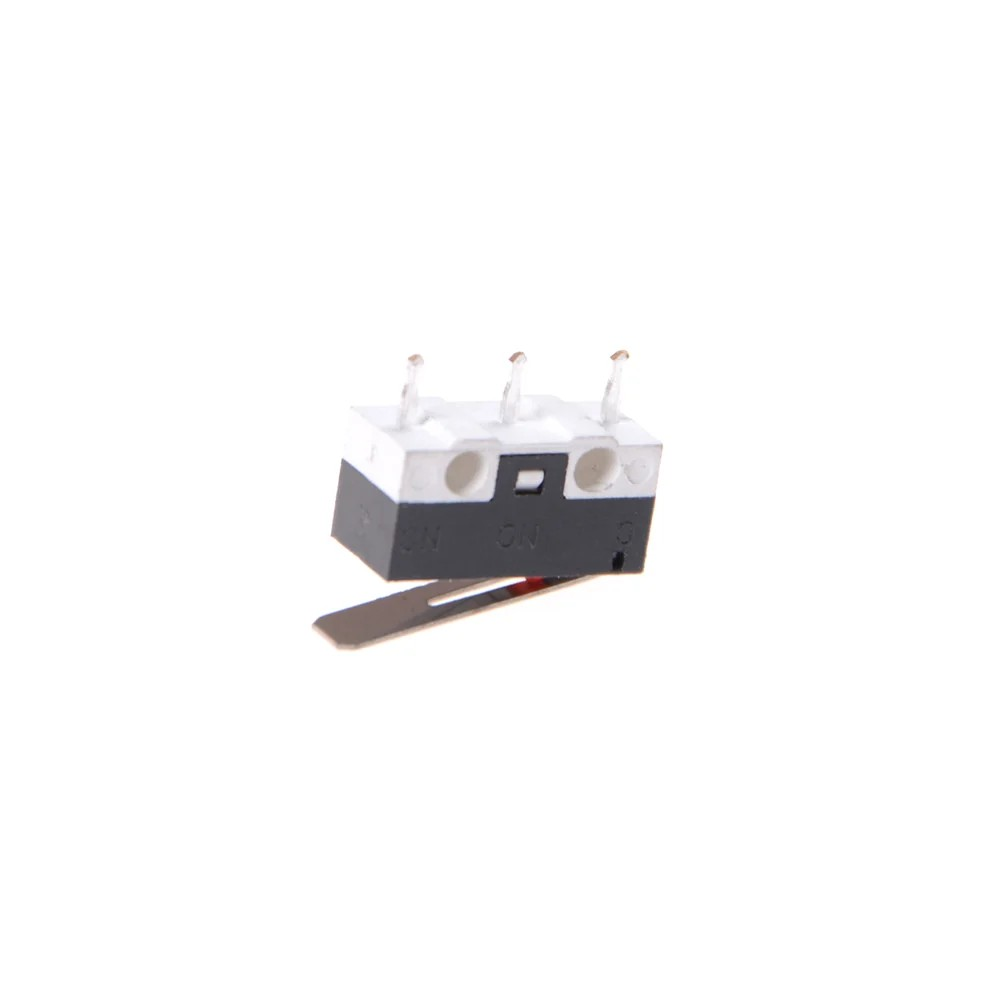

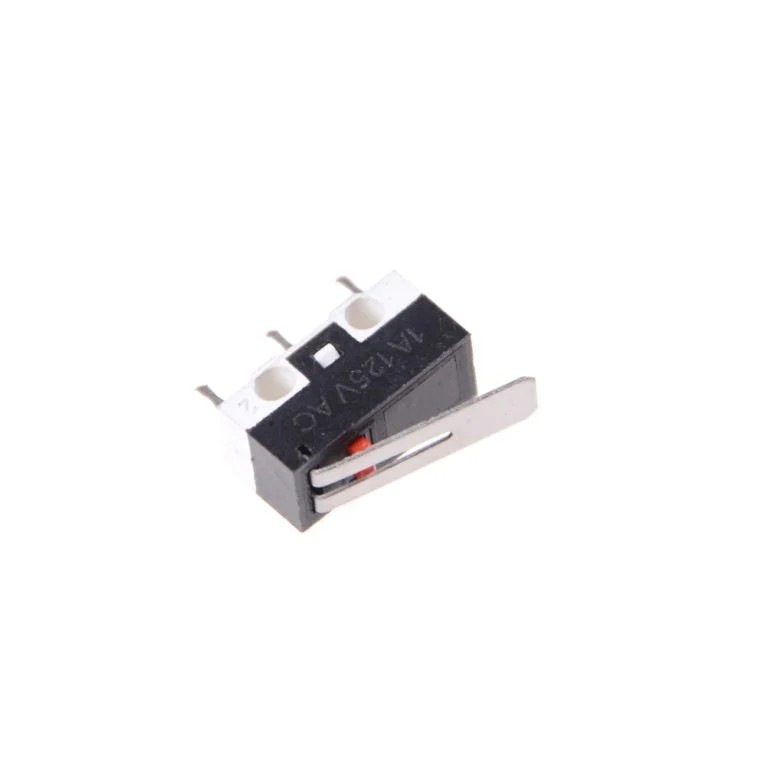

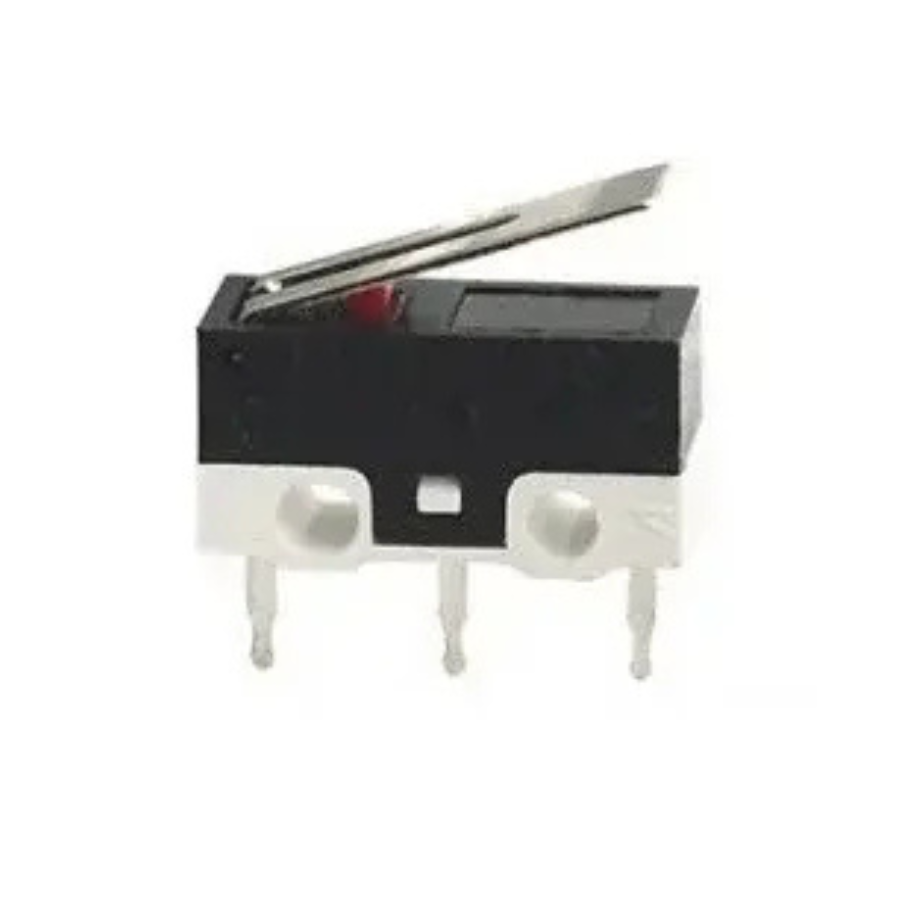

Introducing the Microswitch KW10-Z1P Limit Switch, a reliable and versatile component suitable for various applications. Designed with a single contact group and a visible lever for easy identification, this limit switch is commonly used as an end limit switch in household appliances and amateur radio devices. With a maximum switching voltage of 125V and a current capacity of 1A, it delivers dependable performance. The switch features normally open (NO), normally closed (NC), and common (COM) configurations, providing flexibility for different circuit needs. Enjoy seamless operation and precise control with the Microswitch KW10-Z1P, perfect for a wide range of industrial and DIY projects.
Features:
- Reliable Performance: Engineered for consistent and dependable operation, ensuring reliability in various applications.
- Versatile Applications: Suitable for a wide range of uses, including as an end limit switch in domestic appliances and amateur radio devices, as well as in industrial and DIY projects.
- Single Contact Group: Simplifies switching with a single contact group, enhancing efficiency and ease of use.
- Visible Lever: Equipped with a visible lever for easy identification and manipulation, facilitating seamless integration into systems.
- Maximum Switching Voltage: Capable of handling a maximum switching voltage of 125V, enabling compatibility with diverse electrical setups.
- Maximum Switching Current: Supports a maximum switching current of 1A, ensuring robust performance even in demanding environments.
- Flexible Configurations: Offers contacts for normally open (NO), normally closed (NC), and common (COM) configurations, providing flexibility to accommodate various circuit requirements.
- Seamless Operation: Experience smooth and precise control, ensuring seamless operation in different applications.
- Durable Construction: Built to withstand rigorous use, with durable materials ensuring longevity and reliability in challenging environments.
- Compact Design: Features a compact design for easy installation and integration into existing systems or projects.
specification-
| Voltage(V) | 125V AC |
|---|---|
| Operating Current (A) | 1A |
| Contact Resistance | 30mΩ |
| Insulation Resistance (MΩ) | 100 |
| Dielectric Strength | 1000VAC 1Minute |
| Protection Standard | IP40 |
| Mech. & Electrical Lifecycle | ≈ 30,000 |

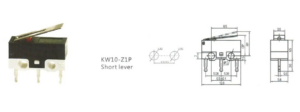

| Length (mm): | 12.9 |
| Width (mm) | 6 |
| Height (mm) | 6.5 |
| Weight (gm) | 1 (approx) (each) |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 3 × 2 × 1 cm |
Package IncludesÂ
- 2 x Microswitch KW10-Z1P Limit Switch 1A 125V AC
